For steel plant engineers, port operators, and shipyard managers, maintaining precise crane track geometry is the backbone of safe operations. When massive dynamic loads travel down a runway, the fastening components must absorb severe lateral forces without failing. While welded systems are common, bolted rail alignment clips offer a highly versatile and reliable solution for many modern structural designs. In this technical guide, we will break down how bolted rail alignment clips function, compare them to welded alternatives, and highlight top-tier XINGRAIL systems designed to keep your operations on track.

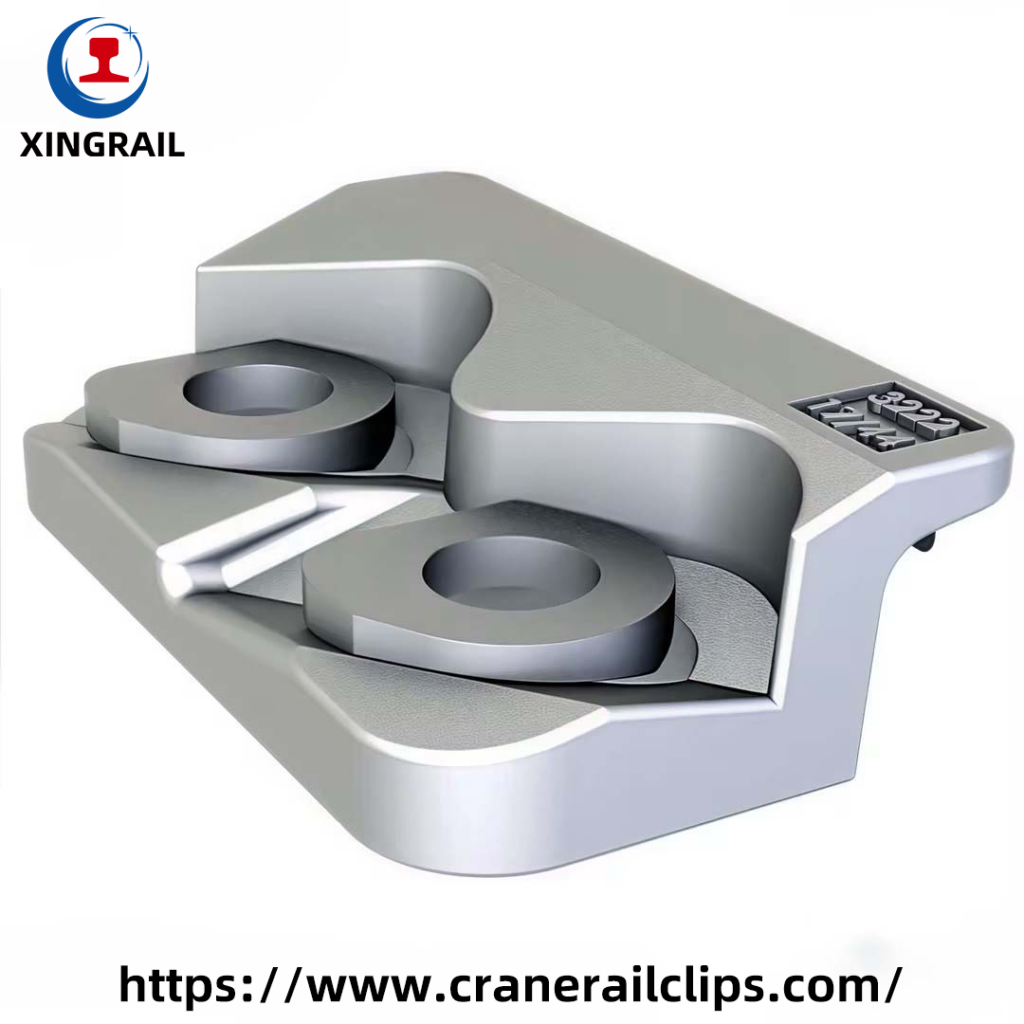

What Are Bolted Rail Alignment Clips?
At their core, bolted rail alignment clips are mechanical fasteners engineered to secure crane rails to concrete plinths or pre-drilled steel runway beams. Unlike weld-on counterparts, these Bolt-on Crane Rail Clips rely entirely on high-strength bolts or embedded anchors for their holding power.
A high-quality Bolted Rail Fastening System typically features a Flexible Bolted Rail Fixing design. This means the clip incorporates a vulcanized synthetic rubber nose that rests against the rail flange. This flexible tip absorbs vibration, accommodates minor rail deflections, and prevents fatigue in the underlying structure. Crucially, they function as Adjustable Bolted Rail Clips, utilizing a cam or slotted design that allows engineers to make precise lateral micro-adjustments during installation, ensuring perfect track gauge.
Welded vs. Bolted Crane Rail Clips
When specifying crane rail installation clips, engineers must choose between bolted and welded connections based on the substrate and anticipated load cycles.
Bolted Rail Fixing Clips: Ideal for installations on concrete beams or steel girders where welding is impractical or prohibited. Bolted rail alignment clips allow for easier retrofitting and replacement. They are the preferred overhead crane rail clips for indoor manufacturing and medium-duty applications.
Welded Rail Fixing Clips: For environments facing extreme lateral shear forces—such as ports needing heavy-duty gantry crane rail clips—welding the lower base directly to the steel girder provides maximum resistance against rail walk.
Both styles act as robust crane runway beam rail clips, but boltable rail fasteners provide unmatched convenience for ongoing maintenance and gauge corrections.
Recommended XINGRAIL Crane Rail Clips
Sourcing premium forged steel crane rail clips is essential for long-term runway integrity. XINGRAIL engineers robust crane rail alignment clips that meet the rigorous demands of heavy industry.
Bolted Solutions
For setups requiring bolted rail alignment clips, XINGRAIL offers exceptional stability:
31 Series Bolted Rail Fixing Clips: Highly dependable models perfectly suited for standard industrial environments. Key models include the XINGRAIL 3116/13/36 and XINGRAIL 3120/17/38.
32 Series Bolted Rail Fixing Clips: Designed for higher capacities and tougher tolerances, featuring the XINGRAIL 3224/20/44, XINGRAIL 3222/17/44, and XINGRAIL 3220/17/38.
Welded Solutions
If your structural design requires maximum lateral load limits, XINGRAIL’s welded heavy duty crane rail clips are the industry standard:
9 Series Welded Rail Fixing Clips: Includes extreme-duty models like the XINGRAIL 9220/20/45, XINGRAIL 9216/08/40, XINGRAIL 9120/15/38, and XINGRAIL 9116/08/3.
7 Series Welded Rail Fixing Clips: Highlighted by the versatile XINGRAIL 7216/20/39.
International Rail Compatibility
XINGRAIL crane rail fastening clips are universally adaptable. Whether you are laying a new track or upgrading an existing runway, these crane rail clips seamlessly fit a wide variety of global profiles, including:
DIN536 crane rails
AREA crane rails
BS railway tracks
China standard rails
Indian standard rails
GOST rails
SABS rails
Australian standard rails
Technical Comparison Table
|
Model |
Mounting Style |
Best Use Case |
Typical Application |
|
XINGRAIL 3116/13/36 |
Bolted |
Medium-duty loads |
Standard overhead cranes |
|
XINGRAIL 3224/20/44 |
Bolted |
Moderate lateral forces |
Indoor manufacturing |
|
XINGRAIL 9220/20/45 |
Welded |
Extreme lateral forces |
Port STS cranes, shipyards |
|
XINGRAIL 7216/20/39 |
Welded |
High-impact, high-cycle |
Steel mills, heavy gantry |
Key Industrial Applications
Reliable bolted rail alignment clips are utilized across several demanding sectors where track precision is non-negotiable.
Manufacturing & Warehousing: For standard bridge cranes, bolted crane rail clips ensure smooth trolley travel and minimize flange wear on wheels.
Steel Plants: Facilities operating overhead ladle cranes frequently use bolted rail alignment clips on concrete plinths where welding isn’t an option.
Automated Storage Systems: High-bay warehouses rely heavily on tight-tolerance crane rail support clips to keep automated retrieval machines perfectly aligned.
FAQ
Q: Can bolted rail alignment clips handle the same loads as welded clips?
A: While highly durable, bolted rail alignment clips generally handle lower maximum lateral forces than welded clips. However, they are more than sufficient for most indoor overhead cranes and instances where the foundation is concrete.
Q: How do you adjust the gauge with these clips?
A: Bolted rail alignment clips typically feature a slotted hole or an eccentric cam mechanism. Before applying final torque to the bolt, the clip can be slid or rotated slightly toward the rail flange to lock in the exact required gauge.
Q: Do I need a rubber pad under the rail?
A: Yes. Using a continuous rubber pad in conjunction with crane runway rail clips evenly distributes wheel loads and significantly reduces stress on both the rail and the underlying beam.
Securing your tracks with high-quality crane rail fixing clips is the most effective way to ensure crane runway safety, strict alignment, and long-term structural durability. By utilizing correctly specified bolted rail alignment clips from XINGRAIL, procurement managers and engineers can prevent catastrophic track failure, reduce maintenance downtime, and keep their industrial facilities operating at peak efficiency.
