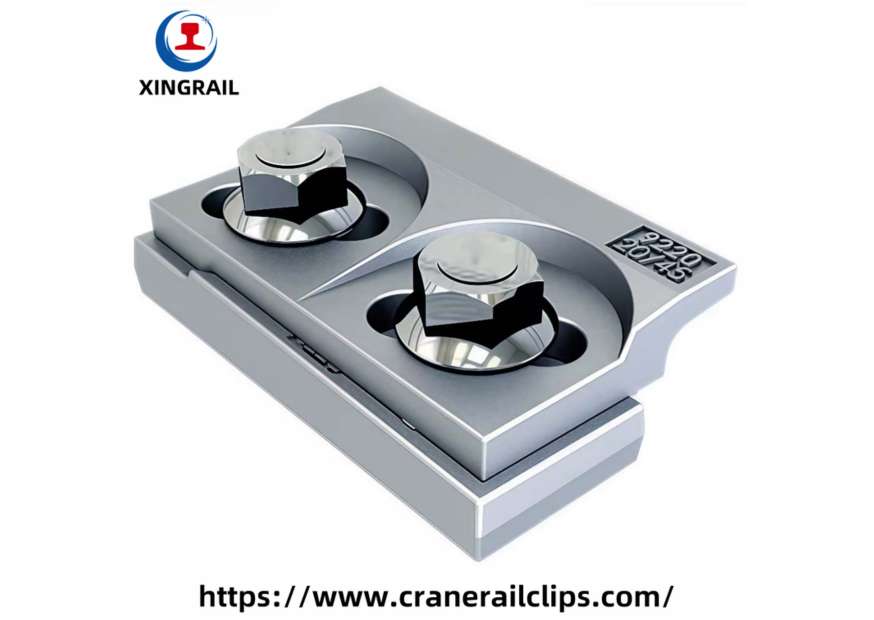

Comprehensive Guide to Welded & Bolted Crane Rail Clips

Choosing the right components for your crane runway system is important for safety, efficiency, and longevity. Heavy industrial operations rely on robust systems to support massive loads. Engineers, procurement managers, and port operators understand that every detail matters. Whether you require standard welded models or comprehensive bolted rail anchoring solutions, the right fastening system prevents costly downtime.

This guide explores the necessary components of crane rail fastening. We will cover the specific features of various crane rail clips, compare welded designs with bolted rail anchoring solutions, and highlight top-tier XINGRAIL products built for demanding environments.

What Are Welded Crane Rail Clips?

Welded crane rail clips are specialized mechanical fasteners designed to secure crane rails to their underlying steel support structures. They consist of a weldable base component and a top clip that holds the rail firmly in place with a bolt and a vulcanized rubber nose.

These crane rail fixing clips are important components of crane runway systems. By providing a secure, adjustable connection, they absorb the immense lateral forces generated by moving cranes. Unlike rigid fastening methods, modern crane rail fastening clips allow for slight lateral adjustments during installation while accommodating the natural expansion and contraction of the steel track.

Common Challenges in Crane Rail Installation

Crane installation contractors and steel plant engineers face several hurdles when setting up and maintaining runway systems. These challenges can quickly lead to operational failures if you do not address them properly.

• Rail Misalignment: Even minor deviations can cause severe wheel wear and structural damage.
• Vibration and Impact Loads: Moving cranes generate intense vibrations that loosen standard fasteners.
• Structural Fatigue: Continuous heavy loads lead to metal fatigue in the supporting beams over time.
• Rail Movement: Thermal expansion and lateral forces cause rails to shift out of gauge.
• Maintenance Difficulties: Hard-to-reach tracks make frequent adjustments expensive and dangerous.

High-quality crane rail support clips solve these issues. By using advanced forged steel crane rail clips, engineers can ensure that tracks remain properly aligned. The vulcanized rubber noses on these clips absorb vibrations.

Welded vs Bolted Crane Rail Clips

When designing a runway, you must choose between weldable clips and bolted crane rail clips. Both methods offer unique advantages depending on your project requirements.

Welded rail fixing clips feature a base plate that you weld directly to the steel girder. This creates an incredibly strong, permanent bond. Engineers prefer welded clips for heavy-duty applications where lateral forces are extreme, as they completely eliminate the risk of the base shifting.

Conversely, bolted rail anchoring solutions rely on bolts passing through the runway beam or concrete foundation. Bolted Rail Fixing Clips are ideal when welding is impractical, prohibited due to safety regulations, or when you attach the rail to concrete rather than steel. Bolted rail anchoring solutions also offer easier replacement and adjustment. Facilities that require frequent track modifications often lean toward bolted rail anchoring solutions to simplify maintenance tasks. Regardless of the method.

Recommended XINGRAIL Crane Rail Clips

To ensure maximum safety and performance, we recommend the XINGRAIL product series. XINGRAIL provides an extensive range of welded and bolted rail anchoring solutions tailored for global industrial applications.

The Welded Rail Fixing Clips include the reliable 9 Series Welded Rail Fixing Clips and the robust 7 Series Welded Rail Fixing Clips. For projects requiring bolted rail anchoring solutions, the 31 Series Bolted Rail Fixing Clips and 32 Series Bolted Rail Fixing Clips deliver exceptional holding power.

Technical Comparison of Top XINGRAIL Models

Model	Base Material	Surface Treatment	Lateral Force Resistance	Horizontal Adjustment	Applications	Special Features
XINGRAIL 3116/13/36	Forged Steel	Galvanized	75 kN	15 mm	Light/Medium Duty	Low profile design
XINGRAIL 3224/20/44	Forged Steel	Zinc Plated	120 kN	20 mm	Heavy Duty Ports	Excellent shock absorption
XINGRAIL 3120/17/38	Cast Steel	Anti-corrosion Paint	90 kN	15 mm	Steel Mills	High thermal tolerance
XINGRAIL 3222/17/44	Forged Steel	Galvanized	110 kN	18 mm	Shipyards	Easy maintenance access
XINGRAIL 3220/17/38	Forged Steel	Zinc Plated	100 kN	15 mm	Automated Warehouses	Precision alignment
XINGRAIL 9220/20/45	Forged Steel	Bare / Oiled	150 kN	20 mm	Heavy Manufacturing	Extreme load capacity
XINGRAIL 9216/08/40	Cast Steel	Galvanized	130 kN	15 mm	Mining Facilities	Dirt and dust resistant
XINGRAIL 9120/15/38	Forged Steel	Anti-corrosion Paint	140 kN	18 mm	Overhead Cranes	Self-locking mechanism
XINGRAIL 9116/08/3	Forged Steel	Galvanized	115 kN	12 mm	Gantry Cranes	Compact installation footprint
XINGRAIL 7216/20/39	Cast Steel	Zinc Plated	125 kN	20 mm	General Industry	Versatile track compatibility

These models represent the pinnacle of crane rail fastening technology.

Compatible Crane Rails and Track Standards

A fastening system is only effective if it matches the rail perfectly. XINGRAIL crane rail installation clips feature versatile designs that accommodate a wide variety of global track standards.

Whether you are using DIN536 crane rails in a European port or AREA crane rails in a North American facility, you can find compatible bolted rail anchoring solutions. XINGRAIL products seamlessly integrate with:

• DIN536 crane rails
• AREA crane rails
• BS railway tracks
• China standard rails
• Indian standard rails
• GOST rails
• SABS rails
• Australian standard rails

This broad compatibility ensures that procurement managers can standardize their bolted rail anchoring solutions across multinational operations.

Typical Applications of Welded Crane Rail Clips

Heavy duty crane rail clips operate in some of the most demanding environments on earth. Different industries require specific capabilities from their track fastening systems.

• Container Ports: Massive ship-to-shore cranes rely on heavy duty welded crane rail clips to handle continuous, round-the-clock loading cycles.
• Shipyards: Gantry crane rail clips must withstand corrosive saltwater environments and extreme weight.
• Steel Mills: Overhead crane rail clips endure intense heat and heavy, dynamic loads from molten metal transport.
• Automated Warehouses: Precision crane rail alignment clips ensure automated retrieval systems operate smoothly without jamming.
• Mining Facilities: Rugged bolted rail anchoring solutions provide stability in dusty, high-vibration mining operations.
• Heavy Manufacturing Plants: Crane runway beam rail clips support the assembly of large machinery and aerospace components.

In these environments, failure is not an option. Robust bolted rail anchoring solutions and welded clips ensure operations remain productive and safe.

Installation Best Practices for Crane Rail Clips

Proper installation is the key to the long term success of your crane runway system. Following best practices ensures maximum durability.

Welding Procedures: When installing weld on crane rail clips, always clean the steel girder to remove rust, oil, and debris. Use the appropriate welding electrodes to ensure a deep, structurally sound penetration between the clip base and the beam.

Bolting Methods: For bolted rail anchoring solutions, ensure perfectly aligned drill holes. Use high-strength bolts and heavy-duty washers to distribute the load evenly.

Tightening Torque: Always adhere strictly to the manufacturer’s tightening torque recommendations. Over-tightening can strip threads, while under-tightening leads to dangerous track vibration.

Rail Alignment: Utilize proper crane rail alignment clips during the layout phase to secure the track strictly within the specified gauge tolerances before final tightening or welding.

Inspection: Conduct regular visual inspections to check for loose bolts, cracked welds, or degraded rubber noses. Preventive maintenance extends the lifespan of both the clips and the rail.

Why Forged Crane Rail Clips Improve Durability

Upgrading to forged steel crane rail clips provides a massive boost to runway longevity. The forging process aligns the grain structure of the steel to match the shape of the clip.

Forged clips offer significantly higher strength compared to standard cast alternatives. They possess excellent fatigue resistance, meaning they can endure millions of stress cycles without cracking. Furthermore, the inherent density of forged steel enhances vibration absorption. By investing in forged bolted rail anchoring solutions, facilities dramatically extend their service life and reduce maintenance costs.

Heavy Duty Welded Crane Rail Clips for Gantry Cranes

Gantry cranes and massive container cranes exert colossal downward and lateral forces. Crane welded rail clips are engineered specifically to counteract these loads. The two-part design of these heavy-duty clips secures the rail tightly to the ground while allowing the rubber pad to absorb the crushing impact of the steel wheels. This dynamic flexibility prevents the track from buckling under the massive weight of fully loaded shipping containers.

How to Install Welded Crane Rail Clips on Crane Runway Beams

Installing welded clips on a runway beam requires a methodical approach.

1. Preparation: Clean the top flange of the crane runway beam. Ensure it is perfectly level.
2. Positioning: Lay the continuous rubber pad down the center of the beam. Place the rail on top of the pad.
3. Alignment: Use temporary bracing to achieve perfect track alignment according to engineering drawings.
4. Base Welding: Position the lower weldable bases of the clips snugly against the rail flange. Weld them securely to the beam parallel to the rail.
5. Assembly: Slide the upper clip over the welded base. Insert the high-strength bolt.
6. Final Adjustment: Use the horizontal adjustment feature to fine-tune the rail position.
7. Torque: Tighten the bolts to the exact specified torque to lock the rail into place.

For bolted rail anchoring solutions, you bypass the welding step, instead drilling into the beam and securing the base with heavy-duty bolts.

Best Welded Crane Rail Clips for DIN536 Crane Rails

The DIN536 standard is widely used globally. It features a wide base and low profile. XINGRAIL provides excellent solutions perfectly matched to DIN536 sizes.

Whether you are securing A45, A55, or A65 rails for lighter operations, or heavy-duty A75, A100, A120, and A150 rails for major ports, XINGRAIL models like the 9220/20/45 are designed to match the precise flange angle of the DIN536 profile. This ensures maximum surface contact and superior lateral hold.

FAQs

What are welded crane rail clips used for?
They secure heavy rails to steel runway beams, absorbing lateral forces and vibrations caused by moving cranes.

What is the difference between welded and bolted crane rail clips?
Welded clips have a base permanently welded to the steel support. Bolted rail anchoring solutions use bolts to secure the base to steel or concrete.

How strong are welded crane rail clips?
They are exceptionally strong. High-quality forged clips can resist lateral forces ranging from 75 kN up to 150 kN per clip.

Are welded crane rail clips suitable for DIN536 crane rails?
Yes. Modern clips are engineered with specific geometries to perfectly fit the wide base of DIN536 rails.

How many crane rail clips are required per meter of rail?
Typically, engineers recommend installing clips every 500mm to 600mm along both sides of the rail. Always consult structural engineering guidelines.
