Welded Crane Rail Clips: Engineering Guide & Installation

Securing heavy-duty crane tracks requires robust and precise engineering. For engineers, procurement managers, and port operators, selecting the right fastening components dictates the safety and lifespan of the entire crane runway. Among the most critical components in this setup are bridge crane rail clips, which lock the rails in place while absorbing immense operational stresses.

This guide explores everything you need to know about welded crane rail clips, typical installation challenges, and how top-tier crane rail fastening systems maintain alignment under extreme loads.

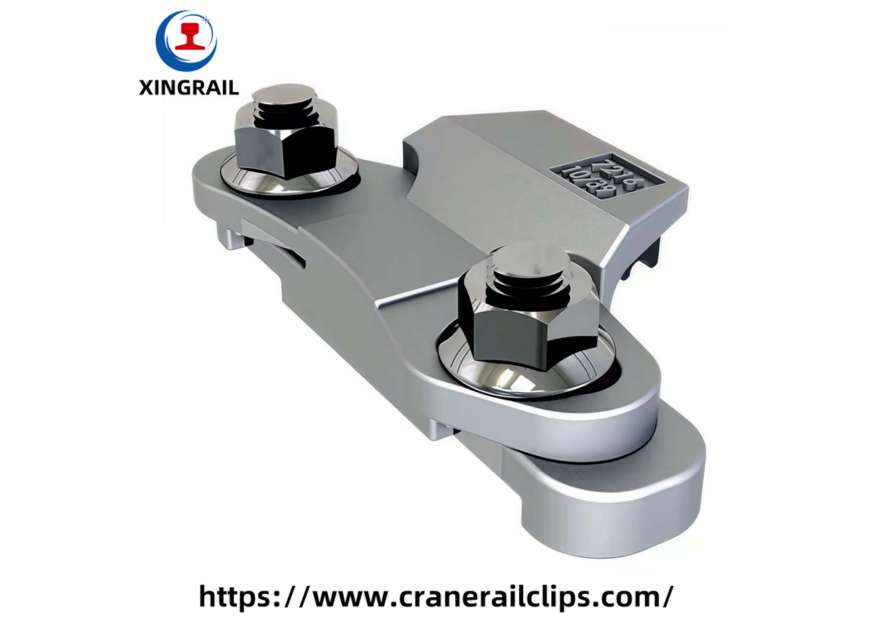

What Are Welded Crane Rail Clips?

Welded crane rail clips are specialized fastening devices designed to secure crane rails to the underlying steel runway beams. Unlike temporary or light-duty fasteners, these clips consist of a weldable base forged from high-strength steel, an upper clamping component, a captive bolt, and a vulcanized rubber nose or pad.

When installed, the base is permanently welded to the steel support. The upper clip then fastens over the rail flange, tightened down by the bolt. The rubber component absorbs vibration and allows for slight, controlled movement to prevent structural fatigue. Because they offer high lateral load resistance and lateral adjustment capabilities, these units are the preferred bridge crane rail clips for demanding industrial environments.

Common Challenges in Crane Rail Installation

Proper rail clip installation for cranes prevents catastrophic system failures. Engineers and crane installation contractors frequently face several operational challenges:

• Rail Misalignment: Over time, immense lateral forces push rails out of their intended gauge. This leads to excessive wheel wear and crane derailment risks.
• Vibration and Impact Loads: Heavy lifting operations send shockwaves down the runway. Without proper dampening, these vibrations destroy rigid fasteners.
• Structural Fatigue: Constant dynamic loads weaken both the rail and the supporting beam.
• Rail Movement: Thermal expansion and crane braking forces cause the rail to shift longitudinally.
• Maintenance Difficulties: Hard-to-reach runway beams make frequent fastener replacement dangerous and expensive.

High-quality bridge crane rail clips solve these problems. The vulcanized rubber nose dampens vibrations, while the secure welded base eliminates the risk of clips loosening over time, directly extending the maintenance lifecycle of the runway.

Welded vs Bolted Crane Rail Clips

When designing crane rail support systems, engineers must choose between welded and bolted clips.

Welded Crane Rail Clips feature a lower section welded directly to the steel girder. They offer superior resistance to lateral forces and vibration. Because the base is permanently fixed, they eliminate the need to drill holes into the structural beam. Weldable clips are highly preferred for heavy-duty applications, high-capacity gantry cranes, and continuous operation facilities.

Bolted Crane Rail Clips, on the other hand, secure directly to concrete foundations, steel plates, or pre-drilled beams using bolts. They are easier to replace and install in environments where welding is prohibited due to fire hazards. Bolt-on overhead crane rail clips suit lighter load applications or temporary rail setups.

Recommended XINGRAIL Crane Rail Clips

For high-performance adjustable crane rail clips, the XINGRAIL product series provides unmatched reliability. Below are top-tier recommendations for heavy industrial applications.

Compatible Crane Rails and Track Standards

Global engineering projects require industrial rail clips for cranes that adapt to various international track standards. Quality welded crane rail clips ensure universal compatibility.

You can configure standard and custom clips to fit:

• DIN536 crane rails: Widely used in Europe and global port projects.
• AREA crane rails: Standard for North American heavy-load systems.
• BS railway tracks: British standard profiles common in legacy and modern systems.
• China standard rails (QU series): Frequently used in global infrastructure projects.
• Indian standard rails (CR series): Dominant in South Asian manufacturing.
• Other standards: GOST rails, SABS rails, and Australian standard rails.

By utilizing adjustable upper components, precise bridge crane rail clips securely grip the flanges of these diverse rail profiles.

Typical Applications of Welded Crane Rail Clips

Heavy industries rely on seamless crane movement. You will find welded heavy-duty crane rail clamps actively supporting logistics and manufacturing in the following sectors:

• Container Ports: Ship-to-shore (STS) cranes operate continuously.
• Shipyards: Massive gantry cranes move shipbuilding components. Welded clips maintain perfect rail gauge despite heavy, unbalanced loads.
• Steel Mills: High temperatures and abrasive dust quickly degrade standard bolts. Welded bases provide permanent security in these harsh conditions.
• Automated Warehouses: Automated Storage and Retrieval Systems (ASRS) demand absolute rail precision. Welded bridge crane rail clips prevent micro-misalignments that could crash automated machinery.
• Mining Facilities: Heavy materials drop and shift.
• Heavy Manufacturing Plants: Overhead cranes moving heavy machinery rely on robust runway systems to prevent production halts.

Installation Best Practices for Crane Rail Clips

Precise installation guarantees the safety of crane rail fastening systems. Follow these best practices to ensure optimal performance:

1. Welding Procedures: Clean the steel runway beam thoroughly. Use appropriate low-hydrogen electrodes to weld the lower base of the weld-on crane rail clips parallel to the rail axis.
2. Rail Alignment: Lay the continuous elastomeric pad (if used) and position the rail. Ensure the rail gauge strictly follows engineering tolerances before tightening any clips.
3. Bolting Methods: Assemble the upper clip onto the welded base.
4. Tightening Torque: Apply torque strictly according to the manufacturer’s specifications. Over-tightening crushes the rubber dampener, while under-tightening allows dangerous rail movement.
5. Inspection and Maintenance: Schedule periodic checks to inspect torque levels and verify that the rubber vulcanized noses have not degraded from environmental exposure.

Why Forged Crane Rail Clips Improve Durability

Not all fasteners perform equally under stress. Forged steel clips offer distinct advantages over cast alternatives. The forging process aligns the steel’s grain structure.

When high-capacity cranes brake abruptly, forged heavy-duty crane rail clamps distribute the sheer forces safely into the supporting structure. Furthermore, the inherent density of forged steel aids in vibration absorption, dramatically extending the longer service life of both the clip and the runway beam.

Heavy Duty Welded Crane Rail Clips for Gantry Cranes

Large gantry cranes and container cranes present unique engineering challenges. They operate outdoors, subjected to high winds, thermal expansion, and massive load swings. To safely operate, these massive structures require highly specialized bridge crane rail clips.

Welded clips support gantry cranes by offering higher lateral force resistance—often exceeding 150 kN per clip. The adjustable upper plates allow maintenance teams to re-align the rail horizontally as the ground or structural supports settle over time.

How to Install Welded Crane Rail Clips on Crane Runway Beams

Contractors executing rail clip installation for cranes follow a strict sequential process:

1. Surface Preparation: Grind away rust, paint, and debris from the steel runway beam where the clips will sit.
2. Position the Base: Using layout lines, position the weldable base components at specified intervals (typically every 500mm to 600mm).
3. Weld the Base: Weld the base parallel to the rail path using continuous or specific fillet welds as designated by the structural engineer.
4. Place the Rail: Roll the crane rail into position over the center of the beam or continuous rubber pad.
5. Attach Upper Clips: Slide the upper forged steel clip and rubber nose over the rail flange.
6. Apply Torque: Insert the captive bolts and torque them to the specified rating.

Best Welded Crane Rail Clips for DIN536 Crane Rails

The DIN536 standard features a wide, flat bottom and a thick web, designed specifically to carry immense crane wheel loads. Common sizes include A45, A55, A65, A75, A100, A120, and A150.

Because these rails have distinct flange slopes, you must select bridge crane rail clips that match the flange angle perfectly. High-capacity welded clips, like the XINGRAIL 9220/20/45 and 3224/20/44, feature adjustable upper plates that mate seamlessly with the broad base of DIN536 rails.

FAQs

1. What are welded crane rail clips used for?
   Welded bridge crane rail clips securely attach steel crane rails to structural runway beams. They prevent lateral rail movement, maintain rail gauge, and absorb harmful vibrations generated by heavy overhead and gantry cranes.
2. What is the difference between welded and bolted crane rail clips?
   Welded clips feature a base that permanently welds to the steel support beam, offering superior lateral load resistance and vibration dampening. Bolted clips fasten directly into pre-drilled holes or concrete.
3. How strong are welded crane rail clips?
   Strength varies by model, but heavy-duty forged steel welded clips can withstand lateral forces ranging from 75 kN up to 300 kN per clip, easily handling the demands of large container ports and steel mills.
4. Are welded crane rail clips suitable for DIN536 crane rails?
   Yes. High-quality bridge crane rail clips feature adjustable upper components designed specifically to match the wide flanges and sloping bases of DIN536 crane rails, from A45 up to A150 profiles.
5. How many crane rail clips are required per meter of rail?
   While exact spacing depends on the engineer’s load calculations, standard installations typically require clips spaced every 500mm to 600mm. This translates to roughly 3 to 4 clips per meter, per side of the rail (6 to 8 clips total per meter of track).
