A Guide to Crane Rail Anchoring Hardware

For procurement managers, port operators, and steel plant engineers, the structural integrity of a crane runway is critical. When dealing with immense dynamic loads and lateral forces, standard fastening components just won’t cut it. Specifying reliable crane rail anchoring hardware is the most effective way to prevent track misalignment, reduce wheel wear, and avoid catastrophic structural failures. In this technical guide, we break down the mechanics of modern crane rail anchoring hardware, compare mounting methodologies, and highlight premium XINGRAIL solutions designed to keep your heavy-duty material handling operations safely on track.

What is Crane Rail Anchoring Hardware?

At a fundamental engineering level, crane rail anchoring hardware refers to the specialized mechanical assemblies used to secure runway tracks to concrete foundations or steel girders. A complete system goes beyond simple nuts and bolts; it relies on integrated Heavy-Duty Track Anchoring Fasteners designed to absorb extreme shear forces.

The core of these systems involves high-strength crane rail clips. Depending on the foundation, the track is held firmly in place using embedded Crane Rail Anchor Bolts or weldable base plates. To handle the high-impact cycles of overhead and gantry cranes, industry professionals specify Forged Steel Rail Anchors equipped with vulcanized rubber noses. This flexible design allows the track to deflect slightly under load, preventing fatigue in the rigid foundation while maintaining precise gauge.

Welded vs. Bolted Crane Rail Clips

When engineers design crane rail anchoring hardware setups, they typically choose between two primary fastening methods. Selecting the right crane rail installation clips depends on your substrate and anticipated load capacities.

Welded Rail Fixing Clips: Recognized as the industry standard for high-impact applications, these clips feature a forged steel base that is permanently welded to the steel runway girder. This creates a vibration-proof anchor point, making them the ultimate heavy duty crane rail clips and the go-to choice for gantry crane rail clips at busy container terminals.

Bolted Rail Fixing Clips: Secured by threading studs or anchor bolts directly into concrete plinths or pre-drilled steel, bolted crane rail clips offer high versatility and easier ongoing maintenance. They act as excellent overhead crane rail clips for indoor manufacturing facilities where welding is impractical.

Both systems serve as reliable crane runway beam rail clips, provided they are accurately matched to your project’s lateral load limits.

Recommended XINGRAIL Crane Rail Clips

Sourcing premium forged steel crane rail clips is essential for long-term runway longevity. XINGRAIL engineers highly durable crane rail anchoring hardware designed to meet the rigorous demands of B2B heavy industry.

Reliable Bolted Solutions

If your structural design utilizes concrete foundations, XINGRAIL delivers robust crane rail fastening clips across two primary lines:

31 Series Bolted Rail Fixing Clips: Ideal for standard duty operations. Key models include the XINGRAIL 3116/13/36 and the XINGRAIL 3120/17/38.

32 Series Bolted Rail Fixing Clips: Built for higher lateral capacities, featuring the XINGRAIL 3224/20/44, XINGRAIL 3222/17/44, and XINGRAIL 3220/17/38.

High-Capacity Welded Solutions

For extreme environments, XINGRAIL’s welded series provides maximum resistance against rail walk:

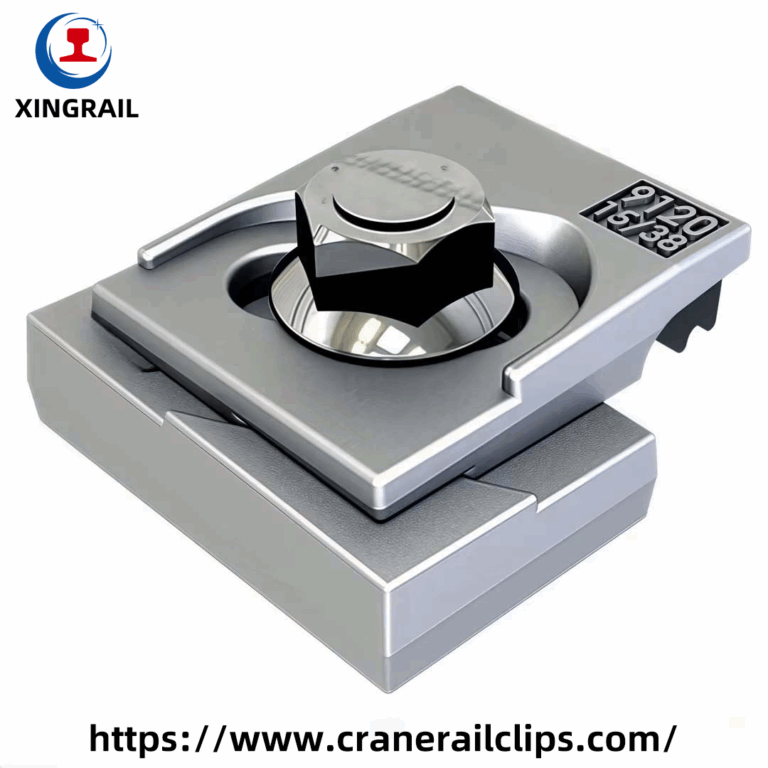

9 Series Welded Rail Fixing Clips: Designed to handle massive continuous loads, including the heavy-duty XINGRAIL 9220/20/45, alongside the XINGRAIL 9216/08/40, XINGRAIL 9120/15/38, and XINGRAIL 9116/08/3.

7 Series Welded Rail Fixing Clips: Featuring the highly adaptable XINGRAIL 7216/20/39.

International Rail Compatibility

Because facility requirements vary globally, this crane rail anchoring hardware is universally compatible. XINGRAIL components seamlessly secure standard international profiles, including DIN536 crane rails, AREA crane rails, BS railway tracks, China standard rails, Indian standard rails, GOST rails, SABS rails, and Australian standard rails.

Technical Comparison Table

Key Industrial Applications

Deploying robust crane rail anchoring hardware is non-negotiable across several demanding sectors:

Port Operations: Ship-to-shore (STS) cranes rely on highly durable crane runway rail clips to handle relentless lifting cycles without shifting out of gauge.

Steel Plants: The extreme heat and massive point loads of ladle cranes demand crane rail fixing clips that resist thermal expansion and intense continuous vibration.

Manufacturing & Assembly: Precision automated systems utilize properly torqued crane rail support clips to maintain tight tolerances and prevent expensive wheel flange wear.

FAQ

Q: How do I adjust track gauge with crane rail anchoring hardware?

A: High-quality crane rail alignment clips utilize slotted bases or an internal eccentric cam mechanism. This allows contractors to make precise lateral track adjustments before applying final torque to the hardware.

Q: Why use forged steel over cast components for crane rail anchoring hardware?

A: Forged steel provides a tighter, more uniform grain structure. This results in significantly higher tensile strength and fatigue resistance compared to cast alternatives—critical traits for any hardware subjected to continuous heavy lifting.

Q: Should rubber pads be used beneath the rail?

A: Yes. Continuous rubber pads should always be paired with your crane rail fastening clips. The pad evenly distributes wheel loads and drastically reduces stress concentrations on both the rail and the underlying beam.

Cutting corners on track infrastructure is a recipe for expensive downtime. Proper crane rail anchoring hardware is the primary defense against lateral track shifting and structural damage. By investing in premium crane rail clips from XINGRAIL, procurement managers and installation contractors can guarantee optimal crane runway safety, strict gauge alignment, and exceptional long-term durability.
