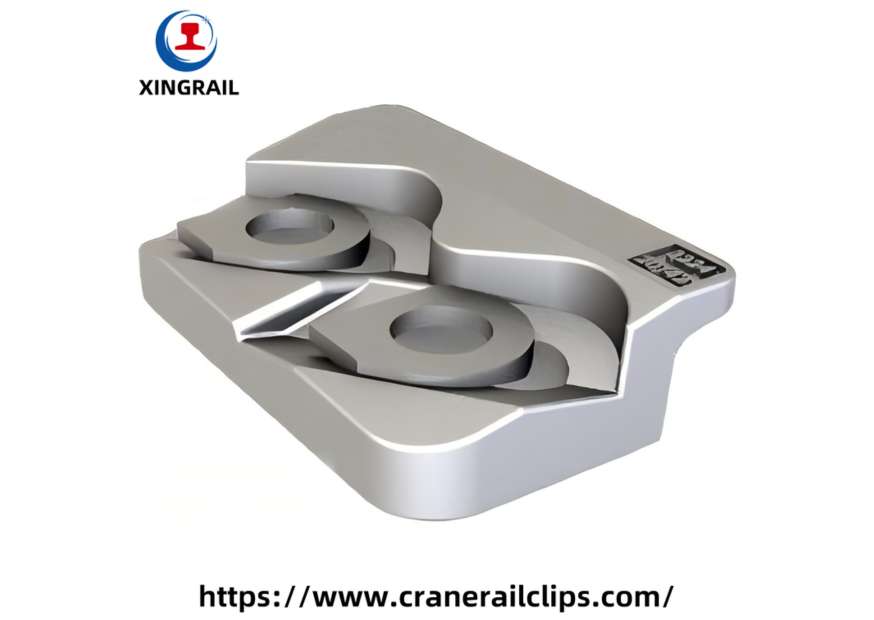

Crane Rail Fastening Mechanisms: Welded Clip Guide

Securing heavy machinery requires precision, strength, and reliability. When you manage high-capacity cranes, the safety of your entire operation relies on the quality of your track setup. The crane rail fastening systems are very important to keep the crane rails safe, aligned and secured for continuous operation.

This guide explores everything you need to know about welded crane rail clips. We will cover their core functions, the common installation challenges they solve, and how they compare to bolted options. You will also learn about the top XINGRAIL product series, installation best practices, and international track compatibility.

What Are Welded Crane Rail Clips?

Welded crane rail clips are specialized structural components designed to secure rails to underlying steel beams or concrete foundations. They typically consist of a weldable base, an upper clip piece, and a high-strength bolt with a rubber nose or pad.

These are necessary parts of crane runway systems. They absorb immense dynamic forces generated by moving cranes. By utilizing robust crane rail fastening mechanisms, you lock the tracks firmly in place while allowing for slight longitudinal movement to accommodate thermal expansion. This balance prevents rail warping and keeps your operations running smoothly.

Common Challenges in Crane Rail Installation

Installing a crane track is a complex engineering task. Without highly reliable crane rail fastening mechanisms, operators often face severe mechanical failures. Typical problems include:

• Rail misalignment: Improperly secured rails can shift laterally.
• Vibration and impact loads: Heavy lifting creates massive shockwaves. Weak clips will loosen over time.
• Structural fatigue: Continuous stress cycles weaken the metal components holding the rail.
• Rail movement: Thermal expansion and braking forces cause tracks to creep forward or backward.
• Maintenance difficulties: Hard-to-reach track systems make frequent retightening a costly nightmare.

Heavy duty crane rail clips solve these issues. They feature flexible rubber noses that absorb vibration and reduce impact loads. The adjustable upper clips allow you to fine-tune rail alignment easily, while the welded base prevents lateral rail movement entirely.

Welded vs Bolted Crane Rail Clips

Choosing the right crane rail fastening mechanisms depends on your specific infrastructure. The main difference lies in how the base fixes to the support structure.

Welded crane rail clips feature a bottom plate that you weld directly to the steel runway beam. They offer superior lateral force resistance and eliminate the need to drill holes in the supporting beam. You should prefer weldable crane rail clips for heavy-duty applications where dynamic loads are extreme.

Bolted crane rail clips attach to the support structure using anchor bolts or through-bolts. They are generally faster to install and replace. Bolt-on crane rail clips are preferred for lighter duty cycles or when welding is impossible, such as mounting directly into a concrete foundation using embedded bolts.

Recommended XINGRAIL Crane Rail Clips

When selecting durable crane rail fastening mechanisms, the XINGRAIL product series offers industry-leading reliability. These solutions provide excellent horizontal adjustment and high lateral load capacities.

Here are the standout models for your track projects:

• XINGRAIL 3116/13/36: A versatile bolted clip for medium-duty applications.
• XINGRAIL 3224/20/44: A heavy-duty bolted option for larger rail profiles.
• XINGRAIL 9220/20/45: A premium welded clip designed for intense, continuous industrial use.
• XINGRAIL 7216/20/39: A high-performance welded clip featuring a lower profile.

Model	Base Material	Surface Treatment	Lateral Force Resistance	Horizontal Adjustment	Applications	Special Features
XINGRAIL 3116/13/36	Forged Steel	Galvanized	75 kN	10 mm	Light/Medium Duty	Self-locking design
XINGRAIL 3224/20/44	Forged Steel	Zinc Plated	120 kN	15 mm	Medium/Heavy Duty	High vibration dampening
XINGRAIL 9220/20/45	Q345B Steel	Anti-rust Paint	160 kN	20 mm	Heavy Duty / Ports	Vulcanized rubber nose
XINGRAIL 7216/20/39	Q345B Steel	Anti-rust Paint	130 kN	15 mm	Shipyards / Steel Mills	Low-profile upper clip

Compatible Crane Rails and Track Standards

A top-tier crane rail fastening system must fit precisely with the tracks you use. The XINGRAIL series integrates seamlessly with multiple international track standards.

These crane rail clips are fully compatible with European DIN536 crane rails. They also accommodate AREA crane rails common in North America and BS railway tracks utilized throughout the UK and Commonwealth nations. Furthermore, the clips secure China standard rails, Indian standard rails, GOST rails for Eastern European markets, SABS rails for South Africa, and Australian standard rails. This universal adaptability makes them ideal for global procurement managers.

Typical Applications of Welded Crane Rail Clips

Various industries rely on specialized crane rail fastening mechanisms to maintain continuous material handling. You will find heavy duty welded crane rail clips deployed in highly demanding environments.

• Container ports: Ship-to-shore cranes exert massive lateral forces that only welded clips can safely withstand.
• Shipyards: Massive gantry cranes require stable tracks for precise movement of heavy vessel components.
• Steel mills: High temperatures and extreme impact loads make robust welded bases necessary.
• Automated warehouses: Stacker cranes need perfect rail alignment to operate rapidly and safely.
• Mining facilities: High dust and heavy loads demand maintenance-free fastening setups.
• Heavy manufacturing plants: Overhead bridge cranes rely on durable clips to move machinery safely across factory floors.

Heavy duty welded crane rail clips are widely used here because they offer the highest threshold against shear forces.

Installation Best Practices for Crane Rail Clips

Proper installation guarantees the longevity of your crane rail fastening mechanisms. Follow these best practices to ensure optimal track stability:

• Welding procedures for weld on crane rail clips: Clean the beam surface thoroughly. Use low-hydrogen electrodes and ensure full-penetration welds around the base parallel to the rail. Never weld the clip base while the rubber pad is attached.
• Bolting methods: Ensure threads are clean. Use high-strength bolts provided with the clip assembly.
• Tightening torque recommendations: Always use a calibrated torque wrench. Follow the specific torque settings for each XINGRAIL model to engage the self-locking washers properly without crushing the rubber nose.
• Rail alignment procedures: Use the horizontal adjustment feature of the clips to align the rail perfectly straight before final tightening.
• Inspection and maintenance considerations: Check bolt torque after the first 30 days of operation. Perform visual inspections every six months to check for pad wear and weld integrity.

Why Forged Crane Rail Clips Improve Durability

Upgrading your crane rail fastening mechanisms to forged steel components drastically improves system reliability. Forged crane rail clips offer several major advantages over cast alternatives.

First, the forging process aligns the grain structure of the steel. This means the clips handle larger lateral wheel loads without deforming. Second, they offer exceptional fatigue resistance. Third, the dense structural integrity of forged steel provides excellent vibration absorption. Ultimately, these factors combine to deliver a much longer service life.

Heavy Duty Welded Crane Rail Clips for Gantry Cranes

Gantry cranes and giant container cranes put immense stress on their tracks. Due to their wide span and heavy lifting capacity, these cranes create massive lateral thrust forces during acceleration and braking.

Crane welded rail clips support large gantry cranes by permanently anchoring the base to the foundation plate. Unlike bolted systems that might loosen under constant swaying, welded crane rail fastening mechanisms form a monolithic bond with the runway beam. The vulcanized rubber noses on models like the XINGRAIL 9220/20/45 compress slightly.

How to Install Welded Crane Rail Clips on Crane Runway Beams

Installing crane rail fastening mechanisms correctly requires a systematic approach. Here is a step-by-step overview of the installation process for welded clips:

1. Position the rail: Lay the elastic rubber pad on the runway beam and position the steel rail on top of it.
2. Align the base: Place the lower weldable base of the clip tightly against the bottom flange of the rail.
3. Tack weld: Apply temporary tack welds to hold the base exactly in position.
4. Complete the weld: Remove the rail (if needed for space) or protect it, and complete the final structural weld along the sides of the clip base. Let it cool.
5. Assemble the upper clip: Slide the T-bolt into the base. Place the upper forged clip over the bolt.
6. Adjust and tighten: Push the upper clip forward for final alignment. Apply the washer and nut, and tighten to the specified torque.

Best Welded Crane Rail Clips for DIN536 Crane Rails

The European DIN536 standard features a wide base and low profile. Your crane rail fastening mechanisms must match these specific geometries perfectly.

XINGRAIL welded clips are highly compatible with common DIN536 crane rail sizes. For lighter setups using A45 and A55 rails, smaller clips like the 7-series provide the necessary grip without taking up excess space. For massive tracks utilizing A65, A75, A100, A120, and A150 profiles, the heavy-duty XINGRAIL 9-series offers the extended reach and high lateral load capacity required to secure the wide rail flanges safely.

FAQs

What are welded crane rail clips used for?
They secure heavy steel tracks to crane runway beams or concrete foundations. They absorb vibration, prevent lateral movement, and keep the rail aligned during heavy lifting operations.

What is the difference between welded and bolted crane rail clips?
Welded clips have a base that is permanently welded to the steel support beam. Bolted clips use anchor bolts to attach to the beam or concrete.

How strong are welded crane rail clips?
Depending on the model, heavy-duty welded clips can resist lateral forces ranging from 75 kN to over 300 kN per clip.

Are welded crane rail clips suitable for DIN536 crane rails?
Yes. Welded clips are specifically engineered with adjustable upper components to fit perfectly over the wide flanges of DIN536 rails, from A45 up to A150.

How many crane rail clips are required per meter of rail?
Generally, you install clips in pairs (one on each side of the rail) spaced between 500mm and 600mm apart. This equates to roughly 3 to 4 pairs of clips per meter of rail.
