In the world of heavy-duty industrial operations, the integrity of your crane runway system is the backbone of safety and efficiency. Whether you are managing a bustling container port or a high-output steel mill, selecting the right crane rail mounting solutions is critical to preventing downtime and structural fatigue. Modern engineering demands more than just a rigid attachment; it requires a sophisticated rail fixing system solutions approach that accounts for dynamic loads, thermal expansion, and precision alignment.
Modern Crane Rail Mounting Solutions
Crane rail mounting solutions encompass the entire assembly used to secure a rail to its support structure, typically a steel runway beam or a concrete foundation. These systems are designed to transfer the enormous vertical and lateral forces generated by moving cranes into the supporting structure while maintaining the rail’s position. High-quality crane rail clips serve as the primary interface in these systems, ensuring that the rail remains securely fastened while allowing for necessary adjustments during installation and throughout the rail’s lifecycle.
Common Challenges in Crane Rail Installation
Engineers often face significant hurdles during crane rail installation methods. Without the correct crane rail fastening systems, several issues can compromise the operation:
Rail Misalignment: Even minor deviations can lead to excessive wheel wear and crane skewing.
Vibration and Impact Loads: High-speed cranes create significant kinetic energy that can loosen standard fasteners.
Structural Fatigue: Rigid mounting often leads to stress cracking in the runway beams.
Rail Movement: Longitudinal “creeping” can occur due to braking and acceleration forces.
Welded vs. Bolted Crane Rail Clips
Choosing between welded rail fixing clips and bolted rail fixing clips is a pivotal decision for any procurement manager.
Bolted Crane Rail Clips: Preferred when the runway beam is pre-drilled or when welding to the structure is restricted. The 31 Series Bolted Rail Fixing Clips and 32 Series Bolted Rail Fixing Clips offer ease of maintenance and replacement.

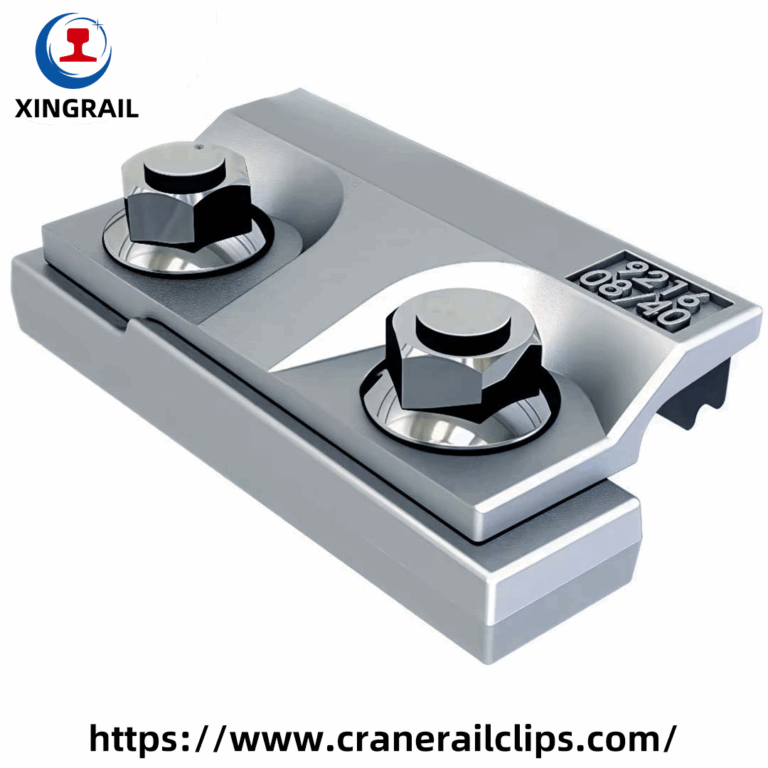

Weldable Crane Rail Clips: These are ideal for heavy-duty applications where a permanent, high-strength bond to the steel beam is required. The 9 Series Welded Rail Fixing Clips and 7 Series Welded Rail Fixing Clips are the gold standard for high-lateral-force environments like shipyards.
Recommended XINGRAIL Crane Rail Clips
XINGRAIL offers a variety of heavy duty crane rail clips tailored to specific load requirements and rail profiles.
|
Model |
Base Material |
Lateral Force Resistance |
Horizontal Adjustment |
Applications |
|
XINGRAIL 3116/13/36 |
Forged Steel |
38 kN |
13 mm |
Overhead Cranes |
|
XINGRAIL 3224/20/44 |
Forged Steel |
125 kN |
20 mm |
Heavy Manufacturing |
|
XINGRAIL 9220/20/45 |
Forged Steel |
120 kN |
20 mm |
Container Ports |
|
XINGRAIL 7216/20/39 |
Forged Steel |
75 kN |
16 mm |
Automated Warehouses |
|
XINGRAIL 3120/17/38 |
Forged Steel |
65 kN |
17 mm |
Steel Mills |
Compatible Crane Rails and Track Standards
A versatile crane rail mounting solution must be compatible with global rail profiles. XINGRAIL systems are engineered to fit:
DIN536 Crane Rails: (A45, A55, A65, A75, A100, A120, A150)
AREA Crane Rails: Common in North American heavy freight and port applications.
Standard Profiles: Including BS railway tracks, China standard rails, Indian standard rails, GOST, SABS, and Australian standard rails.
Typical Applications of Rail Fastening Systems
High-performance crane rail support clips are indispensable in sectors where downtime is not an option. In container ports, gantry crane rail clips must withstand the constant cycles of ship-to-shore loading. In steel mills, overhead crane rail clips manage the extreme heat and massive ladle weights. Other critical applications include shipyards, mining facilities, and heavy-duty manufacturing plants where precision and durability are paramount.
FAQ – Crane Rail Mounting Solutions
- What are crane rail mounting solutions used for?
They are used to secure rails to runway beams, providing stability, alignment, and load distribution for cranes.
- How many crane rail clips are required per meter of rail?
Standard engineering practice typically places clips every 500mm to 600mm, though this depends on the crane’s wheel load and lateral force calculations.
- Are welded crane rail clips suitable for DIN536 crane rails?
Yes, XINGRAIL 9 and 7 series are specifically designed to accommodate the flange widths of DIN536 rails like A75 and A120.
- What is the benefit of a soft mounting crane rail system?
It uses a reinforced rubber pad between the rail and the beam to absorb vibration, reduce noise by up to 10%–12%, and eliminate fretting corrosion.
