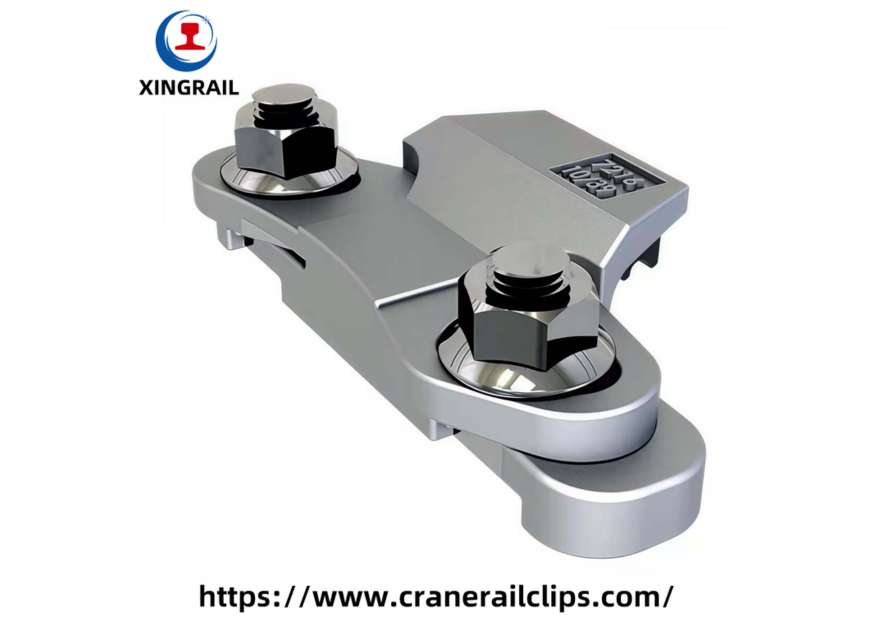

Guide to Welded & Bolted Crane Rail Clips

Heavy-duty industrial environments demand robust infrastructure. When a fully loaded overhead crane moves massive steel coils or shipping containers, the tracks must handle immense dynamic forces. If the tracks shift or misalign, operations grind to a halt. This is where high-quality fastening systems become important.

The secret to a safe, durable crane runway lies in the hardware that holds it down. Specifically, crane rail stabilization clips absorb lateral forces, manage vibrations, and keep the tracks perfectly aligned. Whether you manage a busy seaport or a heavy manufacturing plant.

In this comprehensive guide, we will explore the engineering behind these fastening systems, compare welded and bolted options, and review top-tier solutions from the XINGRAIL product series.

What Are Welded Crane Rail Clips?

Welded crane rail clips are specialized two-part fastening devices designed to secure crane rails to steel runway beams. Unlike rigid traditional fasteners, these heavy duty crane rail clips feature a flexible design. They typically consist of a weldable base component, a captive bolt, and an upper clip section equipped with a vulcanized rubber nose.

When you install these crane rail installation clips, you weld the lower base directly to the steel support structure. The upper clip fastens over the rail foot and bolts securely to the base. The rubber nose presses down on the rail.

By using crane rail stabilization clips, engineers ensure that the track can expand and contract with temperature changes while absorbing the harsh shock loads generated by active crane operations.

Common Challenges in Crane Rail Installation

Crane rail systems operate under extreme stress. Without proper crane rail fixing clips, engineers and port operators frequently face a host of mechanical failures.

• Rail Misalignment: Heavy lateral forces push tracks out of gauge. This misalignment causes severe wheel wear and can even derail the crane.
• Vibration and Impact Loads: Starting and lifting heavy loads sends massive shockwaves through the rail. Without flexible crane rail support clips, these vibrations fracture rigid welds and bolts.
• Structural Fatigue: Continuous cyclical loading leads to fatigue in the crane runway beam.
• Rail Movement: Thermal expansion causes steel rails to lengthen and contract. Fastening systems must accommodate this longitudinal movement.
• Maintenance Difficulties: Hard-mounted rails are difficult to adjust. High-quality crane rail stabilization clips allow for easy lateral adjustments without tearing up the base infrastructure.

Using the correct crane runway rail clips directly solves these issues by providing a controlled, flexible connection between the rail and the beam.

Welded vs Bolted Crane Rail Clips

When designing a crane runway, engineers must choose between welded rail fixing clips and bolted rail fixing clips. Both offer distinct advantages depending on the installation environment.

Welded Rail Fixing Clips
Welded clips, such as the XINGRAIL 9 Series Welded Rail Fixing Clips and 7 Series Welded Rail Fixing Clips, are welded directly to the steel support beam. They offer the highest lateral force resistance available. Weldable clips are the standard choice for heavy-duty applications, high-capacity gantry cranes, and environments subject to extreme impact loads.

Bolted Crane Rail Clips
Bolted rail fixing clips secure the rail using bolts that pass through the runway beam or concrete foundation. The XINGRAIL 31 Series Bolted Rail Fixing Clips and 32 Series Bolted Rail Fixing Clips represent top choices in this category. You will typically use bolt-on crane rail stabilization clips for lighter overhead cranes, or in facilities where hot work (welding) is strictly prohibited due to fire hazards.

Recommended XINGRAIL Crane Rail Clips

Choosing the right model depends on your rail size and expected loads. XINGRAIL provides a comprehensive lineup of crane rail fastening clips to meet any engineering requirement.

Below is a technical comparison of highly recommended XINGRAIL models.

Model	Base Material	Surface Treatment	Lateral Force Resistance	Horizontal Adjustment	Applications	Special Features
XINGRAIL 3116/13/36	Forged Steel	Zinc Plated	45 kN	10 mm	Light overhead cranes	Bolted base, self-locking
XINGRAIL 3120/17/38	Forged Steel	Zinc Plated	75 kN	12 mm	Medium overhead cranes	Easy maintenance access
XINGRAIL 3220/17/38	Forged Steel	HDG	100 kN	15 mm	Medium gantry cranes	High corrosion resistance
XINGRAIL 3222/17/44	Forged Steel	HDG	130 kN	15 mm	Heavy duty workshops	Double bolt design
XINGRAIL 3224/20/44	Forged Steel	HDG	160 kN	20 mm	Heavy manufacturing	Maximum bolt strength
XINGRAIL 9116/08/37	Forged Steel	Bare/Oiled	55 kN	10 mm	Standard runways	Low profile weld base
XINGRAIL 9120/15/38	Forged Steel	Bare/Oiled	90 kN	15 mm	Shipyard tracks	High vibration dampening
XINGRAIL 9216/08/40	Forged Steel	Bare/Oiled	120 kN	15 mm	Steel plant cranes	Narrow base profile
XINGRAIL 9220/20/45	Forged Steel	Bare/Oiled	150 kN	20 mm	Container ports	Extreme lateral capacity
XINGRAIL 7216/20/39	Forged Steel	Bare/Oiled	135 kN	18 mm	Automated warehouses	Rapid installation design

Compatible Crane Rails and Track Standards

A premier crane rail fastening system must adapt to global standards. XINGRAIL crane rail stabilization clips feature adjustable upper components designed to seamlessly clamp onto a massive variety of international rail profiles.

These clips offer full compatibility with:

• DIN536 crane rails: The European standard for flat-bottom crane rails (e.g., A45 through A150).
• AREA crane rails: North American standard tracks often used in heavy freight and port applications.
• BS railway tracks: British Standard rails commonly found in legacy installations and Commonwealth regions.
• China standard rails: QU series rails (QU70, QU80, QU100, QU120) widely used in modern global infrastructure projects.
• Indian standard rails: CR series rails used across South Asian industrial sectors.
• GOST rails: KP series tracks standard in Eastern Europe and Central Asia.
• SABS rails: South African standard rail profiles for mining and shipping.
• Australian standard rails: Heavy-duty tracks designed for the demanding Australian mining sector.

Typical Applications of Welded Crane Rail Clips

Industrial operators across various sectors rely on heavy duty crane rail clips to keep their facilities running safely.

• Container Ports: Ship-to-shore (STS) cranes weigh thousands of tons. Crane rail stabilization clips absorb the massive lateral forces generated when these cranes brake and lift containers.
• Shipyards: Portal cranes in shipyards require flexible crane rail alignment clips to handle uneven structural settling near the water’s edge.
• Steel Mills: Scrap yard cranes and ladle cranes operate in extreme heat and heavy dust. Welded models like the XINGRAIL 9220/20/45 endure these harsh conditions without loosening.
• Automated Warehouses: Stacker cranes require perfectly straight tracks. Precision adjustable clips prevent the rails from shifting out of gauge.
• Mining Facilities: Heavy wheel loads and constant vibration require rugged, high-capacity forged clips.
• Heavy Manufacturing Plants: Large overhead crane rail clips secure the tracks used to move massive turbine components and aerospace parts.

Installation Best Practices for Crane Rail Clips

Proper installation ensures your crane runway rail clips perform up to their rated capacity. Follow these best practices for a successful track laydown.

1. Welding Procedures: For weld-on base clips, thoroughly clean the steel girder. Use low-hydrogen electrodes to weld the lower base parallel to the rail foot. Ensure full penetration welds along the designated edges of the clip base.
2. Bolting Methods: For bolted crane rail clips, ensure the support beam or concrete base has precisely drilled holes. Always use high-tensile bolts.
3. Tightening Torque: Do not over-tighten. Follow the specific torque settings provided by XINGRAIL to ensure the rubber nose applies the correct downward pressure without crushing the polymer.
4. Rail Alignment Procedures: Before final tightening, use the built-in horizontal adjustment mechanism of the crane rail stabilization clips to achieve perfect track gauge.
5. Inspection and Maintenance: Regularly check the tightening torque of the nuts. Inspect the vulcanized rubber nose for wear and replace the upper clip if the rubber degrades.

Why Forged Crane Rail Clips Improve Durability

When selecting crane rail installation clips, material matters. XINGRAIL utilizes forged steel for its premium clip series.

Forged steel crane rail clips offer significant advantages over cast iron alternatives. The forging process aligns the metal’s grain structure. When a crane passes over a rail, it generates high-frequency vibrations. Forged crane rail stabilization clips absorb this vibration without micro-cracking. This structural integrity extends the service life of both the fastening system and the underlying runway beam.

Heavy Duty Welded Crane Rail Clips for Gantry Cranes

Gantry cranes, especially those used in intermodal rail yards and massive container terminals, impose unique stresses on their tracks. Unlike indoor overhead cranes, gantry cranes face high wind loads and outdoor temperature extremes.

To manage this, engineers specify specialized gantry crane rail clips. The XINGRAIL 9 Series and 7 Series provide the immense lateral load resistance (up to 160 kN or more) required to keep gantry crane wheels safely on the track. These heavy-duty crane rail stabilization clips feature generous horizontal adjustment ranges.

How to Install Welded Crane Rail Clips on Crane Runway Beams

Installing welded clips on crane runway beam rail clips requires precision. Here is a brief step-by-step overview of the process:

1. Position the Rail: Lay the steel rail onto the continuous rubber pad centered on the runway beam.
2. Align the Base: Slide the weldable base of the clip tight against the edge of the rail foot.
3. Tack Weld: Temporarily tack weld the bases into place along the entire length of the track.
4. Final Weld: Remove the rail (if necessary for access) and complete the structural welds along the clip base. Clean all slag.
5. Assemble: Reposition the rail. Place the upper forged clip over the captive bolt in the base.
6. Adjust and Torque: Push the upper clip firmly against the rail. Apply a washer and nut, then tighten to the manufacturer’s specified torque.

Best Welded Crane Rail Clips for DIN536 Crane Rails

The DIN536 standard is the most popular crane rail profile globally, known for its wide, stable base and thick web.

Because DIN536 rails range from the compact A45 up to the massive A150, you need scalable fastening solutions. The XINGRAIL 9 Series Welded Rail Fixing Clips match perfectly with these profiles. For example, the XINGRAIL 9116/08/37 easily secures an A55 rail for a standard factory crane, while the heavy-duty XINGRAIL 9220/20/45 provides the necessary hold-down force for a massive A120 rail in a steel mill.

The low-profile design of these crane rail stabilization clips prevents interference with the crane wheels.

FAQs

What are welded crane rail clips used for?
They secure heavy steel tracks to underlying structures. They prevent the track from moving sideways while allowing slight longitudinal movement for thermal expansion and vertical flexibility to absorb shock loads.

What is the difference between welded and bolted crane rail clips?
Welded clips feature a base that is permanently welded to a steel beam. Bolted clips rely on bolts passed through the support structure.

How strong are welded crane rail clips?
High-quality forged steel models, like those from the XINGRAIL 9 Series, can resist lateral forces ranging from 55 kN up to 300 kN per clip.

Are welded crane rail clips suitable for DIN536 crane rails?
Yes. Modern crane rail stabilization clips feature adjustable upper components designed to perfectly match the sloping foot of DIN536 rails, from A45 all the way up to A150.

How many crane rail clips are required per meter of rail?
Typically, engineers install clips in pairs (one on each side of the rail) spaced every 500mm to 600mm. This usually equates to about 4 clips per meter of track, though high-load zones may require tighter spacing.
