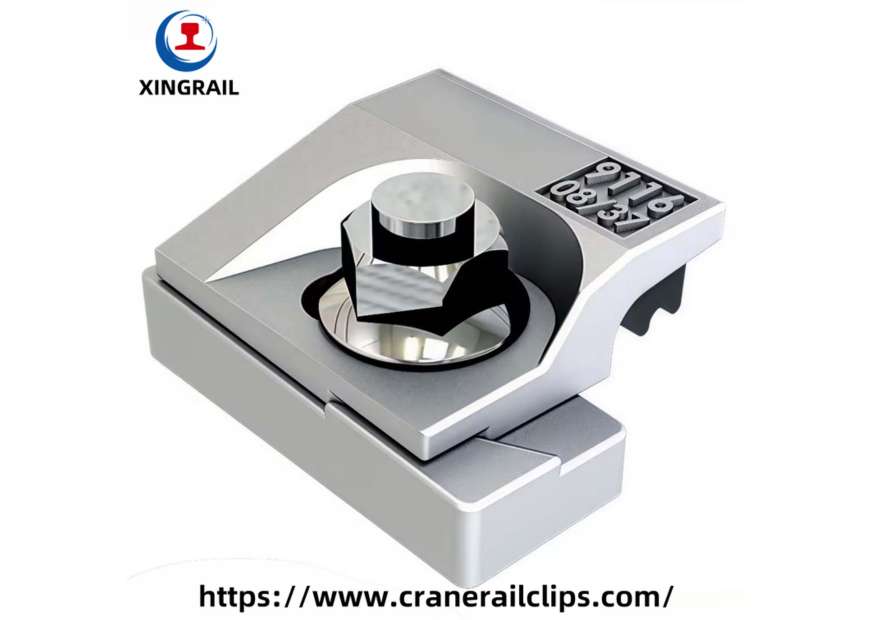

Forged Steel Crane Rail Clips: Complete Engineering Guide

Securing an industrial crane runway demands materials that can withstand immense stress, constant vibration, and heavy cyclical loads. For engineers, port operators, and installation contractors. A failing track system inevitably leads to costly downtime and frequent, hazardous maintenance.

This comprehensive guide explores the engineering mechanics behind forged steel crane rail clips. We will review common installation challenges, compare welded and bolted configurations, and highlight the best XINGRAIL models for your specific global track standards. By the end of this article, you will know exactly how to select, install, and maintain the right fastening system to ensure your crane infrastructure operates safely for decades.

What Are Forged Steel Crane Rail Clips?

Forged steel crane rail clips are specialized, high-strength mechanical fasteners designed to secure crane rails to underlying steel beams or concrete foundations. Unlike standard cast iron alternatives or simple spikes, these clips are manufactured through a highly controlled forging process. This process compresses the steel at high temperatures.

A typical unit features a solid base component, a forged upper clip, a high-tensile captive bolt, and a vulcanized rubber nose. The rubber element applies a controlled downward force onto the rail flange. Because of their dense material structure, forged steel crane rail clips provide exceptional resistance to lateral force. They prevent the rail from shifting under massive horizontal loads, effectively maintaining precise track alignment.

Common Challenges in Crane Rail Installation

Designing and maintaining a crane track involves overcoming extreme physical forces. Industrial crane rail clip systems must endure harsh environments and relentless stress. Common operational problems include:

• Rail Misalignment: Variations in track gauge cause uneven wheel wear.
• Vibration and Impact Loads: Heavy lifting generates high-frequency vibrations and sudden shock loads that easily loosen standard fasteners.
• Structural Fatigue: Continuous cyclical loading creates fatigue in the steel rail, the fasteners, and the supporting girder.
• Rail Movement: Thermal expansion and severe braking forces cause rails to creep laterally and longitudinally over time.
• Maintenance Difficulties: Hard-to-reach elevated runway beams make the frequent retightening of basic steel crane rail clamps both dangerous and expensive.

Forged steel crane rail clips solve these issues effectively. By utilizing a self-locking mechanism paired with a flexible rubber tongue, they actively absorb damaging vibrations. Their robust forged construction prevents structural fatigue, while their built-in horizontal adjustment range allows crews to correct rail misalignment safely.

Welded vs Bolted Crane Rail Clips

When evaluating forged steel rail fastening systems, engineers must choose between welded and bolted configurations. The distinction ensures you apply the correct fastening method for your specific support structure.

Welded Crane Rail Clips: The lower base plate is permanently welded directly to the steel runway beam. This creates a highly rigid lateral stop that offers superior resistance to extreme horizontal forces. Welded forged steel crane rail clips are highly recommended for heavy-duty applications, such as steel mills and shipyards. Using a welded base eliminates the need to drill holes in the runway girder.

Bolted Crane Rail Clips: These configurations are secured entirely using high-tensile bolts that pass completely through the support structure. Bolted durable steel rail fasteners are preferred when welding is impossible or unsafe. They are commonly used on concrete foundations utilizing embedded anchor bolts, or in hazardous environments where hot work is strictly prohibited.

Recommended XINGRAIL Crane Rail Clips

Selecting the right heavy-duty forged rail clips depends on your specific wheel loads, rail profile, and runway construction. XINGRAIL manufactures industry-leading fastening solutions designed for the most severe operating conditions.

Below is a technical comparison of highly recommended XINGRAIL models:

Model	Base Material	Surface Treatment	Lateral Force Resistance	Horizontal Adjustment	Applications	Special Features
XINGRAIL 3116/13/36	Forged Steel	Zinc Plated	75 kN	10 mm	Overhead cranes, light manufacturing	Compact bolted design, vibration absorption
XINGRAIL 3224/20/44	Forged Steel	Hot Dip Galvanized	120 kN	15 mm	Medium gantry cranes, workshops	Double bolt design, superior lateral restraint
XINGRAIL 9220/20/45	Weldable Cast/Forged	Primer Coated	150 kN	15 mm	Heavy steel mills, automated warehouses	Welded base, extreme impact resistance
XINGRAIL 7216/20/39	Weldable Cast/Forged	Primer Coated	130 kN	12 mm	Container ports, shipyards	Low profile welded base, easy alignment

Compatible Crane Rails and Track Standards

A successful track installation requires perfect compatibility between the clip and the rail profile. High-quality forged steel crane rail clips are engineered to accommodate various international track standards effortlessly.

• DIN536 Crane Rails: The European standard featuring wide base profiles, highly popular in heavy industrial sectors globally.
• AREA Crane Rails: North American standards commonly used in heavy manufacturing, rail yards, and mining applications.
• BS Railway Tracks: British standard profiles utilized in many port facilities and existing railway networks.
• China Standard Rails (QU series): Frequently used in modern gantry crane installations worldwide.
• Indian, GOST, SABS, and Australian Standard Rails: Forged crane track clips feature adjustable upper forgings designed to securely grip the varied flange angles of these international rail types.

Typical Applications of Forged Steel Crane Rail Clips

Forged steel crane rail clips are deployed in demanding industrial environments where failure is not an option. These locations experience relentless operations, heavy payloads, and extreme weather conditions.

• Container Ports: Ship-to-shore (STS) cranes require massive forged steel rail anchoring solutions to withstand severe coastal winds and continuous cargo handling.
• Shipyards: Goliath and portal cranes rely on robust clips to safely manage the massive payloads associated with ship hull assemblies.
• Steel Mills: Overhead cranes transport molten metal. The track clips must withstand high ambient temperatures, heavy dust, and aggressive impacts.
• Automated Warehouses: High-speed automated storage and retrieval machines require perfectly aligned tracks to function accurately.
• Mining Facilities & Heavy Manufacturing Plants: Continuous operation demands durable fasteners that will not vibrate loose over time.

Forged steel crane rail clips are widely used in these environments because they provide the necessary structural rigidity to prevent derailments while offering the flexibility to maintain exact track alignment under heavy load conditions.

Installation Best Practices for Forged Steel Crane Rail Clips

Even the highest quality heavy duty crane rail clips require proper installation to function correctly. Follow these best practices for optimal safety and longevity.

First, always clean the runway beam surface to remove rust, oil, and debris before beginning. For weld-on clips, use low-hydrogen electrodes and follow specified weld sizes to prevent undercutting the support beam. Align the steel rail precisely over the continuous rubber pad before fully securing the clips.

When bolting, assemble the upper clip components. Apply the manufacturer’s specified tightening torque to the captive bolts using a calibrated torque wrench. Do not overtighten, as this can crush the vulcanized rubber. At last, implement a routine inspection schedule to check for bolt tension, rubber wear, and overall weld integrity.

Why Forged Steel Crane Rail Clips Improve Durability

When selecting crane runway rail clips, the manufacturing material dictates the system’s lifespan. Forged steel crane rail clips offer significant structural advantages over standard cast iron alternatives.

Because the forging process aligns the metal’s internal grain structure, the resulting clip features significantly higher tensile strength and superior fatigue resistance. When subjected to the heavy cyclical loading of a passing crane, forged steel active resists micro-cracking and deformation. Furthermore, combined with vulcanized rubber noses, these forged components offer excellent vibration absorption. This drastically reduces the wear on the runway beam, preventing concrete spalling and steel fracturing.

Forged Steel Crane Rail Clips for Gantry Cranes

Large gantry cranes and Rail Mounted Gantry (RMG) container cranes present unique engineering challenges. They operate outdoors, face high wind loads, and feature massive self-weights.

To safely secure the tracks for these giants, specialized forged steel crane rail clips are utilized. The welded bases prevent lateral track movement during severe braking or diagonal crabbing of the crane. By utilizing these robust forged crane track clips, port operators ensure that the track remains perfectly parallel. This reduces wheel flange wear, minimizes operational friction, and extends the lifespan of the crane’s driving mechanisms.

How to Install Forged Steel Crane Rail Clips on Crane Runway Beams

Executing a precise installation guarantees runway safety and equipment longevity. Here is a step-by-step overview of the installation process for forged steel crane rail clips:

1. Survey the steel runway beam and precisely mark the centerline of the rail.
2. Roll out the continuous elastic steel-reinforced rubber pad along the marked centerline.
3. Hoist the rail sections onto the pad and weld the rail joints using thermite or flash butt welding techniques.
4. Position the base of the forged steel crane rail clips tightly against the bottom edge of the rail foot at specified intervals (usually every 500mm to 600mm).
5. Tack weld the bases in place, then execute the final structural fillet welds.
6. Insert the captive bolts, place the upper clip forgings, adjust the lateral alignment, and tighten the nuts to the required torque setting.

Best Forged Steel Crane Rail Clips for DIN536 Crane Rails

The DIN536 standard is widely regarded as the premium profile for heavy crane runways globally. Its wide, flat base distributes massive point loads effectively across the support beam.

To properly secure standard sizes like A45, A55, A65, A75, A100, A120, and A150, you need specific forged steel crane rail clips capable of spanning the wide flanges. The built-in horizontal adjustment mechanism found in XINGRAIL clips allows installation contractors to finely tune the track gauge. This seamlessly compensates for the manufacturing tolerances inherent in thick DIN536 steel rails.

FAQs

What are forged steel crane rail clips used for?
They are engineered fasteners used to securely attach heavy crane rails to support beams or concrete foundations. They prevent lateral movement while absorbing operational vibrations.

What is the difference between welded and bolted crane rail clips?
Welded clips feature a base permanently welded to the steel beam, offering superior lateral strength for heavy loads. Bolted clips rely entirely on high-tensile bolts passing through the support structure and are utilized when welding is not structurally viable.

How strong are forged steel crane rail clips?
High-quality forged steel crane rail clips are incredibly strong due to their compressed grain structure. They can resist lateral forces ranging from 75 kN up to 300 kN per clip.

Are forged steel crane rail clips suitable for DIN536 crane rails?
Yes. They are heavily utilized for DIN536 rails. The clips feature adjustable upper forgings that perfectly conform to the wide flange dimensions of the European A-series rails.

How many crane rail clips are required per meter of rail?
Typically, clips are installed in pairs (one on each side of the steel rail) spaced evenly at 500mm or 600mm intervals. This configuration equates to roughly 4 clips per meter of track.
