The Guide to Heavy Duty Crane Rail Clamps

For procurement managers, port operators, and steel plant engineers, crane runway integrity is a top priority. When dealing with massive dynamic loads, lateral shear forces can easily misalign tracks, leading to extreme wheel flange wear and structural failure. Securing these tracks requires high-performance Heavy Duty Crane Rail Clamps designed to handle extreme operational stresses. In this technical breakdown, we explore the engineering behind High-Capacity Rail Fasteners, compare fastening styles, and highlight premium XINGRAIL hardware built to keep your industrial operations safely on track.

What Are Heavy Duty Crane Rail Clamps?

At a fundamental engineering level, Heavy Duty Crane Rail Clamps are rugged mechanical assemblies that securely anchor rail tracks to concrete foundations or steel girders. Often referred to as Heavy-Tonnage Crane Track Clips or Industrial Track Mounting Clamps, these fastening systems do more than just hold the rail down—they absorb intense lateral impacts and vibration.

Modern crane rail clips utilize a flexible design, featuring a vulcanized rubber nose that rests against the rail flange. This allows the track to deflect slightly under payload, mitigating fatigue in the underlying foundation. When properly specified, Heavy Duty Crane Rail Clamps maintain tight track gauge while acting as highly effective crane rail alignment clips.

Welded vs. Bolted Crane Rail Clips

When designing a runway, engineers must select the right crane rail installation clips based on the structural substrate and duty cycle.

Welded Rail Fixing Clips: For peak lateral load resistance, welded setups are the undisputed industry standard. The lower forged base is welded directly to the steel girder, creating a permanent, vibration-proof anchor. These are the ultimate Heavy Duty Crane Rail Clamps and are highly recommended as gantry crane rail clips in high-impact port environments.

Bolted Rail Fixing Clips: Fixed entirely via threaded studs or foundation anchors into concrete or pre-drilled steel, bolted crane rail clips offer tremendous versatility and ease of maintenance. They act as reliable overhead crane rail clips for indoor manufacturing plants where welding isn’t viable.

Both systems perform exceptionally well as crane runway beam rail clips, provided they are matched to the project’s load parameters.

Recommended XINGRAIL Crane Rail Clips

For long-term durability, sourcing forged steel crane rail clips is essential. XINGRAIL engineers top-tier Heavy Duty Crane Rail Clamps that meet the stringent demands of global B2B material handling.

High-Capacity Welded Solutions

If your environment demands extreme lateral force resistance, XINGRAIL’s welded series delivers uncompromising Heavy Duty Crane Rail Clamps:

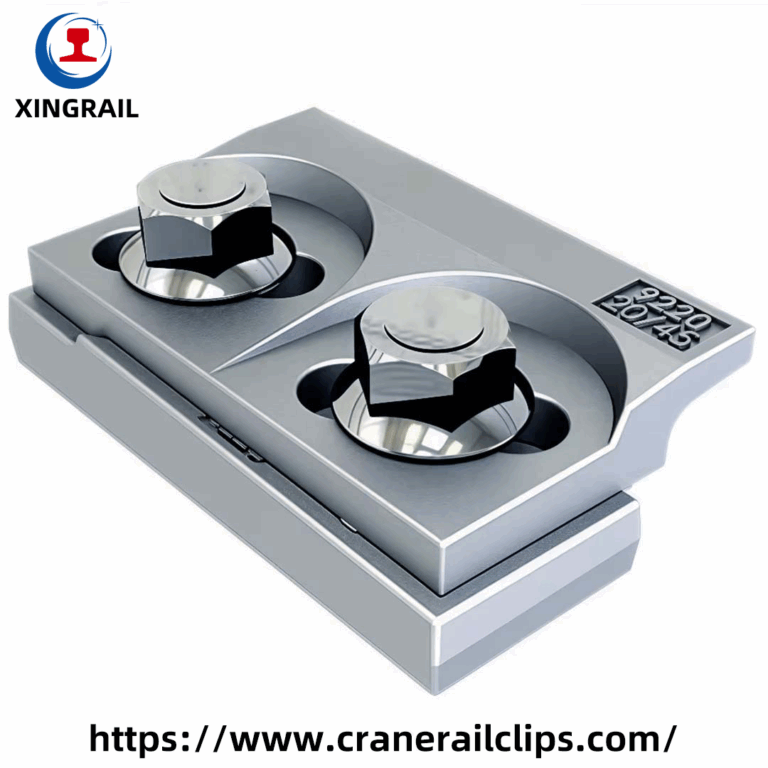

9 Series Welded Rail Fixing Clips: Engineered for massive continuous loads. This line includes the ultra-durable XINGRAIL 9220/20/45, alongside the XINGRAIL 9216/08/40, XINGRAIL 9120/15/38, and XINGRAIL 9116/08/3.

7 Series Welded Rail Fixing Clips: Highlighted by the highly adaptable and strong XINGRAIL 7216/20/39.

Reliable Bolted Solutions

For bolted foundations requiring robust crane rail fastening clips, XINGRAIL provides two core series:

31 Series Bolted Rail Fixing Clips: Ideal for standard-duty operations. Key models include the XINGRAIL 3116/13/36 and the XINGRAIL 3120/17/38.

32 Series Bolted Rail Fixing Clips: Built for heavier capacities, featuring the XINGRAIL 3224/20/44, XINGRAIL 3222/17/44, and XINGRAIL 3220/17/38.

Global Rail Compatibility

Because facility standards vary, these Heavy Duty Crane Rail Clamps seamlessly integrate with international track profiles, including DIN536 crane rails, AREA crane rails, BS railway tracks, China standard rails, Indian standard rails, GOST rails, SABS rails, and Australian standard rails.

Technical Comparison Table

Key Industrial Applications

Relying on specialized Heavy Duty Crane Rail Clamps is critical across several demanding sectors:

Port Operations: Ship-to-shore cranes push standard hardware past its limits. Upgrading to heavy duty crane rail fixing clips guarantees tracks won’t shift under relentless container movement.

Steel Plants: Handling molten ladles creates immense vertical loads and thermal expansion. Robust Heavy Duty Crane Rail Clamps absorb these stresses effectively.

Shipyard Assembly: Goliath cranes require heavy Industrial Track Mounting Clamps to maintain exact gauge tolerances over incredibly long runway spans.

FAQ

Q: Do Heavy-Duty Crane Rail Clamps allow for gauge adjustments?

A: Yes. Premium High-Capacity Rail Fasteners utilize a slotted base or an internal eccentric cam. This mechanical feature allows installation contractors to make precise lateral track adjustments before locking the system down.

Q: Why use forged steel instead of cast iron for crane clips?

A: Forged steel offers a highly uniform grain structure, which yields superior tensile strength and far better fatigue resistance—vital characteristics for any Heavy-Tonnage Crane Track Clips facing constant impact.

Q: Should rubber pads be installed with these clamps?

A: Always. Continuous elastomeric pads distribute the crane’s point loads and greatly reduce stress on the concrete or steel girder, extending the life of both your rail and your Heavy Duty Crane Rail Clamps.

Treating your track fastening system as an afterthought leads to expensive downtime. Implementing well-engineered Heavy Duty Crane Rail Clamps is the foremost defense against track shifting and structural wear. By sourcing premium crane rail clips from XINGRAIL, engineers and procurement managers ensure long-term crane runway safety, perfect alignment, and heavy duty operational durability.
