Guide to Welded Crane Rail Clips & Fixing Solutions

Designing and maintaining a safe crane runway system requires precision, durable materials, and robust engineering. When heavy loads move overhead, the integrity of your tracks is non-negotiable. Substandard fastening systems can lead to catastrophic failures, costly downtime, and severe safety hazards.

This guide explores professional industrial rail fixing solutions designed to withstand extreme forces. We will unpack the mechanics of welded crane rail clips, examine common installation challenges, and highlight industry-leading hardware. By the end of this article, you will understand how to select, install, and maintain the right clips for your specific operational needs.

What Are Welded Crane Rail Clips?

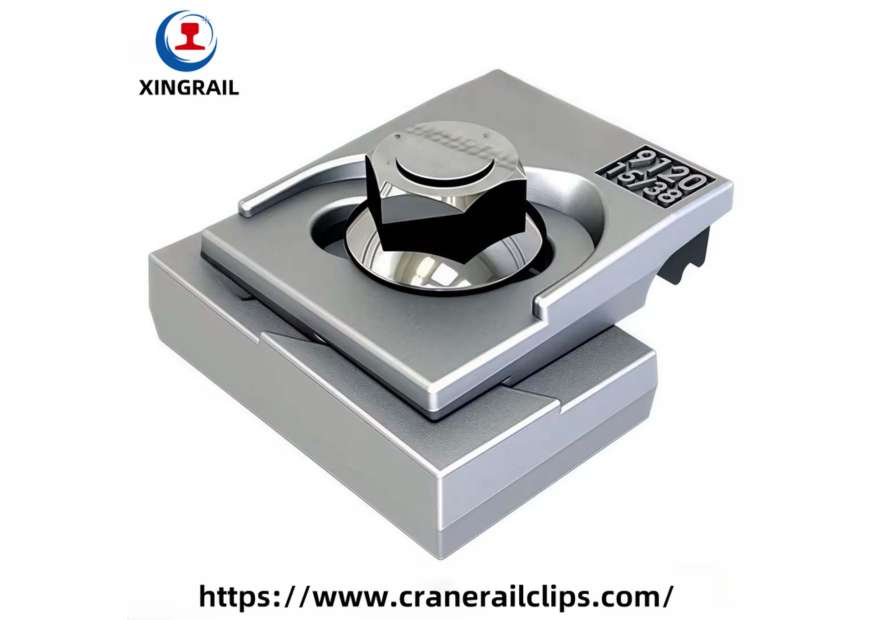

Welded crane rail clips are specialized fastening mechanisms that secure crane rails to their underlying support structures. Unlike temporary fasteners, these components deliver a permanent, high-strength connection capable of handling immense dynamic loads. They typically consist of a weldable base, a forged steel upper clip, a high-strength bolt, and a vulcanized rubber nose.

In these crane rail fixing clips the function of the rubber pad is to apply a controlled downward force to the rail flange. This flexibility absorbs vibrations while preventing the rail from lifting. By locking the track securely in place, welded clips prevent lateral movement and maintain precise gauge alignment. They are the fundamental components in any crane runway system for long-term safety and operating efficiency.

Common Challenges in Crane Rail Installation

Installing a crane track presents a variety of complex engineering challenges. Rail misalignment is one of the most frequent problems. Even a few millimeters of deviation can cause severe wheel wear and structural damage to the crane itself. Additionally, the constant movement of heavy machinery generates massive vibration and impact loads that standard fasteners simply cannot handle.

Over time, these forces lead to structural fatigue and unwanted rail movement. This lateral shifting forces maintenance teams to constantly adjust and repair the tracks. High-quality industrial rail fixing solutions eliminate these headaches. By providing superior horizontal adjustment capabilities and vibration absorption, premium crane runway rail clips secure the track, prevent movement, and significantly reduce ongoing maintenance difficulties.

Welded vs Bolted Crane Rail Clips

Engineers must choose between welded and bolted systems when designing a track layout. Welded crane rail clips provide the highest level of lateral force resistance. You weld the lower base directly to the steel runway beam. This method is highly preferred for heavy-duty applications, high-vibration environments, and continuous high-capacity operations.

Bolted crane rail clips, on the other hand, attach to the support structure using through-bolts or embedded studs. These systems offer easier replacement and are ideal when welding is restricted or when dealing with concrete foundations. However, for maximum durability under extreme lateral loads, weldable crane rail clips remain the undisputed choice for heavy industrial environments.

Recommended XINGRAIL Crane Rail Clips

Selecting the correct hardware is necessary for building resilient industrial rail fixing solutions. XINGRAIL offers a comprehensive range of high-performance clips designed to meet stringent engineering standards. These models provide excellent adjustability, robust lateral force resistance, and superior durability.

Below is a technical comparison of highly recommended XINGRAIL models to help you specify the right components for your project:

Compatible Crane Rails and Track Standards

A reliable fastening system must adapt to various global track specifications. Modern crane rail fastening clips are engineered to integrate seamlessly with multiple international standards. Whether you are upgrading an existing facility or building a new port.

High-quality clips support DIN536 crane rails. They also offer full compatibility with AREA crane rails for North American projects, and BS railway tracks for British standard applications. Furthermore, versatile fastening systems perfectly match China standard rails, Indian standard rails, GOST rails, SABS rails, and Australian standard rails. This universal compatibility ensures you can source the right clip regardless of your geographical location.

Typical Applications of Welded Crane Rail Clips

Heavy industries rely on continuous operations. In container ports and shipyards, massive cranes lift multi-ton loads around the clock. These environments demand industrial rail fixing solutions that can withstand severe lateral forces and corrosive marine atmospheres. Heavy duty crane rail clips provide the necessary rigidity to keep port operations running smoothly.

You will also find these robust systems in steel mills. The extreme heat, dust, and continuous vibration in these sectors easily destroy standard fasteners. Automated warehouses also utilize precise crane rail support clips to ensure their automated storage and retrieval systems function without derailments. In all these demanding applications, welded clips deliver unparalleled reliability.

Installation Best Practices for Crane Rail Clips

Proper installation dictates the lifespan of your runway system. When implementing industrial rail fixing solutions, begin with strict adherence to welding procedures for weld-on crane rail clips. Ensure the steel runway beam is clean, pre-heated if necessary, and welded using compatible low-hydrogen electrodes to prevent base cracking.

For the upper components, follow rigorous bolting methods. Always apply the manufacturer’s tightening torque recommendations using a calibrated torque wrench. Execute precise rail alignment procedures before finalizing the bolt tension. At last, establish a routine inspection and maintenance schedule. Regularly check crane rail installation clips for bolt loosening, rubber pad wear, and signs of weld fatigue to maximize the system’s operational life.

Why Forged Crane Rail Clips Improve Durability

The manufacturing process of the clip heavily influences its performance under stress. Forged steel crane rail clips provide vastly superior mechanical properties compared to cast iron alternatives. The forging process aligns the internal grain structure of the steel.

This enhanced structural integrity translates to superior fatigue resistance. When a crane passes over the rail, the forged clip absorbs and disperses the vibration rather than cracking. This vibration absorption protects the concrete foundation and the steel support beams.

Heavy Duty Welded Crane Rail Clips for Gantry Cranes

Gantry cranes and Ship-to-Shore (STS) container cranes exert massive dynamic forces on their tracks. Because these cranes operate outdoors and handle shifting, asymmetrical loads, they require specialized support. Gantry crane rail clips must absorb sudden lateral thrusts caused by high winds and rapid load deceleration.

Industrial rail fixing solutions designed for gantry applications feature wider bases and double-bolt configurations. These heavy-duty welded clips distribute the immense point loads over a larger area of the beam. By firmly anchoring the rail, they prevent track buckling and maintain the precise gauge required for safe, high-speed container handling.

How to Install Welded Crane Rail Clips on Crane Runway Beams

Installing welded clips requires a methodical approach to ensure track safety. Start by positioning the rail on the continuous rubber pad along the crane runway beam. Next, align the track to the exact gauge specifications using surveying equipment.

Once aligned, place the weldable base of the crane runway beam rail clips tight against the rail flange. Tack weld the bases into position. Complete the full structural weld around the base according to engineering specifications. At last, slide the upper clip into the base, insert the bolt, and tighten it to the specified torque. This process securely locks the track into your industrial rail fixing solutions.

Best Welded Crane Rail Clips for DIN536 Crane Rails

The DIN536 standard features a wide base and low profile. Securing these tracks requires crane rail alignment clips specifically contoured to match their unique flange geometry. Using mismatched clips leads to uneven pressure and accelerated pad wear.

Top-tier industrial rail fixing solutions are engineered to perfectly fit common DIN536 sizes. The clips offer generous horizontal adjustment margins to accommodate the wider flanges of heavier DIN rails. This exact fit ensures maximum surface contact.

FAQs

What are welded crane rail clips used for?
Engineers use welded crane rail clips to securely fasten crane rails to steel support beams or concrete foundations with embedded steel plates. They prevent lateral rail movement, absorb vibrations, and maintain precise track alignment for overhead and gantry cranes.

What is the difference between welded and bolted crane rail clips?
Welded clips feature a base that is permanently welded to the support structure. Bolted clips attach via bolts or studs through the beam, making them easier to replace but generally suitable for slightly lower load capacities.

How strong are welded crane rail clips?
High-quality forged welded clips are exceptionally strong. Depending on the specific model, they can safely resist lateral forces ranging from 75 kN up to 300 kN per clip, easily handling the dynamic loads of heavy industrial cranes.

Are welded crane rail clips suitable for DIN536 crane rails?
Yes, manufacturers design specific welded clips to perfectly match the flange dimensions of DIN536 rails.

How many crane rail clips are required per meter of rail?
Generally, you need between 1.2 to 2 clips per meter on each side of the rail (totaling 2.4 to 4 clips per meter of track). The exact spacing depends on the crane’s wheel load, the rail profile, and the structural engineering calculations for your specific project.
