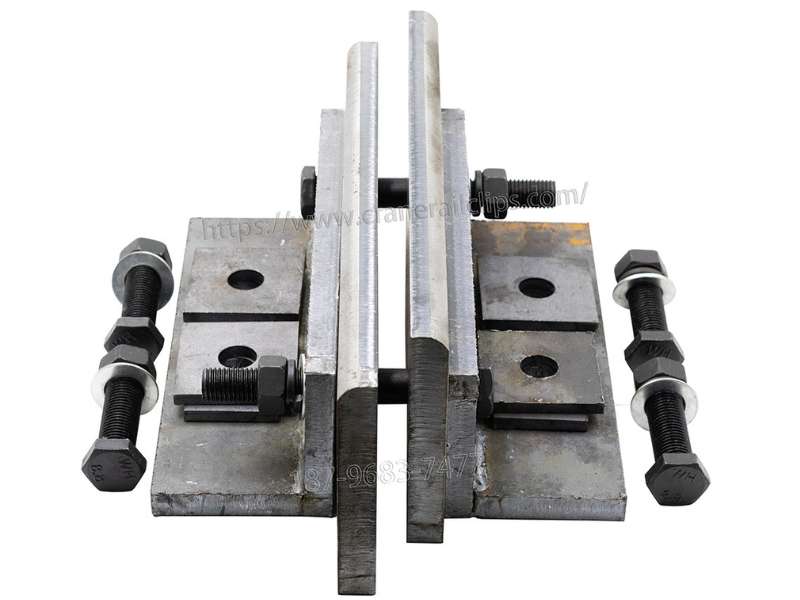

Rail Clamp Price: What to Know Before Buying

During budget planning, project managers frequently overlook minor details. Nonetheless, these elements guarantee the railway system’s overall safety. For the procurement process to be successful, you must accurately assess the rail clamp price. For engineers to make wise decisions, accurate data is necessary. A thorough examination of cost factors is given in this guide.

Factors Affecting the Price Structure of Rail Clamps

The ultimate cost of fastening systems is determined by numerous factors. The price tag cannot be considered in a vacuum. The baseline expense is driven by the cost of raw materials. Global market trends determine how much steel costs. Another important factor is manufacturing complexity. Less time is needed for machining simple designs. Advanced casting or forging techniques are required for complex geometries. For specialized projects, these extra steps raise the cost of the rail clamp.

1. Material Composition

The base metal dictates the fundamental cost. Manufacturers typically use carbon steel or alloy steel.

• Q235 Carbon Steel: This material offers a balance of strength and affordability. Most standard rail projects use this grade. It keeps the rail clamp price moderate.
• 45# Steel: This grade offers greater durability. It suits heavy-haul rail lines. The cost is higher than Q235.
• Stainless Steel: Harsh environments require corrosion resistance. Stainless steel offers this protection. Consequently, it raises the cost significantly.
• Cast Iron: Some applications use ductile iron. It absorbs vibration effectively. Compared to forging, the casting process has a different price impact.

2. Production Procedures

The structural integrity is impacted by production techniques. The unit cost is also altered.

• Forging: This procedure aligns the grain structure of the metal. It produces the strongest clamps. Expensive dies are needed for forging. It is expensive to set up initially. High-volume orders, however, offset this expense.
• Casting: A mold is filled with molten metal. Complex shapes are possible with this method. For small batches, sand casting is less expensive. Better surface finish is provided by investment casting. Due to its precision, investment casting drives up rail clamp price.
• Machining: CNC machines complete the important surfaces. Achieving tighter tolerances requires more machine time. This labor raises the overall cost.

3. Surface Maintenance

Longevity requires environmental protection. Steel rusts easily if left untreated.

• Plain Oiled: This is the least expensive choice. It provides very little protection while being shipped.
• Black Oxide: Mild corrosion resistance is added by this chemical conversion coating. It gives the appearance of being all black.
• Zinc Plating: Manufacturers use electrolysis to apply zinc. It offers protection from mild corrosion. It raises the price by a tiny percentage.

The clamp is submerged in a bath of molten zinc during Hot Dip Galvanizing (HDG). As a result, a thick layer of defense is produced. The best outdoor durability is provided by HDG. Additionally, out of all standard treatments, it raises the rail clamp price the most.

Technical Information for Rail Fixing Clamps

For heavy machinery, specific load ratings are required. Massive lateral forces are applied by crane rails. These forces must be resisted by the clamp.

In particular, the rubber nose feature enhances value. It permits a small amount of rail movement. This movement accommodates thermal expansion. Additionally, it lessens the strain on the holding bolts. This feature is absent from rigid clamps. All of the stress is transferred straight to the bolt. Fatigue failure may result from this. As a result, rail clamp price is typically higher for adjustable clamps with rubber noses.

Rail Clips: Uses and Uniqueness

Individuals frequently confuse rail clips and rail clamps. They have comparable purposes. Their mechanics are different, though.

1. Rail Fixing Clamp

• Bolted connection is the mechanism.
• Adjustability: Frequently permits lateral modification.
• Use: Factory floors, industrial tracks, and crane rails.
• Force management uses shear and friction to withstand large lateral loads.

2. Elastic Rail Clips

• Spring steel tension is the mechanism.
• Adjustability: very little or nonexistent.
• Applications include subway systems, standard gauge railroads, and high-speed trains.
• Force Management: Uses elasticity to maintain a steady toe load.

How to Choose the Right Rail Clamp

Data analysis is necessary to select the appropriate fastening system. You need to calculate the operational loads.

1. Requirements for Load

Ascertain the highest wheel load.

Calculate the potential side thrust. Loads are frequently swung by cranes. This creates significant side force. Choose a clamp that has a safety factor. It is typical to have a safety factor of 1.5 or 2.0. Money is initially saved by under-specifying the clamp. Later on, it runs the risk of catastrophic failure. Over-specifying unnecessarily raises the rail clamp price.

2. Conditions of the Environment

Examine the installation location.

• Indoor/Dry: Black oxide or plain oiled is adequate.
• Outdoor/Moderate: Zinc plating offers sufficient defense.
• Workers must perform hot-dip galvanization for marine and corrosive materials. Salt spray destroys standard zinc plating.
• High Heat: Steer clear of rubber nose clamps. The rubber deteriorates. Make use of rigid clamps made entirely of steel.

3. Compatibility of Rail Sections

Check the rail’s dimensions. ASCE, UIC, and DIN are examples of common standards. The rail foot profile must be compatible with the clamp. Certain clamps are compatible with several rail sections. Some are particular. Universal clamps simplify inventory management. Workers need new molds for custom clamps, which increases lead time and raises the rail clamp price.

Common Questions

1. What materials are rail clamps made of?
   Common materials include aluminum, steel, and composite alloys.
2. How do I determine the right rail clamp for my project?
   Consider load requirements, environmental conditions, and compatibility with rail systems.
3. Are rail fixing clamps and rail clips the same?
   No, rail fixing clamps secure rails, while rail clips provide additional stability.
4. Where can I buy rail clamps?
   Xingrail.
