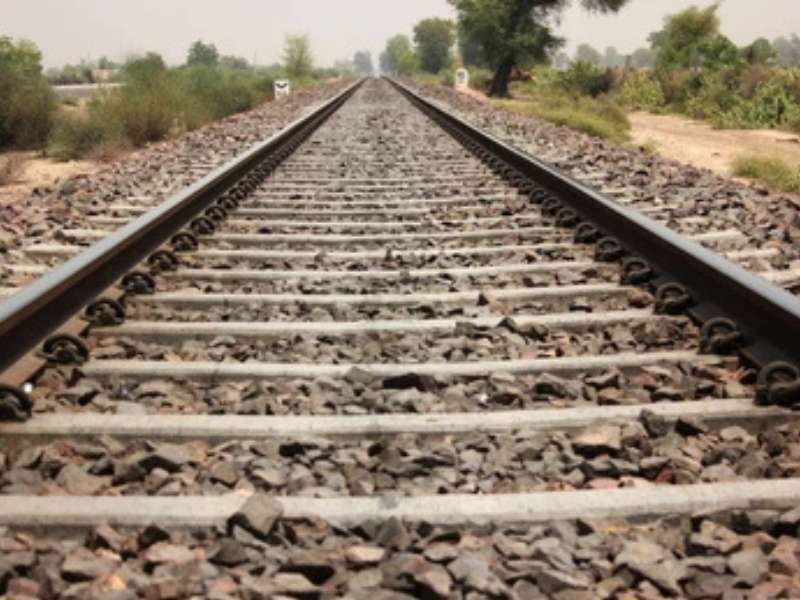

Broad Gauge Rail Specifications

The world of railway engineering is built upon precision, where millimeters matter over thousands of kilometers. At the heart of this system lies the track itself, and the specific dimensions used can define a nation’s entire rail network. A broad gauge rail system, characterized by a track gauge wider than the standard 1,435 mm, offers unique advantages in stability and load-bearing capacity. Understanding the intricate specifications of these rails and the components that hold them together, like rail clips, is essential for anyone involved in railway construction, maintenance, or supply. This article provides a focused look at the technical details of broad gauge rail systems, including specific rail profiles and the critical fastening components that ensure their safe and efficient operation.

Broad Gauge Rail Track Specifications

The term “broad gauge” isn’t a single standard but a category of track gauges. The most widely used broad gauge is the Indian gauge at 1,676 mm (5 ft 6 in), which is prevalent across South Asia. Another common variant is the Iberian gauge (1,668 mm) found in Spain and Portugal, and the Russian gauge (1,520 mm) used across the CIS countries, Mongolia, and Finland.

The wider stance of a broad gauge rail provides excellent lateral stability. This quality is particularly beneficial for heavy freight operations and allows for the construction of wider, more spacious passenger carriages, enhancing comfort. The increased stability also supports higher axle loads, meaning trains can carry more weight per wagon, improving the overall efficiency of freight transport. However, these benefits come with higher initial construction costs due to the need for more land, wider sleepers, and a greater volume of ballast.

The specifications for the rail itself—the steel profile upon which the wheels run—are just as important as the gauge. Rail profiles are designated by their weight per unit length (e.g., kilograms per meter or pounds per yard). Heavier rails can withstand greater stress and higher traffic volumes, making them suitable for mainline routes with heavy, fast-moving trains.

Broad Gauge Track Specifications

Below is a detailed table outlining the key specifications for common broad gauge rail profiles used in networks like Indian Railways. These specifications ensure uniformity and safety across the network.

These profiles, particularly the UIC 60 and 52 kg/m rails, are workhorses of broad gauge networks. The selection between them depends on factors like projected traffic density, maximum permissible speed, and the economic considerations of the project. Heavier rails like the 60 kg/m profile offer a longer service life and require less frequent maintenance under heavy traffic, justifying their higher upfront cost for critical routes.

Rail Clips in Track Integrity

A railway track is more than just two steel rails. It is a complex system where every component plays a part in ensuring safety and stability. Rail clips are a fundamental part of the rail fastening system, which secures the rail to the sleeper (or tie). Their primary function is to prevent the rail from moving vertically, laterally, or longitudinally, while also providing a specific clamping force that holds the rail firmly in place. This clamping force is crucial for maintaining the correct track gauge and preventing rail creep, which is the longitudinal movement of the rail under traffic.

In a broad gauge rail system, the forces at play are immense. Heavy locomotives and long freight consists exert significant dynamic loads on the track. A reliable fastening system, with high-quality rail clips, is essential to absorb these forces and maintain track geometry.

There are many types of rail clips, but elastic rail clips are the most common in modern railway systems. Unlike rigid fastenings, elastic clips are designed to flex under load and return to their original shape. This elasticity helps absorb vibrations and shocks, reducing wear on both the rail and the sleeper. It also ensures a consistent clamping force even as components wear over time.

Common types of elastic rail clips include:

• Pandrol-style Clips (e.g., E-Clip, Fastclip): These are among the most widely used elastic fastenings globally. The ‘e’ shape of the E-Clip allows it to be driven into a shoulder cast into the concrete sleeper, providing a durable and maintenance-friendly solution.
• SKL Clips (Vossloh-style): These tension clamps are typically used with a screw and dowel system. The clip is tensioned by tightening a bolt, which presses the clip against the rail foot. This design allows for easy adjustment of the clamping force.
• Nabla Clips: This design provides a strong clamping force and is known for its effectiveness in preventing rail rollover.

The choice of clip depends on the type of sleeper (concrete or wooden), traffic conditions, and the specific requirements of the railway authority. For high-speed lines and heavy-haul routes on broad gauge rail, systems like the Pandrol Fastclip or Vossloh SKL series are often preferred for their high clamping force, reliability, and long service life.

Rail Clip Specifications

The specifications for rail clips are stringent, as they are a safety-critical component. The material, dimensions, and mechanical properties are carefully controlled to ensure performance under demanding conditions.

The clamping force, or toe load, is perhaps the most critical specification. It is the downward pressure the clip exerts on the foot of the rail. A sufficient and consistent toe load prevents the rail from lifting or shifting, which is vital for maintaining track gauge and alignment. The fatigue life indicates how many load cycles a clip can endure before it is at risk of failure, a crucial factor for longevity and safety on a busy broad gauge rail line.

In summary, the robustness of a broad gauge rail network relies on the synergy between heavy-duty rail profiles and high-performance fastening systems. The detailed specifications for both the rail and the clips are a testament to the engineering precision required to build and maintain railways that can safely carry millions of tons of freight and passengers every year. These components, while often overlooked by the public, are the foundation of a reliable and efficient transportation system.

Recommended Products for Broad Gauge Rail Systems

Securing a broad gauge rail system requires precision and uncompromising strength. Broad gauge networks, like the 1,676 mm Indian gauge or the 1,520 mm Russian gauge, handle massive axle loads and heavy freight trains. To ensure your track remains stable and safe, you must match your heavy-duty rail profiles with the correct fastening systems.

While the broad track gauge defines the distance between the two rail heads, you must select your rail clips based entirely on the physical base width of your rail. The rail clip must sit perfectly flush against the rail foot to work correctly. This tight fit allows the fastener to apply a massive downward clamping force, also known as toe load. This relentless pressure pins the rail to the sleeper, absorbs aggressive vibrations, and prevents the extreme lateral forces of heavy locomotives from widening the track gauge.

To help you secure your high-capacity network, we have matched our premium crane rail clips with the prominent rail profiles used in broad gauge infrastructure. Review the table below to find the exact fastening solution for your rail dimensions.

Frequently Asked Questions (FAQs)

1. Does the 1,676 mm broad track gauge determine which rail clip I need to buy?
   No, the track gauge measurement does not dictate your rail clip selection. You must choose your fasteners based entirely on the physical base width of your specific rail profile. For example, a 60 kg/m (UIC 60) rail features a 150 mm base width. You must pair it with a clip engineered to grip that exact 150 mm footprint, regardless of the distance between the two rails.
2. Which rail clip series should I use for 60 kg/m (UIC 60) broad gauge tracks?
   Engineers typically use the heavy 60 kg/m rail for high-density routes and heavy axle loads. This rail features a wide 150 mm base. We recommend the 9 Series Welded Clips for this profile. You weld these clips directly to the steel foundation to create a permanent, rigid anchor that safely neutralizes the severe lateral pressure generated by heavy freight trains.
3. Are 32 Series Bolted Clips suitable for 52 kg/m mainline broad gauge routes?
   Yes. Track crews frequently deploy the 52 kg/m rail profile for mainline routes carrying moderate to heavy traffic. This rail has a base width of 136 mm, which perfectly matches the gripping range of our 32 Series Bolted Clips. They deliver exceptional downward clamping force while allowing maintenance teams to easily loosen the bolts during track geometry adjustments.
4. How do heavy-duty rail clips prevent rail creep on broad gauge networks?
   Heavy locomotives and long freight consists exert massive dynamic and longitudinal forces on the track structure. High-quality fastening systems counter these stresses by applying a continuous clamping force directly onto the rail flange. This intense friction firmly pins the rail to the sleeper, actively preventing the forward or backward longitudinal movement known as rail creep.
5. What happens if I install a mismatched rail clip on a heavy broad gauge rail?
   Using a rail clip that fails to match your rail’s base width creates an immediate derailment risk. If the clip does not seat flush against the rail foot, it cannot apply the necessary toe load. The immense weight and vibration of passing heavy-haul trains will quickly shake the unsecured rails loose, leading to rapid component failure and dangerous track gauge widening.
