The precise engineering behind railway infrastructure is often overlooked by the daily commuter, yet it is fundamental to safety and efficiency. One of the most critical measurements in railway design is the distance between railway track centers, technically known as track spacing. This measurement dictates everything from the speed at which trains can safely pass each other to the placement of signals and maintenance equipment. While track gauge determines the width of the wheels, the spacing between adjacent tracks ensures that two trains traveling at high speeds do not collide aerodynamically or physically. Alongside this spacing, the humble rail clip plays a vital role in keeping the rails exactly where they need to be, ensuring that these precise measurements hold true under the immense weight of passing tonnage.

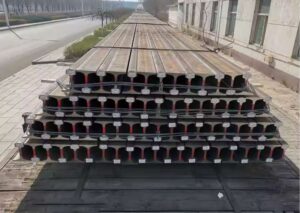

Distance Between Railway Track
When railway engineers discuss the distance between railway track lines, they are typically referring to the measurement from the center line of one track to the center line of the adjacent track. This is distinct from the “six-foot” gap often referenced in historical British railway terms, which referred to the clear space between the outer edges of the rails.
The spacing is vital for several reasons. Firstly, it provides a safe clearance for the dynamic envelope of the train—the space a train occupies when moving, accounting for swaying, tilting on curves, and aerodynamic effects. Secondly, it provides room for maintenance workers to stand safely (in some jurisdictions) or for equipment to operate without fouling the adjacent line.
Different railway systems adopt different standards based on speed and rolling stock width. For example, a high-speed line where trains pass each other at a combined speed of over 500 km/h requires a much wider distance between railway track centers than a slow-moving freight yard. This increased gap mitigates the “pressure pulse” that occurs when two aerodynamic bodies pass in close proximity, which can destabilize trains and shatter windows if the gap is too narrow.
Factors Influencing the Distance Between Railway Track
Several dynamic factors determine the required spacing between tracks. It is not a “one size fits all” measurement; rather, it is a calculated value derived from operational requirements.
Aerodynamics and Speed
As train speeds increase, the air displacement creates a significant pressure wave. If the tracks are too close, the pressure wave from a passing train can hit the side of another train with enough force to cause structural damage or derailment risks. Therefore, high-speed lines like the TGV in France or the Shinkansen in Japan utilize wider spacing standards compared to conventional commuter lines.
Track Curvature
On curves, railway vehicles behave differently than on straight tracks. Long carriages effectively become chords of the curve, with their centers hanging over the inside of the curve (overthrow) and their ends swinging out over the outside (endthrow). To prevent cars on adjacent tracks from striking each other, the distance between railway track centers must be widened significantly on sharp curves.
Infrastructure and Electrification
The space between tracks often needs to accommodate infrastructure such as bridge piers, signal masts, and overhead Catenary masts. If a railway line is electrified, safety clearances for high-voltage equipment further dictate the minimum spacing requirements to prevent electrical arcing to passing trains.
Track Spacing and Rails Specifications
To ensure interoperability and safety, railway organizations set strict guidelines for track spacing. Below is a comparison of standard spacing requirements across different railway environments.
Table 1: Standard Track Spacing Specifications
|
Railway System / Region |
Minimum Track Spacing (Center-to-Center) |
Context / Speed Limit |
|
United Kingdom (Network Rail) |
1,970 mm (Standard Interval) |
Conventional lines (clearance between rails) |
|
Germany (Deutsche Bahn) |
4.00 meters |
New lines > 200 km/h |
|
Germany (Deutsche Bahn) |
4.50 meters |
High-speed lines > 250 km/h |
|
France (LGV) |
4.20 – 4.50 meters |
High-speed TGV lines |
|
Japan (Shinkansen) |
4.30 meters |
Standard Shinkansen lines |
|
India (Broad Gauge) |
5.30 meters |
New High-Speed Corridors |
|
India (Broad Gauge) |
1676 mm (Gauge) + clearance |
Existing mainlines (approx. 4.7m – 5m) |
|
China (High Speed) |
5.00 meters |
350 km/h operation |
Alongside spacing, the rail profile itself is standardized. The rail must be robust enough to handle the axle loads. Common rail profiles include the UIC 60 (60 kg/m) used in Europe and the 136 RE (136 lb/yd) used in North America.
Table 2: Common Rail Profile Dimensions
|
Rail Profile |
Height (mm) |
Base Width (mm) |
Head Width (mm) |
Web Thickness (mm) |
|
UIC 54 |
159.0 |
140.0 |
70.0 |
16.0 |
|
UIC 60 |
172.0 |
150.0 |
72.0 |
16.5 |
|
115 RE |
168.3 |
139.7 |
69.1 |
15.9 |
|
136 RE |
185.7 |
152.4 |
74.6 |
17.5 |
Role of Rail Clips in Track Geometry
While engineers calculate the perfect distance between railway track lines, it is the fastening system that ensures these calculations remain reality in the physical world. Rail clips are the primary component of the fastening system, securing the steel rail to the sleeper (tie).
If rail clips fail or lose tension, the rail can shift laterally. This movement affects the track gauge (the internal distance between the two rails of a single track). If the gauge widens or narrows, it can lead to derailment. Furthermore, if the entire track structure shifts, it compromises the center-to-center spacing between parallel lines, potentially bringing passing trains dangerously close.
Modern rail clips are “elastic” or “resilient.” Unlike rigid bolts that can loosen with vibration, elastic clips maintain a constant clamping force on the rail foot (base). They absorb the high-frequency vibrations from the train wheels and accommodate the slight vertical movements of the rail as the heavy loads pass over, all while preventing the rail from moving sideways or tipping over.
Types of Rail Clips
- E-Type Clips: These are perhaps the most recognizable rail clips, shaped roughly like a lowercase ‘e’. They are driven into a housing (shoulder) cast into the sleeper. They provide high clamping force and are self-tensioning.
- SKL Tension Clamps: Popular in Europe, these W-shaped clips are screwed down using a bolt and a plastic dowel. They offer excellent fatigue resistance and are widely used on high-speed tracks where maintaining precise geometry is paramount.
- Fast Clip Systems: A pre-assembled system where the clip is already mounted on the sleeper at the factory. This speeds up track laying and ensures consistent application force.
- Crane Rail Clips: Used for industrial crane tracks, these are often bolted or welded and allow for lateral adjustment to ensure the crane runs perfectly straight.
Specifications of Rail Clips
Rail clips must be manufactured to exacting standards. They are subjected to millions of load cycles over their lifespan and must endure harsh environmental conditions without losing their elasticity. The primary material used is high-quality spring steel.
Material Requirements
The steel used for rail clips, typically grades like 60Si2MnA or 38Si7, is heat-treated to achieve a specific hardness range (usually 42–48 HRC). This process gives the steel its spring-like properties, allowing it to flex under load and return to its original shape without permanent deformation.
Table 3: Elastic Rail Clip Specifications (E-Clip & SKL)
|
Parameter |
E-Clip (Example: E2055) |
SKL Clamp (Example: SKL 14) |
|
Material |
Spring Steel (60Si2MnA) |
Spring Steel (38Si7) |
|
Bar Diameter |
20 mm |
13 mm (wings) / Varies |
|
Hardness (HRC) |
44 – 48 |
42 – 47 |
|
Clamping Force |
9 – 11 kN |
9 – 12 kN |
|
Fatigue Life |
> 5 million cycles |
> 3 million cycles |
|
Installation Method |
Driven into shoulder |
Screwed with sleeper screw |
|
Surface Finish |
Black Oxide / Galvanized |
Black Oxide / Zinc Plated |
Table 4: Crane Rail Clip Specifications (Boltable/Weldable)
|
Parameter |
Boltable Clip (Example: 3116) |
Weldable Clip (Example: 9120) |
|
Material |
Forged Steel / Casting |
Forged Steel top / Cast base |
|
Lateral Adjustment |
Up to 10 mm |
Up to 15 mm |
|
Max Side Load |
45 kN |
120 kN |
|
Bolt Grade |
Grade 8.8 or 10.9 |
N/A (Base welded) |
|
Application |
Medium duty cranes |
Heavy duty / Port cranes |
Track Spacing and Fasteners Maintenance
Maintaining the correct distance between railway track centers is an ongoing battle against the forces of nature and physics. As trains pass, they exert lateral forces that can slowly shift the ballast and the track structure.
Railway maintenance crews use specialized track geometry cars to measure the alignment, gauge, and spacing of tracks dynamically. If the spacing deviates from the standard tolerances, tamping machines are used to lift and shift the track back into its correct position.
The rail clips are the first line of defense in this maintenance regime. A loose or broken clip allows the rail to move. Therefore, visual inspections and automated scanning systems are used to identify missing or damaged clips. In areas with extreme temperature fluctuations, the rail expands and contracts. Elastic clips are designed to handle this longitudinal movement (creep) to a degree, but the rail anchors and fastening system must be robust enough to prevent the rail from buckling—a catastrophic event where the track warps laterally, instantly violating spacing safety standards.
Regular tightening of screw-based systems (like SKL) and checking the toe load (downward force) of driven systems (like E-clips) is essential. If a clip loses its tension due to metal fatigue or corrosion, it must be replaced immediately to ensure the track geometry remains rigid.
FAQs
- What is the standard distance between railway tracks?
There is no single global standard, but for modern mainlines, it typically ranges between 3.5 meters and 4.5 meters. High-speed lines generally require 4.0 meters or more to manage aerodynamic pressure between passing trains. - Why is the distance between tracks wider on curves?
On curves, the center and ends of long railway carriages overhang the track (called endthrow and overthrow). The distance between railway track centers must be increased to ensure these overhanging sections do not collide with trains on the adjacent track. - What is the difference between track gauge and track spacing?
Track gauge is the internal distance between the two rails of a single track (standard gauge is 1,435 mm). Track spacing is the distance from the centerline of one track to the centerline of a parallel track. - How do rail clips affect track spacing?
Rail clips secure the rail to the sleeper. If they fail, the rail can shift laterally. While this primarily affects gauge, severe shifting of the entire track structure due to poor fastening can compromise the safe spacing distance between tracks. - What materials are used for high-durability rail clips?
High-durability rail clips are made from high-grade spring steels such as 60Si2MnA, 60Si2CrA, or 38Si7. These materials are heat-treated to achieve a hardness of 44-48 HRC, ensuring they can withstand millions of load cycles without breaking.
The safety of global railway networks relies on the strict adherence to specifications regarding the distance between railway track centers and the integrity of rail fastening systems. From the aerodynamic calculations required for high-speed passing to the metallurgy of a single spring steel clip, every element is designed to work in unison. As railway technology advances towards faster speeds and heavier loads, the precision of these measurements and the durability of components like rail clips will remain the bedrock of safe rail transport.
Recommended Products for Maintaining Railway Track Spacing
Maintaining the precise distance between parallel railway tracks is a critical safety requirement. This specific spacing prevents passing trains from colliding and safely manages massive aerodynamic pressure waves. To keep your tracks exactly where you place them, you must secure your rails with a heavy-duty fastening system tailored to your specific rail dimensions.
When you choose your rail clips, you must base your selection on the physical base width of your rail profile. Your rail clip must sit completely flush against the rail foot. This precise fit ensures the fastener applies maximum downward clamping force, also known as toe load. This relentless pressure anchors the rail firmly to the sleeper, absorbs high-frequency vibrations, and completely neutralizes the lateral forces that can shift the track structure out of alignment.
To help you preserve the exact geometry and safe spacing of your railway lines, we have matched our premium crane rail clips with the common rail profiles utilized across global networks. Review the table below to find the correct fastening solution for your track specifications.
|
Rail Type |
Base Width |
Height |
Weight |
Recommended Clips |
|
UIC 54 |
140.0 mm |
159.0 mm |
54.77 kg/m |
32 Series Bolted Rail Clips |
|
115 RE |
139.7 mm |
168.3 mm |
56.90 kg/m |
32 Series Bolted Rail Clips |
|
UIC 60 |
150.0 mm |
172.0 mm |
60.21 kg/m |
9 Series Welded Rail Clips |
|
136 RE |
152.4 mm |
185.7 mm |
67.50 kg/m |
9 Series Welded Rail Clips |
Frequently Asked Questions (FAQs)
- How do rail clips help maintain the safe distance between railway tracks?
Rail clips secure the steel rail directly to the underlying sleeper. By applying a heavy downward clamping force, they prevent the rails from shifting laterally. If poor fastening allows the rails to slide sideways, the entire track structure can move out of alignment. This movement immediately compromises the safe center-to-center spacing needed to prevent trains on adjacent tracks from colliding. - Why do massive rail profiles like the 136 RE require 9 Series Welded Clips?
Freight networks use heavy 136 RE rails because they endure immense axle loads and extreme dynamic forces. You weld the 9 Series clips directly to the steel foundation, creating an unyielding structural anchor. This rigid grip flawlessly accommodates the wider 152.4 mm rail base and successfully stops the heavy track from shifting into the clearance zone of parallel lines. - Are 32 Series Bolted Clips suitable for securing UIC 54 mainline tracks?
Yes. Track engineers frequently deploy UIC 54 rails for conventional mixed-traffic operations. This rail features a base width of 140 mm, which matches the gripping range of the 32 Series Bolted Clips perfectly. These fasteners provide massive downward pressure while allowing track crews to easily loosen the bolts during routine spacing and geometry maintenance. - What happens to my track spacing if I install an incorrectly sized rail clip?
Using a clip that fails to match your rail’s specific base width destroys track integrity. If the fastener housing cannot seat flush against the rail flange, it simply cannot deliver the required toe load. The heavy vibration from passing trains will quickly shake the loose rails outward, dangerously narrowing the gap between your parallel railway tracks. - How do elastic fastening systems handle the aerodynamic pressure of high-speed trains?
High-speed trains create massive pressure waves that forcefully push against adjacent tracks as they pass. Premium elastic fastening systems utilize forged spring steel components to maintain a continuous, unyielding grip on the rail base. This intense friction locks the rails firmly in place, ensuring the carefully engineered distance between the tracks remains totally stable.
