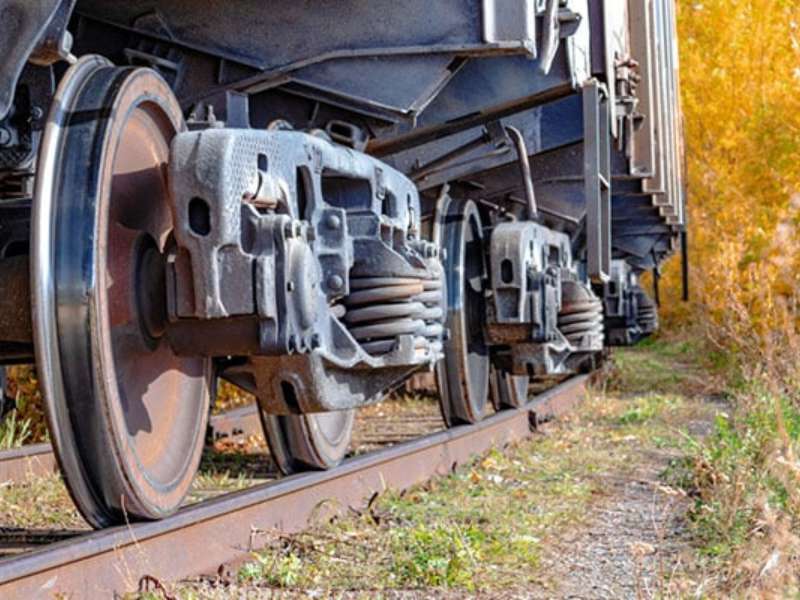

While rail specifications and wheel geometry are fundamental to guiding a train, the entire system relies on components that hold the tracks firmly in place. This is where rail clips come in, serving as a critical link in the chain of stability. The answer to how do trains stay on the track involves not just the rails, but how they are fastened. Rail clips are engineered to secure the rail to the sleepers or underlying foundation, preventing vertical, longitudinal, and lateral movement. They ensure the track gauge remains consistent and absorb the immense vibrations and forces exerted by a passing train, which is essential for both safety and operational efficiency.
Rail clips must provide a strong clamping force to hold the rail down, yet also allow for slight longitudinal movement for thermal expansion and contraction. Without this controlled flexibility, the rails could buckle in the heat or fracture in the cold. By maintaining precise alignment and absorbing dynamic loads, rail clips play an indispensable role in ensuring the integrity of the track structure under the weight of multi-ton locomotives and cars.
How Rail Clips Help Trains Stay on the Track: Types and Functions
The selection of a rail clip depends on the specific application, including the type of rail, the expected load, and the supporting structure. Clips can be broadly categorized into bolted, welded, and friction-fit designs, each offering distinct advantages. The choice is often a balance between installation requirements, maintenance needs, and the mechanical forces they must endure. For instance, heavy industrial lines or crane runways demand clips with very high lateral capacity to resist the significant side-thrust from crane wheels.
A key feature of modern rail clips, especially adjustable ones, is their ability to allow for precise alignment of the rails during installation and maintenance. This precision is vital for high-speed lines and specialized applications where even minor misalignments can lead to premature wear and potential safety hazards. Many advanced clips also incorporate a rubber or elastomeric component, which helps dampen vibrations, reduce noise, and absorb the “bow wave” effect—the wavelike deflection of the rail just ahead of the wheel—further protecting the entire track system from fatigue.
The table below compares different categories of rail clips based on their design and typical performance specifications.
|
Clip Type |
Primary Design |
Lateral Capacity (kN) |
Common Applications |
Key Features |
|
Bolted Clips |
Fastened directly to the foundation using bolts. |
40 – 255 kN |
Light to medium-duty applications, mainline tracks. |
Economical, low profile, and easy to install and adjust. |
|
Welded Clips |
The lower component of the clip is welded to a steel base or soleplate. |
120 – 300+ kN |
Heavy industries, crane rails, high side-load environments. |
Provides exceptionally high lateral strength and a very secure fastening. |
|
Friction Fit Clips |
Relies on a tight, clamping fit over the rail flange. |
Varies greatly |
Trolley rails, anchor rails, and lighter crane applications. |
Simple and reliable design, often used for specific rail profiles without bolts. |
FAQs About Rail Specifications and Clips
What are the standard dimensions of a rail?
Rail dimensions vary by type but typically include height, width, and flange thickness. For example, a 115 RE rail has a height of 6.625 inches and a base width of 5.5 inches, designed for mainline freight and passenger traffic.
How do rail clips improve track stability?
Rail clips secure rails to the supporting structure, preventing lateral and vertical movement. This ensures the track maintains its correct gauge and alignment under the immense dynamic loads of passing trains, which is critical for preventing derailments.
What is the difference between bolted and welded rail clips?
Bolted clips are fastened to the foundation with bolts and are common in standard railway lines due to their ease of installation and adjustment. Welded clips have a base that is welded to a steel structure, offering superior strength for heavy industrial and crane applications.
Why are train wheels conical in shape?
The conical shape is a key self-steering mechanism. As a train enters a curve, the wheels shift, causing the outer wheel to ride on a larger diameter and the inner wheel on a smaller one. This allows the wheelset to navigate turns smoothly without slipping.
What are the key specifications of crane rail clips?
Key specifications for crane rail clips include very high lateral capacity (e.g., up to 300 kN) to handle significant side-thrust and a wide lateral adjustment range (e.g., 15-21 mm) to allow for precise rail alignment, which is critical for crane operation.
