How Wide Is a Train and What Are Standard Rail Dimensions?

The question of how wide is a train is more complex than it might seem, as it involves a system of interconnected measurements, from the train car itself to the track it runs on. For industry professionals, understanding these dimensions is critical for ensuring safety, interoperability, and efficiency across vast rail networks. While a typical freight car in North America is about 10 feet (or 3 meters) wide, this is just one piece of the puzzle. The true answer lies in the specifications of the railway infrastructure, particularly the track gauge, rail profile, and the components that hold it all together, like rail clips. These elements work in concert to support immense loads and facilitate smooth, reliable transport.

This article provides a detailed examination of railway track dimensions, the various standards that govern them, and the crucial role of fastening systems. We will explore the specifics of standard gauge, the profiles of the rails themselves, and how components like rail clips ensure the entire system remains stable and secure under the immense pressures of daily operation.

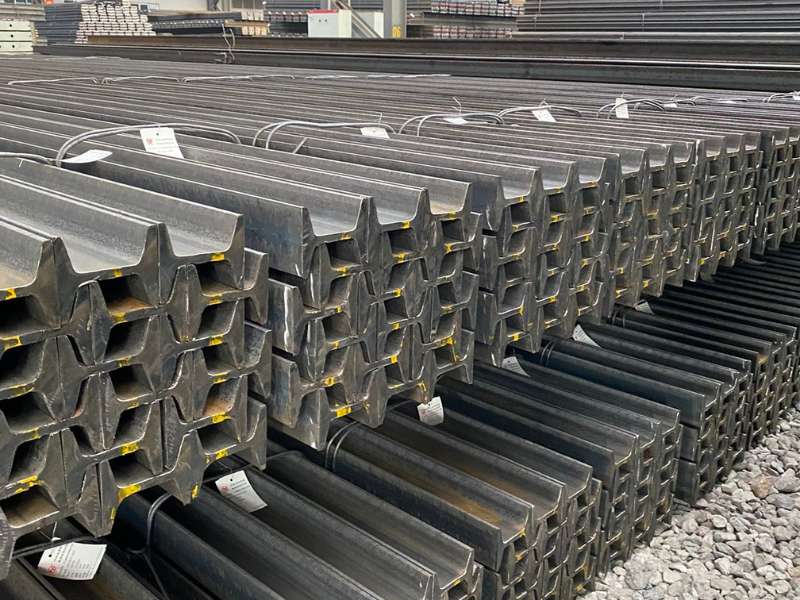

Rail and Track Specifications

The foundation of any railway is the track, and its dimensions are standardized to ensure trains can travel safely and efficiently. The most critical measurement is the track gauge, which is the distance between the inner faces of the two rails. Beyond the gauge, the physical dimensions of the rail itself—its height, the width of its base, and the width of its head—are vital for load-bearing capacity and durability.

A common standard for rail in North America and other parts of the world is the AREMA (American Railway Engineering and Maintenance-of-Way Association) standard. These rails are categorized by their weight per yard. For example, a 136 RE rail weighs 136 pounds per yard. The “RE” designation signifies a specific profile design that is widely used for mainline tracks. Heavier rails are generally stronger and can support higher axle loads and more frequent traffic, making them suitable for high-density freight and passenger routes.

Below is a specification table detailing the dimensions for common AREMA rail profiles, providing a clear comparison of their key measurements.

These specifications dictate the structural integrity of the track. The height of the rail contributes to its stiffness and ability to distribute loads vertically. The base width provides stability and a wide footprint for securing the rail to the ties (or sleepers). The head width offers the contact surface for the train’s wheels, and its design is crucial for minimizing wear and ensuring proper wheel-rail interaction. Understanding these dimensions is the first step in appreciating the engineering that underpins the entire rail system.

How Wide Is a Train? A Look at Track Gauge

The single most important dimension in railway construction is the track gauge. This measurement, taken between the inside edges of the rail heads, determines which rolling stock can use the track. The most widely used gauge in the world is the Standard Gauge, which measures 4 feet, 8.5 inches (1,435 mm). Approximately 55% of all railway lines globally use this standard, including those in North America, most of Europe, China, and for all high-speed rail lines (with a few exceptions in Russia, Finland, and Spain).

The adoption of this specific measurement is rooted in the early days of British railways. George Stephenson, a pioneer of steam locomotives, used this gauge for the Stockton and Darlington Railway in 1825. It was based on the width of the horse-drawn wagons used in local coal mines. When Stephenson later engineered the highly successful Liverpool and Manchester Railway, he used the same gauge, plus a half-inch to reduce binding on curves. Its success led to its widespread adoption across Great Britain and, consequently, in many other parts of the world where British engineers designed the first railways.

While standard gauge is dominant, other gauges are also in use:

• Broad Gauge: Any gauge wider than 1,435 mm. Examples include the Irish gauge (1,600 mm), the Iberian gauge (1,668 mm) in Spain and Portugal, and the Indian gauge (1,676 mm). Broad gauges can offer greater stability and allow for wider, higher-capacity train cars.
• Narrow Gauge: Any gauge narrower than 1,435 mm. Common examples are 1,067 mm (Cape gauge) used in Japan, South Africa, and Indonesia, and 1,000 mm (metre gauge) used in parts of Southeast Asia, Africa, and South America. Narrow gauges are often used in mountainous terrain because they allow for tighter curves and require less extensive earthworks, reducing construction costs.

The choice of gauge has significant economic and operational implications. A single, standard gauge allows for seamless interoperability, meaning trains can travel across different networks and even countries without interruption. In regions with multiple gauges, a “break of gauge” occurs, forcing cargo to be transloaded or passengers to change trains, which introduces delays and costs. This is why many modern railway projects, especially for high-speed and freight corridors, prioritize the standard gauge.

Rail Clips in Track Stability

A railway track is more than just two parallel steel rails. It is a complex system where every component plays a vital role in ensuring safety and stability. Rail clips, though small, are one of the most critical elements in a track fastening system. Their primary function is to secure the rail to the tie (sleeper), preventing vertical, lateral, and longitudinal movement. Without effective rail clips, the track would be unable to withstand the dynamic forces exerted by a moving train.

Rail clips are part of a fastening assembly that typically includes a tie plate, screw spikes or bolts, and sometimes pads. The clip itself applies a constant, downward clamping force onto the base of the rail. This force is essential for several reasons:

1. Preventing Rail Overturning: The lateral forces generated by a train, especially on curves, can create a risk of the rail tilting or overturning. Rail clips hold the rail firmly in place, counteracting these forces and maintaining the track’s gauge.
2. Controlling Longitudinal Movement: Rails expand and contract with temperature changes. This thermal stress can cause the rail to move longitudinally, a phenomenon known as “rail creep.” Rail clips provide resistance to this movement, helping to maintain the integrity of continuously welded rail (CWR) and preventing buckling or pull-aparts.
3. Absorbing Vibrations: As a train passes, it generates significant vibrations. Modern rail clips, often used with resilient pads, help absorb this energy, reducing wear and tear on both the rail and the underlying ties and ballast. This absorption also contributes to a smoother ride and reduces noise.

There are many different types of rail clips, each designed for specific applications, rail types, and load requirements. Some of the most common types include:

• Elastic Clips (e.g., Pandrol ‘e-Clip’): These are among the most widely used clips globally. Their “M” shape allows them to be driven into a shoulder on the tie plate, where they exert a consistent, pre-set clamping force. They are known for their reliability, durability, and ease of installation and maintenance.
• Tension Clamps (e.g., SKL Clips): Common in European systems, these clips use a bolt and nut to apply tension. The clip’s design converts the bolt’s tension into a downward force on the rail foot. They allow for precise adjustment of the clamping force.
• Fist Clips: This type of clip is also bolted down and provides a strong, rigid fastening, suitable for heavy-haul lines.

The choice of rail clip depends on factors such as axle loads, train speeds, track curvature, and environmental conditions. For high-speed lines, fastening systems need to provide very high clamping force and excellent vibration damping. In heavy-haul freight corridors, the priority is robustness and resistance to the immense forces generated by long, heavy trains. Ultimately, rail clips are unsung heroes of the railway, providing the secure connection that allows tons of steel to roll safely down the track at high speeds.

FAQs About Train and Track Dimensions

1. What is the standard width of a train car in North America?
   A typical freight railcar in North America is about 10 feet (approximately 3 meters) wide. Passenger cars may have slightly different dimensions, but they all must fit within the “loading gauge,” which defines the maximum allowable vehicle size for a given route.
2. How wide is an individual train rail?
   The width of the top surface of an individual rail, known as the rail head, is typically between 2.75 to 3 inches (70 to 76 mm). This narrow surface is engineered to withstand the immense pressure from the train’s wheels.
3. Why is standard gauge (1,435 mm) so common?
   Standard gauge became widespread because it was used by George Stephenson for early, influential British railways. Its adoption was formalized in the UK, and British engineers subsequently exported the standard globally. It facilitates international interoperability for both freight and passenger services.
4. Can a train run on a track with a slightly different gauge?
   Generally, no. Rolling stock is designed for a specific gauge, and even a small difference can lead to derailment. However, some systems use gauges that are very close (e.g., 1,432 mm vs. 1,435 mm) and can sometimes accommodate the same rolling stock with specific wheel profiles and tolerances.
5. What happens if rail clips fail?
   Rail clip failure can have severe consequences. It can lead to a loss of track gauge, where the rails spread apart, potentially causing a derailment. It can also result in rail buckling under thermal stress or the rail shifting out of alignment, creating an immediate safety hazard.

Recommended Products for Standard Rail Dimensions

When considering how wide a train is and the immense loads it carries, you quickly realize how vital track stability is. The dimensions of a rail—especially the base width and height—determine exactly which fastening system you need. A perfectly matched rail clip secures the track, maintains standard gauge, and prevents the massive weight of a 10-foot wide freight car from overturning the rails.

Using a clip designed for a smaller rail on a heavy-haul track creates immediate safety hazards. To help you build a reliable and secure railway, we have matched our high-performance crane rail clips to the standard AREMA rail dimensions discussed in this guide.

Review the table below to find the ideal fastening solution based on your specific rail measurements.

Frequently Asked Questions (FAQs)

1. How do 9 Series Welded Clips prevent wide, heavy trains from overturning the rails?
   Standard freight trains are about 10 feet wide and generate immense lateral forces, especially on curves. The 136 RE and 141 RE rails are designed to carry these heavy loads, and they feature a wide 6-inch base. The 9 Series Welded Clips match this exact base dimension. By welding the clip directly to the underlying steel support, you provide maximum horizontal resistance. This unyielding grip prevents the rail from tilting or overturning under the weight of passing freight cars.
2. Why do you recommend the 32 Series Bolted Clips for 115 RE rail profiles?
   The 115 RE rail has a narrower base width of 5.5 inches (139.7 mm) compared to heavy-haul profiles. The 32 Series Bolted Clips are precisely engineered to fit this footprint. They deliver excellent downward clamping force while allowing for lateral adjustments. This flexibility is incredibly helpful for maintenance crews who need to fine-tune the track gauge to standard width (1,435 mm) over time.
3. How do these recommended fastening systems control longitudinal movement?
   As steel rails heat up and cool down, they expand and contract. This thermal stress causes the rail to creep longitudinally. Both our 32 Series bolted and 9 Series welded clips feature elastomeric components and high-grade spring steel. They apply a constant, firm toe load to the rail base. This downward pressure securely clamps the rail in place, defeating thermal expansion and stopping rail creep entirely.
4. Can these rail clips handle the vibrations caused by high-speed or heavy freight trains?
   Yes. When a large train passes, it sends severe shockwaves through the tracks. Rigid fasteners can snap under this constant stress. Our recommended series function as elastic fastening systems. The high-quality spring steel flexes slightly to absorb and dissipate the vibrations. This protects the rail base, reduces noise, and ensures the clip maintains its tight grip over millions of load cycles.
5. Why is matching the rail base width to the clip so crucial for track safety?
   The track gauge dictates the safe passage of trains, and the rail clips are what keep that gauge exact. The housing of a rail clip must sit perfectly against the rail base. If you place a clip built for a 5.5-inch base onto a 6.0-inch base, the components will not align. This creates gaps, zeroes out your clamping force, and invites the track to spread apart. Always check your rail dimensions against the clip specifications before installation.
