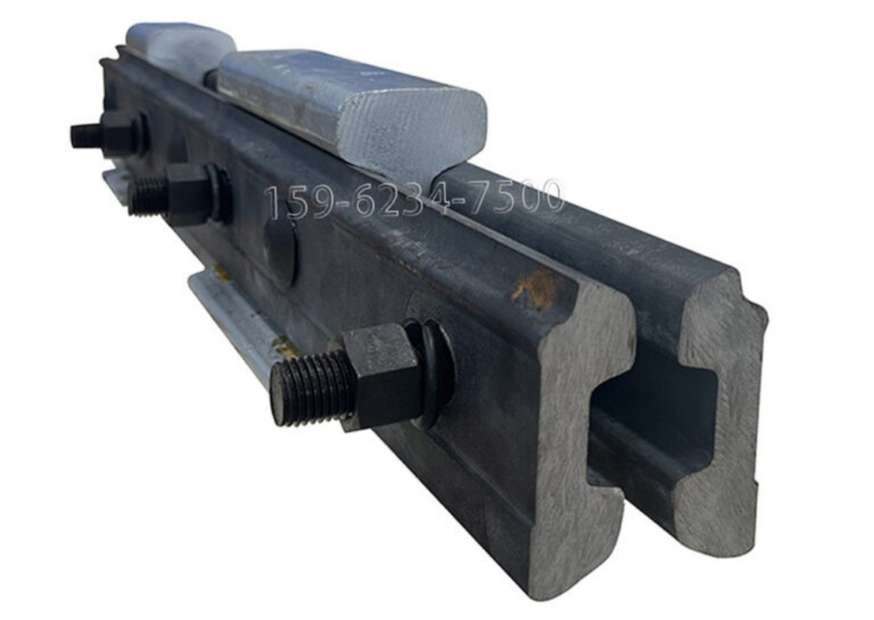

When discussing the various parts of railway station infrastructure, the average passenger often overlooks the engineering marvels beneath their feet. While platforms and ticket counters are visible, the safety and efficiency of the entire network rely heavily on the specific components of the track system. This guide focuses on the technical backbone of these facilities: the rail specifications and the essential fastening systems known as rail clips. Understanding these components is crucial for engineers, maintenance teams, and industry professionals ensuring the smooth operation of transit networks.
The Critical Role of Rails in Station Infrastructure
The rail itself is the fundamental component upon which the entire railway system operates. In the context of parts of railway station design, the rail profile chosen must withstand high dynamic loads, frequent braking forces, and the immense weight of standing locomotives. Unlike open tracks where trains maintain steady speeds, station tracks are subjected to significant stress variances due to acceleration and deceleration.
Standard Rail Specifications and Profiles
Railway tracks are not uniform bars of steel; they are precision-engineered profiles designed to distribute weight effectively. The most common rail profile is the flat-bottomed rail, often referred to as the Vignoles rail. This design features a wide base for stability, a web for vertical strength, and a head that interfaces with the train wheels.
When selecting rails for station environments, engineers typically look for specific grades of steel that offer high wear resistance. Heat-treated rails are often preferred in high-traffic station areas to minimize the rate of degradation caused by friction. The chemical composition usually includes high carbon and manganese content to ensure hardness and durability.
The geometry of the rail head is particularly important. It must match thrae wheel profile to ensure a proper contact patch. If the contact patch is too small, stress concentrations can lead to metal fatigue and spalling. If it is too large, it can result in excessive friction and energy loss.
Heavy Haul vs. Transit Rail Specifications
Different station types require different rail specifications. A heavy-haul freight station requires rails with a heavier mass per yard compared to a light rail commuter station.
For instance, a standard heavy rail might weigh 136 pounds per yard (approx. 60 kg/m), offering the robustness needed for heavy axle loads. In contrast, light rail systems might utilize rails weighing closer to 115 pounds per yard. The “pound per yard” metric is a standard industry designation indicating the mass and, by extension, the strength of the rail section.
Beyond weight, the hardness of the rail, measured in Brinell Hardness (HB), is a critical specification. Standard rails might range from 260 to 300 HB, while premium rails used in high-stress zones like station switches and curves can exceed 350 HB.
Understanding Rail Fastening Systems and Clips
While the heavy steel rails support the train, they must be securely fastened to the sleepers (ties) to maintain gauge and alignment. This is the job of the rail fastening system, and specifically, the rail clip. In the hierarchy of parts of railway station tracks, the rail clip is small but mighty, acting as the primary restraint against lateral and vertical movement.
The Function of Elastic Rail Clips
Modern railway stations predominantly use elastic rail clips. Unlike rigid fasteners like dog spikes used in the 19th and early 20th centuries, elastic clips provide a clamping force that holds the rail down while allowing for the slight vertical elasticity needed to absorb vibrations. This elasticity is vital for noise reduction and passenger comfort within the station environment.
The clip works when workers drive it into a housing or shoulder cast into the concrete sleeper. As they drive it in, the clip deflects and creates a toe load—the downward force exerted on the rail foot. This toe load prevents the rail from tipping over or moving longitudinally (rail creep) due to thermal expansion or braking forces.
Types of Rail Clips
There are several dominant designs of rail clips used globally, each with specific specifications suited for different operational environments.
The E-Clip System
The E-Clip is perhaps the most recognizable rail fastener. Shaped roughly like the letter ‘e,’ this drive-on clip uses a spring steel bar. It provides a permanent clamping force and delivers simplicity and reliability. In station areas, track workers favor E-clips because they can easily check visually whether a clip has become dislodged.
The SKL Clip (W-Clip)
Popular in Europe and heavy-haul networks, the SKL clip, often called a W-clip due to its shape, utilizes a screw-spike tensioning clamp. It provides a high toe load and excellent resistance to rail rollover. This system is often used in high-speed rail stations where precision alignment is paramount.
Fastclip Systems
The Fastclip is a pre-assembled system where all components are delivered to the site already attached to the sleeper. This dramatically speeds up track laying and maintenance, reducing the downtime of station tracks during renewal projects. The clip is simply pushed into position by a machine or hand tool.
Technical Specifications for Rail Clips and Fasteners
To ensure safety and compatibility, rail clips must meet rigorous technical standards. Engineers must verify material properties, clamping force, and fatigue limits.
Below is a detailed specification table outlining typical parameters for standard rail fastening systems used in modern railway stations.
Rail Clip Specification Table
|
Specification Parameter |
E-Clip Design (Standard) |
SKL Tension Clamp (High Speed/Heavy Load) |
|
Material |
60Si2MnA Spring Steel |
38Si7 Spring Steel |
|
Hardness (HRC) |
44 – 48 |
42 – 47 |
|
Rod Diameter |
18mm – 20mm |
13mm – 15mm |
|
Clamping Force (Toe Load) |
9 – 11 kN per clip |
10 – 12.5 kN per clip |
|
Fatigue Life |
> 3 million cycles |
> 5 million cycles |
|
Surface Treatment |
Plain Oiled, Black Oxide, or Galvanized |
Dacromet or Zinc Flake Coating |
|
Application |
General passenger & freight |
High-speed lines & heavy haul |
|
Vertical Stiffness |
Moderate |
High |
|
Installation Method |
Driven (Hammer/Machine) |
Screwed/Bolted |
This table highlights the differences in clamping force and fatigue life, which are critical when designing tracks for busy stations where maintenance windows are short and traffic volume is high.
Maintenance and Inspection of Track Components
Ensuring the longevity of rails and clips within a station requires a proactive maintenance schedule. The high frequency of stopping and starting trains exerts unique forces on the parts of railway station tracks, leading to specific wear patterns.
Rail Wear and Corrugation
One of the most common issues in station tracks is rail corrugation—short-wavelength undulations on the rail head surface. This “washboard” effect causes excessive noise and vibration, which is particularly disruptive in a station environment. Regular rail grinding is performed to reprofile the rail head, removing these irregularities and extending the life of the track.
Inspectors also look for “rolling contact fatigue” (RCF), which manifests as small cracks on the rail surface. If left untreated, these cracks can propagate deep into the rail, leading to sudden rail breaks. Ultrasonic testing is frequently employed to detect internal flaws that are invisible to the naked eye.
Fastener Integrity and Replacement
Rail clips, despite their robust design, can fail. Metal fatigue, corrosion from environmental exposure, and physical damage from dragging equipment are common failure modes. In coastal stations or areas with high humidity, corrosion is a significant threat. Clips may be galvanized or treated with specialized coatings like Dacromet to resist rust.
During inspections, maintenance teams check for loose or missing clips. A loose clip reduces the clamping force, allowing the rail to move. This movement can lead to gauge widening, where the distance between the two rails increases beyond safe limits, posing a derailment risk. Tightening or replacing clips is a routine but critical maintenance task.
The Impact of Rail Clip Failure on Station Safety
The failure of a single rail clip might seem insignificant, but track systems rely on the collective integrity of thousands of clips. If a cluster of clips fails, the rail is no longer securely held to the sleeper.
Under the lateral force of a train entering a station switch, an unsecured rail can tip outwards. This is known as “rail rollover.” Furthermore, without adequate longitudinal restraint provided by the clips, the rail can buckle under thermal expansion on hot days. Sun kinks, or heat buckles, can cause immediate and catastrophic derailments.
Therefore, the specification of the correct clip is not just a matter of holding the rail down; it is a fundamental safety requirement. High-toe-load clips are essential in curves leading into stations where lateral forces are highest.
Advancements in Track Technology
The railway industry is continually evolving, with new materials and designs improving the performance of rails and clips.
Composite Sleepers and Fasteners
While traditional tracks use concrete or timber, composite materials are gaining traction. These synthetic sleepers offer excellent durability and resistance to moisture. Engineers are designing specialized clips to interface specifically with these new materials, offering better electrical insulation, which is crucial for the signaling circuits that track train locations within the station.
Noise and Vibration Mitigation
Modern rail clips are often paired with highly elastic rail pads made from rubber or polyurethane. Placed between the rail foot and the sleeper, these pads work in conjunction with the clip to dampen vibrations. This is a critical consideration for underground stations or stations located in dense urban areas where ground-borne noise must be minimized.
Frequently Asked Questions (FAQs)
- What is the primary function of a rail clip?
The rail clip’s main function is to fasten the steel rail to the sleeper (tie), maintaining the track’s gauge and preventing the rail from moving vertically or laterally under the load of passing trains. - Why are elastic rail clips preferred over rigid spikes?
Elastic clips provide a constant toe load that absorbs vibrations and thermal expansion without loosening. Rigid spikes can loosen over time due to vibration, requiring more frequent maintenance and offering less stability. - What is the standard weight of rail used in stations?
While it varies by network, heavy rail stations typically use rails weighing between 115 to 136 pounds per yard (approx. 56-60 kg/m) to support the weight and dynamic forces of heavy passenger and freight trains. - How often should rail clips be inspected?
Rail clips in high-traffic areas like stations should be visually inspected regularly, often monthly or quarterly, with more detailed mechanical inspections scheduled annually or bi-annually depending on tonnage and environmental conditions. - Can corroded rail clips be repaired?
Generally, corroded clips are replaced rather than repaired. Surface rust can be cleaned, but if structural integrity is compromised, the low cost of replacement versus the high risk of failure makes replacement the standard procedure.
