Rail And Anchor Specifications and Applications

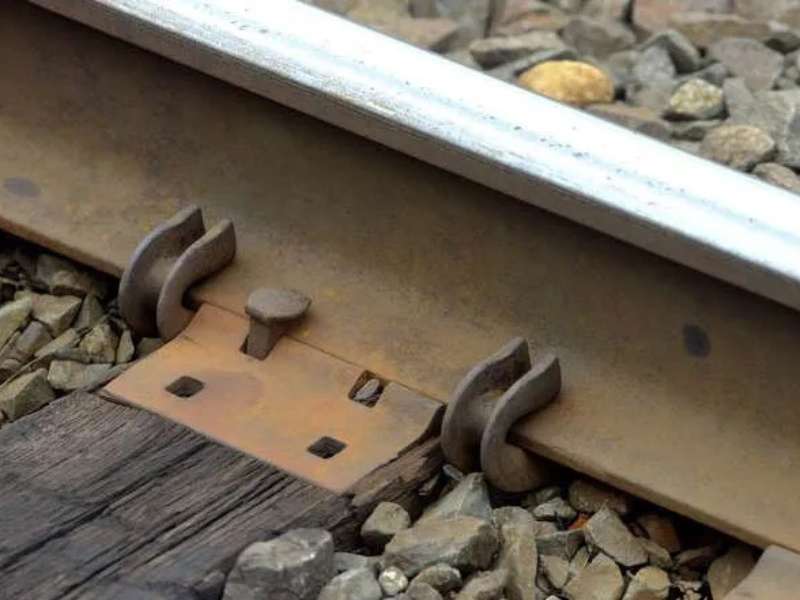

A critical component in railway construction is the rail and anchor, which plays a pivotal role in track safety and longevity. Rail anchors are engineered from spring steel in a one-piece construction. Their primary function is to securely fasten the steel rail to its base, effectively preventing longitudinal movement. This movement, often called “rail creep,” is caused by factors like temperature fluctuations, steep grades, traffic patterns, and the braking forces of trains. By gripping the rail base firmly and lodging against the railroad tie, anchors distribute these forces and maintain track stability. This prevents wear and prolongs the service life of the ties.

Rail Anchor Specifications

Rail anchors are not a one-size-fits-all solution; they are manufactured for specific rail weights and base widths. The material choice is crucial for their performance, with 60Si2MnA being a common high-quality option due to its excellent spring steel properties. Other materials like 45# steel and QT500-7 ductile iron are also used depending on the application and regional standards.

Rail Anchor Material Specifications

The chemical composition of the material directly impacts the anchor’s strength, durability, and resistance to environmental factors. The table below details the composition of common materials used.

Specifications for Common Rail Types

Different rail profiles require specifically designed anchors. The weight and dimensions of the rail determine the appropriate anchor size and type.

What is the primary purpose of a rail anchor?

A rail anchor’s main purpose is to prevent rail creep—the longitudinal movement of the rail. It achieves this by securely fastening the rail to the railroad tie, providing a large bearing surface that resists forces from temperature changes and train movement.

Types of Rail Anchors and Their Uses

Rail anchors can be broadly classified into two main categories: Drive-on rail anchors and Spring-type rail anchors. Both are designed to be applied directly to the rail base, but their installation methods and specific applications may differ. Drive-on anchors are typically hammered into place, while spring-type anchors use tension to snap onto the rail. The choice between them often depends on the specific rail type, track conditions, and maintenance preferences. For example, T-shaped or V-shaped anchors can be produced by forging or casting to meet unique client requirements.

Proper application is essential for a rail and anchor to function correctly. Anchors should always be placed on the gauge side of the rail base, pressing against the same face of the tie on opposite rails to ensure balanced resistance. They must hold the rail base tightly to be effective.

What are the different types of rail anchors?

There are two primary categories: drive-on and spring-type anchors. Drive-on anchors are hammered into position, while spring-type anchors (also known as snap-on or wrench-on) use spring tension to grip the rail. Specific designs include T-shaped, V-shaped, and unit channel anchors.

Exploring Crane Rail Clips

Crane rail clips are specialized fasteners used to secure crane rails, ensuring they remain in their precise position. These clips are designed to withstand very high lateral (side) loads generated by heavy crane operations while maintaining the tight tolerances required for safe and efficient performance. Crane rail clips are a key component of a “soft mounting” system.

There are two main designs: friction-fit clips and adjustable clips. Adjustable clips are particularly valuable as they allow for very precise alignment of the rails. Many adjustable designs incorporate a rubber nose, which helps absorb the “bow wave” effect from the moving crane, reducing material fatigue and preventing the clip bolts from loosening over time.

How do rail clips differ from rail anchors?

Rail anchors are primarily used on standard railway tracks to prevent longitudinal creep. In contrast, rail clips are typically used for securing crane rails. Crane rail clips are engineered to handle extremely high lateral forces from heavy equipment, ensuring precise rail alignment.

Bolted and Welded Crane Rail Clips

The selection of a rail clip depends on the supporting structure and the expected lateral forces. The choice between bolted clips and those with welded lower components often comes down to industry practice and user preference. Bolted clips are generally seen as economical and are ideal for light-duty applications, while welded clips are designed for heavy industries where significant side loads are common.

Welded Clips Specifications

These clips are designed for heavy-duty applications and offer substantial lateral capacity.

Bolted Clips Specifications

Ideal for applications with lower load requirements, bolted clips provide a reliable and economical fastening solution.

Friction Fit Clips

Friction fit clips offer a simple and reliable design, making them well-suited for trolley rails, anchor rails, and boom hinge rails. Their application is specific to the rail section they are designed to fit.

Why is precise alignment of crane rails important?

Precise alignment is crucial for the safety and efficiency of crane operations. Misaligned rails can cause premature wear on the crane wheels and rail, increase operational friction, and pose a significant safety risk by potentially leading to derailment under heavy loads.

What is “rail creep” and why is it a problem?

Rail creep is the slow, longitudinal movement of rails in the direction of traffic. It is caused by thermal expansion/contraction and the dynamic forces of trains. If left unmanaged, creep can cause misaligned joints, skewed ties, and unsafe track gauge, requiring costly repairs.
