Rail ties, also known as sleepers, are the foundational components that support the rails, maintain the correct gauge, and transfer loads from the rails to the track ballast and subgrade. The specific rail tie dimensions—including length, width, and height—are engineered to meet the demands of track class, traffic density, and axle loads. This guide provides a detailed overview of the specifications for wooden, concrete, steel, and composite rail ties.
Standard Wooden Rail Tie Dimensions
Wood has been the traditional material for rail ties for over a century due to its resilience, ease of installation, and effective electrical insulation properties. The rail tie dimensions for wooden sleepers are standardized by organizations like the American Railway Engineering and Maintenance-of-Way Association (AREMA) to ensure uniformity and performance.
AREMA Specifications for Wood Ties
Wooden ties are graded by size, with grades corresponding to specific cross-sectional dimensions. Hardwoods such as oak, hickory, and maple are preferred for their durability and strength, though softwoods like Douglas fir and southern pine are also used.
|
AREMA Tie Grade |
Cross-Section (Width x Height) |
Standard Lengths |
Primary Use |
|
Grade 1 |
6 in x 8 in (152 mm x 203 mm) |
8 ft to 9 ft (2.44 m to 2.74 m) |
Siding, yards, light-traffic lines |
|
Grade 2 |
7 in x 8 in (178 mm x 203 mm) |
8 ft 6 in (2.59 m) |
Branch lines, moderate-traffic lines |
|
Grade 3 |
7 in x 9 in (178 mm x 229 mm) |
8 ft 6 in (2.59 m) |
Main lines, heavy-traffic corridors |
|
Grade 5 |
7 in x 9 in (178 mm x 229 mm) |
8 ft 6 in to 9 ft (2.59 m to 2.74 m) |
Main lines, high-tonnage freight routes |
|
Switch Ties |
Varies (e.g., 7 in x 9 in) |
9 ft to 22 ft+ (2.74 m to 6.7 m+) |
Turnouts, crossovers, special trackwork |
The most common size for main line use in North America is a Grade 5 tie with rail tie dimensions of 7 inches by 9 inches by 8 feet 6 inches. The 9-inch face provides a wide bearing surface for the tie plate, distributing the load effectively. The 7-inch depth offers significant bending resistance against the dynamic forces exerted by passing trains. A typical wooden tie of this size weighs approximately 200 pounds (90 kg), though this can vary based on wood species and moisture content. Switch ties are significantly longer to support the entire turnout assembly, with lengths increasing incrementally to accommodate the diverging rails.
Concrete Rail Tie Dimensions and Specifications
Concrete ties have become the standard for high-speed and heavy-haul railways due to their long service life, high stability, and ability to maintain precise track geometry. Unlike wood, their rail tie dimensions and material properties are highly consistent, which aids in creating a uniform track structure.
Pre-stressed Monoblock Concrete Ties
The most common type of concrete tie is the pre-stressed monoblock design, where high-tensile steel wires are tensioned within the concrete during casting. This process induces a compressive force in the tie, making it highly resistant to the tensile stresses that occur under load.
|
Parameter |
Typical Specification |
Details |
|
Length |
8 ft 3 in to 8 ft 6 in (2.51 m to 2.59 m) |
Consistent length is crucial for automated track laying machinery. |
|
Width at Base |
Approx. 11 to 12 in (280 mm to 305 mm) |
A wide base provides excellent stability and reduces pressure on the ballast. |
|
Height at Rail Seat |
Approx. 7.5 to 8.5 in (190 mm to 215 mm) |
The rail seat area is engineered to accommodate specific fastening systems. |
|
Height at Center |
Approx. 6 to 7 in (150 mm to 180 mm) |
The center section is often tapered to save weight and material. |
|
Weight |
600 to 800 lbs (270 to 360 kg) |
The high mass contributes significantly to track stability and resistance to lateral movement. |
|
Concrete Strength |
7,000 to 10,000 psi (48 to 69 MPa) |
High-strength concrete is required to withstand freeze-thaw cycles and high-frequency dynamic loads. |
The rail tie dimensions of a concrete sleeper are optimized for performance. The trapezoidal cross-section, wider at the bottom than the top, provides a large contact area with the ballast. This design enhances lateral resistance and prevents the track from shifting or buckling. The mass of a concrete tie is a key advantage, as a heavier track structure is more resistant to the forces generated by high-speed or heavy axle load traffic.
Steel Rail Tie Dimensions
Steel ties serve as a lightweight and durable alternative to wood and concrete, particularly in specific applications like industrial tracks, sidings, and areas with sharp curves or challenging maintenance conditions. Their rail tie dimensions are designed to offer high strength with minimal material.
Profile and Specifications
Steel ties are typically formed from pressed steel into a “U” shaped or inverted trough profile. This shape allows ballast to be compacted inside the trough, increasing lateral stability.
|
Parameter |
Typical Specification |
Notes |
|
Length |
8 ft 6 in (2.59 m) |
Matches the standard length of wood ties for interchangeability. |
|
Width |
8 to 10 in (203 mm to 254 mm) |
Varies based on the design and intended load capacity. |
|
Height |
4 to 5 in (100 mm to 127 mm) |
The lower profile can sometimes reduce the required ballast depth. |
|
Weight |
100 to 180 lbs (45 to 82 kg) |
Significantly lighter than both wood and concrete, which simplifies transportation and handling. |
|
Material |
Hot-rolled or pressed steel sections |
Often coated with a protective layer (e.g., galvanized or bitumen) to prevent corrosion. |
One major benefit of steel ties is their recyclability and long service life, which can exceed 50 years in some environments. The open profile allows for easy inspection of the fastening systems. However, their electrical conductivity requires the use of insulators in all signaled track circuits, adding complexity to the fastening assembly. The lighter weight can be a disadvantage in heavy-haul applications where track mass is needed for stability.
Plastic and Composite Rail Tie Dimensions
Composite rail ties, made from recycled plastics, rubber, and other materials, are an emerging technology aimed at combining the benefits of wood and concrete. They are environmentally friendly and resistant to rot, insects, and moisture. Manufacturers often design composite rail tie dimensions to be identical to wood ties, allowing them to be installed interchangeably without changing equipment or procedures.
Common Specifications
|
Parameter |
Typical Specification |
Advantages |
|
Cross-Section |
7 in x 9 in (178 mm x 229 mm) |
Direct replacement for standard Grade 5 wood ties. |
|
Length |
8 ft 6 in (2.59 m) |
Compatible with existing track panels and spacing requirements. |
|
Weight |
200 to 300 lbs (90 to 136 kg) |
Similar to wood, allowing for handling with standard equipment. |
|
Material |
High-density polyethylene (HDPE), fiberglass, recycled rubber |
Formulations are designed to provide the necessary strength, flexibility, and durability. |
Composite ties can be drilled and spiked using the same equipment as wood, which is a major advantage over concrete. They also provide excellent electrical insulation. While their initial cost is higher than wood, their expected lifespan of 50 years or more can result in a lower life-cycle cost, especially in wet or corrosive environments where wood ties deteriorate quickly.
Rail Tie Spacing and Placement
The spacing of rail ties is a critical element of track design that directly impacts the track’s ability to support loads. Closer spacing distributes the load over more ties, reducing the stress on each individual tie and the underlying ballast.
Standard Tie Spacing
Tie spacing is measured from the center of one tie to the center of the next. The standard spacing for main line track in North America has evolved over time.
- Standard Main Line Spacing: 19.5 inches (495 mm). This equates to 3,250 ties per mile.
- High-Tonnage Line Spacing: 20 inches (508 mm). Common on many freight lines.
- Yard and Siding Spacing: 22 to 24 inches (559 mm to 610 mm). Wider spacing is acceptable where train speeds and loads are lower.
The decision on tie spacing is an economic and engineering trade-off. While closer spacing creates a stronger track structure, it also increases the initial material and installation costs. Engineers use formulas that consider axle loads, traffic density (in million gross tons per year), and desired maintenance intervals to determine the optimal spacing.
Factors Affecting Placement
- Curves: Tie spacing is often reduced on sharp curves. The increased lateral forces exerted by wheels on curved track require additional support to maintain gauge and prevent rail rollover. Spacing might be tightened to 18.5 inches on curves with a high degree of curvature.
- Joints: In jointed track, the ties on either side of a rail joint (joint ties) are spaced closer together to provide extra support at the weakest point in the rail. These ties bear a higher load during wheel transitions over the joint gap.
- Ballast Depth: The effectiveness of a tie is dependent on the support it receives from the ballast. Track standards specify a minimum ballast depth below the bottom of the tie (typically 12 inches for main lines) to ensure loads are properly distributed to the subgrade.
FAQs: Understanding Rail Tie Dimensions
Q1: What are the typical dimensions of a standard railroad tie?
A1: A standard wooden main line tie (AREMA Grade 5) is typically 7 inches high, 9 inches wide, and 8 feet 6 inches long. Concrete and composite ties often mimic these dimensions for interchangeability, though concrete ties are much heavier.
Q2: How much does a railroad tie weigh?
A2: A standard wooden tie weighs around 200 pounds (90 kg). A steel tie weighs between 100-180 pounds (45-82 kg), while a concrete tie is much heavier, weighing 600-800 pounds (270-360 kg), contributing to its stability.
Q3: How many railroad ties are in a mile of track?
A3: For a typical main line with 19.5-inch spacing, there are approximately 3,250 ties per mile. This number can vary depending on the track class, with fewer ties used in yards and more ties used on sharp curves.
Q4: Why are some rail ties longer than others?
A4: Longer ties, known as switch ties, are used in turnouts and crossovers. Their length increases progressively to support both the main track and the diverging track, providing a continuous foundation for the entire special trackwork assembly.
Q5: Can different types of rail ties be mixed?
A5: Yes, it is common to intersperse different tie types, especially for maintenance. For example, composite ties with the same dimensions as wood are often used to replace failed wooden ties in areas with high moisture or insect activity.

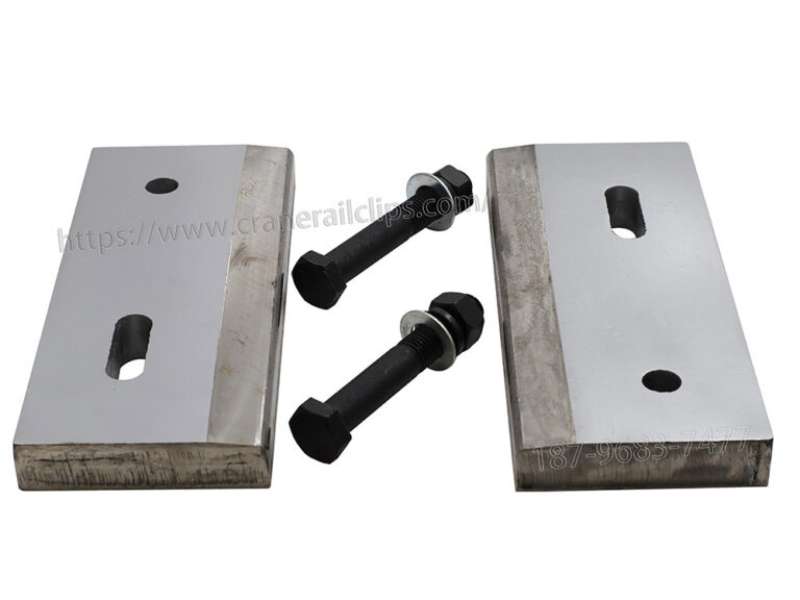

Recommended Products for Your Rail Ties
Choosing the right rail tie is only the first step in building a durable track. The fastening system you select must align perfectly with your tie material—whether wood, concrete, steel, or composite—and your rail profile. The dimensions of your rail ties dictate how baseplates and clips anchor to the track structure. When you match the correct rail clip to your tie and rail dimensions, you maintain exact track gauge, prevent rail rollover, and safely distribute dynamic loads.
Heavy-duty concrete ties easily support the embedded plates required for welded clip systems. Traditional wooden and composite ties offer broad, flat surfaces perfect for mounting bolted clip assemblies. To help you build a secure and reliable railway network, we paired our premium rail clips with the most common rail sections used across various tie dimensions.
Review the table below to find the ideal fastening solution based on your specific rail measurements.
|
Rail Type |
Base Width |
Height |
Weight |
Recommended Clips |
|
115 RE Rail |
139.7 mm (5.50 in) |
168.3 mm (6.625 in) |
56.9 kg/m |
32 Series Bolted Rail Clips |
|
UIC 54 (54 E1) |
140.0 mm (5.51 in) |
159.0 mm (6.26 in) |
54.8 kg/m |
32 Series Bolted Rail Clips |
|
136 RE Rail |
152.4 mm (6.00 in) |
185.7 mm (7.313 in) |
67.5 kg/m |
9 Series Welded Rail Clips |
|
UIC 60 (60 E1) |
150.0 mm (5.91 in) |
172.0 mm (6.77 in) |
60.2 kg/m |
9 Series Welded Rail Clips |
|
ASCE 85lb Rail |
131.8 mm (5.19 in) |
131.8 mm (5.19 in) |
42.2 kg/m |
31 Series Bolted Rail Clips |
Frequently Asked Questions (FAQs)
- How do concrete rail ties accommodate heavy-duty fasteners like the 9 Series Welded Clips?
Pre-stressed concrete ties offer exceptional stability and mass, typically weighing up to 800 lbs. During the manufacturing process, engineers cast sturdy steel baseplates directly into the concrete rail seat. When you install heavy rails like the 136 RE, you simply weld the lower housing of the 9 Series clip directly to these embedded plates. This creates a permanent, unyielding bond capable of withstanding the extreme dynamic forces of heavy-haul freight. - Are the 32 Series Bolted Clips compatible with standard wooden rail ties?
Yes, they pair perfectly. Standard Grade 5 wooden ties have a cross-section of 7 inches by 9 inches. This 9-inch wide surface gives you a broad, stable area to mount the steel tie plates that hold the 32 Series Bolted Clips. The 7-inch depth of the wood provides plenty of material for your screw spikes to bite into. This combination reliably secures mainline tracks using 115 RE or UIC 54 rails. - Can I use the 31 Series Bolted Clips with composite rail ties?
Absolutely. Manufacturers design composite ties to perfectly mimic standard wooden rail tie dimensions (like the 7 by 9-inch profile). Because composite ties replicate the structural behavior of wood, you can drill and spike them using the exact same equipment. This means you can install baseplates and anchor the 31 Series Bolted Clips exactly as you would on a traditional wooden tie, creating a secure hold that resists moisture and rot. - Why do heavy rail sections on concrete ties require the 9 Series Welded Clips instead of a bolted solution?
Lines using 136 RE or UIC 60 rails experience incredibly high tonnage and severe lateral stress. While the heavy concrete ties keep the track from shifting, the rail itself can still twist or creep. The 9 Series Welded Clips completely eliminate the risk of bolts vibrating loose under these massive loads. The welded base provides maximum horizontal resistance, securely locking the wide rail base against the concrete tie. - How does the tie spacing affect the performance of my rail clips?
Tie spacing dictates how track loads distribute across the fastening system. If you use wider spacing—like 24 inches for yard tracks—each individual rail tie and clip must absorb more weight and vibration. In these setups, you must use elastic fasteners like the 31 Series or 32 Series Bolted Clips. The spring steel inside these clips flexes slightly to absorb the extra shock, preventing the fastener from snapping and maintaining a tight clamping force.
