Understanding the array of standard railroad dimensions is fundamental for anyone involved in the railway industry, from engineers and designers to procurement managers and maintenance crews. These precise measurements govern everything from the cross-section of the steel rail itself to the spacing of the track and the design of fastening components. Adhering to these established dimensions ensures operational safety, compatibility across networks, and the long-term durability of the track infrastructure. This guide provides a detailed examination of key railroad dimensions, focusing on rail profiles and the specifications of essential components like rail clips.

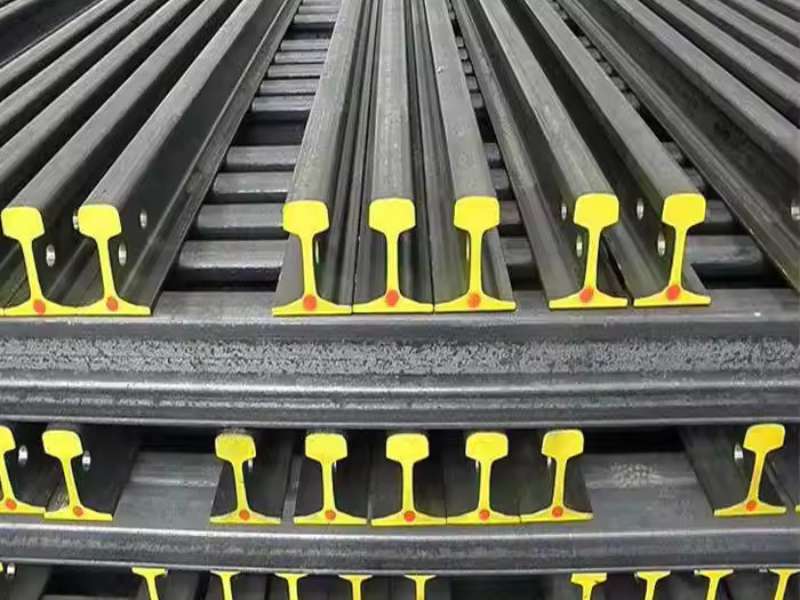

Railroad Dimensions

Railroad Dimensions

The term railroad dimensions encompasses a wide range of specifications that define the physical characteristics of track components. For the steel rail, these dimensions include its height, the width of its head and base, and the thickness of the web connecting them. These measurements are not arbitrary; they are the result of decades of engineering refinement designed to optimize strength, wear resistance, and stability under immense loads. A rail’s profile dictates how it distributes the weight of a train to the ties and ballast below. An incorrect or non-standard dimension can lead to premature wear, component failure, and potential derailments.

Beyond the rail itself, other critical dimensions include the track gauge (the distance between the inner faces of the two rails) and the specifications for fastening systems. In North America, the standard gauge is 4 feet, 8.5 inches. This uniformity allows for seamless interchange of rolling stock between different railroad operators. Fastening components, such as rail clips and bolts, also have standardized dimensions to ensure they properly secure the rail to the tie, preventing both lateral and longitudinal movement. A comprehensive understanding of these interconnected dimensions is crucial for constructing and maintaining a reliable railway.

Detailed Railroad Dimensions for Tee Rail Sections

The most common type of rail is the flat-bottomed or “Tee” rail, named for its T-shaped cross-section. Its dimensions are standardized by organizations like AREMA (American Railway Engineering and Maintenance-of-Way Association) and were historically defined by groups like ASCE (American Society of Civil Engineers). The table below details the specific dimensions for a range of common Tee rail sections, which are primarily identified by their nominal weight in pounds per yard.

Nominal Weight Per Yard

Rail Type

Height (in)

Base Width (in)

Head Width (in)

Web Thickness (in)

Head Depth (in)

20 lb.

ASCE

2 5/8

2 5/8

1 11/32

1/4

23/32

40 lb.

ASCE

3 1/2

3 1/2

1 7/8

25/64

1 1/64

60 lb.

ASCE

4 1/4

4 1/4

2 3/8

31/64

1 7/32

75 lb.

ASCE

4 13/16

4 13/16

2 15/32

17/32

1 27/64

85 lb.

ASCE

5 3/16

5 3/16

2 9/16

9/16

1 35/64

90 lb.

ARA-A

5 5/8

5 1/8

2 9/16

9/16

1 15/32

100 lb.

ARA-A

6

5 1/2

2 3/4

9/16

1 9/16

115 lb.

AREA

6 5/8

5 1/2

2 23/32

5/8

1 11/16

132 lb.

AREA

7 1/8

6

3

21/32

1 3/4

136 lb.

AREA

7 5/16

6

2 15/16

11/16

1 15/16

141 lb.

AREA

7 7/16

6

3 1/16

11/16

2 5/32

These dimensions are critical for selecting compatible components like joint bars (fishplates), tie plates, and fasteners. For instance, the base width determines the size of the tie plate, while the head width and depth relate to the rail’s wear capacity and contact interface with the wheel.

Rail Clip Specifications

Rail clips are a vital part of the track fastening system, designed to secure the rail to the tie plate or directly to the tie. They provide a constant clamping force that prevents the rail from moving vertically, laterally, or longitudinally. This is especially important for modern tracks using continuous welded rail (CWR), where managing thermal expansion and contraction is critical to prevent track buckling or pull-aparts. The dimensions and mechanical properties of rail clips are just as important as the railroad dimensions of the rail itself.

Types of Rail Clips and Their Applications

Rail clips come in various designs, each suited for different track types and operational requirements.

  1. Boltable Clips: These clips are secured with bolts that pass through the clip and tie plate into the tie or anchor system. They are common in many conventional track structures and provide strong, reliable clamping. Their design allows for relatively easy installation, adjustment, and replacement.
  2. Weldable Clips: Used primarily in specialized applications like crane rails or tracks on steel structures, weldable clips feature a base that is welded directly to the steel tie plate or support beam. This creates a permanent, extremely rigid connection that can withstand the high lateral and longitudinal forces common in these environments.
  3. Adjustable Clips: These clips offer the ability to make fine lateral adjustments to the rail’s position. This feature is particularly useful for maintaining precise track gauge on curves or in areas with high wear. Adjustability is achieved through eccentric bolts or slotted holes that allow the clip’s position to be shifted slightly.
  4. Elastic Clips: As the modern standard for high-speed and heavy-haul lines, elastic clips (such as Pandrol or Vossloh style clips) are engineered to behave like a spring. They apply a consistent, dynamic clamping force that absorbs vibrations and impacts from passing trains. This elasticity helps maintain contact between the rail and tie, reducing component wear and providing a smoother, quieter ride.

Rail Clips Specifications

When selecting a rail clip, several dimensional and performance specifications must be considered to ensure compatibility and safety.

Specification

Description

Importance

Toe Load

The downward clamping force exerted by the tip (toe) of the clip onto the rail foot. Measured in pounds or kilonewtons.

Ensures the rail is held firmly to prevent movement. The required toe load varies based on traffic density, speed, and track curvature.

Clamping Area

The specific location and surface area where the clip contacts the rail foot.

A proper fit ensures that the clamping force is distributed correctly, preventing stress concentrations and damage to the rail.

Material and Grade

Typically made from high-strength spring steel. The material grade determines its elasticity, fatigue life, and strength.

The clip must be able to withstand millions of loading cycles without failing or losing its clamping force.

Compatibility

The clip must be designed to fit the specific rail section (e.g., 115RE, 136RE) and the corresponding tie plate or shoulder.

An incompatible clip will not provide adequate clamping force and can lead to a catastrophic failure of the fastening system.

Corrosion Resistance

Clips may be galvanized or coated to protect against rust, especially in humid or corrosive environments like coastal areas or tunnels.

Corrosion can weaken the clip and reduce its clamping force over time, compromising the safety of the track.

The precise railroad dimensions of the clip’s profile, including its height, arm length, and bend radii, are engineered to deliver a specific toe load when installed. For a track system to function safely and efficiently, every component, from the rail profile down to the dimensions of the clips holding it in place, must be selected and installed according to proven engineering standards.

FAQs

What is the standard width of a railroad track?

The standard gauge, or width between the rails, in the United States, Canada, and much of the world is 4 feet, 8.5 inches (1,435 mm). This measurement is taken between the inner faces of the rail heads.

How wide is an individual rail?

The width of an individual rail varies by its section. The base width for mainline rail is typically between 5 1/2 and 6 inches. The head width, where the wheel makes contact, is usually around 3 inches.

Why is track gauge so important?

A consistent track gauge is essential for the safe operation of trains. It ensures that the wheelsets of locomotives and railcars remain properly seated on the rails. Any significant deviation can lead to an increased risk of derailment.

How are different rail sections identified on the track?

Rails are identified by mill markings stamped or rolled onto the web (the vertical part of the rail). These markings typically include the manufacturer’s name, the year it was rolled, the rail weight, and the section profile designation (e.g., 136RE).

What do the different rail section designations (ASCE, ARA, AREA) mean?

These acronyms represent the engineering bodies that developed the standards. ASCE (American Society of Civil Engineers) created some of the earliest standards. ARA (American Railway Association) and AREA (American Railway Engineering Association, now AREMA) developed newer, often heavier, sections to meet modern demands.
