Railroad switches are the critical decision-making points of a railway network. These mechanical marvels of engineering allow trains to move from one track to another, forming the basis of all complex routing, from busy station throats to sprawling freight yards. The safety and efficiency of the entire rail system depend on the precise operation of these switches. Understanding the specifications and components of railroad switches is essential for grasping how this vital infrastructure works.

This guide explores the anatomy of railroad switches, their various types, and the technical specifications that govern their design. We will also examine the essential role of rail clips in securing these dynamic systems. By looking closely at these components, we can better appreciate the engineering required to keep rail traffic moving safely and smoothly across thousands of junctions every day.

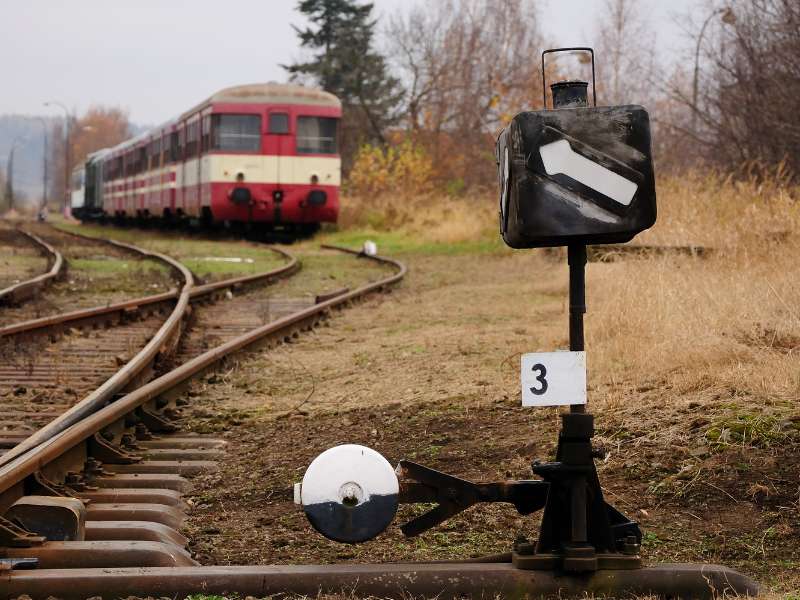

Railroad Switches Specifications and Components

Railroad Switches

A railroad switch, known formally as a turnout, is an assembly of specialized track components. Its purpose is to guide a train’s wheelsets along a chosen path—either straight ahead or onto a diverging track. This is accomplished not through steering but by using the train’s flanged wheels and directing them with movable rails.

The core components that make this possible include:

  • Switch Points: These are the tapered, movable rails that initiate the change in direction. One point fits snugly against the fixed stock rail to create a continuous path, while the other opens a gap for the wheel flange to pass through.
  • Frog: This is a heavy-duty casting made of manganese steel, located where the rails of the main and diverging tracks cross. It allows the wheel flange to pass through the intersection.
  • Guard Rails: Positioned opposite the frog, these short rails ensure the wheelset stays properly aligned as it navigates the gap in the frog, preventing derailments.
  • Switch Stand or Motor: This is the mechanism that moves the switch points. It can be a manual lever or a remotely operated electric, hydraulic, or pneumatic machine.

How do railroad switches work?

Railroad switches work by moving a pair of tapered rails, called points, to guide a train’s flanged wheels. When the points are shifted, they create a continuous path onto either a straight or diverging track, forcing the train to follow the selected route.

Railroad Switches Types

While the basic principle remains the same, railroad switches come in different configurations to suit various operational needs and geographical constraints. The most common types include single and equilateral switches.

Single Switches

The single switch is the most prevalent type, accounting for over 90% of all turnouts. In this design, the main track continues straight, while a secondary track diverges to either the left or the right. It consists of one set of switch points and one frog. Due to its simple and effective design, it is used extensively in mainline tracks, sidings, and yards. The speed at which a train can traverse the diverging path is limited by the angle of the frog.

Equilateral Switches

An equilateral switch, also known as a Y-switch, is a symmetrical design where two tracks diverge from a central point at the same angle, forming a “Y” shape. Both diverging tracks have the same curve radius. This design is advantageous because it allows for a larger curve radius within a shorter overall length compared to a single switch. As a result, equilateral railroad switches are often used at the entrance to rail yards or where a single line splits into two equally important mainlines, as they allow for smoother transitions and slightly higher speeds on both diverging routes.

What is the most common type of railroad switch?

The most common type is the single switch. In this configuration, a diverging track branches off from a straight main track. Its simplicity and reliability make it suitable for the vast majority of railway junctions, from mainlines to industrial sidings.

Railroad Switches Specifications

The design and construction of railroad switches are governed by strict engineering standards to ensure safety and durability under immense loads. The “turnout number” is a key specification that defines the angle of the frog—a higher number indicates a gentler angle and allows for higher speeds.

Parameter

Yard/Siding Switch (No. 8)

Mainline Switch (No. 20)

Turnout Number

No. 8 (1:8 ratio)

No. 20 (1:20 ratio)

Diverging Speed Limit

Approx. 15 mph (24 km/h)

Approx. 45 mph (72 km/h)

Rail Section (Weight)

115 RE (115 lbs/yd)

136 RE (136 lbs/yd) or heavier

Frog Type

Rigid Manganese Casting

Rigid or Movable-Point Frog

Point Blade Length

Shorter, for compact design

Longer, for gradual curve

Ties/Sleepers

Standard wood or concrete

Longer, reinforced concrete switch ties

Ballast Depth

Minimum 12 inches

Minimum 18-24 inches

Why do some railroad switches have lights on them?

Lights on railroad switches provide a clear visual indication of the switch’s position to train crews, especially at night. A green light typically signifies the switch is aligned for the main track, while a red or yellow light indicates it is set for the diverging route.

Rail Clips

While large components like points and frogs are highly visible, the stability of the entire switch assembly depends on its fastening system. Rail clips are arguably the most important fasteners, securing the fixed rails to the railroad ties (or sleepers).

In the area of a switch, the track is subjected to significant lateral forces as trains change direction. Rail clips must provide a strong, consistent clamping force, known as “toe load,” to prevent the rails from shifting, spreading, or overturning. This ensures the track gauge remains correct and the switch geometry is maintained. Elastic clips, like the Pandrol E-clip or Nabla clip, are widely used because they absorb vibrations and allow for slight vertical rail movement without losing their clamping force.

Rail Clip Specifications and Manufacturing

The specifications for rail clips are focused on material strength, elasticity, and fatigue life. They must perform reliably for decades under millions of load cycles.

Specification

Details

Purpose

Material

High-grade spring steel (often silico-manganese alloys)

Provides the necessary elasticity to apply a constant force and resist fatigue.

Clamping Force

8 to 12 kN per clip (approx. 1,800-2,700 lbs)

Resists strong lateral and longitudinal forces to keep the rail stable.

Fatigue Life

Designed to endure millions of load cycles.

Ensures long-term safety and reduces the frequency of maintenance and replacement.

Corrosion Resistance

Often coated with a protective finish like zinc or dacromet.

Prevents rust and material degradation, extending the clip’s effective lifespan.

Manufacturing

Hot-formed from spring steel bars, then heat-treated.

The heat treatment process is critical for creating the clip’s spring properties.

How fast can a train go through a railroad switch?

The speed is determined by the switch’s design, particularly the frog angle (turnout number). Low-speed yard switches may be limited to 15 mph or less. High-speed mainline switches can permit speeds of 60 mph or more through the diverging route.

Maintenance and Safety of Railroad Switches

Due to their moving parts and the high dynamic forces they endure, railroad switches are the most maintenance-intensive components of a railway. Regular inspections and preventative maintenance are essential for safe operation.

Key maintenance tasks include:

  • Lubrication: The slide chairs that support the moving switch points must be kept clean and lubricated to ensure the points can move freely and close tightly against the stock rail.
  • Inspection: Inspectors use specialized gauges to check that the switch points close properly, that the track gauge is correct, and that there are no cracks or excessive wear on the frog.
  • Tamping: The ballast supporting the switch ties must be regularly tamped to keep the switch level and prevent twisting forces on passing trains.
  • Heating: In cold climates, switch heaters are activated to melt snow and ice that could jam the points and prevent them from operating correctly.

What happens if a train goes through a switch the wrong way?

If a train moves from the frog end toward the points while the switch is lined against it (a “trailing move”), the wheels will force the points open. Some yard switches are designed to tolerate this, but it can severely damage mainline switch mechanisms and require immediate repair.
