Railroad Tie Dimensions

Railroad ties, also known as crossties or sleepers, are the foundational components of any track structure, responsible for holding the rails to the correct gauge and transferring immense loads from the train to the ballast and subgrade. The integrity and performance of a track system are directly linked to the specific railroad tie dimensions used. These dimensions are not arbitrary; they are the result of decades of engineering refinement to balance strength, durability, and economic feasibility. This technical guide Xingrail explores the standard specifications for railroad tie dimensions, materials, and their critical role in modern railway systems.

Standard Railroad Tie Dimensions

While variations exist for specialized applications, the vast majority of railroad ties conform to a set of standard dimensions established by organizations like the American Railway Engineering and Maintenance-of-Way Association (AREMA). The most common specification governs the tie’s cross-section and length.

Cross-Sectional Dimensions

The cross-section of a standard wooden railroad tie is typically rectangular. The two most prevalent sizes used in North America are:

• 7 inches x 9 inches: This is the most common size for mainline track, offering a robust combination of strength and surface area. The 9-inch width provides a large bearing surface against the ballast, which is critical for distributing loads and resisting lateral movement. The 7-inch depth provides the necessary vertical stiffness to prevent the tie from flexing under load.
• 6 inches x 8 inches: This slightly smaller cross-section is often used for tracks with lower tonnage and speeds, such as industrial spurs, yard tracks, or secondary lines. While still providing adequate support for these applications, they are more economical in terms of material usage.

Standard Lengths

The length of a railroad tie is another critical dimension that affects track stability. Standard lengths are:

• 8 feet 6 inches (8’6″): This is the most common length for standard mainline crossties in North America. This length ensures that the tie extends sufficiently beyond the rails to provide a stable base and resist the lateral forces that try to push the track out of alignment.
• 9 feet (9’0″): Longer ties are specified for more demanding applications, such as in track turnouts (switches) or on curves where lateral forces are higher. The increased length provides a greater lever arm to resist these forces, enhancing track stability.

These dimensions are not just guidelines; they are strict specifications. For example, according to AREMA standards, the thickness, width, and length are considered minimum dimensions for new, untreated (green) ties.

Material Specifications and Their Impact on Railroad Tie Dimensions

The material used to manufacture a tie directly influences its performance, lifespan, and even its final dimensions. Wood, concrete, and composite materials are the three primary options.

1. Wood Ties

Hardwood remains the most common material for railroad ties, prized for its strength, resilience, and relative cost-effectiveness.

• Material Grade: The primary species used are oak and hickory due to their density and durability. AREMA specifies different grades for ties based on the quality of the wood, allowable defects (like knots or splits), and the species.
• Treatment and Dimensions: Wood ties undergo a pressure treatment process with preservatives like creosote to protect them from decay and insects. This treatment is essential for achieving a service life of 30-40 years. It’s important to note that a green, untreated tie will have slightly larger dimensions than a treated, seasoned tie, as the drying process causes some shrinkage. AREMA specifications account for this, allowing a dry or treated tie to be up to 1/4 inch thinner or narrower than the nominal green size.

2. Concrete Ties

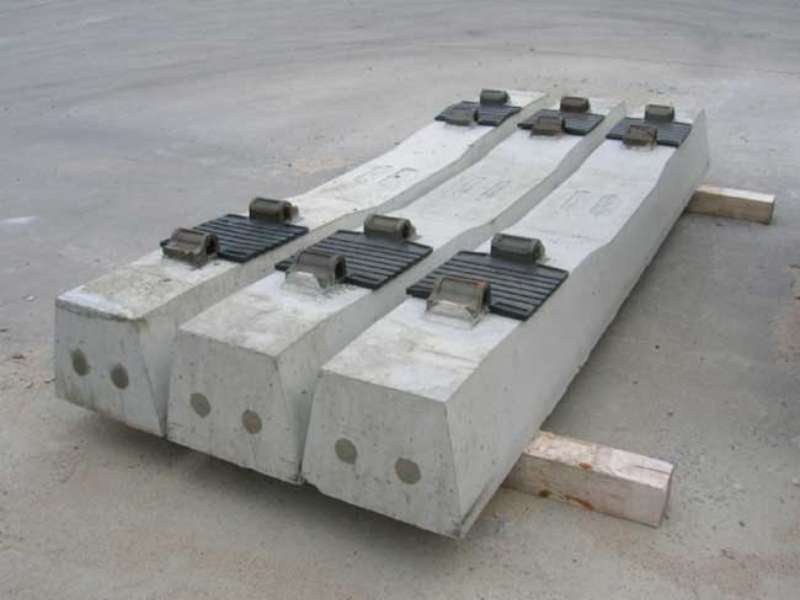

Pre-stressed concrete ties have become the standard for high-speed rail lines and heavy-haul corridors where track stability is paramount.

• Dimensional Consistency: A major advantage of concrete ties is their extreme dimensional uniformity. Unlike wood, concrete ties are cast in precise molds, resulting in virtually identical dimensions from one tie to the next. A standard concrete tie is typically around 8 feet 6 inches long, but its cross-section is more complex, often wider at the base (around 12 inches) and tapering towards the center.
• Performance Characteristics: The weight of a concrete tie (often over 600 pounds) provides immense track stability. The fastening system is typically cast directly into the concrete, ensuring precise and consistent rail gauge for the life of the tie.

3. Composite Ties

Composite ties, made from recycled plastics and other materials, are an emerging alternative.

• Engineered Dimensions: These ties can be manufactured to standard railroad tie dimensions, such as 7″x9″x8’6″, making them a “drop-in” replacement for wood ties. This compatibility allows railways to use them for spot replacements without altering the surrounding track structure.
• Advantages: Composite ties are resistant to rot and insect damage and do not require chemical preservatives. They are particularly useful in environmentally sensitive areas or on bridges where the lighter weight compared to concrete is an advantage.

Compatibility with Rail Systems and Fastening Methods

The specified railroad tie dimensions are fundamental to the proper function of the fastening system that holds the rail in place.

Tie Plates

On wooden ties, a steel tie plate is placed between the rail and the tie. The dimensions of this plate are critical.

• Bearing Area: The tie plate’s primary function is to distribute the load from the narrow base of the rail over a wider area of the wood tie, preventing the rail from crushing the wood fibers over time. A larger tie plate (e.g., 14 inches or 16 inches long) is used for heavier rail and higher tonnage.
• Spike Holes: The tie plate has pre-punched holes for the track spikes. The location of these holes is precisely specified to ensure the spikes are driven into the solid wood of the tie, providing maximum holding power and maintaining the correct rail gauge. The 9-inch width of a mainline tie provides ample space for these spikes without splitting the wood.

Fastening Systems

The type of fastening system used is closely linked to the tie material and its dimensions.

• Cut Spikes (Wood Ties): The traditional method uses spikes driven through the tie plate into the tie. The 7-inch depth of a mainline tie provides sufficient embedment length for the spike to achieve the required pull-out resistance.
• Elastic Fastenings (Concrete and Composite Ties): Modern systems use elastic clips that apply a constant clamping force to the base of the rail. On concrete ties, the shoulders that hold these clips are cast directly into the tie at an exact location, guaranteeing precise gauge. Composite ties are often pre-drilled or designed to accept screw spikes that hold the clip assemblies, leveraging the solid, uniform nature of the material.

The choice of railroad tie and its dimensions is a foundational engineering decision that dictates the strength, stability, and maintenance requirements of a railway line. From the standard 7″x9″x8’6″ hardwood tie that forms the backbone of the North American network to the precisely cast concrete ties of high-speed lines, these dimensions are specified to ensure the safe and efficient transport of passengers and freight for decades to come.
