Railroad Track Cross Section Specifications

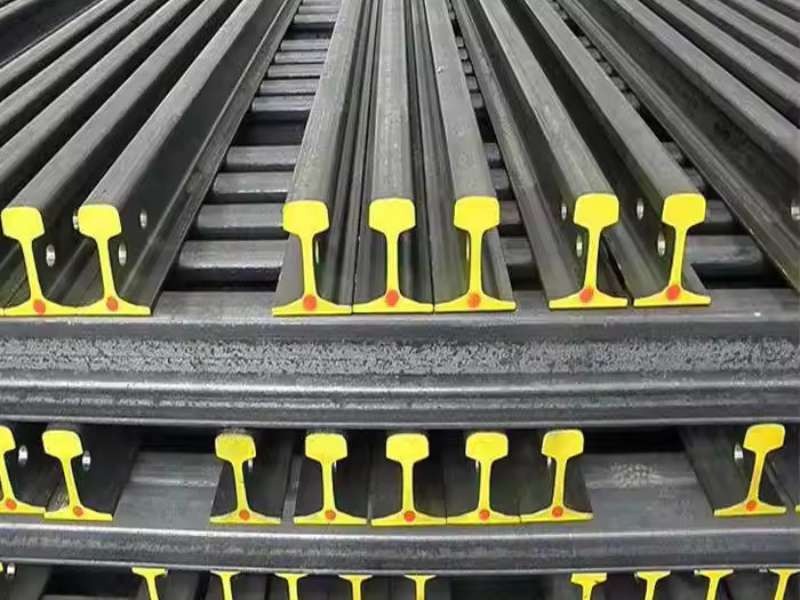

The modern railroad system is a testament to precision engineering, built upon the strength and reliability of its core components. Central to this infrastructure is the railroad track cross section, which defines the specific profile and dimensions of the rail itself. This design is far from arbitrary; it is a meticulously calculated shape that optimizes strength, durability, and the physics of guiding immense train loads safely and efficiently across vast distances. The common asymmetric I-beam shape of today’s flat-bottomed rails, comprising a head, web, and foot, features dimensions that are rigorously defined by various international standards. A thorough understanding of these specifications is essential for professionals in railway construction, maintenance, and supply chain management. This guide delves into the critical dimensions defining various rail profiles and examines the vital role of rail clips in securing these tracks, ensuring the integrity and stability of the entire railway system.

Railroad Track Cross Sections Dimensions

A rail’s profile is characterized by several key measurements: the height of the rail, the width of the head (the top surface that contacts the wheel), the width of the base or foot, and the thickness of the web that connects the head and foot. These dimensions directly influence the rail’s weight, structural strength, and suitability for different types of traffic. Operations involving heavier and faster trains necessitate a more robust railroad track cross section to withstand the increased stress and dynamic loads.

Various regions and railway authorities have established distinct standards over time. For example, the American Railway Engineering and Maintenance-of-Way Association (AREMA) provides detailed specifications for common North American rails, such as the 115RE and 136RE sections, where the number denotes the weight in pounds per yard. In Europe and many other parts of the world, standards from the International Union of Railways (UIC), like the widely adopted UIC60 profile, are prevalent, especially on high-speed lines.

To illustrate these differences, the following table outlines the key dimensional specifications for a range of common rail sections according to different international standards. Adherence to these standards ensures safety, reliability, and interoperability across extensive rail networks.

Rail Section Dimensions and Specifications Table

Rail Clips Specifications

While the railroad track cross section defines the rail itself, the fastening system is what integrates it into a functional and safe track structure. Rail clips are a vital component of this system, tasked with securely clamping the rail to the sleeper (or tie). Their main function is to prevent longitudinal, lateral, and vertical movement of the rail, thereby maintaining the correct track gauge and alignment under the immense forces generated by passing trains.

A critical characteristic of a rail clip is its ability to provide a specific and consistent clamping force. This force must be high enough to hold the rail firmly in position while also permitting slight, controlled longitudinal movement to accommodate thermal expansion and contraction. This prevents the buildup of internal stresses that could lead to track buckling. Elastic rail clips are the modern standard because they are engineered to maintain this clamping force over long periods, even when subjected to the constant vibrations and impacts of heavy rail traffic.

A wide variety of rail clips exists, each designed for specific rail sections, sleeper types, and operational demands. Popular examples include the Pandrol E-Clip, the Nabla clip, and various SKL tension clamps. Each type features a unique geometry and material composition engineered to deliver optimal performance and longevity.

Rail Clip Specifications and Common Types

The effectiveness of a rail clip is determined by its material properties, dimensions, and the clamping force it can exert and maintain. These components are typically manufactured from high-quality spring steel, such as 60Si2MnA or 38Si7, which undergoes specialized heat treatment to achieve the desired elasticity, fatigue resistance, and durability.

The table below provides detailed specifications for some of the most common types of elastic rail clips used in railway systems worldwide.

The selection of a rail clip is highly dependent on the overall track design. For example, SKL tension clamps are often integrated into a complete system (like the Vossloh system) that includes screw spikes and guide plates, whereas E-clips are typically used with a simpler shoulder-and-insulator assembly cast directly into concrete sleepers. The clamping force, which generally ranges from 8 to 12 kN per clip, is a critical parameter that ensures the rail is held securely without being over-stressed. This precise balance of force and flexibility is what makes modern railway fastening systems so dependable. By understanding both the railroad track cross section and the clips that hold it in place, one can appreciate the complete engineering foundation that supports our global rail networks.

Frequently Asked Questions about Rail Sections

1. What are the main parts of a railroad track cross section?
   The primary components are the head (top), which directly contacts the train wheel; the web (middle), providing vertical strength and height; and the foot or base (bottom), which ensures stability and provides a surface for fastening to the sleeper.
2. Why are there so many different rail standards?
   Different standards evolved historically in various countries to address specific operational needs, such as load capacity, train speed, and local manufacturing capabilities. Modern standardization efforts by bodies like UIC and AREMA now help promote greater interoperability.
3. What does the weight of a rail signify?
   Rail weight, typically measured in pounds per yard or kilograms per meter, serves as a primary indicator of its strength and load-bearing capacity. Heavier rails are essential for mainline tracks that support high traffic volumes and heavy axle loads.
4. How is a rail’s profile measured?
   A rail’s profile is defined by its key dimensions: total height, head width, base width, and web thickness. These measurements, combined with the radii of the connecting fillets, determine the specific cross-sectional shape and its performance characteristics.
5. What is a flat-bottomed rail?
   A flat-bottomed rail, also known as a Vignoles rail, is the most common type in modern railway systems. Its design features a wide, flat base that allows it to be fastened directly to sleepers, offering excellent stability and efficient load distribution.

Recommended Products Based on Railroad Track Cross Sections

Understanding your railroad track cross section is essential for building a safe and durable railway. The precise measurements of your rail—specifically the base width and overall height—determine exactly which fastening system you need.

To secure your track properly, you must pair your specific rail profile with a matching rail clip. The clip’s housing must fit flush against the rail foot, and the nose must reach the correct height to apply a consistent clamping force. If you use a clip designed for a different cross section, you risk losing that vital toe load, which can lead to track movement and derailments. We have matched our premium crane rail clips to the most common rail sections to help you find the perfect fit for your project.

Review the table below to find the ideal fastening solution based on your rail’s specific dimensions.

Frequently Asked Questions (FAQs)

1. How does the base width of a cross section dictate the correct rail clip?
   The base width (or foot) of a flat-bottomed rail is the exact surface where the rail clip attaches. Rail clips feature specific housing shapes engineered to sit flush against that width. If you try to place a clip on a base it was not designed for, the components will not align. You must match the base width dimension to the clip series to ensure a tight, secure fit.
2. Why do heavy cross sections like the AREMA 136RE require the 9 Series Welded Clips?
   Heavy-haul rails like the AREMA 136RE have thick web sections and broad bases to handle extreme dynamic loads. These massive forces generate severe lateral stress on the fasteners. The 9 Series Welded Clips feature a base that welds directly to the steel support plate. This creates a permanent, unyielding structural bond that stops heavy rails from creeping longitudinally or shifting sideways.
3. Are the 32 Series Bolted Clips compatible with the AREMA 115RE cross section?
   Yes. The AREMA 115RE cross section features a 139.7 mm base width, which fits perfectly within the design tolerances of our 32 Series. These bolted clips provide exceptional downward clamping force for this specific rail size. They also give maintenance crews the flexibility to easily loosen the bolts and make lateral track adjustments when necessary.
4. How do elastic clips interact with the foot of a flat-bottomed rail?
   Flat-bottomed rails distribute train loads efficiently, but they still require downward pressure to stay pinned to the sleeper. Elastic fasteners like the 9 Series and 32 Series use high-grade spring steel and an elastomeric nose that rests directly on top of the rail foot. As trains pass, the spring steel flexes slightly to absorb the vibrations while maintaining a constant, heavy clamping force on the rail.
5. What happens if I use a clip that does not match the rail height in my cross section?
   Every rail cross section has a specific overall height and foot thickness. If you install a clip built for a shorter rail onto a taller rail profile, the clip will bend or snap when tightened. Conversely, if you put a tall clip on a short rail, the rubber nose will not make contact with the rail foot at all. You will completely lose your clamping force, creating a severe derailment hazard.
