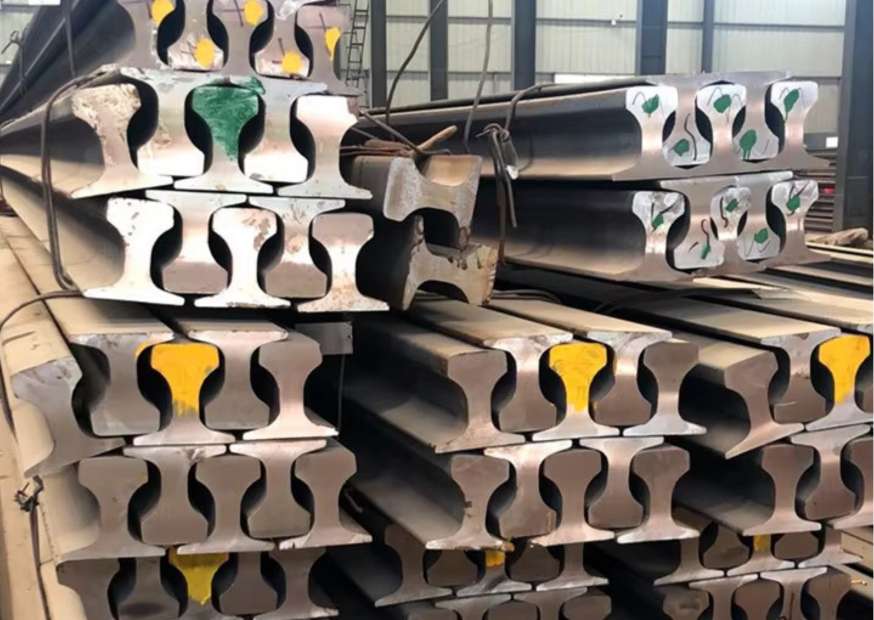

Railroad Track Profile and Clips

The railroad tracks profile represents the cross-sectional shape and specifications of a rail, a fundamental component in any railway system. This profile dictates how the rail interacts with train wheels, how it is secured to the track foundation, and ultimately, its capacity to handle specific loads and speeds. Understanding the various profiles, along with the critical components that fasten them, such as railroad clips, is essential for constructing safe, reliable, and efficient railway infrastructure. These elements work in concert to ensure track gauge is maintained and to prevent the rail from moving longitudinally or laterally under the immense stress of passing trains.

This guide provides a detailed look into the specifications of different rail profiles and the railroad clips that secure them, offering a technical resource for understanding these vital track components.

Railroad Track Profile Specifications

Modern railroad rails typically feature an I-beam shape, which is optimized for strength and stability. The key parameters that define a railroad tracks profile include the rail height, head width, base width, and web thickness. These dimensions, along with the rail’s weight per meter (or yard), determine its classification and suitability for different applications, from light-duty lines to heavy-haul freight and high-speed railways.

The selection of a specific rail profile is a critical decision based on factors like anticipated axle loads, operational speeds, and the type of traffic the line will carry. Heavier and more robust profiles are necessary for tracks that support high-speed passenger trains or heavy freight, as they provide greater strength and wear resistance.

Standard Rail Profile Specifications (Chinese GB Standard)

The Chinese GB standard provides a clear example of how rail profiles are categorized based on their physical dimensions and weight. Below is a specification table for common rail types used in China, illustrating the differences between profiles designed for varying load requirements.

Parameter	Unit	CHN 75kg Rail	CHN 60kg Rail	CHN 50kg Rail	CHN 45kg Rail
Weight per Meter	kg	74.414	60.64	51.514	44.653
Rail Height	mm	192	176	152	140
Base Width	mm	150	150	132	111
Head Height	mm	55.3	48.5	42	42
Head Width	mm	75	73	70	70
Web Thickness	mm	20	16.5	15.5	14.5
Sectional Area	cm²	95.073	77.45	65.8	57

American Standard Rail Profile Specifications (AREMA/ASCE)

In North America, the American Railway Engineering and Maintenance-of-Way Association (AREMA) and the American Society of Civil Engineers (ASCE) define the standards for rail profiles. These standards cover a wide range of sizes, from light rails used in mines or industrial settings to the heavy-duty rails required for mainline freight corridors.

Rail Type	Head (mm)	Height (mm)	Base (mm)	Web (mm)	Nominal Weight (kg/m)
115RE Rail	69.06	168.28	139.7	15.88	56.9
90RA Rail	65.09	142.88	130.18	14.29	44.65
ASCE 85 Rail	65.09	131.76	131.76	14.29	42.17
ASCE 75 Rail	62.71	122.24	122.24	13.49	37.2
ASCE 60 Rail	60.32	107.95	107.95	12.3	29.76

European Standard Rail Profile Specifications (EN 13674)

The European standard EN 13674-1 outlines the specifications for Vignole railway rails, which are used extensively across Europe for mainline and high-speed applications. The UIC60 and UIC54 profiles are among the most common.

Rail Type	Head (mm)	Height (mm)	Base (mm)	Web (mm)	Nominal Weight (kg/m)
60E1 (UIC60)	72	172	150	16.5	60.21
54E1 (UIC54)	70	159	140	16	54.77
50E6	65	153	140	15.5	50.9
49E1	67	149	125	14	49.39

Railroad Clips

Railroad clips, also known as rail fasteners, are essential components that secure the rail to the sleeper or foundation. Their primary functions are to provide a consistent clamping force, maintain the correct track gauge, and absorb vibrations generated by passing trains. The right clip ensures the stability of the entire track structure, preventing the rail from moving and reducing wear on both the rail and the sleepers.

Clips are designed to withstand immense dynamic forces and environmental stressors. Their design, material composition, and clamping force are tailored to specific operational requirements, including axle load, train speed, and track type (e.g., ballasted vs. ballastless).

Common Questions About Railroad Clips

Before diving into the specifications, let’s address some frequently asked questions.

What is the main function of a railroad clip?

The main function of a railroad clip is to fasten the rail securely to the sleeper. This maintains the track gauge, provides a consistent clamping force, and prevents the rail from moving longitudinally or laterally under traffic, ensuring track stability and safety.

How many types of railroad clips are there?

There are numerous types of railroad clips, broadly categorized by their shape and application. Common types include E-type clips, SKL tension clips, Nabla clips, and Fastclips. Each is designed for specific track systems, such as conventional, high-speed, or heavy-haul railways.

Are railroad clips reusable?

Generally, railroad clips are not reused during major track renewal projects. Fatigue, corrosion, and wear can reduce their clamping force and compromise safety. It is standard practice to install new clips to ensure the integrity of the fastening system.

What material are railroad clips made from?

Railroad clips are typically manufactured from high-quality spring steel alloys, such as 60Si2MnA or 60Si2CrA. These materials provide the necessary elasticity, strength, and fatigue resistance to withstand millions of loading cycles without failure, maintaining a reliable clamping force over time.

How is a rail clip installed?

Rail clips are installed using either manual or hydraulic tools. For elastic clips like the E-type or SKL, a tool is used to drive the clip into its housing in the shoulder or baseplate, where its spring tension creates the clamping force.

Types of Railroad Clips and Their Applications

Railroad clips can be classified based on the type of railway line they are designed for. Each application has unique demands, requiring clips with specific performance characteristics.

1. Railroad Clips for Heavy-Haul Railway

Heavy-haul railways are characterized by very high axle loads (typically 30-40 tons or more). Clips used in these environments must provide an exceptionally high clamping force and exhibit low deflection to manage the extreme stresses.

• Common Models: E2001, E2009, SKL14, SKL75, Deenik Clip
• Key Features:

• High clamping force to prevent rail slippage.
• Superior fatigue resistance to endure constant heavy loads.
• Robust design for long-term durability.

2. Railroad Clips for High-Speed Railway

High-speed lines (≥200 km/h) demand fastening systems that offer excellent vibration attenuation and maintain track geometry with high precision. Clips for these applications must ensure a smooth and stable ride at high velocities.

• Common Models: E1809, SKL12, SKL14, Fastclip HS
• Key Features:

• High elasticity to absorb vibrations and reduce noise.
• Consistent clamping force to maintain precise track geometry.
• Excellent corrosion resistance for long service life.

3. Railroad Clips for Conventional Railway

Conventional lines for general passenger and freight operations require a balance of performance and cost-effectiveness. These clips are versatile and can be used with wooden, concrete, or steel sleepers.

• Common Models: E1809, E2007, SKL1, SKL3, PR401, Nabla Clip
• Key Features:

• Proven, mature technology.
• Reliable performance for moderate axle loads and speeds.
• Cost-effective and easy to install and maintain.

4. Railroad Clips for Crane Rails

Crane rail systems, found in ports and industrial facilities, support extremely heavy and concentrated loads from gantry and overhead cranes. The clips must provide strong lateral resistance and allow for precise rail alignment.

• Common Models: E2007, Weldable baseplate clips
• Key Features:

• High resistance to horizontal loads.
• Adjustable designs for accurate rail positioning.
• Can be welded or bolted to the foundation.

Technical Parameters of Common Railroad Clips

The performance of a railroad clip is defined by its technical specifications, including its material, hardness, and fatigue life. The table below provides reference ranges for several widely used clip models, which vary based on international standards like AREMA, EN, and UIC.

Model	Typical Material	Hardness (HRC) Range	Fatigue Life (million cycles)	Primary Application
E1809	60Si2MnA	42–48	3–6	Conventional & Heavy Haul
E2007	60Si2MnA / 55Si2Mn	42–48	4–7	Conventional & Crane Rail
E2009	60Si2CrA / 60Si2MnA	44–49	5–8	Heavy Haul
SKL1	60Si2MnA	42–47	3–5	Conventional & Metro
SKL14	60Si2CrA	45–50	5–8	High-Speed & Ballastless Track
Fastclip	Special Alloy Spring Steel	45–52	5–12	High-Speed & Heavy Haul
PR401	60Si2MnA	42–48	4–6	Conventional (AREMA)

Choosing the appropriate railroad tracks profile and fastening system is a foundational step in railway engineering. The interaction between these components ensures the long-term safety, stability, and performance of the track. By selecting rails with the correct specifications and clips designed for the specific operational demands, engineers can build a railway infrastructure that is both durable and reliable for years to come.

Recommended Products for Railroad Tracks Profile

The railroad tracks profile, including its cross-sectional shape and specifications, plays a critical role in ensuring the stability and safety of railway systems. Below is a table of recommended crane rail clips for securing tracks based on their profile and application:

Rail Type	Base Width	Height	Weight	Recommended Clips	Specific Products
CHN 75kg Rail	150 mm	192 mm	74.414 kg/m	E-Type Elastic Rail Clips	E1809E2007E2009
115RE Rail (AREMA)	139.7 mm	168.28 mm	56.9 kg/m	SKL Tension Clips	SKL1SKL14SKL75
60E1 (UIC60)	150 mm	172 mm	60.21 kg/m	9 Series Welded Rail Clips	XINGRAIL 9220/20/45 XINGRAIL 9216/08/40 XINGRAIL 9120/15/38 XINGRAIL 9116/08/3

Frequently Asked Questions (FAQs)

1. What is the main function of a railroad clip?
     The main function of a railroad clip is to fasten the rail securely to the sleeper. This maintains the track gauge, provides a consistent clamping force, and prevents the rail from moving longitudinally or laterally under traffic, ensuring track stability and safety.
2. How are rail clips selected for different rail profiles?
     Rail clips are chosen based on the rail profile’s dimensions, such as base width and height, as well as operational factors like axle loads and train speeds. For example, E-Type clips are suitable for CHN 75kg rails, while SKL clips are ideal for 115RE rails.
3. What materials are used to manufacture railroad clips?
     Railroad clips are typically made from high-quality spring steel alloys, such as 60Si2MnA or 60Si2CrA. These materials provide the necessary elasticity, strength, and fatigue resistance to withstand millions of loading cycles.
4. Can railroad clips be reused?
     Generally, railroad clips are not reused during major track renewal projects. Fatigue, corrosion, and wear can reduce their clamping force and compromise safety. It is standard practice to install new clips to ensure the integrity of the fastening system.
5. What are the key differences between E-Type and SKL clips?
     E-Type clips are cost-effective and widely used for conventional railways, while SKL clips are designed for high-speed and heavy-haul applications, offering superior fatigue resistance and vibration attenuation.
