Railroad Width and Rail Clips: Engineering Specifications and Standards

The precise engineering behind railroad width is the foundational element of global railway infrastructure. Defined as the distance between the inner faces of the load-bearing rails, this measurement—commonly referred to as track gauge—dictates the compatibility, safety, and efficiency of rail transport networks. While the standard gauge of 4 feet 8.5 inches (1,435 mm) is ubiquitous, maintaining this geometry requires high-precision components, specifically rail clips. These fastening devices are critical for securing the rail to the sleeper (or tie), ensuring that the track geometry remains constant under extreme dynamic loads and thermal stresses.

Railroad Width Standards and Global Gauges

The specification of railroad width is not merely a historical artifact but a strict engineering parameter that governs rolling stock design and track interaction. The standard dimension of 1,435 mm is measured 14 mm (or 5/8 inch in US standards) below the top surface of the rail head. This specific measurement point helps account for the wheel profile and ensures smooth running.

While “standard gauge” is the baseline, engineering realities on the ground require allowable tolerances. A track is rarely perfectly 1,435 mm along every inch of its length. Factors such as wear, installation variance, and dynamic forces create slight deviations. For example, U.S. Federal Railroad Administration (FRA) safety standards allow the railroad width to vary within specific limits based on track class and speed. For speeds up to 60 mph, the gauge can typically range from 4 ft 8 in (1,422 mm) to 4 ft 9.5 in (1,460 mm). Tighter tolerances are strictly enforced for high-speed lines to prevent hunting oscillation—a violent swaying motion that can lead to derailment.

Below is a breakdown of common gauges used globally, highlighting how railroad width varies by region and purpose:

Table 1: Common Global Railroad Track Widths

Gauge Name	Imperial Dimension	Metric Dimension	Primary Usage & Regions
Standard Gauge	4 ft 8.5 in	1,435 mm	North America, Europe, China (High Speed)
Irish Gauge	5 ft 3 in	1,600 mm	Ireland, parts of Australia, Brazil
Iberian Gauge	5 ft 5 2/3 in	1,668 mm	Spain, Portugal (Traditional lines)
Indian Gauge	5 ft 6 in	1,676 mm	India, Pakistan, Argentina, Chile
Russian Gauge	5 ft	1,520 mm	Russia, CIS Countries, Finland
Cape Gauge	3 ft 6 in	1,067 mm	Japan, Southern Africa, New Zealand
Meter Gauge	3 ft 3 3/8 in	1,000 mm	Southeast Asia, East Africa, Brazil

Beyond these static measurements, the railroad width must be maintained dynamically. As a train passes, lateral forces push the rails outward. If the fastening system fails to hold the rail in place, the gauge widens (“gauge spreading”), which is a leading cause of derailments. This brings us to the critical role of rail clips.

Engineering Specifications of Rail Clips

Rail clips are the active components in a fastening system designed to secure the steel rail to the sleeper. Unlike rigid spikes of the past, modern rail clips are elastic. They apply a specific clamping force, known as “toe load,” to the foot of the rail. This elasticity is vital because it allows the clip to absorb high-frequency vibrations from passing trains without loosening, all while holding the rail firmly to maintain the correct railroad width.

The engineering of a rail clip focuses on fatigue resistance and material memory. Clips are typically manufactured from high-grade spring steel (such as 60Si2MnA or 38Si7). During manufacturing, they undergo heat treatment to achieve a hardness range (often HRC 44-48) that allows them to flex thousands of times without plastic deformation.

Types of Fastening Systems

1. Elastic Clips (E-Type): These are driven into a shoulder cast directly into concrete sleepers. They are self-tensioning and provide a consistent toe load.
2. Tension Clamps (SKL-Type): These use a screw spike and a washer to tighten a W-shaped clamp against the rail. They offer high resistance to “creep” (longitudinal movement of the rail) and allow for fine adjustments in height.
3. Fastclip Systems: A pre-assembled system where clips are delivered already attached to the sleeper, allowing for automated installation.

The table below details the technical specifications required for high-performance rail clips to ensure they can maintain the necessary railroad width under load.

Table 2: Technical Specifications for Rail Clips

Parameter	Specification Details	Function
Material	Spring Steel (60Si2MnA, 60Si2CrA)	Provides elasticity and high fatigue strength.
Hardness	HRC 44 – 48	Ensures the clip does not deform permanently under stress.
Toe Load	1800 – 2750 lbs (8 – 12.5 kN)	The downward force applied to the rail foot to prevent movement.
Elastic Deflection	9 – 14 mm	Allows the system to absorb vibration and thermal expansion.
Fatigue Life	> 3 to 5 million cycles	Ensures longevity on high-traffic lines without failure.
Surface Treatment	Zinc, Dacromet, or plain oil	Prevents corrosion which could weaken the clamping force.

How Rail Clips Maintain Railroad Width

The interaction between the rail clip, the insulator, the rail pad, and the sleeper is what ultimately secures the railroad width. The rail clip presses down on the rail foot, but it is the shoulder (embedded in the sleeper) and the insulator that prevent the rail from moving sideways.

When a train rounds a curve, the wheel flange pushes hard against the outer rail. This lateral force attempts to push the rail outward, effectively trying to widen the railroad width. The job of the rail clip is to provide enough friction (via toe load) to prevent the rail from tipping or sliding. If the toe load is insufficient, or if the clips are fatigued, the rail can tilt, widening the gauge beyond the safety tolerance of 4 ft 9.5 in.

The Role of Insulators and Pads

• Insulators: These sit between the rail clip/shoulder and the rail foot. They electrically isolate the rail (crucial for signaling circuits) and provide a physical stop that defines the exact position of the rail base, directly influencing the railroad width.
• Rail Pads: Located beneath the rail, these rubber or composite pads dampen impact loads. By reducing the shock transmitted to the sleeper, they protect the clip from loosening, ensuring the gauge remains constant over time.

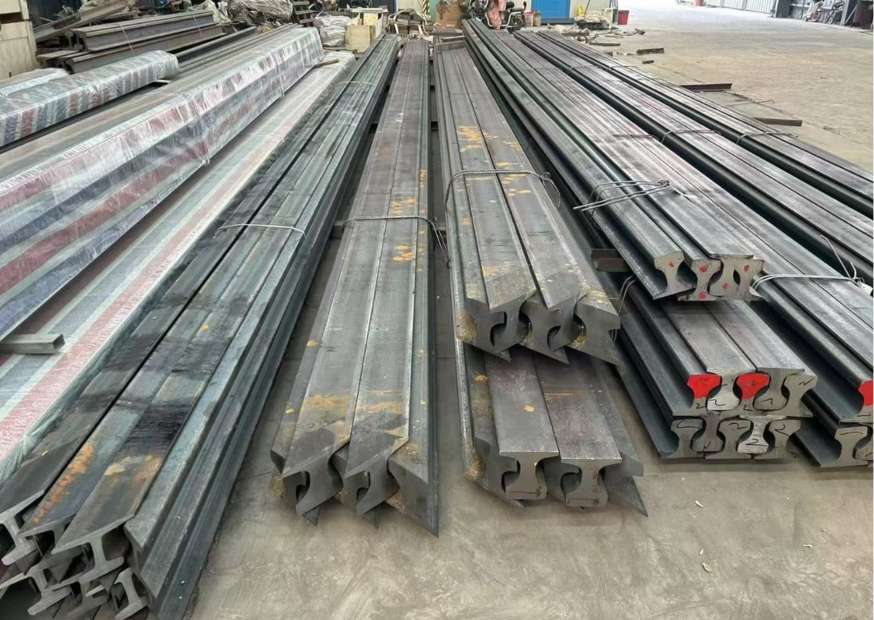

Rail Section Dimensions and AREMA Standards

To maintain a consistent railroad width, the rail itself must meet strict dimensional standards. In North America, the American Railway Engineering and Maintenance-of-Way Association (AREMA) defines rail profiles based on weight per yard. Heavier rails (like 136RE or 141RE) have wider bases and taller profiles to withstand heavier axle loads (up to 32 tons or more).

The width of the rail base is particularly important for the fastening system. The clip must be compatible with the specific base width to apply the correct toe load. If a clip designed for a narrow base is used on a wide base rail, it may be over-stressed and snap. Conversely, a clip for a wide base used on a narrow rail will not engage properly, failing to secure the railroad width.

Table 3: AREMA Rail Section Dimensions

Rail Type (Weight)	Height (inches)	Base Width (inches)	Head Width (inches)	Web Thickness (inches)
115 RE	6 5/8	5 1/2	2 23/32	5/8
132 RE	7 1/8	6	3	21/32
136 RE	7 5/16	6	2 15/16	11/16
141 RE	7 5/16	6	3 1/16	3/4

The 136 RE rail is a standard for Class I railroads in the US. Its 6-inch base provides a substantial surface area for the rail seat, enhancing stability. The geometry of the rail head is also designed to interface perfectly with the wheel tread, maintaining the effective railroad width at the running surface.

Thermal Expansion and Track Geometry

One of the most significant challenges in maintaining precise railroad width is thermal expansion. Steel rails expand in heat and contract in cold. In continuous welded rail (CWR), where rails are welded into ribbons miles long, this expansion cannot be released at joints. Instead, it builds up as internal stress.

If the rail clips do not provide sufficient longitudinal restraint (creep resistance), the rail will move through the fasteners. This can bunch up at certain points, leading to “sun kinks” or track buckling, where the railroad width and alignment are violently distorted. The specified toe load of 2,000+ lbs per clip is calculated specifically to counteract these thermal forces. By locking the rail to the sleeper, the clips force the rail to absorb the stress internally rather than moving, preserving the track’s geometric integrity.

The “Neutral Temperature” or “Rail Neutral Temperature” (RNT) is the temperature at which the rail is laid and fastened. Maintaining the track at this stress-free temperature is vital. If the rail temperature deviates significantly from the RNT, the stress on the clips increases. Engineering teams must monitor railroad width and alignment closely during extreme temperature swings to ensure the clips are performing as intended.

Specifications for Heavy Haul vs. Transit

The requirements for railroad width maintenance differ significantly between heavy haul freight and light rail transit.

Heavy Haul Specifications

In heavy haul environments (transporting coal, ore, or bulk commodities), the axle loads are immense. The lateral forces exerted on the high rail in a curve can be extreme. Here, the fastening system must be robust.

• Clip Requirement: Heavy-duty clips (e.g., e-2000 series or heavy SKL clamps) with toe loads exceeding 2,500 lbs.
• Insulator Requirement: Reinforced nylon or composite insulators to resist crushing.
• Base Width: Wider rail bases (6 inches) are preferred to distribute the load and prevent the rail from rolling over, which would widen the railroad width.

Transit and High-Speed Specifications

For passenger transit, the priority is smoothness and alignment to ensure passenger comfort and safety at high speeds.

• Tolerance: The railroad width tolerance is much stricter, often +/- 3mm.
• Fasteners: High-elasticity clips are used to dampen vibration and reduce noise.
• Adjustability: Fastening systems often allow for fine gauge adjustments (using different insulator widths) to correct the railroad width by millimeter increments as the rail head wears down.

Maintenance of Rail Clips and Gauge

Over time, the repetitive loading from train wheels causes wear on all components. The interface between the clip and the insulator can wear down, reducing the effective toe load. If the toe load drops below a critical threshold, the rail becomes loose. A loose rail will vibrate excessively, accelerating the wear on the sleeper seat (rail seat abrasion). This abrasion creates a depression in the concrete, allowing the rail to cant outward and widening the railroad width.

Regular track inspections involve measuring the toe load of random clips and checking the gauge using laser-based track geometry cars. These vehicles measure the railroad width continuously while moving at speed. If wide gauge is detected, maintenance crews must intervene. This usually involves:

1. Regauging: Replacing worn insulators with thicker ones to push the rail back inward.
2. Clip Replacement: Installing new clips to restore proper clamping force.
3. Sleeper Repair: Repairing the rail seat if abrasion has occurred.

Maintaining the correct railroad width is a continuous battle against physics. The centrifugal force of trains, the thermal expansion of steel, and the degradation of materials all work to push the rails apart. Through the precise application of engineering standards—from the exact chemistry of the spring steel in a rail clip to the geometric profile of an AREMA rail—railway engineers ensure that the track remains safe, stable, and efficient for millions of tons of traffic. Understanding the symbiotic relationship between railroad width and the fastening system is key to appreciating the complexity of modern railway infrastructure.

Frequently Asked Questions

What is the standard railroad width?
The standard railroad width, or track gauge, is 4 feet 8.5 inches (1,435 mm). This standard is used in approximately 55% of the world’s railway lines, including most of North America, Europe, and China.

Why are rail clips important for track gauge?
Rail clips apply a high clamping force (toe load) that holds the rail firmly to the sleeper. This prevents the rail from moving sideways under the weight of trains, ensuring the railroad width remains within safe safety tolerances.

How much can railroad width vary safely?
In the US, safety standards allow the railroad width to vary slightly. For tracks rated up to 60 mph, the gauge can range from 4 ft 8 in (1,422 mm) to 4 ft 9.5 in (1,460 mm). Tighter tolerances apply to higher speeds.

What are elastic rail clips made of?
Elastic rail clips are typically made from high-grade spring steel, such as 60Si2MnA. This material is heat-treated to achieve high hardness and fatigue resistance, allowing the clip to flex without breaking or losing its clamping tension.

Can rail clips prevent track buckling?
Yes. Rail clips provide longitudinal restraint that prevents the rail from expanding or contracting physically along the sleeper. This forces the rail to contain thermal stresses internally, which significantly reduces the risk of the track buckling or warping in extreme heat.
