Railway Diamond Crossover Design and Specifications

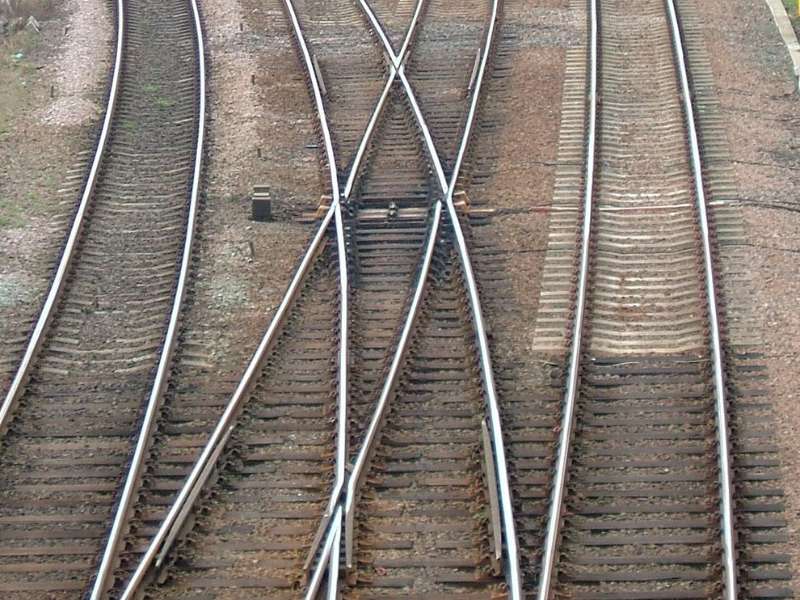

A railway diamond crossover is a complex and vital piece of trackwork that allows trains to move from one parallel track to another in either direction. Resembling a pair of scissors or an “X” from above, this arrangement combines two crossovers that overlap in the middle. Its intricate design is essential for efficient train routing in space-constrained areas like busy terminals, yards, and mainline corridors. Understanding the components, types, and specifications of a diamond crossover is key to appreciating its role in modern railway operations.

This guide provides a detailed look at the engineering behind the railway diamond crossover, from its fundamental components to its operational advantages and maintenance needs. We will explore the various types of diamond crossings and the precise specifications that govern their construction and ensure safe, reliable performance.

Design and Components of a Railway Diamond Crossover

The primary function of a railway diamond crossover is to provide maximum flexibility in a minimal footprint. It enables trains on a double-track line to switch paths, which is crucial for managing traffic, routing around incidents, and directing trains into specific station platforms or yard tracks. The design consists of four sets of switch points and two frogs, forming the characteristic diamond shape at the center.

The core components include:

• Switches (or Points): These are the movable sections of rail that guide the train’s wheels from one track to another. A standard diamond crossover has four switches, one for each possible route through the junction.
• Frogs: A frog is the point where two rails cross. In a diamond crossover, there are two common frogs where the outer rails of the parallel tracks intersect. The central area where all inner rails cross is known as the diamond frog or K-frog. This is the most complex part of the structure.
• Guard Rails (or Check Rails): These are short rails placed alongside the main running rails opposite the frog. Their purpose is to prevent the wheels from taking the wrong path through the frog, ensuring the flange follows the correct channel and preventing derailment.
• Stock Rails: These are the stationary outer rails of the track that the switch points rest against when closed.
• Closure Rails: These are the curved rails that connect the switch points to the frog, completing the path for the train to follow.

The entire assembly is built on a foundation of sleepers (ties) and ballast, which must be meticulously maintained to preserve the precise geometry required for safe operation.

Types of Railway Diamond Crossovers

While all diamond crossovers serve the same basic purpose, they can be categorized based on their complexity and the type of frog used in their construction. The choice of design depends on the expected traffic speed, volume, and the operational needs of the location.

Single Slip and Double Slip Crossovers

A standard diamond crossing only allows trains to pass straight through on their respective tracks. To add routing flexibility, slip switches can be incorporated.

• Single Slip: This design adds two extra sets of points within the diamond, allowing trains to move from one track to a diverging route in one direction. It essentially combines a switch with a crossing.
• Double Slip: This is the most versatile configuration. It includes four sets of points, enabling trains approaching on either track to either continue straight or switch to the other track. This transforms the diamond into a fully functional junction.

Frog Types in Diamond Crossovers

The frog is the most critical component for a smooth and safe transition. Different frog types are used to manage the gap where the wheel flange must cross the rail.

• Fixed Frog (or Bolted Frog): This is the simplest type, made from bolted-together sections of rail or a single piece of cast manganese steel. It has a fixed gap (flangeway) for the wheel to pass through. While robust, the gap creates a point of impact that causes wear and limits train speed.
• Movable Point Frog (or Swingnose Frog): In high-speed or heavy-traffic lines, movable point frogs are often used. In this design, the point of the frog physically moves to close the gap, creating a continuous running surface for the wheel. This eliminates the impact, reduces wear, and allows for significantly higher speeds through the crossover. This is the preferred choice for a modern railway diamond crossover on mainlines.

Frequently Asked Questions about Diamond Crossovers

What is the main purpose of a diamond crossover?

A diamond crossover allows trains to switch between two parallel tracks in either direction. It provides maximum routing flexibility in a compact space, making it ideal for busy areas like station approaches and junctions where space is limited.

Why is it called a “diamond” crossover?

The name comes from the diamond shape formed by the intersecting rails at the center of the trackwork when viewed from above. This central area contains the K-frog, the most complex part of the arrangement.

What is the difference between a diamond crossing and a diamond crossover?

A diamond crossing is a simple intersection where two tracks cross at grade without any switches, meaning trains can only continue straight. A diamond crossover includes switches that allow trains to change from one track to the other.

Are diamond crossovers used on high-speed lines?

Yes, but they require specialized designs. To accommodate high speeds, diamond crossovers are built with movable point frogs, which create a continuous rail surface and eliminate the jolts and impacts associated with fixed frogs.

What are the main maintenance challenges?

The K-frog and switch points are high-wear areas due to the concentrated forces from passing wheels. Maintaining precise track geometry is critical, as even small misalignments can lead to derailment. Frequent inspections and repairs are necessary.

Specifications and Design Considerations

Designing a railway diamond crossover requires adherence to strict specifications to ensure safety and operational efficiency. These standards govern everything from the angle of the crossing to the materials used for each component.

Crossing Angle and Frog Number

The angle at which the tracks intersect is a primary design parameter. This is typically defined by a “frog number” (e.g., No. 8, No. 10, No. 20). The frog number is a ratio that describes the angle’s sharpness: a higher number indicates a shallower angle and a longer, more gradual crossover.

• Low Frog Numbers (e.g., No. 8 to No. 12): These represent sharper angles and are used for low-speed yard and terminal applications. They are compact but restrict speed.
• High Frog Numbers (e.g., No. 15 to No. 24): These have very shallow angles, creating a much smoother path for the train. They are required for high-speed mainlines but take up significantly more space.

Material and Manufacturing Standards

The intense dynamic forces experienced by a diamond crossover demand the use of high-strength, wear-resistant materials. The frogs and switch points, in particular, are subject to extreme impact and rolling contact fatigue.

• Rail Steel: The rails used are typically heat-treated, high-carbon steel to resist wear and plastic deformation. Standards like AREMA (American Railway Engineering and Maintenance-of-Way Association) or UIC (International Union of Railways) dictate the chemical composition and mechanical properties.
• Cast Manganese Steel: Frogs are almost universally made from cast high-manganese steel (often called Hadfield steel). This material has a unique property of work-hardening, meaning it becomes harder and more wear-resistant under repeated impact from train wheels.
• Welding: Components are often joined using specialized welding techniques, such as flash-butt welding for rails and thermite welding for in-track repairs. These methods ensure a strong, continuous connection that can withstand operational stresses.

The railway diamond crossover remains a remarkable example of precision engineering. By allowing complex train movements in a constrained space, it enhances the capacity and flexibility of railway networks around the world. While its maintenance is demanding, modern materials and design innovations continue to improve its durability and performance, securing its place as an indispensable feature of rail infrastructure.

Recommended Products for Railway Diamond Crossovers

Railway diamond crossovers endure some of the most intense dynamic forces in any track network. As trains navigate the complex switch points and intersecting frogs, the rails experience extreme lateral and vertical stress. While the cast manganese steel frogs handle the wheel impacts, the stability of the entire diamond structure relies entirely on your rail fastening system.

To prevent the complex track geometry from distorting, you must secure the rails using clips that perfectly match the rail profile’s base width. When a rail clip fits flush against the rail foot, it delivers maximum downward clamping force (toe load). This intense friction locks the rails firmly in place, absorbing severe vibrations and preventing dangerous gauge widening at the critical central K-frog.

To help you secure your complex crossover junctions, we have paired our heavy-duty crane rail clips with the prominent AREMA and UIC rail profiles used in modern mainline and terminal crossovers. Review the table below to find the correct fastening solution for your exact track dimensions.

Frequently Asked Questions (FAQs)

1. Why do diamond crossovers require such high-strength rail clips?
   A railway diamond crossover combines four switch points and multiple intersecting frogs into a highly concentrated area. When trains pass over the gaps in fixed frogs, they generate massive impact forces. High-strength elastic rail clips absorb these sudden shocks and maintain a relentless downward pressure. This prevents the complex rail arrangement from shifting out of alignment.
2. How do 9 Series Welded Clips secure heavy-duty 136 RE and 141 RE crossover rails?
   High-speed mainlines and heavy freight corridors frequently utilize massive 136 RE and 141 RE rail profiles to build their crossovers. These trains exert extreme lateral stress on the track. You weld the base of the 9 Series clips directly to the underlying steel plates. This creates a permanent, rigid anchor that firmly grips the wide 6-inch rail base and resists intense dynamic shearing forces.
3. Are 32 Series Bolted Clips effective for terminal yard crossovers using 115 RE rails?
   Yes. Track engineers commonly use the 115 RE profile for lower-speed yard and terminal applications featuring standard crossovers. This rail features a base width of 5.500 inches. The 32 Series Bolted Clips match this exact footprint flawlessly. They deliver strong clamping force while giving maintenance crews the ability to easily loosen the bolts for routine geometry adjustments.
4. What happens to the diamond crossing if I install a mismatched rail clip?
   Using a rail clip that does not precisely match your rail’s specific base dimensions creates an immediate derailment risk. If you place a clip engineered for a narrower base onto a wide UIC 60 rail, the fastener will not seat properly. You instantly lose the necessary toe load. The intense vibrations at the central K-frog will shake the unsecured rails loose, widening the gauge and ruining the track geometry.
5. Do elastic fasteners help protect the movable point frogs in high-speed crossovers?
   Absolutely. High-speed crossovers use movable point frogs to close the flangeway gap and eliminate heavy wheel impacts. However, the moving components still require immense stability from the surrounding stock rails. Elastic fasteners, like our 9 Series, use premium spring steel to constantly pin the stationary rails to the sleepers. This rigid foundation ensures the movable frog mechanisms operate smoothly and align perfectly every time.
