Understanding accurate railway sleeper dimensions UK is critical for ensuring the structural integrity of rail networks and the success of heavy-duty landscaping projects. Whether you are a civil engineer calculating load distribution for a track upgrade or a landscape architect designing a retaining wall, the precise measurements of these timber, concrete, or steel supports dictate their performance and suitability. This guide, Xingrail provides an in-depth analysis of standard sizes, material specifications, and the technical tolerances associated with railway sleepers in the United Kingdom market.
Standard Railway Sleeper Dimensions UK
The standardization of railway sleeper dimensions UK has evolved significantly since the early days of rail transport. In a functional railway track, the sleeper (or tie) performs three vital roles: holding the rails at the correct gauge (standard gauge being 1,435 mm), distributing the immense loads from passing trains into the ballast, and resisting lateral and longitudinal movement. To achieve this, the dimensions—specifically length, width, and depth—must be consistent and robust.
While modern main lines rely heavily on pre-stressed concrete, timber sleepers remain a staple for secondary lines, tunnels, switches, and crossings, as well as the booming landscaping sector. The dimensions vary not just by material, but by the intended application (e.g., standard track vs. crossing timbers) and the origin of the sleeper (new vs. reclaimed).
Standard Dimensions for New Timber Sleepers
When sourcing new timber for rail or construction projects, you will typically encounter two distinct categories: softwood and hardwood (predominantly Oak). New sleepers offer the advantage of consistent sizing, unlike their reclaimed counterparts which can vary due to wear and historical manufacturing tolerances.

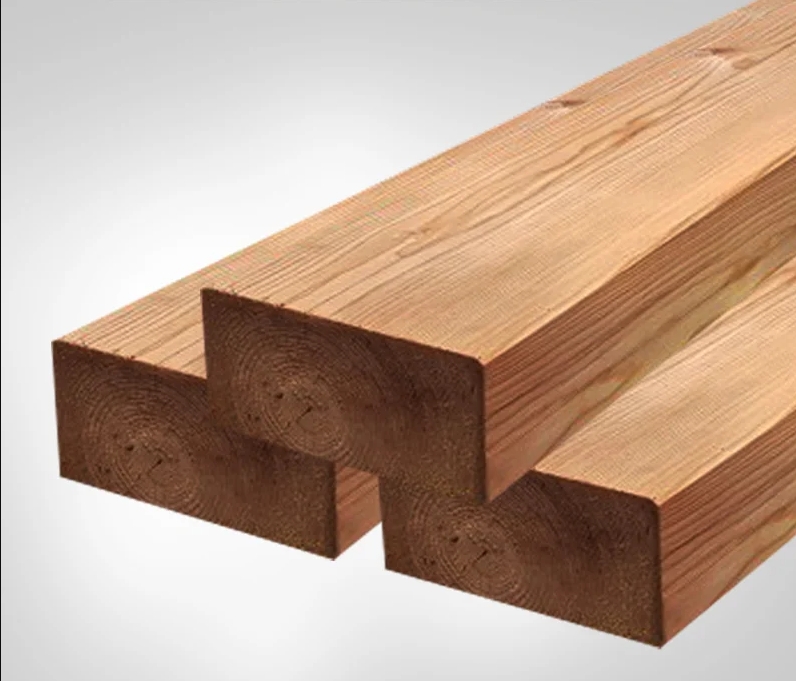

New Softwood Sleeper Specifications
Softwood sleepers, usually treated with preservatives like Tanalith E (green) or Creosote (for professional use), are lighter and easier to handle. They are widely used in landscaping but also serve specific rail purposes where weight and cost are factors.
The most common “standard” size for a new softwood sleeper in the UK is 2.4m x 200mm x 100mm. However, a wider range of specifications is available to meet different engineering needs.
|
Classification |
Length (m) |
Width (mm) |
Depth (mm) |
Typical Application |
|
Standard Landscape |
2.4 |
200 |
100 |
Garden borders, raised beds |
|
Heavy Duty |
2.4 |
250 |
125 |
Retaining walls, steps |
|
Extra Wide |
2.4 |
225 |
100 |
Pathways, structural support |
|
Long Crossing |
3.0 – 6.0 |
250 |
150 |
Rail crossings, heavy bridging |
New Hardwood (Oak) Sleeper Specifications
Oak sleepers are renowned for their density, durability, and strength. They are naturally resistant to rot and do not always require preservative treatment, making them ideal for sensitive environments. However, working with Oak requires an understanding of its natural movement.
The primary dimension for new Oak sleepers is roughly 200mm x 100mm, but tolerances are crucial here. Fresh sawn (Green Oak) will shrink as it dries. A sleeper cut to 200mm x 100mm may eventually reduce to 190mm x 90mm over several years of air drying.
|
Classification |
Length (m) |
Width (mm) |
Depth (mm) |
Weight (Approx) |
|
Standard Oak |
2.4 |
200 |
100 |
~50-60 kg |
|
Large Section |
2.4 |
220 |
130 |
~75-85 kg |
|
Bridge/Crossing |
2.6 – 4.0 |
250 |
150 |
>100 kg |
Reclaimed Railway Sleeper Dimensions UK and Variations
Sourcing reclaimed sleepers adds a layer of complexity regarding dimensions. These timbers have spent decades on tracks, supporting locomotives weighing over 100 tonnes. Consequently, railway sleeper dimensions UK for reclaimed stock are classified as “approximate.”
The “Standard” Reclaimed Size
Traditionally, the British rail network utilized a specific profile for main line sleepers. If you purchase a Grade 1 or Relay Grade reclaimed sleeper, the dimensions will generally adhere to the following:
- Length: Approximately 2600mm (8ft 6in).
- Width: Approximately 250mm (10 inches).
- Depth: Approximately 125mm (5 inches) for UK sleepers, or 150mm (6 inches) for European imports.
Variations and Tolerances
It is vital to note that reclaimed sleepers are rarely perfect rectangular prisms. Decades of weathering, pressure, and the original manufacturing methods (which were less precise than modern laser-guided sawmills) mean that dimensions can vary by +/- 20mm.
- Adzing: The area where the rail chair sat may have been “adzed” (planed flat), creating a variation in depth at specific points along the sleeper.
- Wane: Edges may be rounded (waney) rather than sharp square edges, effectively reducing the usable width for joinery purposes.
- Cutting: Historically, end trimming was not always precise, so lengths can fluctuate between 2.55m and 2.65m.
Concrete and Steel Sleeper Specifications
While timber dominates the landscaping conversation, modern railway infrastructure relies heavily on concrete and steel. These materials offer superior consistency in railway sleeper dimensions UK and longevity under high-speed traffic.
Concrete Sleeper Dimensions
Concrete sleepers are pre-stressed monoblock structures. They are significantly heavier than timber, providing the necessary stability for continuous welded rail (CWR).
- Length: Typically 2515mm.
- Width (Base): Approximately 285mm (wider at the base to spread load).
- Depth (at Rail Seat):190mm – 210mm depending on the specific model (e.g., G44, F27).
- Weight: Approximately 285kg – 320kg.
Due to their immense weight and specific shape (often narrowing at the center), concrete sleepers are rarely used in residential landscaping but are the gold standard for Network Rail main lines.
Steel Sleeper Dimensions
Steel sleepers are pressed from steel plate and form an inverted trough shape. They are lighter than concrete and easier to handle during installation.
- Length: Approximately 2500mm.
- Width: Typically 260mm – 300mm overall width including the spades.
- Depth:100mm – 120mm (profile height).
- Weight: Approximately 70kg – 80kg.
Technical Tolerances and Installation Considerations
When planning a project based on railway sleeper dimensions UK, understanding technical tolerances is as important as knowing the nominal size.
Shrinkage and Movement in Timber
Timber is a hygroscopic material, meaning it absorbs and releases moisture.
- Green Oak: Can shrink by up to 7-10% across the grain as it dries. Length usually remains stable.
- Softwood: Pressure-treated softwood is more dimensionally stable immediately after purchase but can swell slightly when saturated.
Planning for Irregularities
For structural projects like retaining walls, engineers must account for dimension variations.
- Grade Selection: Grade 1 Reclaimed sleepers are closer to the 250mm x 125mm standard. Grade 2 or 3 may have significant tapering or erosion, altering the effective dimensions.
- Planed All Round (PAR): For precise dimensions, purchasing “Planed All Round” sleepers is recommended. Note that planing reduces the nominal size. A 200mm x 100mm sleeper, when planed to a smooth finish, typically becomes 190mm x 90mm.
Crossing Timbers
Crossing timbers (used at railway switches and diamonds) are distinct from standard sleepers due to their length. They effectively act as long beams supporting multiple tracks.
- Length Range: 2.6m up to 6.0m+ in 300mm increments.
- Cross Section: Usually larger, often 300mm x 150mm or 250mm x 150mm.
Choosing the Right Size for Your Project
Selecting the correct railway sleeper dimensions UK depends heavily on the intended load and application.
For Retaining Walls:
A depth of at least 100mm is standard, but for walls exceeding 1 meter in height, 125mm or 150mm thick sleepers (often reclaimed or heavy-duty new softwood) are preferred to resist the lateral earth pressure. The 250mm width provides a stable stacking surface.
For Garden Edging:
The 200mm x 100mm new softwood sleeper is the industry standard. It is light enough for one or two people to position (approx. 35-40kg) yet substantial enough to define boundaries clearly.
For Driveways and Heavy Traffic Areas:
Hardwood Oak sleepers (200mm x 100mm or 220mm x 130mm) are recommended due to their compressive strength. Softwood may crush over time under the point loads of vehicles if not adequately supported.
Frequently Asked Questions
- What is the standard size of a railway sleeper in the UK?
The most common size for new sleepers is 2.4m x 200mm x 100mm. For reclaimed sleepers used on main lines, the traditional size is approximately 2.6m x 250mm x 125mm. - How heavy is a standard 2.4m railway sleeper?
A new softwood sleeper (2.4m x 200mm x 100mm) weighs approximately 35-50kg depending on moisture content. A hardwood Oak sleeper of the same size is significantly denser, weighing between 70kg and 90kg. - Do railway sleeper dimensions vary between softwood and hardwood?
Yes, slightly. While both are cut to similar nominal sizes (e.g., 200x100mm), hardwood Oak is often cut “fresh sawn” and may shrink by 10-15mm in width and depth as it dries, whereas treated softwood is more dimensionally stable. - Can I get railway sleepers longer than 2.4m?
Yes, “crossing timbers” are available in lengths ranging from 3.0m up to 6.0m. These typically feature larger cross-sections, such as 250mm x 150mm, to support the increased span and load. - What is the difference between Grade 1 and Grade 2 reclaimed sleeper dimensions?
Grade 1 sleepers are generally straighter and closer to their original 250mm x 125mm dimensions with sharper edges. Grade 2 sleepers are more weathered, may have rounded (waney) edges, and dimensions can vary more significantly due to erosion and wear.
Recommended Products for UK Railway Systems
While railway sleepers provide the foundational support, the rail fastening system is what ultimately secures the track and ensures safety. Selecting the right rail clip is critical, as it must be compatible with both the sleeper type (concrete, timber, or steel) and the specific rail profile being used. An incorrect clip can lead to poor clamping force, accelerated wear on the rail and sleeper, and a loss of track gauge.
To help you secure your UK-based rail projects, we have matched our high-performance rail clips to the common rail sections found across the UK network, from mainline tracks to industrial sidings. The table below provides clear recommendations to ensure a secure and durable fastening solution.
|
Rail Type |
Base Width |
Height |
Weight |
Recommended Clips |
|
UIC 54 (BS 113A) |
140 mm |
159 mm |
54.7 kg/m |
32 Series Bolted Rail Clips |
|
UIC 60 |
150 mm |
172 mm |
60.3 kg/m |
9 Series Welded Rail Clips |
|
BS 95RBH |
139.7 mm |
142.9 mm |
47.3 kg/m |
31 Series Bolted Rail Clips |
|
A100 Crane Rail |
180 mm |
100 mm |
74.3 kg/m |
7 Series Welded Rail Clips |
Frequently Asked Questions (FAQs)
- Why are 32 Series Bolted Clips recommended for the UIC 54 rail profile used on UK lines?
The UIC 54 rail profile is a mainline standard across the UK and Europe, used on tracks supported by both concrete and timber sleepers. These lines handle considerable traffic and dynamic loads. The 32 Series Bolted Clips are engineered to provide the high clamping force required for such applications, ensuring the rail remains secure on the sleeper’s baseplate while allowing for easy adjustment and replacement during maintenance. - On a modern UK mainline with concrete sleepers and UIC 60 rail, what is the benefit of using 9 Series Welded Clips?
Modern high-speed lines using heavy UIC 60 rail and concrete sleepers are subject to intense vibration and forces. While traditional bolted clips are effective, 9 Series Welded Clips offer a superior, maintenance-free solution. By welding the clip’s lower component to a steel baseplate embedded in the concrete sleeper, you eliminate any risk of bolts loosening over time. This provides maximum long-term stability, which is essential for the safety of high-speed rail. - Are 31 Series Bolted Clips suitable for the older BS 95RBH rail found on heritage or industrial UK railways?
Absolutely. The BS 95RBH (Bullhead Rail) is common on heritage lines, sidings, and industrial tracks, which typically use timber sleepers. The loads and speeds in these applications are lower than on mainlines. The 31 Series Bolted Clips provide ample clamping force to secure the chairs that hold the bullhead rail, making them a cost-effective and reliable choice for maintaining these historic and industrial tracks. - Can I mount an A100 crane rail on UK-standard concrete sleepers using 7 Series Welded Clips?
While A100 crane rails are typically installed on continuous steel girders, they can be mounted on specialized, heavy-duty concrete sleepers or blocks. In this scenario, the 7 Series Welded Clips are ideal. A steel plate is cast into the concrete sleeper, and the clip base is welded directly to it. This provides the immense horizontal force resistance needed to handle the heavy, slow-moving loads from gantry cranes in port and industrial settings. - How do I ensure compatibility when my project uses reclaimed UK railway sleepers?
Reclaimed sleepers, especially timber ones, can have dimensional variations. The key is to ensure the rail-bearing area is flat and stable. For any rail type, the fastening system is attached to a baseplate, which is then screwed to the sleeper. Your choice of clip (e.g., 31, 32, or 9 Series) should be based on the rail profile (like UIC 54 or BS 95RBH), not the sleeper itself. The baseplate bridges the gap between the clip system and the potentially irregular surface of the reclaimed sleeper.
