A Guide to Railway Width, Rail Specs, & Clips

The term railway width refers to one of the most fundamental specifications in railroad engineering: the track gauge. This is the precise distance between the inner faces of the two parallel steel rails. While it might seem like a simple measurement, the correct railway width is the bedrock of safety, operational efficiency, and global interoperability. Maintaining this dimension requires a deep knowing of rail profiles, their metallurgical properties, and the advanced fastening systems that hold them in place against immense forces.

Engineering Principles Behind Railway Width

The concept of railway width, or track gauge, varies globally due to historical development and specific regional needs. The most prevalent is the “standard gauge” of 1,435 mm (4 feet 8.5 inches), often called the Stephenson gauge. It is used by approximately 55% of the world’s railways and is the dominant choice for international freight networks and high-speed rail lines, offering a balanced compromise between construction cost and operational stability.

Other gauges exist to serve specific purposes. Broad gauges, like the 1,520 mm Russian gauge or the 1,676 mm Indian gauge, provide a wider, more stable base ideal for heavy haulage operations. In contrast, narrow gauges, such as the 1,067 mm Cape gauge, are often used in mountainous areas. Their smaller footprint allows for tighter curves and more cost-effective construction in challenging terrain.

Regardless of the target dimension, every track class has a defined gauge tolerance—a permissible deviation from the standard. For high-speed lines, this tolerance can be less than a few millimeters. The dynamic interaction between the wheel and the rail, combined with environmental factors, constantly challenges the integrity of the railway width, making the selection of appropriate components critical.

Comprehensive Railway Track Specifications

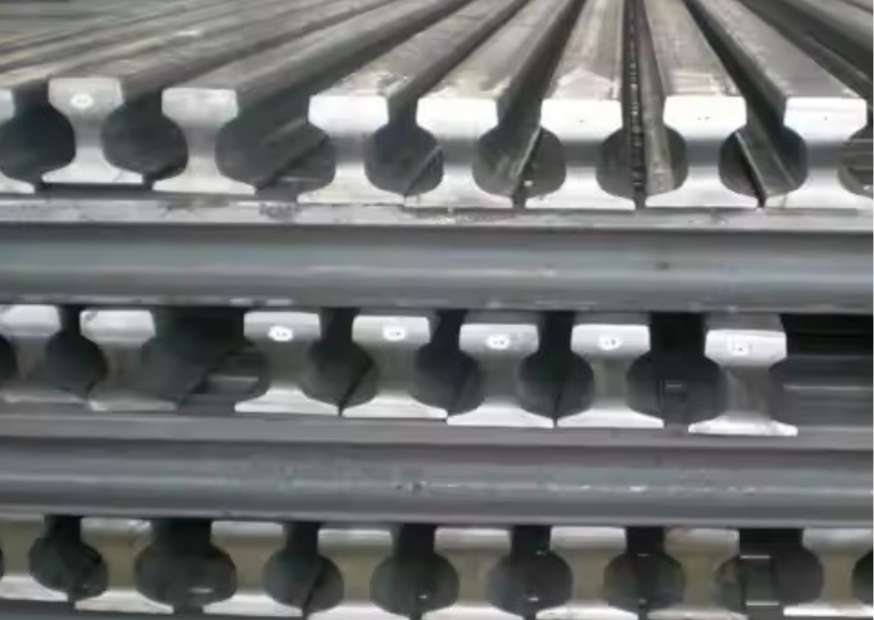

The steel rail is far more than a simple bar of metal; it is a high-performance beam designed to support and guide multi-ton locomotives under extreme dynamic loads. The specifications for these rails are rigorously controlled to ensure safety and longevity.

Rail Profile Definitions

Rails are classified by their weight per unit length and their cross-sectional profile. These profiles are standardized by organizations like the American Railway Engineering and Maintenance-of-Way Association (AREMA) and the International Union of Railways (UIC).

• Heavy Rail: These profiles are the workhorses of the industry, designed for mainline freight and passenger routes. Examples include the European UIC60 (60 kg/m) and the North American 115RE (115 lbs/yd).
• Light Rail: Used for less demanding applications like mining tracks or industrial tramways, these rails have a lower weight and load capacity.
• Crane Rail: These feature a much wider head and thicker web to handle the intense, concentrated vertical loads from industrial cranes.

Key Dimensional Parameters of a Rail

The performance of a rail is dictated by its geometric profile, which includes:

1. Rail Height: The vertical dimension from the top of the head to the bottom of the base. It determines the rail’s stiffness and resistance to bending.
2. Head Width: The top surface that makes contact with the train wheel. It is engineered to distribute immense loads and resist wear.
3. Base Width: The bottom flange of the rail, which provides stability and a large surface area for fastening to the sleeper.
4. Web Thickness: The vertical section connecting the head and base. It must withstand shear forces and provide structural integrity.

Table 1: Comparative Rail Section Specifications

Material and Metallurgical Properties

Rail steel is a specialized alloy designed for a unique combination of hardness, ductility, and fatigue resistance. Its chemical composition is precisely controlled.

• Carbon (C): The primary element for hardness. Higher carbon content increases wear resistance.
• Manganese (Mn): Enhances strength, toughness, and the rail’s response to heat treatment.
• Silicon (Si): Used as a deoxidizing agent during steel production, it also improves strength and elasticity.

Advanced heat treatment processes create premium steel grades like U75V, which offer superior hardness for use in sharp curves where wear is most aggressive. Standard grades like U71Mn are used for tangent (straight) tracks on high-speed lines.

Table 2: Chemical Composition and Mechanical Properties of Rail Steel

Dimensional and Flatness Tolerances

The manufacturing of rails requires adherence to extremely tight tolerances. Any deviation in straightness or profile dimensions makes it impossible to lay and maintain a railway track with the correct railway width. For high-speed applications, vertical and horizontal flatness is often measured in fractions of a millimeter over several meters.

Table 3: Dimensional and Flatness Tolerances (mm)

Rail Clips Specifications: The Key to Maintaining Railway Width

If the rail is the backbone of the track, the fastening system is the muscle that holds it together. The most critical component in this system is the rail clip. Its primary job is to securely clamp the rail’s base to the sleeper, thereby physically maintaining the specified railway width. Beyond this, elastic rail clips perform two other vital functions: they provide a consistent downward pressure (toe load) to prevent longitudinal rail movement, and they absorb high-frequency vibrations to protect the entire track structure.

Common Types of Rail Clips

Different operational demands have led to the development of several distinct clip designs.

• E-Type Clips: This is one of the most widely used designs globally. Its unique shape allows it to be driven into a shoulder on the sleeper, creating a strong and durable fastening. They are a staple in mainline, metro, and industrial applications.
• SKL Tension Clamps: Often associated with Vossloh systems, the SKL clip is a “W”-shaped fastener that is secured with a threaded bolt. This allows for precise tension adjustment and makes it a preferred choice for high-speed and heavy-haul lines where superior vibration absorption is required.
• Nabla Clips: This system uses a uniquely shaped clip in conjunction with a specialized bolt and insulator, providing excellent resistance against rail rollover forces on tight curves.
• KPO Clips: This is a bolted clip system often used in specific applications, featuring a design that provides a very secure grip for standard track configurations.

Material Science and Performance Metrics

Rail clips are forged from high-grade spring steel alloys like 60Si2MnA or 38Si7. The manufacturing process of heating, forming, and heat-treating the steel gives the clips their essential elasticity and strength. Performance is measured by:

• Hardness: A typical clip is hardened to a rating of 44-48 HRC to ensure it can withstand clamping forces without deforming.
• Fatigue Life: Clips must be able to endure millions of load cycles from passing trains. A standard clip is tested to survive between 3 and 5 million cycles without failure.
• Toe Load: This is the clamping force the clip exerts on the rail foot. It is a critical specification for preventing rail creep and ensuring gauge stability.

Table 4: E-Type Rail Clip Technical Specifications

Table 5: SKL Tension Clamp Performance Data

Frequently Asked Questions (FAQs)

Q1: What is the standard railway width?
A: The standard railway width, known as track gauge, is 1,435 mm (4 feet 8.5 inches). This “Stephenson gauge” is used on approximately 55% of the world’s railways, making it the global benchmark for interoperability.

Q2: How is railway width measured?
A: It is measured as the clear distance between the inside faces of the two parallel rails, typically taken at a point 14 mm (about 5/8 inch) below the top surface of the rail head. This ensures a consistent measurement point.

Q3: Why are there different railway track specifications?
A: Specifications vary based on the intended use. Heavy haul lines require heavier, more robust rails (e.g., AREMA 136RE) to handle extreme loads, while high-speed lines need rails with precise geometry and high fatigue resistance (e.g., UIC60).

Q4: What is the function of a rail clip?
A: A rail clip’s main function is to fasten the rail securely to the sleeper. This action is critical for maintaining the correct railway width, absorbing vibration, and preventing the rail from moving longitudinally or buckling under temperature changes.

Q5: Are the rocks on a railroad track important?
A: Yes, the rocks (called ballast) are crucial. They provide a stable bed for the sleepers, facilitate drainage to prevent water damage, and help distribute the immense weight of the train from the track structure to the ground below.
