The standard gauge in railway systems, defined by a track width of 1,435 mm (4 feet 8.5 inches), serves as the global benchmark for interoperability. This specific measurement is not just a historical accident; it represents a carefully engineered balance between stability, speed, and construction cost. For engineers, operators, and manufacturers, adhering to the strict specifications of a standard gauge railway is essential for ensuring safety, efficiency, and seamless cross-border transport. These specifications govern everything from the exact measurements and materials to the performance capabilities under extreme loads and high speeds.

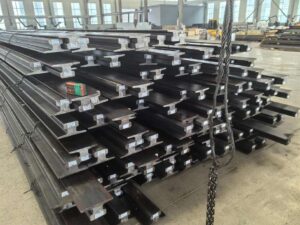

Standard Gauge Specifications in Railway Systems
Understanding the technical details of the standard gauge in railway track is fundamental to appreciating its role in modern rail networks. These specifications are not just guidelines but are often mandated by national and international bodies like the International Union of Railways (UIC) to ensure compatibility. The engineering precision required for these tracks, especially for high-speed applications, is a critical factor in the reliability and safety of the entire system.
Track Gauge Measurements and Tolerances
The foundational specification is the gauge itself: the 1,435 mm distance between the inner faces of the rails. This dimension must be maintained with very tight tolerances to ensure the smooth passage of rolling stock.
- Tangent Track: On straight sections, the gauge is kept as close to 1,435 mm as possible. However, operational tolerances typically allow for a small deviation, often in the range of -2 mm to +3 mm, to account for wear and thermal effects.
- Curved Track: The gauge is often intentionally widened slightly on sharp curves. This “gauge widening” can be up to 15-20 mm on very tight curves for low-speed lines, allowing the wheel flanges to navigate the turn without excessive friction or binding, which would cause premature wear on both the wheels and the rails.
Materials and Rail Profiles
The materials used for standard gauge tracks are selected for their strength, durability, and resistance to fatigue. The rail itself is the most critical component.
- Rail Steel Composition: Modern rails are forged from high-quality carbon-manganese steel. Common steel grades like R260 and R350HT (Head Hardened) are used. The head-hardening process involves heat-treating the top surface of the rail to increase its hardness and resistance to the immense pressures exerted by train wheels.
- Rail Profiles: The weight and shape of the rail, or its profile, are crucial for load distribution. For main lines with heavy traffic, a UIC60 profile (weighing 60 kg per meter) is a common standard. Lighter-duty lines might use a 54 kg/m profile. The profile’s design ensures optimal contact between the wheel and rail, minimizing wear and distributing forces effectively onto the sleepers.
Load Capacity and Structural Strength
Standard gauge railways are designed to handle a wide range of axle loads, from lighter passenger trains to extremely heavy freight trains.
- Standard Axle Load: Most international and mixed-traffic lines are built to a standard axle load of 22.5 to 25 tonnes. This capacity allows for efficient operation of both passenger and general freight services.
- Heavy Haul Capacity: For dedicated freight corridors, such as those transporting iron ore or coal, the track can be engineered to support axle loads of 32.5 tonnes or even higher. This requires a more robust substructure, including a deeper ballast layer, higher-grade rails, and more closely spaced sleepers to manage the concentrated forces.
High-Speed Rail Compatibility
The standard gauge is the preferred choice for almost all high-speed rail (HSR) networks worldwide. Its proven stability at very high speeds makes it the default option. However, HSR imposes far more stringent specifications.
- Geometric Precision: For speeds exceeding 250 km/h, the track geometry must be flawless. Any deviation in alignment, or “top and line,” is kept to sub-millimeter tolerances to prevent vibrations and ensure a smooth ride.
- Minimum Curve Radius: High-speed trains require extremely wide, gentle curves to maintain speed safely. The minimum curve radius for a new HSR line is often 4,000 meters or more.
- Slab Track vs. Ballasted Track: While traditional ballasted track is sufficient for speeds up to 300 km/h, many new HSR lines use slab track. In this system, rails are affixed to a solid concrete slab, providing superior geometric stability and reducing maintenance needs. This design also eliminates the problem of “ballast flight,” where stones can be lifted by the train’s aerodynamics at high speed.
Standard Gauge in Railway Specification Summary
This table provides an overview of the typical specifications for a modern, mixed-traffic standard gauge railway line.
|
Feature |
Specification |
Notes and Context |
|
Track Gauge |
1,435 mm (4 ft 8.5 in) |
The international standard for most new and high-speed lines. |
|
Rail Profile |
UIC60 (60 kg/m) |
A heavy, robust profile suitable for high-speed and heavy freight traffic. |
|
Rail Steel Grade |
R350HT (Head Hardened) |
Provides superior wear resistance and fatigue life, essential for high-traffic lines. |
|
Sleeper Type |
Prestressed Concrete Monoblock |
Offers excellent stability and long service life. Typical spacing is 600-650 mm. |
|
Fastening System |
Elastic (e.g., Pandrol e-Clip or Vossloh W-14) |
Securely fastens the rail while absorbing vibrations and allowing for thermal expansion. |
|
Standard Axle Load |
22.5 – 25 Tonnes |
Accommodates a wide range of passenger and freight rolling stock. |
|
Max Gradient |
1.25% (1 in 80) |
A common limit for mixed-traffic lines. HSR passenger lines may allow for steeper gradients (up to 4%). |
|
Min. Curve Radius |
800m (Conventional) / 4,000m+ (High-Speed) |
Radius is a critical factor for determining maximum permissible speed. |
|
Track Foundation |
Ballast (min. 300mm depth) or Concrete Slab |
Ballast provides drainage and flexibility; slab track offers superior stability for HSR. |
|
Max Cant |
180 mm |
The maximum superelevation (height difference) on curves to counteract centrifugal force. |
