The standard gauge railway (SGR) is the most widely used railway track gauge across the globe, accounting for approximately 55% of the world’s railway lines. Defined by a track gauge of 1,435 mm (4 ft 8½ in), it serves as the benchmark for international connectivity and interoperability.
While the concept of a “standard” measurement might seem simple, the engineering specifications required to maintain this standard are precise and rigorous. From the metallurgical composition of the rails to the geometric tolerances required for high-speed travel, every aspect of an SGR is designed to ensure safety, efficiency, and longevity.

Table of Contents
TogglePrecise Track Gauge Measurements
The defining characteristic of a standard gauge railway is the distance between the inner faces of the two load-bearing rails. This measurement must be exactly 1,435 mm. This specific width, often attributed to George Stephenson, provides an optimal balance between the cost of construction and the stability required for heavy loads and high speeds.
Measurement and Tolerances
In modern railway engineering, maintaining the exact 1,435 mm gauge is critical, but engineering realities require specified tolerances.
- Straight Track: On straight sections of track (tangents), the gauge is maintained as close to 1,435 mm as possible. However, slight variations due to temperature expansion or wear are permitted, typically within a range of -3 mm to +5 mm.
- Curved Track: On sharp curves, the gauge may be slightly widened (gauge widening) to allow the wheelsets of trains to pass through without binding. This widening prevents excessive wear on both the wheel flanges and the rail head.
Material Composition and Track Structure
The specifications for the materials used in standard gauge railways are designed to withstand immense dynamic forces. The track structure consists of the superstructure (rails, sleepers/ties, and fastenings) and the substructure (ballast, sub-ballast, and subgrade).

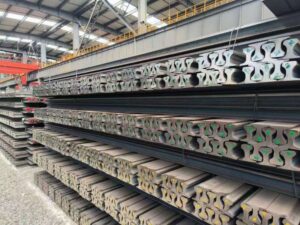

High-Performance Steel Rails
Standard gauge systems typically utilize heavy rail profiles to support modern traffic. The most common profiles include the UIC 60 (60 kg/m) or 54 kg/m rails.
- Composition: Modern rails are manufactured from high-carbon, manganese-alloyed steel. This composition provides the necessary hardness to resist wear and the tensile strength to prevent fracturing under heavy axle loads.
- Head Hardening: For routes carrying heavy freight or high-speed traffic, the head of the rail often undergoes a heat treatment process called “head hardening” to further increase durability against rolling contact fatigue.
Sleepers and Fastening Systems
To maintain the 1,435 mm gauge, rails are anchored to sleepers (ties).
- Pre-stressed Concrete Sleepers: These are the industry standard for main lines. They offer superior weight and stability compared to timber, ensuring the track geometry remains consistent even under high thermal stress or heavy braking forces.
- Elastic Fastenings: The rail is secured to the sleeper using elastic clips (such as e-clips or tension clamps). These specifications require the clip to provide a specific toe load (clamping force) that holds the rail down while allowing for the necessary longitudinal movement caused by thermal expansion.
Load Capacity and Axle Loads
One of the primary advantages of standard gauge specifications is versatility. The track structure can be engineered to support varying load capacities depending on the line’s purpose—whether it is a dedicated freight corridor or a mixed-use line.
Heavy Haul Specifications
For standard gauge railways focused on freight, the specifications prioritize axle load capacity.
- Standard Axle Load: A typical mixed-use SGR line is designed for an axle load of 22.5 tonnes.
- Heavy Haul: Dedicated mineral or freight lines often exceed this, with specifications allowing for 25 tonnes, 30 tonnes, or even up to 32.5 tonnes per axle. This requires a deeper ballast bed and heavier rail profiles (often exceeding 60 kg/m) to distribute the immense weight without crushing the subgrade.
Dynamic Loading
Specifications also account for dynamic loading—the actual force exerted when a train is in motion. Imperfections in wheels or rails can multiply the static weight. Therefore, the track modulus (stiffness) is specified to absorb these impacts without permanent deformation.
High-Speed Rail Compatibility
Standard gauge is the undisputed choice for high-speed rail (HSR) globally. Even countries that use broader gauges for their conventional networks (such as Spain and Russia) often utilize 1,435 mm standard gauge for their high-speed lines to facilitate cross-border compatibility and utilize proven rolling stock technology.
Geometric Precision
For trains traveling at speeds exceeding 250 km/h (155 mph), the specifications for track geometry become significantly tighter.
- Alignment: Deviations in horizontal and vertical alignment must be microscopic. The “smoothness” of the rail is paramount to prevent vibration and ensure passenger comfort.
- Cant (Superelevation): To counteract centrifugal force on curves, the outer rail is raised relative to the inner rail. HSR specifications allow for higher cant deficiency limits, relying on advanced train suspension systems to maintain comfort while taking curves at speed.
Slab Track Technology
While traditional ballasted track is used for many high-speed lines, specifications increasingly favor slab track (ballastless track) for HSR. In this system, rails are fastened directly to a concrete slab. This offers superior stability and eliminates the risk of “flying ballast”—stones that can be sucked up by the turbulence of a passing high-speed train and damage the undercarriage.
Standard Gauge Specification
The following table outlines the typical technical specifications for a modern standard gauge railway line designed for mixed traffic (passenger and freight).
|
Feature |
Specification |
Description/Notes |
|
Track Gauge |
1,435 mm (4 ft 8½ in) |
The standard distance between inner rail heads. |
|
Rail Profile |
UIC 60 / 60E1 |
60 kg per meter rail is standard for main lines; 54 kg/m for secondary lines. |
|
Steel Grade |
R260 or R350HT |
High-tensile, heat-treated carbon manganese steel. |
|
Sleeper Type |
Pre-stressed Concrete |
Mono-block design, typical spacing of 600mm to 650mm. |
|
Fastening System |
Elastic Spring Clip |
E-clip or W-clip systems providing constant toe load. |
|
Standard Axle Load |
22.5 Tonnes |
Standard limit for interoperable European and international lines. |
|
Heavy Haul Load |
Up to 32.5 Tonnes |
Specific to dedicated heavy freight corridors. |
|
Max Gradient |
1.25% (1 in 80) |
Preferred maximum for freight efficiency; steeper grades (up to 4%) allowed for dedicated passenger HSR. |
|
Min Curve Radius |
4,000m+ (HSR) |
High-speed lines require very gentle curves. Low speed freight may navigate 250m radii. |
|
Track Bed |
Ballast or Slab Track |
Ballast depth typically min. 300mm under sleepers. |
|
Cant (Superelevation) |
Max 180 mm |
Maximum elevation of outer rail on curves. |
The dominance of the standard gauge railway lies in its expertly balanced specifications. It is wide enough to support stable, high-speed passenger trains and heavy freight loads, yet narrow enough to be cost-effective to build through difficult terrain. By adhering to these rigorous specifications regarding measurements, materials, and load capacities, railway operators ensure that the 1,435 mm track remains the backbone of global transportation infrastructure.
Recommended Products for Standard Gauge Railways
Maintaining the strict 1,435 mm dimension of a standard gauge railway requires a high-performance fastening system. Whether you operate a high-speed passenger line using UIC 60 rails or a dedicated heavy-haul freight corridor carrying 32.5-tonne axle loads, your rail clips must absorb immense dynamic forces.
The fastening system provides the essential toe load (clamping force) needed to hold the rail securely to the pre-stressed concrete sleeper. You must match your rail clip exactly to the base width of your specific rail profile. An improper fit will compromise the clamping force, allowing the track to shift out of alignment and potentially widening the gauge beyond safe tolerances.
To help you secure your standard gauge infrastructure, we paired our top-performing elastic rail clips with the heavy rail profiles most commonly used on 1,435 mm networks worldwide. Review the table below to find the ideal fastening solution based on your track’s specific dimensions.
|
Rail Type |
Base Width |
Height |
Weight |
Recommended Clips |
|
115 RE Rail |
139.7 mm |
168.3 mm |
56.9 kg/m |
32 Series Bolted Rail Clips |
|
UIC 54 (54E1) |
140.0 mm |
159.0 mm |
54.8 kg/m |
32 Series Bolted Rail Clips |
|
UIC 60 (60E1) |
150.0 mm |
172.0 mm |
60.3 kg/m |
9 Series Welded Rail Clips |
|
136 RE Rail |
152.4 mm |
185.7 mm |
67.5 kg/m |
9 Series Welded Rail Clips |
Frequently Asked Questions (FAQs)
- How do 9 Series Welded Clips support the high-speed requirements of UIC 60 standard gauge tracks?
High-speed rail (HSR) lines demand microscopic geometric precision to prevent dangerous vibrations at speeds over 250 km/h. The 9 Series Welded Clips weld permanently to the track’s support structure, locking the 150.0 mm base of the UIC 60 rail rigidly in place. This unyielding horizontal grip guarantees the rails will not shift laterally, maintaining the exact 1,435 mm alignment required for safe, high-speed passenger comfort. - Why do heavy-haul freight corridors need welded elastic clips?
Dedicated freight lines often run trains with axle loads reaching up to 32.5 tonnes. These massive dynamic loads create intense horizontal and vertical stress on the track structure. We recommend the 9 Series Welded Clips for heavy 136 RE rails because their welded housings eliminate the risk of bolts rattling loose under extreme vibration, ensuring the standard gauge never widens under the crushing weight of mineral or freight cars. - Can the 32 Series Bolted Clips maintain gauge tolerances on secondary standard gauge lines?
Yes. Mixed-use and secondary lines frequently utilize lighter profiles like the 115 RE or UIC 54, which feature base widths of around 140 mm. The 32 Series Bolted Clips fit these profiles perfectly. They deliver heavy-duty clamping force while providing lateral adjustability. This adjustability allows maintenance crews to quickly realign the track to keep the gauge within the strict -3 mm to +5 mm safety tolerance. - How do these clips handle thermal expansion on continuous welded standard gauge rail?
Temperature fluctuations cause continuous welded rail to expand and contract, generating massive longitudinal forces. Both our 9 Series and 32 Series systems function as elastic fastenings. Their high-grade spring steel and elastomeric noses apply a constant toe load to the rail foot. This downward clamping force controls longitudinal rail creep perfectly while keeping the rail safely pinned against the sleeper shoulder. - What happens to the 1,435 mm gauge if I install an incorrectly sized rail clip?
The safety of a standard gauge railway relies on perfect component geometry. If you install a clip designed for a narrower rail onto a wide 152.4 mm base, the fastener will sit unevenly. This completely eliminates the essential toe load. Without this firm downward pressure, the vibrations from passing trains will push the rails outward, widening the gauge past the safe limit and creating a high risk of derailment.
