Train Track Switcher Specifications and Components

A train track switcher is a critical mechanical installation that guides railway trains from one track to another. This marvel of engineering makes the complex network of modern railways possible, allowing for efficient routing at junctions, yards, and sidings. Understanding the specifications and components of a train track switcher is essential for anyone involved in rail design, maintenance, and operations. The reliability of these systems directly impacts the safety and efficiency of the entire rail network, making detailed knowledge of their parts indispensable.

The core function of a switcher is to provide a smooth and safe transition for a train moving between tracks. This is achieved through a collection of precisely engineered parts working in unison. A typical switch assembly creates two potential paths: the main track (often the straight path) and a diverging side track. The mechanism that facilitates this choice consists of key components like switch points, the frog, guard rails, and the operating mechanism, which can be a manual switch stand or an automated motor. Each part must meet stringent specifications to handle the immense forces exerted by a moving train.

Train Track Switcher Components

A railroad switch is more than just a single part; it’s a complex assembly where each component has a distinct role. From the movable points that initiate the direction change to the frog where rails intersect, every piece is vital for safe passage. The main components work together to ensure a train’s wheels are guided seamlessly along the intended path, whether straight or diverging.

Switch Points and Rods

At the heart of every train track switcher are the switch points, also known as point blades. These are the two tapered, movable rails that physically direct the train’s wheels. They are hinged at one end and can be moved laterally at the other, sharper end. When the switch is operated, one point blade fits snugly against the fixed outer rail (stock rail), creating a continuous path, while the other blade creates a gap with its corresponding stock rail. This gap is what allows the wheel flange to pass through and follow the new direction.

These points are connected and moved by switch rods. A primary throw rod connects the points to the operating mechanism (the switch stand or motor). Additional rods, often called stretcher bars, are placed between the two point blades to ensure they maintain the correct distance from each other and move as a single unit. This synchronization is crucial; if the points do not move together, a dangerous situation could arise where the track is not properly aligned for either route.

The Frog and Guard Rails

The frog is the component where the rail of the diverging track crosses the rail of the main track. It’s typically a solid V-shaped casting made from high-strength manganese steel to withstand the high impact from passing wheels. The “point” of the frog directs the wheels through the intersection. As a wheel passes through the frog, there is a small gap where it is not supported by the rail head.

To navigate this gap safely and prevent derailment, guard rails (or check rails) are installed. These are short rails placed on the inside of the opposite track, parallel to the stock rail. The guard rail engages the back of the wheel, holding it in place and ensuring the flange on the other wheel is guided correctly through the narrow flangeway of the frog. Without guard rails, a wheel could easily take the wrong path at the frog, leading to a derailment.

What are the main parts of a railroad switch?

A railroad switch consists of several key parts working together. The primary components include the switch points (movable rails), the stock rails (fixed outer rails), the frog (where rails cross), guard rails (to guide wheels), and the switch stand or motor that operates the mechanism.

Specifications for a Standard Train Track Switcher

The design and specifications of a train track switcher vary based on its intended use, particularly the speed at which trains will travel through it. Divergence is measured by the “number” of the turnout, which represents the ratio of the frog angle. For example, in a No. 10 turnout, the rails diverge one unit for every ten units of length. A higher number indicates a gentler curve and allows for higher speeds.

High-speed mainlines require turnouts with very high numbers (e.g., No. 20, No. 26.5, or even higher) and often feature advanced components like movable-point frogs to eliminate the gap and provide a continuous running surface. In contrast, yard tracks, where speeds are low, can use turnouts with lower numbers (e.g., No. 8 or No. 10) that are more compact and economical. The materials used are also specified; rails are typically made from high-carbon steel for strength and durability, while frogs are cast from wear-resistant manganese steel alloy.

How fast can a train go through a switch?

The speed depends on the switch’s design, specifically its frog angle or “number.” Low-speed yard switches might be limited to 15 mph. Mainline switches allow for higher speeds, with some high-speed designs rated for 80 mph or more on the diverging route.

Turnout and Switch Components

While “switch” often refers to the entire assembly, “turnout” is the more formal engineering term for the complete installation that allows a train to move from one track to another. This includes the switch itself, the frog, the closure rails connecting them, and all associated hardware.

Turnouts vs. Switches

In common use, the terms are often interchangeable. However, in a technical context, the “switch” specifically refers to the panel containing the movable point blades. The “turnout” encompasses the entire track structure from the beginning of the switch points to the end of the frog assembly. A turnout therefore includes the switch panel as one of its primary components.

What is the difference between a switch and a turnout?

A “switch” technically refers to the mechanism with the movable point blades that direct the train. A “turnout” is the entire track assembly, including the switch, the frog where rails cross, and the connecting closure rails. The switch is a component of the turnout.

Switch Point Protectors

Given the high wear and impact on switch points, switch point protectors (or guards) are sometimes installed. These devices are placed just ahead of the switch point on the stock rail. They are designed to absorb some of the lateral force from a train’s wheels, gently guiding the wheel flange away from the delicate tip of the point blade. This reduces wear and impact, extending the life of the switch points and lowering maintenance costs, especially in areas with heavy traffic or sharp curves leading into the switch.

Operational Mechanisms: Switch Stands and Motors

The mechanism that moves the switch points is a critical part of the system’s reliability and safety. This can range from a simple manual lever to a sophisticated, remotely controlled electric motor.

Manual Switch Stands

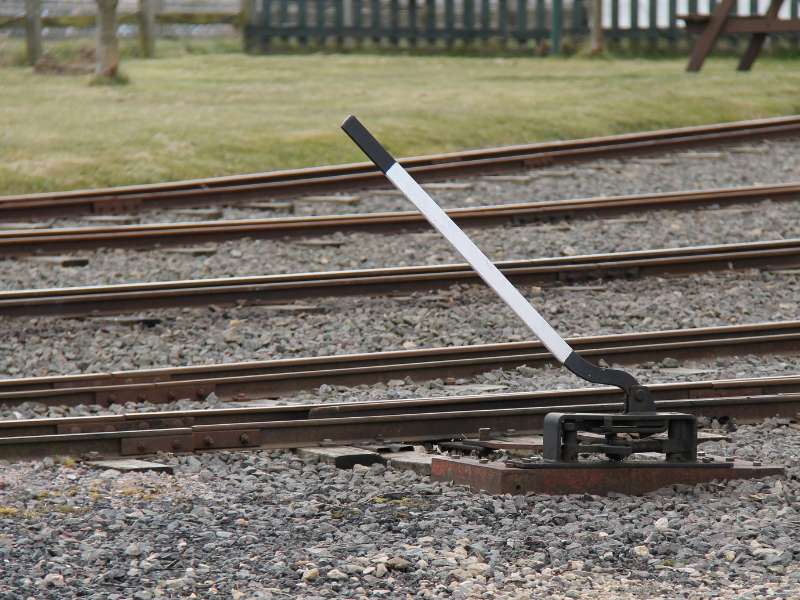

A switch stand is a manually operated device used to throw the switch. It consists of a lever connected through linkages to the throw rod, which moves the points. The lever’s handle is typically weighted and can be locked into position to prevent unauthorized movement. Switch stands feature targets—colored or shaped plates—that rotate as the lever is thrown. These targets provide a visual indication of the switch’s position to the train crew. Traditionally, a green target indicates the main track is aligned, while a red target indicates the diverging route is set. Manual stands are common in rail yards, industrial sidings, and on lines with low traffic density.

Why do some railroad switches have lights?

Lights on railroad switches, often on the switch stand target, provide a clear indication of the switch’s position at night or in low visibility. A green light typically means the switch is aligned for the main track, while a red or yellow light indicates it’s set for the diverging track.

Automated Switch Motors

On busy mainlines and in centralized traffic control (CTC) territories, switches are operated by electric, hydraulic, or pneumatic switch machines (or motors). These machines are controlled remotely by a dispatcher from a central office, eliminating the need for a crew member to manually line the switch. Switch motors are powerful enough to move heavy modern rails and include detection circuitry. This circuitry confirms that the points have moved completely into the correct position and are securely locked. If the switch fails to lock, the signaling system will display a “stop” aspect, preventing a train from proceeding over the misaligned track.

What happens if a train runs a switch?

Running through a switch from the frog end towards the points (a trailing-point move) when it’s lined for the other track will force the points to move. While some switches are designed to tolerate this, it can severely damage the switch stand and rods, requiring immediate repair.
