Width of Standard Railroad Track: Specifications & Rail Clip Guide

The width of standard railroad track is a fundamental constant in the global transportation industry, determining htracksow trains operate across continents and ensuring the interoperability of rolling stock. This dimension, known as the gauge, is precisely 1,435 mm (4 feet 8.5 inches) for standard gauge railways. Understanding this measurement and the critical components that hold the rails in place—specifically rail clips—is essential for engineers, procurement specialists, and railway maintenance professionals. This comprehensive guide will explore the precise specifications of standard tracks and the technical details of the fasteners that secure them.

The Width of Standard Railroad Track

The width of standard railroad track refers to the interior distance between the two rail heads. This measurement, standardized at 1,435 mm (4 feet 8.5 inches), accounts for approximately 55% of the world’s railway lines. Its origins are often traced back to the width of Roman chariots, though the modern standard was popularized by George Stephenson in Britain.

Why is this specific width so critical? It provides the optimal balance between cost-efficiency in construction and the stability required for heavy loads and high speeds. While narrower gauges (like the 1,000 mm meter gauge) are cheaper to build in mountainous terrain, they lack the stability for high-speed travel. Broader gauges offer stability but require significantly more land and material to construct. The standard gauge hits the “sweet spot,” allowing for high-speed rail networks like the Shinkansen in Japan and the TGV in France to operate safely and efficiently.

Regional Variations and Tolerances

While 1,435 mm is the nominal dimension, strict engineering tolerances exist. In the United States, federal safety standards allow the gauge to vary slightly depending on the track class and operating speed. For operations up to 60 mph, the gauge may fluctuate between 4 ft 8 in (1,422 mm) and 4 ft 9.5 in (1,460 mm). These tolerances accommodate thermal expansion, wear, and the dynamic forces exerted by moving trains.

Maintaining the width of standard railroad track within these tight tolerances is crucial for safety. Deviations outside these limits can lead to wheel hunting (instability), excessive wear on both the wheels and the rails, and in severe cases, derailment.

Standard Rail Specifications and Design

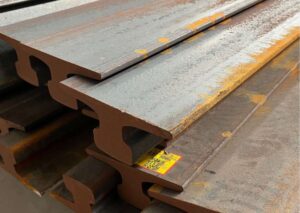

The rail profile itself is just as standardized as the width between the rails. Modern railways typically use “Tee Rail” (or T-rail), designed to withstand immense vertical and lateral loads. The weight of the rail is a primary specification, usually measured in pounds per yard (lb/yd) or kilograms per meter (kg/m).

Heavier rails are used for main lines carrying heavy freight or high-speed passengers, while lighter rails are sufficient for sidings or light rail transit. Common weights include 90 lb, 115 lb, 132 lb, and 136 lb rails.

Rail Specification Table

The following table details the dimensions for common standard rail sections used in North America and globally. These dimensions ensure that the rail fits perfectly with the tie plates and clips discussed later.

Note: “Fishing Height” refers to the distance between the underside of the rail head and the top of the base flange, which is critical for fitting joint bars.

Rail Clips in Track Stability

While the rail provides the surface for the wheels, the rail fastening system ensures the rail stays attached to the sleeper (crosstie) and maintains the correct gauge. The most critical component in this system is the rail clip.

Rail clips are high-strength metal fasteners that clamp the rail foot to the sleeper. They must be elastic enough to absorb the vibration of passing trains without loosening, yet rigid enough to prevent the rail from tipping over or spreading apart.

Types of Rail Clips

There are several dominant designs in the industry, each suited for different load requirements and installation methods.

E-Type Rail Clips

The E-clip (or elastic clip) is perhaps the most recognizable rail fastener globally. Shaped like a curled letter ‘e’, it is driven into a shoulder cast into concrete ties or bolted onto timber ties.

• Material: Spring Steel (e.g., 60Si2MnA)
• Bar Diameter: Typically 18mm to 23mm
• Clamping Force: High toe load (approx. 2,000 kgf per clip)
• Application: Heavy haul freight and high-speed lines.

SKL Tension Clamps

Popular in Europe and high-speed networks, SKL clips (like the SKL14) offer excellent fatigue resistance. They are bolted down using screw spikes.

• Material: Spring Steel (e.g., 38Si7)
• Fatigue Life: Designed for millions of load cycles
• Feature: Offers high elasticity, ensuring the rail remains tight against the pad even after slight track settlement.

Crane Rail Clips

For industrial applications where tracks carry gantry cranes rather than trains, specific crane rail clips are used. These often feature adjustable designs (like the 103 clip) to allow for precise alignment of the rail.

• Design: Often features an oval hole for lateral adjustment.
• Installation: Can be welded or bolted.
• Usage: Ports, warehouses, and factories moving heavy loads.

Rail Clip Specifications and Materials

The manufacturing of rail clips is governed by strict metallurgical standards to prevent failure under cyclic loading. They are heat-treated to achieve a hardness usually between HRC 44 and 48.

Key Mechanical Properties:

• Material Origin: High-grade Spring Steel
• Hardness: 44-48 HRC (Rockwell C Scale)
• Surface Treatment: Plain (oiled), Oxide Black, Galvanized, or Dacromet coating to resist corrosion.
• Fatigue Test: Must withstand 3 to 5 million cycles without breaking.

Ensuring Proper Track Geometry

Maintaining the width of standard railroad track is not a “set it and forget it” task. It requires constant monitoring and maintenance. The interaction between the rail, the clip, the tie plate, and the sleeper defines the track’s geometry.

If rail clips become loose or break due to metal fatigue, the rail can shift laterally. This phenomenon, known as “gauge widening,” is a leading cause of derailments. Modern track maintenance involves automated inspection cars that use lasers to measure the gauge continuously while moving at speed. If the gauge exceeds the safety tolerance (e.g., wider than 4 ft 9.5 in), a slow order is placed on that section of track until maintenance crews can replace the clips, tighten the fasteners, or replace the worn rail.

Environmental Factors

Rail clips also play a vital role in managing thermal expansion. The “Rail Neutral Temperature” is the temperature at which the rail is neither expanding nor contracting. Clips must hold the rail firmly enough to prevent it from buckling in extreme heat (sun kinks) or snapping in extreme cold (pull-aparts), while still allowing the stress to be distributed along the length of the continuous welded rail (CWR).

Maintaining Standards for Global Transit

The railway industry relies on precision. From the exact width of standard railroad track to the metallurgical composition of a small rail clip, every detail contributes to the safety and efficiency of the network. Whether transporting bulk commodities across the country or moving passengers between cities at 200 mph, the integrity of the track structure is paramount.

For procurement managers and engineers, sourcing components that meet these rigorous specifications—be it 136 lb RE rail or E-2055 clips—is the first step in building a reliable railway infrastructure. By adhering to established standards (AREA, UIC, etc.), the industry ensures that trains continue to run smoothly, safely, and on time.

FAQs

1. What is the standard width of railroad tracks?
   The standard width, or gauge, is 1,435 mm (4 feet 8.5 inches). This measurement is consistent across roughly 55% of the world’s railways, including major networks in North America, Europe, and China, facilitating international equipment standardization.
2. Why do rail clips have different shapes?
   Different shapes, like E-clips or SKL clamps, are designed for specific axle loads, speeds, and sleeper types. E-clips are self-tensioning and driven into place, ideal for automated installation, while bolted SKL clamps offer high elasticity for high-speed stability.
3. Can a coin on the track derail a train?
   No, a coin cannot derail a train. Trains are massively heavy, and a small coin is simply flattened by the immense pressure of the wheels. However, placing objects on tracks is illegal and dangerous due to the risk of the object becoming a projectile.
4. What material are rail clips made from?
   Rail clips are manufactured from high-grade spring steel, such as 60Si2MnA or 38Si7. This material is heat-treated to achieve a specific hardness (44-48 HRC), allowing the clip to flex under load without permanently deforming or breaking.
5. How often do rail clips need to be replaced?
   Rail clips are designed for long service lives, often matching the life of the rail itself. However, they are inspected regularly. They are replaced if they lose tension (toe load), show signs of severe corrosion, or suffer fatigue fractures during inspections.
