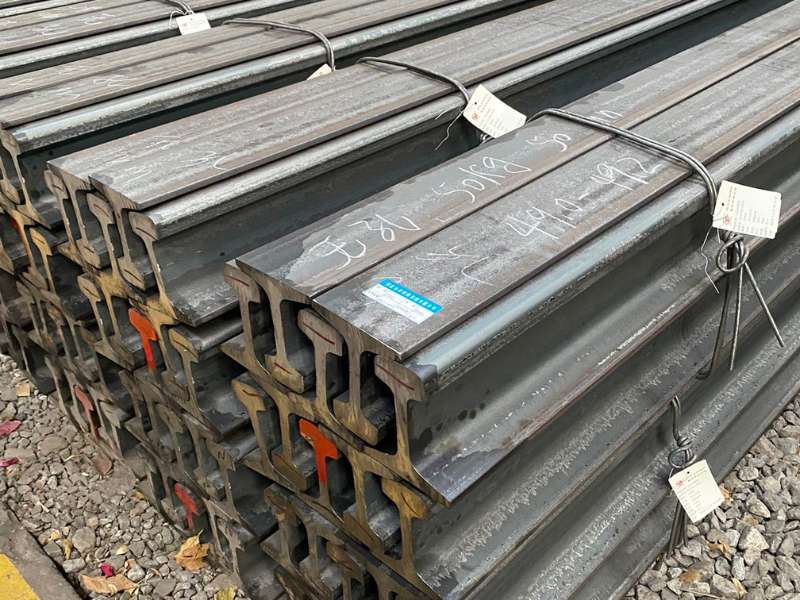

60 KG Rail Dimensions And Components

The precise specifications governing 60 kg rail dimensions are fundamental to the construction and maintenance of modern, heavy-duty railway lines. This rail profile, weighing approximately 60 kilograms per meter, is a global standard for high-speed, heavy-haul, and high-density mainline routes. Its robust design ensures stability, durability, and safety under extreme operational loads. This technical guide provides a detailed examination of the dimensional properties, material specifications, and compatible fastening systems, specifically rail clips, associated with the 60 kg rail profile. We will explore various international standards, including UIC 60 and Chinese GB 60 kg/m, to offer a comprehensive resource for engineers and procurement specialists.

60 kg Rail Dimensions and Profiles

The 60 kg/m rail is not a single, universal profile but rather a category defined by its nominal mass. The most widely adopted standards for this rail type are the UIC 60 (from the International Union of Railways) and the Chinese GB 60 kg/m profile. While similar in mass and application, they have distinct dimensional characteristics. The design of these profiles prioritizes a large head for wear resistance, a strong web to handle shear forces, and a wide base for stability. The analysis of 60 kg rail dimensions is the first step in designing a resilient track structure capable of handling significant tonnage over a long service life.

Key International Standards for 60 kg Rail

1. UIC 60 / 60 E1: This is the most common 60 kg profile used across Europe, Asia, and Africa. It is defined by the UIC code and is a standard for high-speed and heavy-load railways. Its balanced design offers an excellent combination of strength, wear resistance, and stability.
2. Chinese GB 60 kg/m: This profile is standard for China’s extensive high-speed and conventional railway networks. While dimensionally similar to the UIC 60, it has slight variations tailored to the specific requirements of China Railway’s fastening systems and operational demands.
3. Other Variants: Other national standards, such as the Australian AS 60 kg/m, also exist. They are often closely based on the UIC 60 profile but may have minor modifications to suit local manufacturing and track component conventions.

Detailed Specifications of 60 kg Rail Profiles

The exact measurements of the rail profile are critical for ensuring compatibility with other track components like fishplates, turnouts, and fastening systems. The tables below provide a clear comparison of the key dimensional and mechanical properties for the UIC 60 and Chinese GB 60 kg/m rail profiles.

Table 1: Dimensional Specifications for 60 kg Rail Profiles (UIC 60 E1 vs. GB 60)

Material Composition and Mechanical Strength

The performance of a 60 kg rail is intrinsically linked to its steel metallurgy. These rails are manufactured from high-carbon steel, with specific grades chosen based on the intended application. Common steel grades include R260, R350HT, and various grades under Chinese GB standards like U71Mn and U75V. The “R” in the UIC nomenclature denotes Rail, and the number indicates the minimum tensile strength in MPa. “HT” signifies a head-hardened rail. Head hardening is a crucial heat treatment process that significantly increases the hardness of the rail head, providing superior resistance to wear and plastic deformation, thereby extending the rail’s service life on high-traffic routes and sharp curves.

Table 2: Typical Chemical Composition for High-Strength Rail Steel (e.g., R350HT)

The mechanical properties are a direct measure of the rail’s ability to withstand operational stresses. Tensile strength indicates resistance to fracture, while hardness is the key indicator of wear resistance.

Table 3: Key Mechanical Properties for 60 kg Rails

The choice between standard and head-hardened steel is an economic and engineering decision. Head-hardened rails are the preferred choice for high-speed passenger lines and heavy-haul freight corridors where the cost of replacement and maintenance is high.

Rail Clips for 60 kg Rail: The Fastening Solution

Rail clips are a non-negotiable part of any modern track structure using 60 kg rail. Their purpose is to securely fasten the rail to the sleeper (typically concrete for this rail weight), providing a consistent clamping force that prevents rail movement while absorbing vibrations. The fastening system must be compatible with the specific 60 kg rail dimensions, especially the base width and flange thickness.

Common Rail Clip Systems for 60 kg Rail

The majority of fastening systems for 60 kg rail rely on elastic clips, which can flex under load and return to their original position, maintaining constant tension on the rail.

1. Pandrol-style Clips (e.g., e-Clip, Fastclip): These are globally recognized and widely used. The “e” or “PR” series clips are driven into a shoulder cast into the concrete sleeper. They are renowned for their reliability, simple installation, and high clamping force. The Fastclip system is a further innovation where the clip is pre-installed on the sleeper, allowing for rapid, often automated, installation.
2. Vossloh-style Clips (e.g., SKL 14, SKL 15): This system uses a W-shaped tension clamp held in place by a screw spike and an angled guide plate. The design provides very high clamping force and excellent resistance to rail creep (longitudinal movement), making it ideal for tracks with steep gradients or high acceleration/braking forces.
3. Chinese WJ Systems (e.g., WJ-7, WJ-8): Developed for China’s high-speed, ballastless track slabs, these advanced bolted systems are specifically designed for the GB 60 kg/m rail. They offer high, adjustable clamping force and the tight tolerances necessary for speeds exceeding 300 km/h.

Technical Specifications of Compatible Rail Clips

The performance of a rail clip is defined by its clamping force, material, and ability to withstand millions of load cycles without fatigue.

• Clamping Force: The downward force the clip exerts on the rail foot. For heavy-duty 60 kg rail applications, this force typically ranges from 9 kN to 12 kN per clip.
• Material: Clips are made from high-grade spring steel (e.g., 60Si2MnA, 38Si7) that is heat-treated to achieve a specific hardness and elasticity, allowing it to function as a spring.
• Fatigue Life: Clips are designed and tested to withstand a minimum of 3 to 5 million load cycles, simulating decades of heavy rail traffic.

Table 4: General Specifications for Rail Clips Compatible with 60 kg Rail

Supporting Components: Pads and Insulators

The fastening system is not complete without rail pads and insulators.

• Rail Pads: Placed between the 60 kg rail base and the concrete sleeper, these pads are made from resilient materials like EVA, HDPE, or rubber composites. They absorb shock, dampen vibration, distribute the load evenly, and prevent abrasion of the concrete surface.
• Insulators: These are essential for tracks with electric signaling circuits. Made of plastic or nylon, they fit around the clip to electrically isolate the rail from the sleeper and the rest of the fastening system, preventing short circuits and ensuring the integrity of train detection systems.

In summary, the design and implementation of track using 60 kg rail require a holistic approach. The selection of the rail profile, steel grade, and fastening system must be based on a thorough understanding of the specific 60 kg rail dimensions and the operational demands of the railway line.
