Crane Rails Dimensions

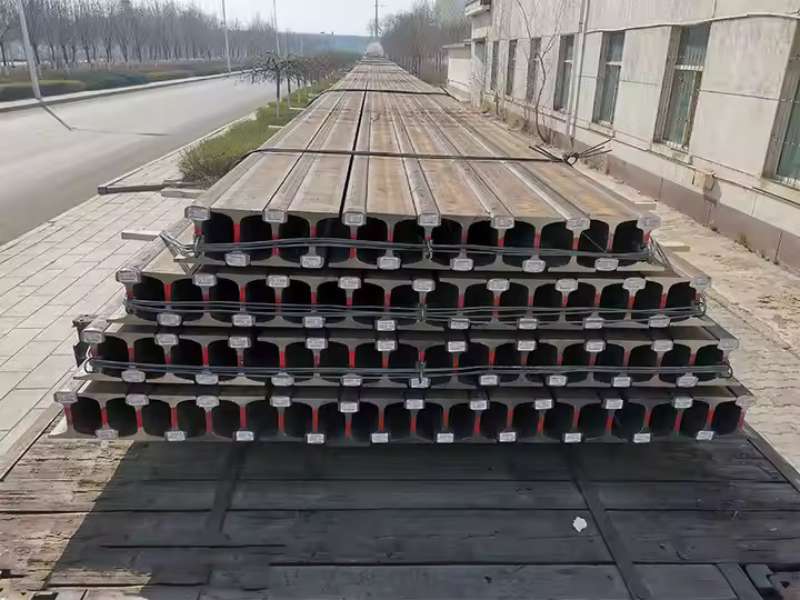

Understanding crane rails dimensions is essential for designing, constructing, and maintaining safe and efficient crane runway systems. Unlike standard railway rails, crane rails are specialty profiles engineered to withstand extreme, concentrated loads from overhead gantry cranes, port container cranes, and industrial equipment. This technical guide Xingrail provides a detailed examination of crane rail profiles, their specific dimensions, material properties, and the highly specialized rail clips designed to secure them. The focus is on the unique engineering principles that differentiate these components from their railway counterparts.

Understanding Crane Rails Dimensions and Profiles

Crane rails are characterized by a unique cross-section: a very wide but low-profile head, an exceptionally thick web, and a broad, flat base. This design distributes the immense vertical wheel loads over a larger area, minimizing stress on the rail itself and the underlying support structure, which can be a concrete plinth or a steel girder. The specific crane rails dimensions are defined by standards like Europe’s DIN 536, which is used globally. These rails are typically designated by their head width in millimeters (e.g., A75, A100) or their weight in pounds per yard (e.g., CR175).

Common Crane Rail Profiles: The “A” Series (DIN 536)

The “A” series is a globally recognized standard for crane rail profiles. The number in the designation (e.g., A65, A120) corresponds to the approximate width of the rail head. The distinct geometry of these profiles provides exceptional stability and load-bearing capacity. Analyzing these crane rails dimensions reveals their suitability for heavy-duty applications.

North American Crane Rail Profiles (CR Series)

In North America, crane rails are often specified by their weight in pounds per yard. The CR175 profile is one of the most common for heavy industrial applications.

Material Grades and Properties of Crane Rails

Crane rails are manufactured from high-carbon steel grades designed to provide high yield strength and exceptional hardness. This is crucial to prevent the rail head from crushing, deforming, or spalling under the extreme point loads of a crane wheel, which can be significantly higher than those found in railway applications.

• Standard Strength Grades: These typically offer a tensile strength in the range of 690 to 880 MPa. They are suitable for light to medium-duty crane runways where the frequency and magnitude of loads are moderate.
• High-Strength Grades: For high-capacity, high-frequency operations like those in steel mills, container ports, and automated warehouses, higher-strength steel grades are required. These grades have tensile strengths of 880 MPa and above, providing superior resistance to plastic deformation and wear.
• Hardness: A key property for crane rails is hardness, often specified in the range of 260 to 320 HBW (Brinell Hardness). This hardness ensures the rail surface can withstand the immense contact stresses without premature failure. The specific crane rails dimensions and material hardness must be matched to the crane’s wheel load and duty cycle.

Crane Rail Clips and Specialized Fastening Systems

The fastening systems used for crane rails are fundamentally different from those on a railway. Their primary purpose is not just to hold the rail down, but to allow for precise alignment while absorbing powerful lateral forces from crane wheels and permitting controlled longitudinal movement for thermal expansion. There are two main categories of crane rail clips: bolted clips and welded clips.

Bolted Crane Rail Clips

Bolted clips are a versatile and widely used solution. The system involves a lower component that is anchored to the support structure (steel girder or concrete) with bolts, and an upper component that clamps down on the foot of the crane rail.

• Functionality: A key feature is the inclusion of an elastomeric “nose” on the upper clip component. This rubber-like block presses against the side of the rail web. It provides shock absorption and allows for slight lateral deflection, which reduces stress on the entire system. This design allows the rail to “breathe” as it expands and contracts with temperature changes, preventing the buildup of dangerous internal forces.
• Key Features:

• High Lateral Restraint: They are designed to resist the significant side thrust generated by crane wheel flanges.
• Vertical Clamping Force: The bolts provide a strong vertical force to keep the rail firmly seated on its pad.
• Full Adjustability: This is a major advantage. The bolt holes are often slotted, allowing installers to precisely align the rail for straightness and gauge before final tightening.

Welded Crane Rail Clips

For the most demanding applications, such as the largest port cranes with very high wheel loads and side forces, welded clips are often specified. In this system, the lower part of the clip assembly is welded directly to the top flange of the steel support girder.

• Functionality: Once the base is welded in place, an upper clip component is bolted to it, clamping the rail. This method creates an exceptionally strong and rigid connection that offers the ultimate resistance to lateral forces.
• Key Features:

• Maximum Strength: The direct weld provides a level of lateral restraint that cannot be matched by bolts alone, preventing any movement of the fastening base.
• Durability: It eliminates the risk of anchor bolts becoming loose over time due to vibration, a common maintenance concern in high-frequency operations.
• Retained Flexibility: Despite the welded base, these clips still use an elastomeric nose to press against the rail, providing the same benefits of shock absorption and controlled thermal movement as the bolted systems. Understanding the interaction between clip design and crane rails dimensions is crucial for system integrity.

Rail Pads for Crane Systems

Underneath every crane rail is a crane rail pad. This is a critical component that sits between the base of the rail and the support structure.

• Discontinuous Pads: These are individual pads placed at each fastening location. They are economical and easy to install.
• Continuous Pads: A strip of pad material runs the entire length of the rail. This is the preferred method as it provides several key benefits:

• Even Load Distribution: It ensures the load from the rail base is spread uniformly along the support structure, eliminating high-stress points.
• Vibration and Noise Damping: The elastomeric material helps to absorb vibrations and reduce operational noise.
• Protection: It creates a barrier that prevents corrosion between the steel rail and a concrete or steel substructure.
