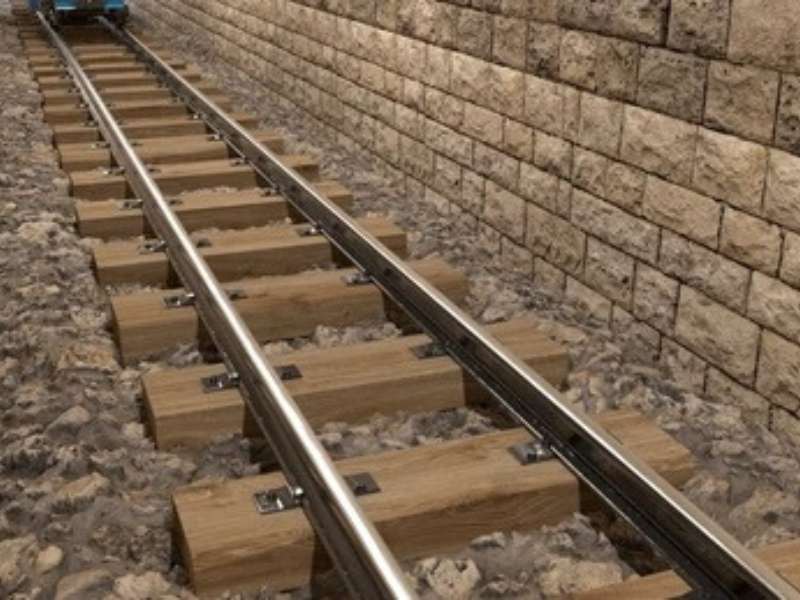

Mining Cart Rail Systems and Clips

The efficiency and safety of any mine railway operation depend heavily on the integrity of its track system. A crucial component of this infrastructure is the mining cart, which relies on precisely engineered rails and fastening systems to transport materials effectively. Understanding the specifications of both the rails and the clips that secure them is fundamental for establishing a reliable and durable haulage network. The choice of rail profile, weight, and the corresponding fastening components directly impacts the performance, maintenance requirements, and overall safety of the entire mining cart transport system.

In-depth Mining Cart Rail Specifications

The foundation of a mine railway is the steel rail itself. These rails guide the wheels of the mining cart, providing a low-friction surface that allows for the movement of heavy loads with minimal energy. The specifications for mining rails are diverse, tailored to the specific demands of the operation, including the weight of the carts, the volume of traffic, and the environmental conditions within the mine.

Mine rail is often categorized by its weight per unit length, typically in pounds per yard or kilograms per meter. Heavier rails can support greater loads and withstand more wear and tear, making them suitable for high-traffic main haulage ways. Lighter rails are often used in less-trafficked areas or temporary track sections. Common light rail specifications used in mining operations include profiles like the 8 kg/m, 12 kg/m, 15 kg/m, 18 kg/m, 22 kg/m, 24 kg/m, and 30 kg/m sections. Each of these profiles has distinct dimensions that determine its suitability for a given application.

For instance, a 12 kg/m rail is lightweight and easy to handle, making it ideal for smaller operations or areas where tracks may need to be moved frequently. In contrast, a 30 kg/m rail provides significantly more strength and stability, necessary for main lines where a heavy-duty mining cart fleet operates continuously.

Light Rail Specification Table (Example Profiles)

To illustrate the differences, here is a table detailing the specifications for several common light rail profiles used in mining. These dimensions are critical for ensuring compatibility with the wheels of the mining cart and the associated fastening systems.

The material grade, such as Q235 or 55Q steel, indicates the tensile strength and durability of the rail. Q235 is a common carbon structural steel known for its good plasticity and weldability, while 55Q is a higher-strength steel specifically designed for railway applications, offering better wear resistance. The selection depends on the expected load and lifespan requirements for the mining cart system. The integrity of the rail is paramount, as any failure could lead to derailment and significant operational downtime.

Specifications for a Classic Mining Cart

The design of the mining cart itself dictates many of the requirements for the rail system. Historical and specialized carts, such as those used in the iconic Bisbee mines, provide excellent examples of how vehicle specifications influence track design. The capacity, weight, and wheel gauge of the cart are primary factors. Below are specifications for two classic models, the Copper Queen A-car and the Calumet & Arizona A-car. These details highlight the variations that can exist even within a single mining district. A well-designed rail system must accommodate the specific dimensions and load characteristics of the mining cart it is intended to support.

These tables clearly show that different companies operated with different standards. The track gauge, in particular, is a critical parameter. The Copper Queen’s 20-inch gauge and the Calumet & Arizona’s 18-inch gauge meant their respective mining cart fleets were not interchangeable. This underscores the importance of a holistic approach where the cart, rail, and fastening systems are designed and selected as an integrated system.

Rail Clips in Mining Cart Systems

While the rails provide the pathway, it is the fastening system that ensures the track remains stable, secure, and properly aligned. Rail clips are a vital component of this system, responsible for clamping the rail to the sleeper (or tie). Their function is to prevent lateral and longitudinal movement of the rail under the dynamic loads imposed by a moving mining cart. Without effective clips, rails could shift, widen the gauge, or buckle, creating a severe derailment risk.

Mining environments present unique challenges for rail fastening systems. They are often damp, corrosive, and subject to heavy vibrations and impacts. Therefore, mining rail clips must be robust, corrosion-resistant, and capable of maintaining a consistent clamping force over long periods with minimal maintenance.

Types of Rail Clips for Mine Railways

Several types of rail clips are used in mining, each with its own design and application. The choice often depends on the type of sleeper (wood, steel, or concrete), the weight of the rail, and the operational demands.

1. Weld-On Clips: These clips feature a base that is welded directly onto a steel sleeper or a steel plate embedded in a concrete sleeper. The clip itself then fastens the rail using a bolt. This method provides an extremely strong and rigid connection, making it suitable for heavy-duty main lines. The welding process ensures a permanent bond that resists the high shear forces generated by a heavy mining cart.
2. Boltable Clips: Boltable clips are used with sleepers that have pre-drilled holes. The clip is secured to the sleeper with one or more bolts, and another bolt provides the clamping force on the rail flange. This design allows for easier adjustment and replacement compared to weld-on types, offering more flexibility for maintenance and track realignment. They are a common choice for both main and secondary lines.
3. Elastic Rail Clips: Elastic clips, such as the Pandrol-style e-clip or the Nabla clip, are designed to provide a constant, dynamic clamping force. These spring-steel clips are driven into a cast shoulder or housing on the sleeper. Their inherent elasticity allows them to absorb vibrations and shocks from the mining cart, reducing wear on both the rail and the sleeper. This “fit and forget” design significantly reduces the need for regular bolt tightening, lowering maintenance costs over the life of the track.

Material and Manufacturing of Rail Clips

The material composition of a rail clip is critical to its performance. Most high-quality rail clips are manufactured from spring steel, typically grades like 60Si2MnA or 55Si2Mn. These alloys are chosen for their high yield strength, elasticity, and fatigue resistance.

The manufacturing process involves several key steps:

• Shearing: Raw steel bars are cut to the required length.
• Heating: The sheared bars are heated to a specific temperature to make them malleable.
• Forging/Stamping: The hot bars are forged or stamped into their final shape.
• Heat Treatment: This is the most crucial step. The clips undergo a quenching and tempering process to achieve the desired hardness, strength, and elasticity. Proper heat treatment ensures the clip can withstand repeated loading and unloading cycles from a mining cart without deforming or failing.
• Surface Treatment: To protect against corrosion, clips are often finished with treatments like black oxide, galvanization, or Dacromet coating. This is especially important in the damp and often acidic environments found in underground mines.

A reliable rail clip system is indispensable for the safe operation of any mining cart railway. The combination of strong materials, precise manufacturing, and an appropriate design ensures that the track can handle the immense forces exerted by tons of moving ore, day after day. Proper installation and periodic inspection of these small but essential components are fundamental to preventing catastrophic track failures. The entire system, from the largest mining cart to the smallest clip, works in concert to keep the operation running.

Recommended Products for Mining Cart Rail Systems

Underground mine railways present some of the most challenging environments for track infrastructure. Constant exposure to moisture, corrosive elements, and heavy dynamic loads from loaded mining carts quickly degrades standard track components. To maintain a safe and efficient haulage network, you must secure your light rails with a robust fastening system that resists severe vibrations and prevents dangerous lateral track movement.

When selecting a rail clip for your mining operation, the physical base width of your steel rail is the most critical measurement. Your rail clip must sit perfectly flush against the rail foot to function correctly. This tight fit ensures the fastener applies maximum downward clamping pressure, also known as toe load. This relentless force anchors the rail securely to the sleeper, absorbs the heavy impacts of passing mining carts, and stops the tracks from spreading under intense operational stress.

To help you build a reliable underground transport system, we have paired our rugged heavy-duty rail clips with common light rail profiles used in mining operations. Review the table below to find the correct fastening solution for your specific track dimensions.

Frequently Asked Questions (FAQs)

1. Should I use bolted or welded rail clips for my underground mining cart system?
   Your choice depends on the specific track application. For temporary track sections or secondary haulage lines that you move frequently, the 32 Series Bolted Clips offer easy installation and rapid adjustment. For permanent, heavy-duty main haulage lines carrying fully loaded carts continuously, the 9 Series Welded Clips provide a highly rigid, unyielding anchor that requires minimal maintenance.
2. How do these clips survive the damp and corrosive environment inside a mine?
   Mining operations expose infrastructure to aggressive moisture and acidity. High-quality rail clips utilize premium spring steel that undergoes rigorous heat treatment and specialized surface coatings. Treatments like galvanization or Dacromet coating effectively seal the clip against corrosion, ensuring the fastener maintains its structural integrity and clamping force over years of underground use.
3. Why do heavier mining rails like the 30 kg/m profile require 9 Series Welded Clips?
   Operations use heavier 30 kg/m rails for main lines because they must support massive, continuous loads from heavy mining carts. These continuous dynamic loads generate immense shear forces. By welding the 9 Series clips directly to the steel foundation, you create a permanent bond that easily absorbs these high-impact forces without rattling loose, preventing dangerous gauge widening.
4. Can I use the 32 Series Bolted Clips on lighter 12 kg/m and 18 kg/m mining rails?
   Yes. Lighter 12 kg/m and 18 kg/m rails typically support smaller carts or serve in less-trafficked mining zones. These rail profiles feature narrower bases ranging from 70 mm to 80 mm. The 32 Series Bolted Clips adapt well to these dimensions, providing reliable downward pressure while allowing track crews to quickly unbolt and relocate the tracks as mining faces advance.
5. What happens if I install the wrong size rail clip on my mine railway?
   If your rail clip does not perfectly match the base width of your mining rail, the fastener cannot seat flush against the rail foot. This misalignment eliminates the essential downward clamping pressure. The constant vibration and heavy impact from moving mining carts will quickly shake the unsecured rails outward, causing track misalignment, severe equipment wear, and a high risk of catastrophic derailment underground.
