Parts of a Railroad Track

A railway is a complex system where numerous individual parts of a railroad track work in unison to guide trains safely and support immense loads. Each component has demanding specifications and is engineered to withstand constant dynamic forces and environmental exposure. The safety and efficiency of the entire rail network rely on the design, material integrity, and compatibility of these crucial parts. This technical guide Xingrail explores the most critical parts of a railroad track, with a focus on their specifications, dimensions, and material properties.

The Steel Rail: The Core Component

The steel rail is the most fundamental part of a railroad track, providing the smooth, hard, and continuous surface for train wheels. Engineers design modern rails as highly engineered products with specific cross-sectional profiles that balance strength, weight, and wear resistance.

Rail Profiles and Specifications

Rails are identified by their profile—the shape of their cross-section. These profiles are standardized by bodies like the American Railway Engineering and Maintenance-of-Way Association (AREMA) or the International Union of Railways (UIC). The designation often includes the rail’s weight in pounds per yard or kilograms per meter.

• Head: The top portion of the rail that directly contacts the wheel. Its contour is designed to optimize the wheel-rail interface, and it contains a large mass of steel to accommodate significant wear over its service life.
• Web: The vertical section that connects the head and the foot. It is engineered to resist shear forces while remaining relatively thin to save weight.
• Foot (or Base): The bottom of the rail. It provides stability and creates a wide base to transfer the load to the rest of the track structure. The width of the foot is essential for the rail section’s overall stability.

Material Properties of Steel Rails

Rails are manufactured from high-carbon steel, often with other alloys added to improve performance. The metallurgy is a precise balance between hardness (for wear resistance) and toughness (to prevent fractures).

• Standard Carbon Steel: This is the baseline for rail manufacturing, typically containing 0.7% to 0.8% carbon.
• Premium / Head-Hardened Steel: These rails go through a special heat treatment process after rolling. The rail head is rapidly cooled to create an exceptionally hard, fine-grained pearlite microstructure. This process dramatically increases wear resistance, making it the standard for track sections with high curvature or heavy tonnage, where rail wear is most severe.

The Fastening System: Critical Parts of a Railroad Track for Stability

The fastening system is a collection of parts of a railroad track designed to secure the rail to the sleepers (ties), maintain the correct track gauge, and provide a degree of elasticity to absorb shocks and vibrations.

1. Tie Plates (Baseplates)

Workers position the tie plate, a heavy steel plate, between the foot of the rail and the sleeper. It is a vital load-bearing component.

• Function: Its main purpose is to distribute the concentrated load from the narrow rail foot over a much wider area of the sleeper. This prevents the rail from crushing or cutting into the sleeper over time. The plate also has shoulders or holes that help hold the rail securely in gauge.
• Specifications: Tie plates are specified by the rail section they are designed to accommodate. Many designs include a “cant,” a slight inward slope on the rail seat (commonly 1 in 40), which tilts the rail to optimize the contact patch with the wheel tread.

2. Rail Spikes and Screw Spikes

These fasteners are used to secure the tie plate and rail to wooden sleepers.

• Rail Spikes: The traditional “dog spike” is hammered directly into the sleeper. Its head hooks over the edge of the rail foot or tie plate, holding it down. While effective, they can loosen over time due to vibration and wood degradation.
• Screw Spikes: These are large, high-strength screws that are turned into pre-drilled holes in the sleeper. They provide substantially higher clamping force and resistance to loosening compared to driven spikes, making them the standard choice for modern heavy-haul and high-speed lines.

3. Elastic Rail Clips

On modern tracks, especially those with concrete sleepers, engineers have replaced rigid spikes with elastic fastening systems. Manufacturers design these systems as some of the most highly engineered parts of a railroad track.

• Function: An elastic clip is a precisely formed spring made from high-strength spring steel. It is designed to apply a continuous, dynamic clamping force onto the foot of the rail. This force, known as the “toe load,” is crucial for preventing longitudinal rail movement (rail creep) and for absorbing high-frequency vibrations from passing trains.
• Performance Specifications: The clamping force of a clip is determined by its design and the diameter of the steel bar from which it is made.

Popular designs include the Pandrol “e-Clip,” which workers drive into a cast-iron shoulder embedded in the sleeper, and the Vossloh “SKL” tension clamp, which they tighten with a screw spike and a specialized nut.

Rail Joints: Components for Connecting Track

While continuous welded rail (CWR) is the modern standard, mechanical joints remain essential parts of a railroad track for repairs, temporary track, transitions, and insulated signaling circuits.

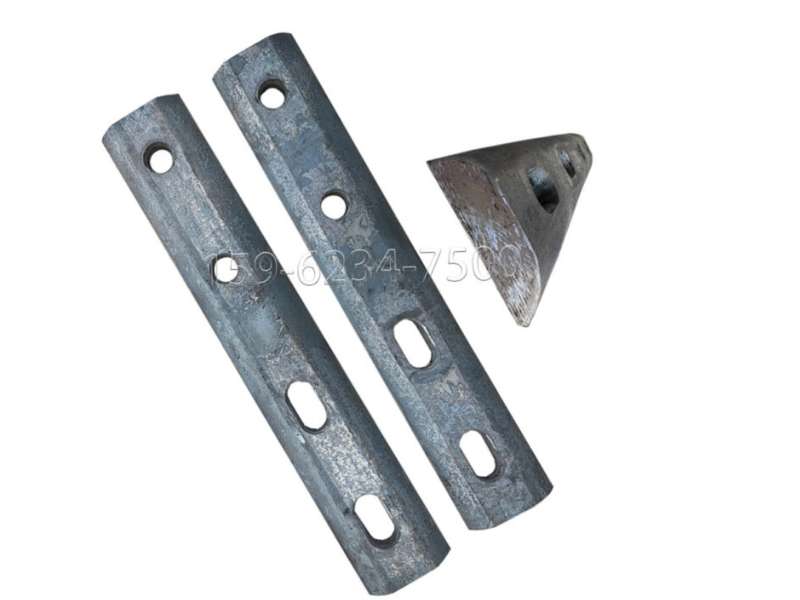

Fishplates (Joint Bars)

A fishplate is a steel bar used to connect two rail ends. For every joint, a pair of fishplates is bolted to either side of the rail web.

• Material and Design: Fishplates are made from medium-to-high carbon steel and are rolled to fit precisely into the “fishing” area of the rail profile they are intended for. For mainline track, 6-bolt joints are the standard, as they provide greater strength and stability than 4-bolt joints.
• Types:

• Standard Bars: Used to connect two identical rail sections.
• Compromise Bars: Specially forged or machined bars with a different profile on each end. They are used to create a smooth transition between two different rail sections (e.g., a 136RE rail and a 115RE rail).

Insulated Rail Joints (IRJs)

IRJs are vital for the function of track signaling systems. They create an electrical break in the rail, which defines the boundaries of a track circuit used to detect train presence.

• Components: A standard IRJ includes fishplates, insulating bushings for the bolt holes, and a high-strength insulating “end post” that sits in the gap between the rail ends.
• Glued IRJs: For high-performance applications, a glued insulated rail joint is used. In this advanced design, manufacturers bond the entire joint assembly together with high-strength epoxy in a controlled factory setting. This process creates a solid block that offers the electrical isolation of a joint but with the structural integrity of welded rail, making it one of the most reliable components for modern signaling.
