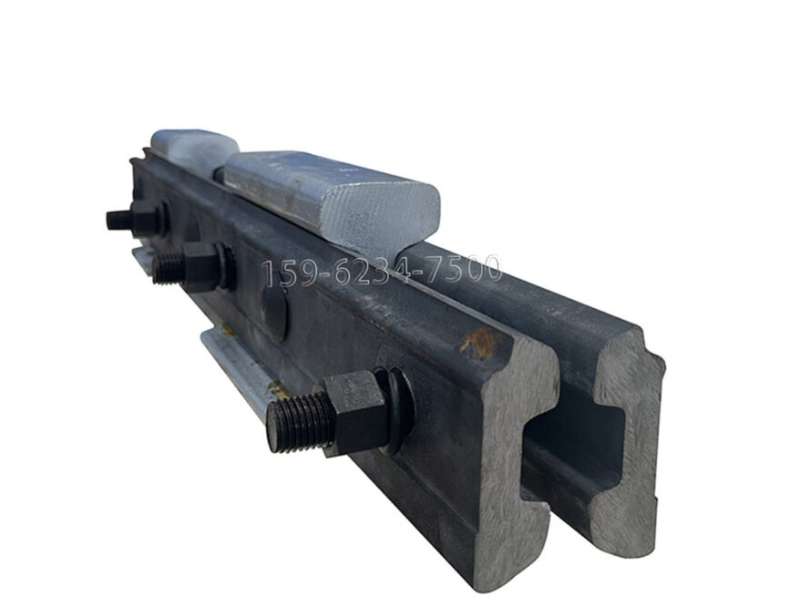

Essential Parts of a Train Track

While a train itself is a complex machine, its safe and efficient operation is entirely dependent on the track system beneath it. The track is an engineered structure composed of many critical parts of a train system, each with demanding specifications. Among the most fundamental of these are the steel rails that provide the running surface and the rail clips that hold them in place. This guide Xingrail provides a detailed technical examination of these essential track components, focusing on their specifications, materials, and performance characteristics.

The Steel Rail: A Primary Part of a Train’s Guideway

The steel rail is the foundational component of the track structure. It serves as the direct interface with the train’s wheels, providing a hard, smooth, and continuous path. Modern rails are highly engineered parts of a train system, with specific profiles and metallurgical properties designed to withstand immense forces and provide decades of service.

Rail Profiles and Specifications

A rail’s profile is its cross-sectional shape, which is standardized by organizations like AREMA (American Railway Engineering and Maintenance-of-Way Association) and UIC (International Union of Railways). The profile is a careful balance of strength, weight, and wear resistance. It consists of three main areas:

• Head: The top portion of the rail. Its surface makes direct contact with the train wheel. It is designed with a large mass of steel to accommodate significant wear over its service life and is contoured to optimize the wheel-rail interface.
• Web: The vertical section connecting the head and the foot. It is engineered to resist the shear forces generated by passing trains while being kept relatively thin to save weight and cost.
• Foot (or Base): The bottom of the rail. Its wide, flat base provides stability and distributes the immense load from the train over a larger area of the underlying track structure. The width of the foot is crucial for the rail’s stability.

Rail profiles are most often designated by their weight in pounds per yard or kilograms per meter.

Rail Metallurgy and Material Properties

The material science behind a steel rail is a critical aspect of these parts of a train track system. The steel must be hard enough to resist wear but tough enough to avoid fracturing under the repeated impact of heavy axle loads.

• Standard Carbon Rail: This is the baseline grade for many rail applications. It is a high-carbon steel, typically containing 0.7% to 0.8% carbon, which provides good hardness and strength for moderate service conditions.
• Premium & Head-Hardened Rail: For tracks with high curvature, steep grades, or extremely heavy tonnage, premium rails are used. These rails undergo an additional heat treatment process after being rolled. The rail head is rapidly cooled in a controlled manner, which creates a very fine and hard pearlite microstructure. This head-hardening process can nearly double the rail’s resistance to wear, significantly extending its service life in high-stress environments.

Rail Clips: Critical Fastening Parts of a Train Track

If the rail is the foundation, the rail clip is the component that anchors it. Rail clips are part of the fastening system that secures the rail to the sleepers (ties). Their function is to hold the rail firmly in place, maintain the correct track gauge, and absorb vibration. On modern railways, rigid spikes have been replaced by elastic rail clips, which are highly engineered springs.

Design and Function of Elastic Rail Clips

An elastic clip is a precisely formed bar of spring steel designed to exert a constant, pre-determined clamping force on the foot of the rail. This clamping force, known as the “toe load,” is the clip’s most important performance characteristic.

• Clamping Force (Toe Load): This continuous pressure holds the rail securely to the tie plate and sleeper, preventing vertical movement.
• Creep Resistance: The toe load generates friction between the rail foot and the tie plate, which resists the longitudinal forces that cause the rail to “creep” or move in the direction of traffic.
• Vibration Damping: The elasticity of the clip allows it to absorb some of the high-frequency vibrations from passing trains, reducing wear and tear on other track components and decreasing noise.

Clips are installed into a shoulder, which is either cast into a concrete sleeper or is part of a steel tie plate on a wooden sleeper. Common types include the Pandrol-style “e-Clip” or “Fastclip,” which are driven into place, and the Vossloh “SKL” tension clamp, which is tightened with a screw.

Specifications and Performance Characteristics

The performance of a rail clip is defined by its design, the diameter of its steel bar, and the quality of its material. Different clips are specified for different applications, from light transit to extreme heavy-haul.

Material Properties of Rail Clips

Rail clips must be able to withstand millions of load cycles without losing their clamping force or failing due to fatigue. Manufacturers make them from special grades of spring steel, typically a silicon-manganese alloy.

• Manufacturing Process: The steel bar is heated and then hot-formed into its complex shape. It is then subjected to a rigorous heat treatment process (quenching and tempering) to create the desired spring properties.
• Fatigue Resistance: This is the most critical material property. The steel must be free of internal defects and surface imperfections that could initiate a fatigue crack. Clips are tested to ensure they can endure millions of cycles of deflection without failure.
• Corrosion Resistance: To protect against the environment, clips are often treated with a protective coating, such as galvanization or a specialized paint, to prevent rust and corrosion, which could compromise their strength over time.

Together, the steel rail and the rail clip are two of the most fundamental parts of a train‘s infrastructure. Their precise specifications, advanced material properties, and careful engineering ensure the track can safely and reliably guide trains carrying everything from passengers to the heaviest freight, day after day.
