Rail Joints Types and Specifications Guide

Mechanical rail joints types represent the critical connection points that join individual rails end-to-end, forming the continuous running surface necessary for railway operations. While modern practice favors continuous welded rail (CWR) to minimize these connections, joints remain essential for track circuits, temporary repairs, and transitions between different rail profiles. The integrity of these joints is paramount, as they represent an inherent point of weakness in the track structure. This technical guide Xingrail provides a detailed examination of the various rail joints types, focusing on their design, specifications, and the engineering principles that govern their application.

Functional Rail Joints Types

Rail joints are most commonly categorized by their specific function within the track. These specialized designs address critical operational and engineering requirements, from simple connections to complex, electrically isolated assemblies.

1. Common Bolted Joints

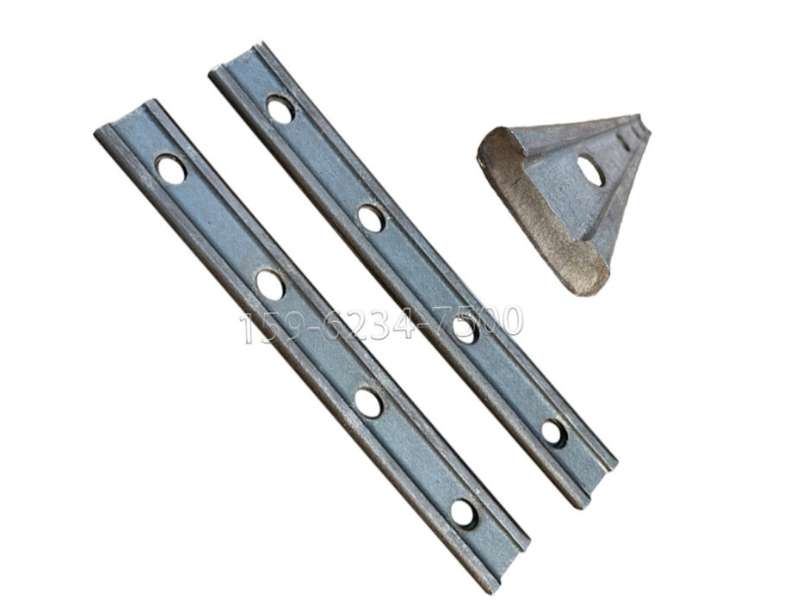

This is the most standard mechanical joint, used to connect two rails of the same size and profile. It consists of a pair of standard fishplates (also called joint bars) and either four or six high-strength track bolts.

Key Specifications:

• Number of Bolts: 4-bolt joints are typically used for lighter-duty track, such as in yards or industrial sidings. 6-bolt joints are the standard for mainline and heavy-haul applications, as they provide greater strength and resistance to bending forces.
• Fishplate Profile: The fishplates are hot-rolled from medium-to-high carbon steel and must precisely match the “fishing” area of the rail web (the area between the bottom of the rail head and the top of the rail foot). This precise fit is crucial for maximizing contact and transferring loads effectively between the rail ends.
• Joint Gap: A specified expansion gap, typically between 3 mm and 6 mm, is intentionally left between the rail ends. This gap allows for the thermal expansion and contraction of the rail, preventing the buildup of dangerous compressive or tensile forces in the track.

2. Compromise (Transition) Joints

A compromise joint is a highly specialized and critical assembly used to connect two rails of different sizes, weights, or profiles. This is a common requirement during track upgrades or where mainline track (e.g., 136RE) connects to a siding with a lighter rail section (e.g., 115RE).

• Design: Because the rail profiles do not match, standard fishplates cannot be used. Compromise joints require custom-forged, cast, or intricately machined “compromise bars.” Each half of the bar is shaped to precisely match the fishing profile of its corresponding rail section. This creates a smooth ramp for the wheel, both vertically and horizontally, preventing a sudden jolt that could damage rolling stock or pose a derailment risk.
• Application: These joints are essential for ensuring a safe transition between different track standards. They are complex to manufacture and install, representing a carefully engineered and high-cost component in the track structure.

3. Insulated Rail Joints (IRJs)

Insulated rail joints are fundamental to the operation of modern railway signaling systems. They create an electrical break in the rail, which defines the boundaries of a “track circuit.” These circuits allow signal systems to detect the presence or absence of a train within a specific block of track, which is the foundation of safe train separation.

• Design: An IRJ must electrically isolate the two rail ends from each other and from the fishplates that join them. This is achieved with a kit of non-conductive components:

• Insulated Fishplates: The steel fishplates are either coated in a tough, abrasion-resistant insulating material or are made entirely from a high-strength composite material.
• End Post: A hard, durable insulating plate, typically made of high-density polymer or a fiberglass composite, is placed in the gap between the two rail ends. This is the primary point of electrical separation.
• Bushings and Washers: Insulating sleeves or “bushings” are placed in the bolt holes of the rail web, and insulating washers are used under the steel washers to prevent the bolts from creating an electrical path between the fishplates and the rail.

4. Glued Insulated Rail Joints (High-Performance)

The glued insulated rail joint is a modern, high-performance evolution of the standard IRJ. It is designed to overcome the inherent mechanical weakness and high maintenance needs of traditional bolted joints and has become the standard for high-speed and heavy-haul lines where reliability is paramount.

• Design: In a glued IRJ, the entire joint assembly—including the fishplates, insulators, and rail ends—is permanently bonded together using a high-strength, gap-filling epoxy adhesive. These joints are typically pre-assembled in a controlled factory environment on a short section of rail. This complete “plug” is then delivered to the field and thermite welded into the track.
• Performance: The epoxy fills all voids within the joint, turning the assembly into a solid, cohesive block. This dramatically increases the joint’s stiffness and strength, making it behave much more like the parent rail. It virtually eliminates the impact forces, noise, and frequent maintenance issues associated with conventional bolted joints while providing the necessary electrical isolation.

Classification of Rail Joints Types by Sleeper Position

Another fundamental way to classify rail joints types is by their position relative to the underlying sleepers. This placement directly affects how the joint behaves under load and has a significant influence on its long-term performance and maintenance requirements.

Supported Rail Joints

In a supported rail joint, the ends of the two connecting rails are designed to meet directly over the center of a single sleeper. The fishplates are bolted on, and the entire assembly rests on this common sleeper.

• Design Principle: The theory behind this design is to provide direct, solid support under the rail ends at the moment a wheel passes over the gap. The goal is to minimize vertical deflection, or “dipping,” of the rail ends, which is the primary cause of impact damage.
• Performance Characteristics: In practice, this design proves to be problematic. The immense, repeated impact from wheels passing over the joint is concentrated directly onto one sleeper and the ballast beneath it. This leads to rapid degradation of the sleeper, pulverization of the ballast, and the formation of a “low spot” in the track. The rigidity of the design also makes it difficult for maintenance crews to pack and tamp the ballast effectively under the joint sleeper. Due to these significant maintenance challenges, supported joints are rarely used in modern mainline track construction.

Suspended Rail Joints

The suspended rail joint is the most common and effective design used in modern bolted track. In this configuration, workers join the rail ends in the space between two adjacent sleepers. The fishplates bridge the gap and rest on these two sleepers, while the rail ends remain suspended in the air.

• Design Principle: This design allows the joint to act more like a short bridge. The elasticity of the rail and the fishplates helps to distribute the load from a passing wheel more evenly between the two supporting sleepers.
• Performance Characteristics: Suspended joints offer far better performance and durability than supported joints. Because the load is shared, the impact on any single sleeper and section of ballast is reduced. This results in a smoother ride, less wear and tear on track components, and easier maintenance. While still a point of impact and a source of noise, the superior load distribution makes the suspended joint a more resilient and manageable design for mainline traffic.

The proper selection and installation of these various rail joints types are essential for maintaining the safety and operational efficiency of the railway. While CWR is the ideal, the careful engineering behind these mechanical connections ensures that the track remains a reliable and robust system at every necessary break and transition.
