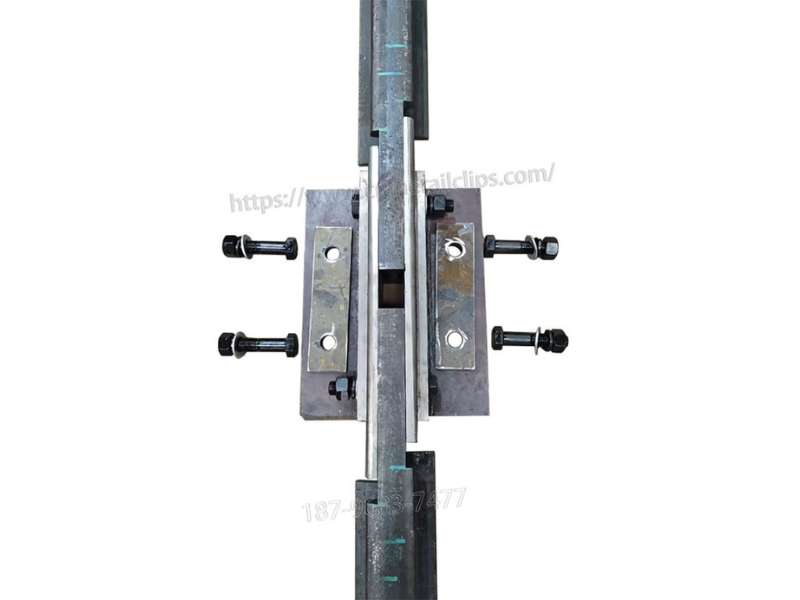

Rail Joints and Specifications

Rail joints are the critical connection points in a railway track, serving to join individual rails end-to-end to form a continuous running surface. While modern railways increasingly use continuous welded rail (CWR) to eliminate joints, mechanical joints remain essential for specific applications, including track circuits, temporary repairs, and transitions between different rail types. The integrity of these joints is paramount to track safety and performance, as they are inherently the weakest points in the track structure. This technical guide Xingrail provides a detailed examination of various rail joints, focusing on their specifications, component designs, and the engineering principles behind their use.

Table of Contents

The Components of Bolted Rail Joints

The most common type of mechanical joint is the bolted joint. It consists of several key components that work together to provide structural integrity and maintain alignment.

Fishplates (Joint Bars): These are the primary structural components. A pair of steel bars is bolted to either side of the rail web, fitting snugly into the “fishing” area between the rail head and foot. Their cross-section is precisely engineered to match the profile of the specific rail they are designed for, ensuring maximum contact and load transfer.
Track Bolts: High-strength bolts, typically four or six per joint, are used to clamp the fishplates firmly against the rail. They are designed to withstand immense shear and tensile forces.
Spring Washers: Placed under the nut, these washers provide a constant tension on the bolt, preventing it from loosening under the vibration of passing trains.

Fishplate Specifications and Design

The design of the fishplate is critical to the performance of all rail joints. They must transfer vertical loads between rail ends to prevent dipping, maintain horizontal alignment, and allow for longitudinal movement for thermal expansion.

Fishplate Type	Description	Primary Application
Standard Bar	A simple, flat or contoured bar that matches the rail profile.	General use in mainline, yard, and industrial tracks for joining identical rail sections.
Angle Bar	A fishplate with an L-shaped cross-section that extends downwards to rest on the rail foot.	Provides enhanced vertical support and is often used in high-stress locations.
Compromise Bar	A specially forged or machined bar with a different profile on each half of its length.	Used to join two different rail sections (e.g., a 115RE rail to a 136RE rail).
Insulated Block	A fishplate assembly made from or coated with non-conductive materials.	Used to create electrically isolated sections for track signaling systems.

The material for fishplates is typically a medium-to-high carbon steel that has been hot-rolled and sometimes heat-treated to achieve a balance of strength and ductility. The material must be strong enough to resist bending under load but not so brittle that it would fracture under impact.

Types of Rail Joints and Their Applications

Different operational requirements have led to the development of several specialized types of rail joints. Each is designed to address a specific challenge within the track structure.

1. Common Bolted Joints

This is the standard mechanical joint used to connect two rails of the same size and profile. It uses a pair of standard fishplates and either four or six track bolts. While effective, it creates a discontinuity in the track that generates noise and impact forces, requiring regular inspection and maintenance to ensure bolts remain tight.

Key Specifications:

Number of Bolts: 4-bolt joints are common for lighter-duty track, while 6-bolt joints are standard for mainline and heavy-haul applications, providing greater strength and stability.
Bolt Hole Drilling: The pattern of bolt holes drilled into the rail web must conform to standards (e.g., AREMA) to ensure proper fishplate fitment.
Joint Gap: A small gap (typically 3-6 mm) is left between the rail ends to allow for thermal expansion and contraction.

2. Compromise (Transition) Joints

A compromise joint is a highly specialized assembly used to connect two rails of different sizes, weights, or profiles. This is a common requirement during track upgrades or when connecting mainline track to a siding or yard track with a lighter rail section.

Design: Compromise joints cannot use standard fishplates. Instead, they require custom-forged, cast, or machined compromise bars. Each end of the bar is shaped to precisely match the fishing profile of the corresponding rail section. This ensures a smooth transition for the wheel, both vertically and horizontally.
Application: Essential for connecting sections like a 136RE mainline rail to a 115RE yard lead rail. They are complex and expensive, representing a critical and carefully engineered point in the track.

3. Insulated Rail Joints (IRJs)

Insulated rail joints are fundamental to the operation of railway signaling systems. They create an electrical break in the rail, which allows for the creation of track circuits that can detect the presence of a train.

Design: An IRJ isolates the rail ends from each other and from the fishplates. This is achieved through several non-conductive components:

Insulated Fishplates: The steel fishplates are either coated in a tough insulating material or are made from a composite material.
End Post: A hard, insulating plate (typically made of high-density polymer or composite) is placed in the gap between the two rail ends.
Bushings and Washers: Insulating bushings are placed in the bolt holes of the rail web, and insulating washers are used under the steel washers to prevent the bolts from making electrical contact with the rail.

4. Glued Insulated Rail Joints

The glued insulated rail joint is a high-performance evolution of the standard IRJ. It is designed to overcome the mechanical weakness of traditional bolted joints and is the standard for modern high-speed and heavy-haul lines.

Design: In a glued IRJ, the entire joint assembly—including the fishplates, insulators, and rail ends—is bonded together with a high-strength epoxy adhesive. The joint is typically pre-assembled in a controlled factory environment on a short section of rail, which is then welded into the track in the field.
Performance: The glue fills all voids, turning the joint into a solid, cohesive block. This dramatically increases the joint’s stiffness and strength, making it behave more like the parent rail. It virtually eliminates the impact forces, noise, and maintenance issues associated with conventional bolted joints.

Joint Type	Primary Function	Key Components	Performance Characteristic
Common Bolted	Connect identical rail sections.	Standard fishplates, track bolts.	Simple and effective, but a point of high maintenance and impact.
Compromise	Connect different rail sections.	Custom compromise fishplates.	Provides a smooth transition but is complex and costly.
Insulated (IRJ)	Electrically isolate rail sections for signaling.	Insulated fishplates, end post, bushings.	Creates a necessary signal break but is a point of mechanical weakness.
Glued IRJ	Provide a high-strength, insulated joint.	Fishplates, insulators, and high-strength epoxy adhesive.	Mimics the performance of continuous rail, offering high strength and low maintenance.

The proper selection and installation of rail joints are essential for maintaining the safety and operational efficiency of the railway. While CWR is the ideal, the engineering behind these mechanical connections ensures that the track remains a reliable and robust system at every necessary break and transition.
