Railroad Maintenance Equipment and Rail Clip Specifications

Effective railway operation hinges on the diligent application of specialized railroad maintenance equipment and high-quality components. From large machinery that aligns track to the smallest clips that secure rails, every piece plays a vital role in ensuring safety, efficiency, and longevity of the rail network. Understanding the specifications and functions of these tools, particularly essential fasteners like rail clips, is fundamental for anyone involved in track construction, repair, or oversight. This equipment ensures that rails conform to precise standards, such as the AREMA 115RE or UIC60 profiles, by providing the means to install, inspect, and repair track components reliably.

Railroad Maintenance Equipment Types

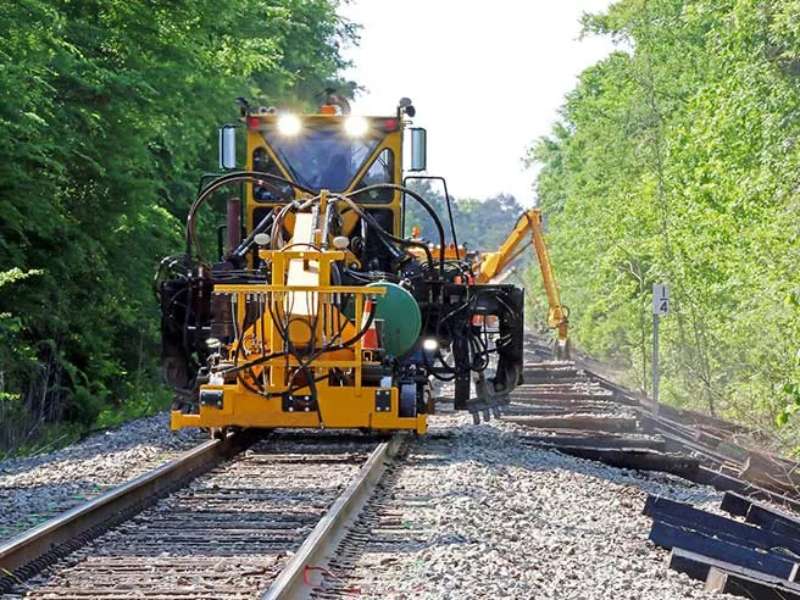

To keep tracks in optimal condition, maintenance crews rely on a wide range of tools and machinery. This essential railroad maintenance equipment addresses everything from ballast stabilization to rail surface integrity. Key items include rail grinders, which restore the correct rail profile by removing surface defects and wear. Tamping machines are used to compact the ballast beneath the sleepers, ensuring a stable and level track foundation. For diagnostics, track inspection vehicles equipped with advanced sensors detect flaws like cracks or misalignment before they become critical safety risks. Smaller, yet equally important, tools include hydraulic track jacks for lifting rails, spike pullers for removing fasteners, and rail saws for cutting sections of track for replacement.

Rail Profile Specifications: AREMA and UIC Standards

Modern rails are manufactured to exacting standards to handle immense loads and high speeds. The profile, or cross-sectional shape, of a rail is defined by organizations like the American Railway Engineering and Maintenance-of-Way Association (AREMA) and the International Union of Railways (UIC). These specifications dictate the rail’s height, head width, base width, and weight per unit length.

• AREMA 115RE: A common profile in North America, this rail weighs approximately 115 pounds per yard. It is characterized by its balanced design, suitable for mainline tracks with mixed freight and passenger traffic.
• AREMA 136RE: Weighing 136 pounds per yard, this is a heavy-duty rail used on high-tonnage freight lines and routes with significant traffic density. Its larger head and robust structure provide enhanced wear resistance and durability.
• UIC60: This is a European standard rail weighing 60 kg per meter. It is widely used for high-speed and heavy-haul lines across Europe and other parts of the world, known for its excellent stability and performance.

These standardized profiles ensure that all components, from wheels to fastening systems, are compatible and work together seamlessly.

Essential Rail Clips Overview

Rail clips are a critical part of the fastening system, responsible for securing the rail to the sleeper. They apply a continuous clamping force that prevents the rail from moving longitudinally or laterally, thus maintaining the correct track gauge. This function is vital for absorbing vibrations and resisting the immense forces exerted by passing trains. The elasticity of these clips allows them to hold the rail firmly while permitting slight vertical movement, reducing stress on the track structure.

E-Type Rail Clip Specifications

The E-type clip is a globally recognized fastener, valued for its simple design and reliable performance. Made from forged spring steel, it provides a consistent toe load that holds the rail securely. It is often used in conjunction with a rail shoulder cast into a concrete sleeper or attached to a baseplate.

SKL (Spannklemme) Rail Clip Specifications

Originating in Germany, the SKL tension clamp is a key component of the Vossloh fastening system. It is known for providing a specific, pre-tensioned clamping force, which is crucial for high-speed and heavy-haul applications. The SKL clip is typically used with a screw spike and dowel assembly.

Nabla Rail Clip Specifications

The Nabla fastening system uses a unique, blade-shaped clip that provides strong clamping force and excellent vibration attenuation. Its design ensures a secure hold on the rail foot while allowing for easy installation and removal, making it a practical choice for various track types, including those in vibration-sensitive urban areas.

Deenik Rail Clip Specifications

The Deenik clip is a robust fastener commonly used on concrete sleepers, especially in regions like South America. It is known for its durability and ability to maintain track gauge under heavy loads and in harsh environmental conditions. It is often installed with a cast-iron shoulder to provide lateral support.

Crane Rail Clip Specifications

Unlike standard track clips, crane rail clips are engineered to handle the unique demands of industrial crane runways. They must manage extremely high wheel loads, side thrust, and impacts from crane operations. These clips can be bolted or welded and are designed to allow for controlled rail movement to accommodate thermal expansion.
