Railroad Parts Technical Guide

A railway track is a complex, engineered system composed of numerous individual railroad parts, each with a specific function and set of demanding specifications. These components work together to support immense loads, guide trains safely, and withstand constant exposure to dynamic forces and harsh environmental conditions. The performance and safety of the entire railway network depend on the precise design, material integrity, and compatibility of these essential parts. This technical guide Xingrail provides a detailed examination of the most critical railroad parts, focusing on their specifications, dimensions, and the materials from which they are made.

The Steel Rail: The Foundation of the Track

The steel rail is the most recognizable of all railroad parts. It provides the hard, continuous, and smooth running surface for train wheels. Modern rails are high-tech products, engineered with a specific cross-sectional profile to balance strength, weight, and wear resistance.

Rail Profiles and Specifications

Rail profiles—the shapes of their cross-sections—define rails. Organizations like AREMA (American Railway Engineering and Maintenance-of-Way Association) and UIC (International Union of Railways) standardize these profiles. The designation typically includes the weight of the rail in pounds per yard or kilograms per meter.

• Head: The top portion of the rail, which makes direct contact with the wheel. It is designed with a specific contour to optimize the wheel-rail interface and is made with a large mass of steel to accommodate wear over its service life.
• Web: The vertical section connecting the head and the foot. It must be strong enough to resist shear forces but is kept relatively thin to save weight.
• Foot (or Base): The bottom portion of the rail, which provides stability and a wide base to distribute the load to the rest of the track structure. The width of the foot is critical for the stability of the entire rail section.

Material Properties of Steel Rails

Rails are made from high-carbon steel, often with other alloys added to enhance performance. The metallurgy is a careful balance between hardness (for wear resistance) and toughness (to prevent fracture).

• Standard Carbon Steel: The baseline for rail manufacturing, containing 0.7% to 0.8% carbon.
• Premium / Head-Hardened Steel: These rails undergo a special heat treatment process after rolling. The head of the rail is rapidly cooled to create a very hard, fine-grained pearlite microstructure. This significantly increases wear resistance and is the standard for track sections with high curvature or heavy tonnage, where rail wear is most severe.

The Rail Fastening System: Essential Railroad Parts for Stability

The fastening system is a collection of railroad parts designed to secure the rail to the sleepers (ties), maintain the correct track gauge, and provide a degree of elasticity to absorb shocks.

1. Tie Plates (Baseplates)

The tie plate is a heavy steel plate placed between the foot of the rail and the sleeper. It is a fundamental load-bearing component.

• Function: Its primary purpose is to distribute the concentrated load from the narrow rail foot over a much wider area of the sleeper. This prevents the rail from crushing or cutting into the sleeper material over time. It also features shoulders or holes that help to hold the rail in gauge.
• Specifications: Tie plates are specified by the rail section they are designed to fit. They often include a “cant,” a slight inward slope on the rail seat (typically 1 in 40), which tilts the rail to optimize wheel contact.

2. Rail Spikes and Screw Spikes

These fasteners are used to secure the tie plate and/or the rail to the wooden sleepers.

• Rail Spikes: The traditional “dog spike” is hammered into the sleeper. Its head hooks over the edge of the rail foot or tie plate, holding it down. They offer good pull-out resistance but can loosen over time under heavy vibration.
• Screw Spikes: These are large, high-strength screws that are turned into pre-drilled holes in the sleeper. They provide significantly higher clamping force and resistance to loosening compared to driven spikes, making them the preferred choice for heavy-haul and high-speed lines.

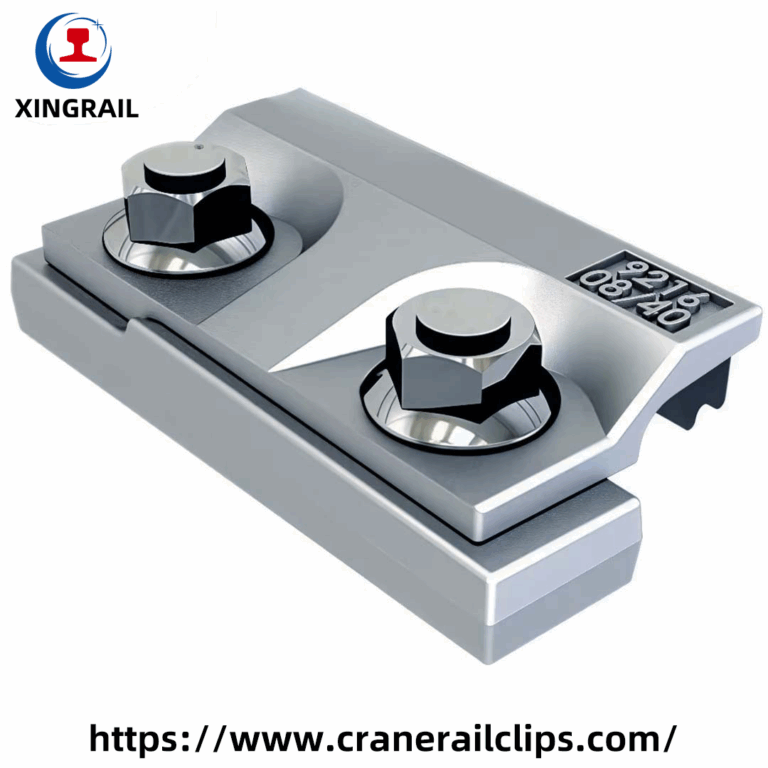

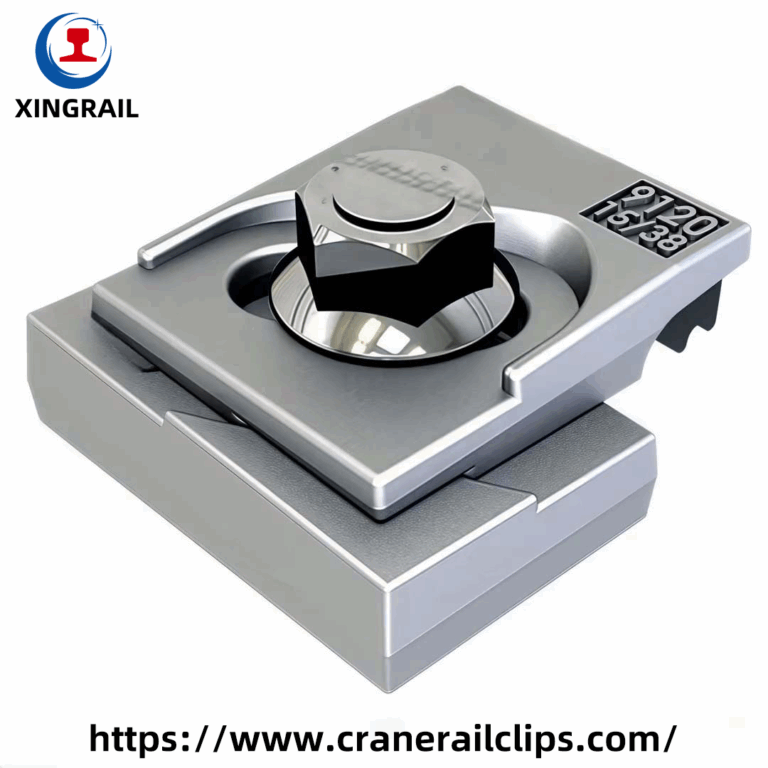

3. Elastic Rail Clips (Rail Clamps)

On modern tracks, especially those with concrete sleepers, rigid spikes are replaced by elastic fastening systems. These are some of the most highly engineered railroad parts.

• Function: An elastic clip is a precisely shaped spring made from high-strength spring steel. It is designed to apply a continuous, dynamic clamping force onto the foot of the rail. This force, known as the “toe load,” is critical for preventing longitudinal rail movement (creep) and for absorbing vibration.
• Performance Specifications: The strength of a clip is defined by its bar diameter and its design.

Common types include the Pandrol “e-Clip,” which is driven into a cast-iron shoulder, and the Vossloh “SKL” tension clamp, which is tightened with a screw spike.

Rail Joints: Connecting the Track

While continuous welded rail forms the modern standard, railroads still use mechanical joints for repairs, transitions, and insulated track circuits.

Fishplates (Joint Bars)

A fishplate is a steel bar that connects two rail ends. Workers bolt a pair of fishplates to either side of the rail web.

• Material and Design: Fishplates are made from medium-to-high carbon steel and are shaped to fit precisely into the fishing area of the rail profile they are designed for. For mainline track, 6-bolt joints are standard, providing greater strength and stability than 4-bolt joints.
• Types:

• Standard Bars: Used to connect two identical rail sections.
• Compromise Bars: Specially forged or machined bars with a different profile on each end, used to join two different rail sections (e.g., a 136RE rail to a 115RE rail).

Insulated Rail Joints (IRJs)

IRJs are critical for the function of track signaling systems. They create an electrical break in the rail, defining the boundaries of a track circuit.

• Components: An IRJ consists of standard or composite fishplates, insulating bushings for the bolt holes, and a high-strength insulating “end post” that sits in the gap between the rail ends.
• Glued IRJs: For high-performance applications, a glued insulated rail joint is used. In this design, the entire assembly is bonded together with a high-strength epoxy in a factory. This creates a solid block that offers the electrical isolation of a joint with the structural integrity of welded rail, making it one of the most reliable types of railroad parts for modern signaling.
