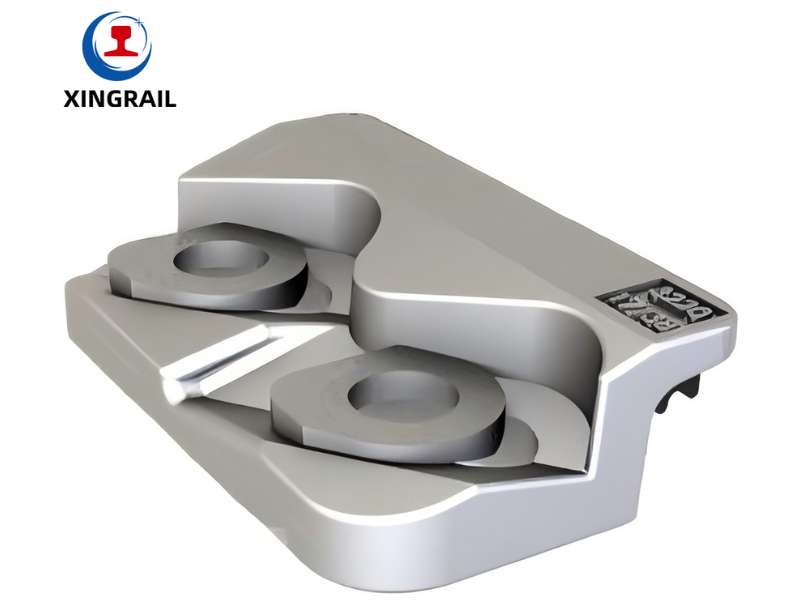

Rail Clamp Types and Specifications

Rail clamps are a diverse and critical category of engineered components designed to secure rails to their underlying support structure. Understanding the different rail clamp types is essential for designing, constructing, and maintaining safe and durable track systems for both railways and industrial crane runways. These components are not simple fasteners; they are integral parts of a sophisticated system that manages immense forces, absorbs shock, and maintains precise track geometry. This technical guide, Xingrail will explore the specifications, dimensions, and material properties of the primary rail clamp types, from the elastic clips used on mainline railways to the heavy-duty clamps designed for crane applications.

Elastic Rail Clamp Types (Rail Clips)

For conventional railway track, the most common category of clamp is the elastic rail clip. These are not rigid clamps but highly engineered springs that apply a continuous, dynamic force onto the foot of the rail. This elasticity is vital for modern tracks, as it absorbs vibrations and allows for the thermal expansion and contraction of continuous welded rail (CWR), preventing the buildup of dangerous internal stresses.

Key Performance Specifications

The performance of an elastic rail clip is defined by several key metrics that are a direct result of its specific dimensions and the material science behind it.

• Clamping Force: This is the total downward force the fastening assembly exerts on the rail foot. This force is essential for generating the friction needed to resist longitudinal rail movement, often called “rail creep.”
• Toe Load: This refers to the specific force applied at the very tip (toe) of the clip where it makes contact with the rail. It is a primary design metric, and a clip’s strength is often defined by its nominal toe load, measured in kilograms-force (kgf) or kilonewtons (kN).
• Fatigue Life: Rail clips are designed to endure millions of load cycles from passing trains without breaking or losing their clamping ability. A typical design specification demands a fatigue life of 3 to 5 million cycles to simulate decades of in-track service.

Common Elastic Rail Clamp Types and Dimensions

The most significant physical dimension that dictates a clip’s strength is the diameter of the spring steel bar from which it is formed. A larger diameter results in a stiffer, stronger clip capable of generating higher clamping forces.

• E-Type Clips: This globally recognized design (e.g., Pandrol e-Clip) is known for its simple yet robust “e” shape. It is installed by being driven horizontally into a cast-iron shoulder that is embedded in a concrete sleeper. Heavy-duty versions, such as the e-2000 series, use a 20 mm bar to achieve toe loads exceeding 1800 kgf, making them an excellent choice for demanding heavy-haul freight operations.
• SKL Tension Clamps: This screw-based system (e.g., Vossloh SKL-14) uses a screw spike to tighten the tension clamp against the rail foot. It offers excellent adjustability, which makes it a preferred solution for high-speed lines where maintaining precise track geometry is paramount.

Heavy-Duty Crane Rail Clamp Types

The clamps used for industrial crane runways are fundamentally different from the elastic clips used on conventional railways. Crane rails are subjected to extremely high, concentrated wheel loads and significant lateral forces from wheel flanges. Crane clamps must secure the rail with immense strength and rigidity while permitting precise alignment and allowing for controlled thermal movement. These are broadly categorized into two main rail clamp types: boltable and weldable.

Boltable Rail Clamps

Boltable clamps are a versatile and widely used solution in many crane runway systems. The assembly has a lower component anchored to the steel or concrete support structure. The upper component clamps down onto the foot of the rail.

• Design and Functionality: A key feature of modern boltable clamps is an elastomeric “nose.” This is a durable rubber block integrated into the upper clamp component that presses firmly against the side of the rail’s web. This design absorbs shock and vibration while allowing the rail to “float” slightly. This is critical for accommodating thermal expansion and preventing the buildup of dangerous internal stresses that could warp the runway.
• Primary Advantage: The main benefit of boltable clamps is their adjustability. The bolt holes in the support structure are often slotted. This lets installers fine-tune the rail’s position to ensure it is straight and set to the correct gauge before final tightening.

Weldable Rail Clamps

For the most demanding applications, such as high-capacity container cranes in ports or heavy-duty cranes in steel mills, weldable clamps offer the ultimate level of strength and durability.

• Design and Functionality: In this system, the lower part of the clamp assembly is welded directly to the top flange of the steel support girder. An upper clamp component is then bolted to this welded base, securing the rail.
• Primary Advantage: The direct weld provides unmatched lateral restraint, eliminating any possibility of the clamp base shifting under the extreme side-thrust forces generated by crane wheels. While the base itself is rigid, these clamps still utilize an elastomeric nose to provide the same crucial benefits of shock absorption and controlled thermal movement for the rail.

The Role of Rail Plates in Clamp Systems

No system of rail clamps can function properly without a rail plate, also known as a tie plate or baseplate. This heavy plate is made of steel or ductile iron. It sits between the rail base and the sleeper or support structure.

Key Functions of a Rail Plate

1. Load Distribution: The plate’s most important job is to distribute the intense, concentrated load from the narrow base of the rail over a much wider area of the sleeper. This prevents the rail from crushing or cutting into the sleeper material over time, which is a common failure mode in older track designs.
2. Gauge Holding: The plate provides a stable and precisely defined foundation for the fastening assembly. It features robust shoulders or punched holes that locate the rail and clamps, thereby locking in the correct track gauge and preventing it from widening under lateral forces.
3. Cant Provision: In railway applications, tie plates are often manufactured with a slight inward slope on the rail seat (typically 1 in 40 or 1 in 20). This “cant” tilts the rail, which helps to center the train’s wheelset on the track and promote more even wear on both the wheel tread and the rail head.

Rail Plate Specifications

Rail plates are designed to match a specific rail profile’s base width and the chosen fastening system. The dimensions are critical for ensuring proper fit and function.

By working in concert, these different rail clamp types and plates create a robust and reliable fastening system. Whether it’s an elastic clip or a welded clamp, each serves an essential role in the track system. These components ensure the track remains safe and built to last.
