Railway Clamps and Plates

Railway clamps are a critical category of fastening components engineered to secure rails to their underlying support structure, whether that structure is a traditional sleeper or a steel girder on a crane runway. These components are designed to provide immense clamping force, resist powerful lateral and longitudinal forces, and ensure the long-term stability and safety of the track. This technical guide Xingrail explores the specifications, dimensions, and material properties of key railway clamps, including elastic rail clips for railway track, specialized clamps for crane rails, and the essential rail plates that form their foundation.

Elastic Railway Clamps (Rail Clips)

When discussing railway clamps for standard ballasted or slab track, the conversation is primarily about elastic rail clips. These are not simple fasteners but highly engineered springs that apply a continuous, dynamic force onto the foot of the rail. This elasticity is crucial for absorbing vibrations and managing the thermal expansion and contraction of continuous welded rail.

Key Performance Specifications

The performance of an elastic rail clip is defined by several key metrics, which are a direct result of its dimensions and material properties.

• Clamping Force: The total downward force the clip assembly exerts on the rail foot. This is vital for preventing rail uplift and providing the frictional resistance needed to prevent longitudinal rail movement (creep).
• Toe Load: The specific force applied at the tip (toe) of the clip. This is a primary design metric, and a clip’s strength is often defined by its nominal toe load, measured in kilograms-force (kgf) or kilonewtons (kN).
• Fatigue Life: Clips are designed to withstand millions of load cycles from passing trains. A typical specification requires a fatigue life of 3 to 5 million cycles without fracture or significant loss of clamping force.

Common Types and Dimensions

The most significant dimension influencing a clip’s strength is the diameter of the spring steel bar from which it is formed.

• E-Type Clips: This globally recognized design (e.g., Pandrol e-Clip) is known for its robust, simple shape. It is installed by being driven into a cast-iron shoulder embedded in a sleeper. Heavy-duty versions, like the e-2000 series, use a 20 mm bar to achieve toe loads exceeding 1800 kgf, making them ideal for heavy-haul freight.
• SKL Tension Clamps: This screw-based system (e.g., Vossloh SKL-14) uses a screw spike to tighten the tension clamp against the rail. It offers excellent adjustability, making it a preferred choice for high-speed lines where precise track geometry is paramount.

Rail Clamp for Crane Applications

A rail clamp for crane use is fundamentally different from a railway clip. Crane rails are subject to extremely high, concentrated wheel loads and significant lateral forces. Crane clamps must secure the rail rigidly while allowing for precise alignment and controlled thermal movement. They are broadly categorized into bolted and welded types.

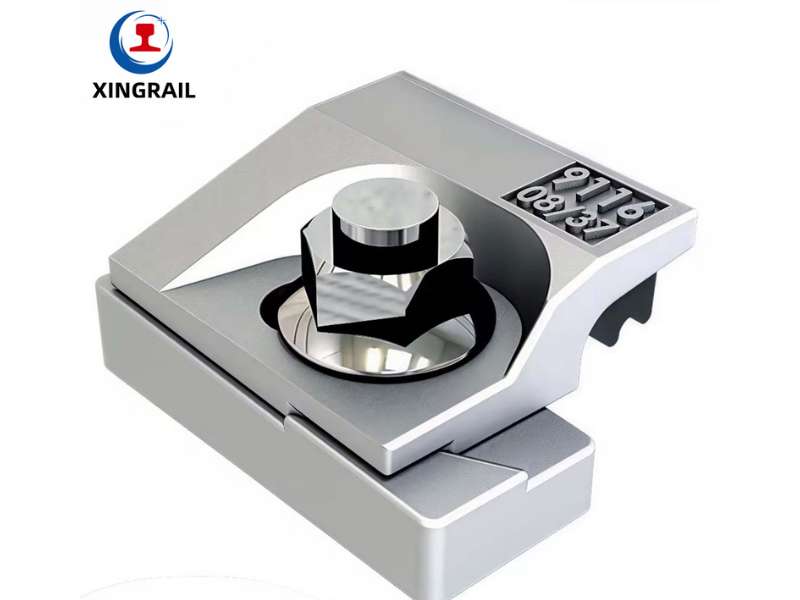

Bolted Crane Rail Clamps

Bolted clamps are a versatile and widely used solution. They consist of a lower component anchored to the steel or concrete support structure and an upper component that clamps down on the rail foot.

• Design: A key feature is an elastomeric “nose” on the upper clamp component. This durable rubber block presses against the side of the rail web, absorbing shock and allowing for slight lateral movement. This “float” is critical for preventing stress buildup as the rail expands and contracts with temperature changes.
• Key Advantage: The primary advantage is adjustability. Slotted bolt holes allow installers to precisely align the rail for straightness and gauge before final tightening, which is crucial for smooth crane operation.

Welded Crane Rail Clamps

For the most demanding applications, such as high-capacity port and steel mill cranes, welded clamps offer the ultimate in strength and durability.

• Design: In this system, the lower part of the clamp assembly is welded directly to the top flange of the steel support girder. An upper clamp component is then bolted to this welded base to secure the rail.
• Key Advantage: The direct weld provides unmatched lateral restraint, eliminating any possibility of the clamp base shifting under extreme side-thrust from crane wheels. While the base is rigid, these clamps still use an elastomeric nose to provide shock absorption and allow for thermal movement of the rail itself.

The Role of the Rail Plate

No system of railway clamps is complete without a rail plate (also known as a tie plate or baseplate). This is a heavy steel or iron plate that sits between the rail and the sleeper, serving several essential functions.

Key Functions of a Rail Plate

1. Load Distribution: The plate’s primary job is to distribute the intense, concentrated load from the narrow base of the rail over a much wider area of the sleeper. This prevents the rail from crushing or cutting into the sleeper material over time.
2. Gauge Holding: The plate provides a stable, defined structure for the fastening assembly. It features shoulders or punched holes that precisely locate the rail and clips, thereby locking in the correct track gauge.
3. Cant Provision: For railway applications, tie plates are often manufactured with a slight inward slope on the rail seat (typically 1 in 40 or 1 in 20). This “cant” tilts the rail, helping to center the wheelset on the track and promote more even wear on the wheel and rail head.

Rail Plate Specifications

Rail plates are designed to match a specific rail profile’s base width and the chosen fastening system.

By working in concert, these various types of railway clamps and plates create a robust fastening system capable of withstanding the diverse and powerful forces of railway and crane operations, ensuring a track structure that is both safe and durable.
