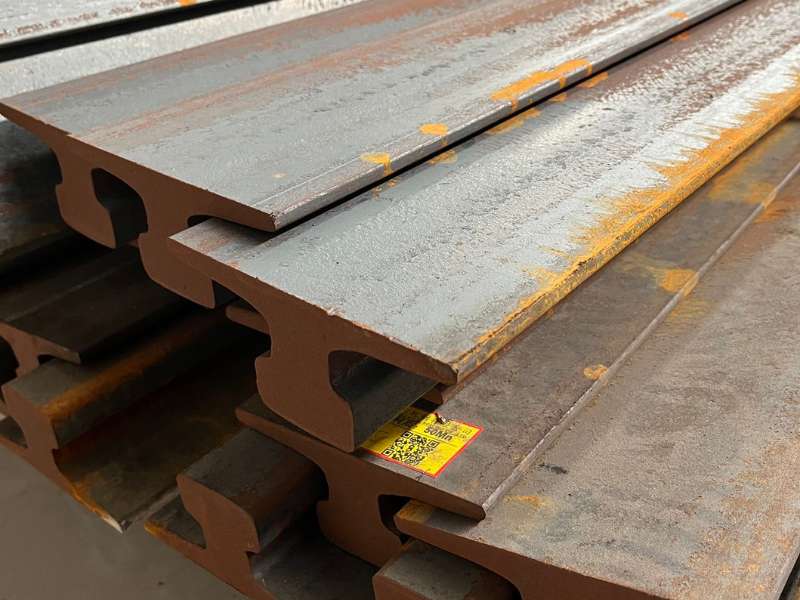

Railway Iron Dimensions and Specifications

The specific railway iron dimensions is fundamental for ensuring the safety, reliability, and efficiency of rail networks. The profile, weight, and composition of a rail determine its capacity to handle different loads, speeds, and traffic volumes. These specifications are not arbitrary; they are the result of decades of engineering refinement aimed at maximizing strength and durability while managing costs. From mainline tracks supporting heavy freight to specialized industrial spurs, every application requires a rail with precise dimensions. This guide provides a detailed look into the specifications for common rail profiles, particularly those defined by AREA (American Railway Engineering Association), and explores the critical role of rail clips in maintaining track integrity.

A Deep Dive into Railway Iron Dimensions

The cross-sectional shape of a rail, known as its profile, is a complex I-beam structure designed to withstand immense stress. Key railway iron dimensions include the rail height, head width, base width, and web thickness. Each dimension contributes to the rail’s overall strength and performance. Heavier rails generally have larger dimensions, allowing them to support greater axle loads and higher speeds. These rails are typically used on high-density mainlines, while lighter rails are suitable for branch lines, yards, or industrial tracks with less demanding traffic.

The American Railway Engineering and Maintenance-of-Way Association (AREMA) establishes the standards for many of the rails used in North America. These standards ensure uniformity and quality across the industry. Rail profiles are often identified by their nominal weight in pounds per yard (e.g., 115 lb/yd or 136 lb/yd). This weight is a direct indicator of the rail’s size and strength. A higher weight per yard means more steel, a larger cross-section, and greater load-bearing capacity.

AREA Rail Specifications: 115RE, 119RE, 132RE, 133RE, and 136RE

AREMA “RE” rail profiles are the standard for modern railway construction in North America. Each designation, such as 115RE, corresponds to a specific set of dimensions and a nominal weight per yard. Understanding these specifications is essential for engineers, designers, and maintenance crews. Below are detailed tables for some of the most common heavy rail sections.

AREMA 115RE Rail Dimensions

The 115RE rail is a versatile profile often used for mainline, industrial, and high-density transit applications. Weighing approximately 115 pounds per yard, it offers a good balance of strength and cost-effectiveness.

AREMA 119RE Rail Dimensions

The 119RE profile provides an incremental increase in strength over the 115RE, making it suitable for tracks with growing traffic demands.

AREMA 132RE Rail Dimensions

A common choice for heavy-haul freight mainlines, the 132RE rail section is designed for significant durability and resistance to wear under high tonnage.

AREMA 133RE Rail Dimensions

Similar in weight to the 132RE, the 133RE profile features slight variations in its geometry, particularly in the head, to optimize wheel contact and reduce wear.

AREMA 136RE Rail Dimensions

The 136RE rail is another robust profile designed for the most demanding heavy-haul environments, providing excellent stability and a long service life.

AREMA 141RE Rail Dimensions

The 141RE rail, often designated as 141AB, is a heavy-duty rail used on tracks that experience some of the highest axle loads in North America, such as those used for transporting coal and iron ore.

The Rail Clips in Track Stability

While the rail profile itself is crucial, the components that hold it in place are equally important for track stability and safety. Rail clips are a vital part of the fastening system that secures the rail to the railroad tie (or sleeper). Their primary function is to prevent longitudinal, lateral, and vertical movement of the rail, ensuring that the track gauge remains consistent and the rail stays firmly seated on the tie plate. A secure rail fastening system is essential for handling the immense forces exerted by a moving train, including braking, acceleration, and lateral pressures on curves.

Types and Functions of Rail Clips

Rail fastening systems have evolved significantly over time. Early systems used simple cut spikes to hold the rail directly to wooden ties. While effective for their time, spikes can loosen over the years, compromising gauge and requiring frequent maintenance. Modern systems use a more sophisticated approach involving a combination of tie plates, screw spikes or bolts, and specialized clips.

There are many different types of rail clips, but they generally fall into two categories: rigid and elastic.

1. Rigid Clips: These clips, like bolted clips, provide a very strong clamping force but offer little to no flexibility. They are effective at preventing rail movement but can transfer significant stress and vibration into the sleeper and ballast.
2. Elastic Clips: These are the most common type of clip used in modern railways. Elastic clips are designed to provide a consistent clamping force while also allowing for slight, controlled vertical movement of the rail. This elasticity helps absorb shocks and vibrations, reducing wear on both the rail and the underlying track components. It also helps prevent the rail from lifting or overturning under load, a phenomenon known as “rail roll.”

Popular examples of elastic rail clips include the Pandrol clip and the Vossloh clip.

• Pandrol ‘e-Clip’ and ‘Fastclip’: The Pandrol system is one of the most widely recognized elastic fastening systems. The ‘e-Clip’ is a resilient, threadless fastening that can be driven into a shoulder on the tie plate with a simple hammer or automated machinery. It exerts a constant toe load on the rail foot. The ‘Fastclip’ system is a newer innovation designed for rapid, mechanized installation, further improving the efficiency of track construction and maintenance.
• Vossloh Tension Clamp: The Vossloh system utilizes a screw-and-dowel combination to secure a highly elastic tension clamp (often in a distinctive ‘Sk’ shape) against the rail. The screw spike is driven into a plastic dowel embedded in a concrete or wooden sleeper, and the clamp provides a durable, maintenance-free clamping force. This system is known for its high resistance to rail creep (longitudinal movement) and its excellent vibration dampening properties.

Proper Clip Selection and Installation

The choice of railway iron dimensions depends on several factors, including the type of rail, sleeper material (wood, concrete, or steel), expected axle loads, and traffic speed. A heavy-haul line with concrete sleepers will require a much more robust fastening system than a low-speed industrial siding with wooden ties.

Proper installation is critical to the performance of any rail clip. An improperly installed clip can lead to insufficient clamping force, resulting in rail movement, gauge widening, and potential derailment. The clamping force, or “toe load,” must be within the manufacturer’s specified range to ensure the system functions as designed. Regular inspections are necessary to identify any clips that may be broken, loose, or missing, so they can be replaced promptly to maintain the integrity of the track structure. By combining the correct railway iron dimensions with a robust and well-maintained fastening system, railways can ensure a safe and efficient path for the trains that depend on them.
