What is a Railway Sleepers in Construction

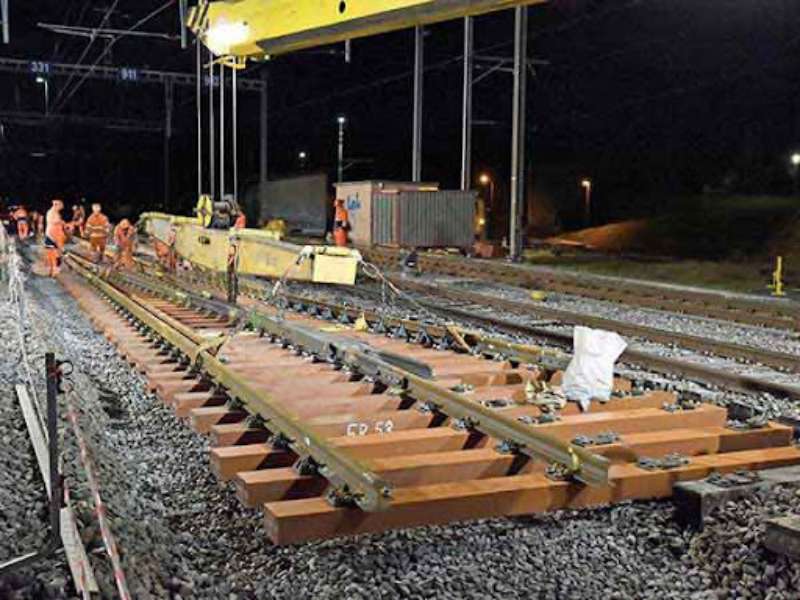

In the context of railway engineering, understanding railway sleepers in construction is essential for building and maintaining stable, long-lasting track infrastructure. A railway sleeper, also known as a railroad tie in North America, is the rectangular support element placed perpendicular to the rails. Its primary functions are to hold the rails upright at the correct gauge, transfer the immense loads from the rails to the track ballast and subgrade beneath, and prevent longitudinal and lateral movement of the track. Sleepers are the foundational components that ensure the geometry and stability of the entire track structure.

What is a sleeper in construction and its material types?

Railway sleepers are manufactured from various materials, each offering a unique set of advantages and disadvantages related to cost, durability, weight, and maintenance requirements. The selection of a specific sleeper type depends on factors such as track classification (mainline, siding, yard), traffic density, axle loads, and environmental conditions. The main materials used for sleepers are wood, concrete, and steel, with composite materials also emerging as a viable alternative. Each material comes with its own set of specifications governing its dimensions, strength, and treatment processes to ensure it can withstand the demanding railway environment.

Wooden Sleepers

Wooden sleepers are the most traditional type and have been used for over a century. They are favored for their elasticity, which helps absorb vibrations and provides a smoother ride. They are also relatively easy to install and handle due to their lower weight compared to concrete. Common woods used include oak, jarrah, and other hardwoods, which are treated with preservatives like creosote to protect against decay and insect infestation.

The size and grade of wooden sleepers are critical to their performance. For industrial and lower-tonnage tracks, specifications often allow for slight imperfections that would not be acceptable for mainline use.

Typical Specifications for Wooden Sleepers

Manufacturing and quality control for wooden sleepers are rigorous. They must be sawn to precise dimensions, with parallel top and bottom surfaces to ensure a stable seat for the rail. Specifications from bodies like AREMA and Norfolk Southern (NS) outline strict limits on defects such as splits, knots, decay, and grain deviation. For example, NS specifications for industrial-grade ties detail acceptable check sizes, hole diameters, and knot sizes to ensure structural integrity even in non-mainline applications.

Concrete Sleepers

Concrete sleepers have become the standard for high-speed and heavy-haul mainlines around the world. Made from steel-reinforced, pre-stressed concrete, they offer superior strength, a very long service life (often exceeding 50 years), and excellent dimensional stability. Their significant weight, which can be over 600 lbs (272 kg), provides exceptional track stability and helps maintain gauge and alignment under heavy loads.

However, their weight also makes them more difficult to transport and install. Concrete sleepers are less elastic than wood, which can lead to faster degradation of the ballast bed if not managed properly. To counter this, elastic pads are often placed between the rail and the sleeper to help absorb vibrations.

Typical Specifications for Concrete Sleepers

Concrete sleepers are manufactured in highly controlled factory environments. The pre-stressing process, where steel reinforcement is tensioned before the concrete is poured and cured, imparts a compressive force into the sleeper. This pre-compression counteracts the tensile forces that develop under train loads, preventing cracking and ensuring long-term durability.

Steel Sleepers

Steel sleepers are a lighter-weight alternative to concrete and offer a longer lifespan than wood. They are often made from pressed steel, forming an inverted trough shape. This design provides good lateral resistance within the ballast, and they can be stacked compactly for efficient transportation. Steel sleepers are fully recyclable, making them an environmentally friendly choice.

They are particularly useful in areas with sharp curves, as they provide excellent gauge retention. However, they are susceptible to corrosion, especially in humid or saline environments, and require proper insulation if used in track-circuited signal territory.

Typical Specifications for Steel Sleepers

Rail Clips for Sleeper Construction

A sleeper’s job is not complete without a reliable fastening system. Rail clips are the components that secure the rail to the sleeper, holding it firmly in place and resisting the powerful vertical, lateral, and longitudinal forces exerted by passing trains. The evolution from simple rail spikes to modern elastic clips has been a major advancement in railway engineering, dramatically improving safety and reducing maintenance needs. When asking railway sleepers in construction, it is impossible to ignore the critical role of these fastening systems.

Types and Functions of Rail Clips

Fastening systems have evolved to meet the demands of heavier and faster trains. While traditional spikes are still used in some applications, elastic clip systems now dominate modern track construction.

1. Cut Spikes: The original fastening method, spikes are driven into wooden sleepers on either side of the rail base. They primarily resist lateral movement and overturning but offer little resistance to vertical lift or longitudinal rail creep. Over time, the wood fibers around the spike can degrade, causing the spike to loosen.
2. Screw Spikes: Offering greater holding power than cut spikes, screw spikes are threaded into the sleeper. They provide better resistance to rail uplift and are common in many European and international systems, often used in conjunction with a baseplate.
3. Elastic Clips: These are the modern standard for securing rails to both concrete and wooden sleepers. Unlike rigid fastenings, elastic clips are designed to apply a constant, spring-like clamping force (toe load) on the base of the rail. This allows for slight, controlled movement and vibration absorption while ensuring the rail remains securely fastened. This elasticity reduces wear on all track components and is essential for tracks with continuously welded rail (CWR) to manage thermal expansion and contraction.

Prominent Elastic Clip Systems

Two of the most widely used elastic fastening systems are the Pandrol and Vossloh systems.

• Pandrol System: The Pandrol ‘e-Clip’ is a simple, robust design that is driven into a cast-in shoulder on a concrete sleeper or a special tie plate on a wooden sleeper. Its shape is engineered to provide a specific toe load, and its threadless design makes it quick to install and remove with simple tools. The more advanced Pandrol ‘Fastclip’ system comes pre-assembled on the sleeper, allowing for even faster, fully mechanized track laying.
• Vossloh System: The Vossloh Tension Clamp (often recognizable by its ‘Sk’ shape) is secured to the sleeper using a screw spike and a plastic dowel. This system is known for its high clamping force and excellent resistance to rail creep, making it ideal for heavy-haul and high-speed lines. The elasticity of the clamp also provides significant vibration damping.

Typical Rail Clip Specifications

The choice and proper installation of rail clips are just as important as selecting the right sleeper. An inadequate fastening system can negate the benefits of a high-quality sleeper, leading to premature track degradation and potential safety hazards. The combination of a properly specified sleeper and a robust fastening system creates a track structure capable of safely and efficiently supporting rail traffic for decades.
