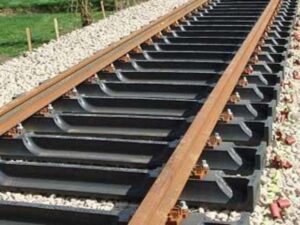

Railway Sleepers and Rail Clips

Railway sleepers, also known as railroad ties or crossties, are fundamental components of any railway track structure. They are laid perpendicular to the rails, serving several critical functions: transferring loads from the rails to the track ballast and subgrade, holding the rails upright, and maintaining the correct track gauge. The performance and longevity of a railway line depend heavily on the quality and specifications of its sleepers and the fastening systems used, such as rail clips. Understanding the different types and detailed specifications of railway sleepers is essential for engineers, maintenance crews, and anyone involved in railway infrastructure.

The material and design of railway sleepers have evolved significantly over time. While traditional timber sleepers are still in use, modern railway systems increasingly rely on concrete, steel, and composite materials to handle higher speeds and heavier axle loads. Each material offers distinct advantages and is suited for specific operational environments. This guide delves into the detailed specifications of various sleeper types and explores the crucial role of rail clips in securing the track assembly.

Railway Sleepers’ Types and Functions

Railway sleepers are more than just supports; they are an integral part of the dynamic system that makes up a railway track. Their primary functions include distributing the load from the train wheels, through the rails, and across the ballast. This distribution prevents the subgrade from being overloaded. They also anchor the rails, preventing lateral movement and maintaining the precise distance, or gauge, between them. The choice of sleeper material directly impacts track stability, maintenance requirements, and overall cost-effectiveness. The main types of railway sleepers used today include timber, concrete, steel, and composite materials. Each type comes with its own set of characteristics and applications, making the selection process a critical engineering decision.

Timber Railway Sleepers

For many years, timber was the material of choice for railway sleepers. Hardwoods like oak and softwoods like Douglas fir are commonly used. Wood offers good elasticity, which helps absorb vibrations and reduce noise. It is also a natural insulator, making it suitable for use in track-circuited areas without extra components.

Timber sleepers are relatively easy to handle and install due to their lower weight compared to concrete. They can be treated with preservatives like creosote to extend their service life by protecting against rot and insect infestation. However, the availability of high-quality hardwood is decreasing, and environmental concerns regarding chemical treatments have led to a search for alternatives. Despite these challenges, timber sleepers remain a viable option for lower-speed lines, secondary tracks, and in specific applications like bridges where their lighter weight is an advantage.

Steel Railway Sleepers

Steel sleepers are trough-shaped sections made from pressed steel. They are significantly lighter than concrete sleepers and offer a long service life, often exceeding 50 years. A key advantage of steel is its 100% recyclability, which aligns with modern environmental standards. The spade-shaped ends of steel sleepers provide excellent lateral resistance, helping to maintain track geometry even under heavy loads.

These sleepers are often used on secondary lines and in industrial or mining applications. They can be installed on existing ballast beds, reducing the need for extensive trackbed renewal. However, steel sleepers must be properly insulated if used with track circuit signaling systems to prevent short circuits. Their susceptibility to corrosion in certain environments can also be a concern, although modern coatings and alloys have greatly mitigated this issue.

Composite Railway Sleepers

Composite railway sleepers, made from recycled plastics, rubber, and other materials, represent a modern, sustainable alternative. They are engineered to replicate the beneficial properties of timber, such as workability and elasticity, while being impervious to rot, moisture, and insect damage. This gives them an exceptionally long lifespan, often projected between 30 and 80 years with minimal maintenance.

Composite sleepers are an excellent choice for areas with high humidity, tunnels, and on bridges where durability and reduced vibration are important. They can be manufactured with specific surface textures to increase ballast grip and lateral stability. While their initial cost might be higher than traditional timber, their long-term durability and low maintenance needs make them a cost-effective solution over the entire life cycle of the track.

Detailed Specifications of Concrete Railway Sleepers

Concrete railway sleepers have become the standard for high-speed and heavy-haul railway lines across the world. Their substantial weight provides superior track stability, which is essential for maintaining precise track geometry under the dynamic forces of high-speed trains. They are typically made from pre-stressed concrete, which imparts high tensile strength and resistance to cracking.

The manufacturing process involves casting high-strength concrete around pre-tensioned steel wires or bars. Once the concrete reaches a specific strength, engineers release the tension on the steel, which compresses the concrete and makes it highly resistant to the bending forces it will experience in service.

Concrete sleepers are manufactured to exacting standards to ensure consistency and performance. These standards cover everything from dimensional accuracy to bending moment resistance. Different types of concrete sleepers are designed for specific rail weights and traffic conditions. For example, sleepers intended for 60 kg/m rails on a heavy-haul line will have different reinforcement and dimensional specifications than those designed for 48 kg/m rails on a passenger line.

Below is a table outlining the typical design bending moments for various types of pre-stressed concrete railway sleepers used in a 1065 mm gauge system. These values represent the sleeper’s capacity to resist bending forces at the rail seat (positive moment) and at the center of the sleeper (negative moment) without cracking.

These specifications ensure that concrete railway sleepers can withstand the immense forces generated by passing trains for decades with very little maintenance. Their durability and stability make them the preferred choice for modernizing rail networks globally.

The Rail Clips in Fastening Systems

A rail fastening system secures the running rails to the railway sleepers. This system is critical for transferring loads, restraining the rail from longitudinal and lateral movement, and maintaining the track gauge. The rail clip is the component that applies a clamping force to the foot of the rail, holding it firmly against the sleeper. The effectiveness of the entire track structure is highly dependent on the performance of these clips.

Railway engineers choose different types of rail clips depending on the sleeper material, rail section, and expected traffic loads. They broadly categorize these clips as either rigid or elastic.

Rigid Rail Clips

Rigid clips, like the traditional dog spike used with timber sleepers, provide a firm hold but offer little to no elasticity. While simple and effective for low-speed tracks, they can loosen over time due to vibration and thermal expansion and contraction of the rail. This requires regular inspection and maintenance to tighten or re-drive the spikes.

Elastic Rail Clips

Modern railway systems almost exclusively use elastic rail clips. Engineers design these clips to apply a consistent, predetermined clamping force on the rail foot while still allowing small vertical movements and rotations of the rail. This elasticity is crucial for absorbing shocks and vibrations, which reduces wear and tear on both the rail and the sleeper.

Popular types of elastic clips include the Pandrol clip and the Vossloh clip.

• Pandrol ‘e-Clip’ and ‘FASTCLIP’: The Pandrol system is one of the most widely used elastic fastening systems. The ‘e-Clip’ is a resilient, threadless fastening that is driven into a cast-in shoulder in a concrete sleeper. It provides a high clamping force and is designed for rapid installation and removal. The ‘FASTCLIP’ system is an evolution of this design, featuring a captive clip that is pre-installed on the sleeper, reducing component handling and speeding up track construction and maintenance even further.
• Vossloh Systems: Vossloh offers several tension clamp systems, such as the SKL series. These systems typically use a screw spike to secure a tension clamp against the rail foot. The elasticity is provided by the shape of the clamp, which acts like a spring. These systems are known for their high and stable clamping force, excellent resistance to rail creep, and adaptability to various rail and sleeper types.

Elastic rail clips ensure that the rail remains securely fastened under a wide range of operating conditions. They accommodate the natural expansion and contraction of continuously welded rail, reduce noise, and prolong the life of all track components. The choice of clip and fastening system is a complex engineering decision, tailored to the specific demands of each railway line to ensure safety, reliability, and long-term performance of the railway sleepers and the track as a whole.

Related Crane Rail Clips Products Section

Elastic rail clips are essential components in modern railway fastening systems, designed to provide a secure and elastic connection between the rail and the sleeper. These clips ensure stability, absorb vibrations, and accommodate the natural expansion and contraction of rails, making them ideal for high-speed and heavy-load railway systems. Below is a table showcasing the specifications of the most relevant elastic rail clips for crane rail applications:

These products are tailored to meet the demands of crane rail systems, ensuring safety, reliability, and long-term performance in various industrial and railway applications.

FAQs Related to Elastic Rail Clips

1. What are the main advantages of using elastic rail clips?
     Elastic rail clips provide consistent clamping force, absorb shocks and vibrations, reduce wear and tear on rails and sleepers, and accommodate thermal expansion and contraction of rails.
2. How do Pandrol ‘e-Clip’ and ‘FASTCLIP’ systems differ?
     The Pandrol ‘e-Clip’ is a threadless fastening system driven into a cast-in shoulder, while the ‘FASTCLIP’ system features a pre-installed captive clip for faster installation and reduced component handling.
3. What materials are used in the manufacturing of elastic rail clips?
     Elastic rail clips are typically made from high-grade spring steel, designed to provide durability and elasticity under heavy loads.
4. Can elastic rail clips be used with all types of railway sleepers?
     Yes, elastic rail clips are versatile and can be used with timber, concrete, steel, and composite sleepers, depending on the specific design and application.
5. What maintenance is required for elastic rail clips?
     Elastic rail clips require minimal maintenance but should be periodically inspected for wear, deformation, or loosening to ensure optimal performance and safety.
