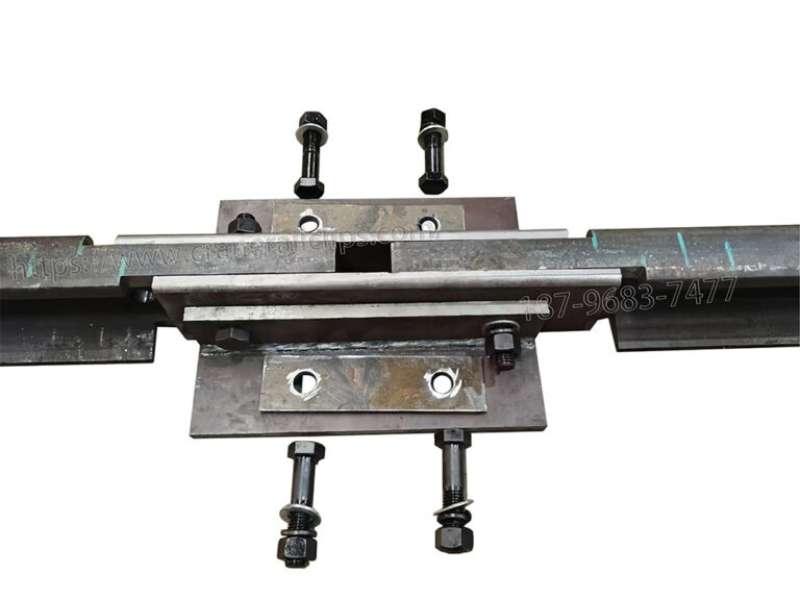

Railway Track Joints Guide

Railway track joints are the engineered connection points used to join individual rails end-to-end, creating a continuous running surface for trains. While modern railways increasingly use continuous welded rail (CWR) to eliminate as many joints as possible, mechanical joints remain essential for numerous applications, including track signaling circuits, temporary repairs, and transitions between different rail types. The integrity of these joints is critical to track safety and performance, as they are inherently the weakest points in the track structure. This technical guide Xingrail provides a detailed examination of various railway track joints, focusing on their specifications, component designs, and the engineering principles that dictate their use.

Components of Bolted Railway Track Joints

The most common type of mechanical connection is the bolted joint. It is an assembly of several key components that work in unison to provide structural integrity, maintain precise alignment, and manage the immense forces of passing trains.

• Fishplates (Joint Bars): These are the primary structural components of the joint. A pair of steel bars is bolted to either side of the rail web, fitting snugly into the “fishing” area—the contoured space between the rail head and foot. The cross-section of a fishplate is precisely engineered to match the profile of the specific rail it is designed for, ensuring maximum contact and efficient load transfer.
• Track Bolts: High-strength bolts, typically four or six per joint, are used to clamp the fishplates firmly against the rail. They are specifically designed to withstand the immense shear and tensile forces generated by train traffic.
• Spring Washers: Placed under the nut of each track bolt, these heavy-duty washers provide a constant tension on the bolt. This spring action is crucial for preventing the nut from loosening under the constant, heavy vibration of passing trains.

Fishplate Specifications and Design

The design of the fishplate is the most critical factor in the performance of all bolted railway track joints. These bars must transfer vertical loads between rail ends to prevent dipping, maintain horizontal alignment to hold the gauge, and allow for slight longitudinal movement for thermal expansion and contraction.

Manufacturers typically use medium-to-high carbon steel for fishplates, hot-rolling and sometimes heat-treating it to achieve an optimal balance of strength and ductility. The material must be strong enough to resist bending under heavy axle loads but not so brittle that it would fracture under the repeated impact forces at the joint.

Types of Railway Track Joints and Their Applications

Different operational requirements across the rail network have led to the development of several specialized types of joints. Each is designed to address a specific challenge within the track structure.

1. Common Bolted Joints

This is the standard mechanical joint used to connect two rails of the same size and profile. It uses a pair of standard fishplates and either four or six track bolts. While effective and simple, it creates a discontinuity in the track that generates noise and impact forces, requiring regular inspection and maintenance to ensure the bolts remain tight.

Key Specifications:

• Number of Bolts: 4-bolt joints are common for lighter-duty track, such as in yards or industrial sidings. 6-bolt joints are standard for mainline and heavy-haul applications, providing greater strength and stability.
• Bolt Hole Drilling: The pattern of bolt holes drilled into the rail web must conform to established standards (e.g., AREMA) to ensure proper fishplate fitment and interchangeability.
• Joint Gap: A small gap, typically ranging from 3 mm to 6 mm, is left between the rail ends. This gap is essential to allow for thermal expansion and contraction of the rail with temperature changes.

2. Compromise (Transition) Joints

A compromise joint is a highly specialized assembly used to connect two rails of different sizes, weights, or profiles. This is a common requirement during track upgrades or when connecting a mainline track to a siding or yard track constructed with a lighter rail section.

• Design: Compromise joints cannot use standard fishplates because the rail profiles do not match. Instead, they require custom-forged, cast, or machined compromise bars. Each end of the bar is shaped to precisely match the fishing profile of the corresponding rail section. This ensures a smooth transition for the wheel, both vertically and horizontally, preventing a sudden jolt or a potential wheel-climb derailment.
• Application: These joints are essential for safely connecting sections like a 136RE mainline rail to a 115RE yard lead rail. They are complex and expensive to produce, representing a critical and carefully engineered point in the track.

3. Insulated Rail Joints (IRJs)

Insulated rail joints are fundamental to the operation of railway signaling systems. They create an electrical break in the rail, which allows for the creation of track circuits that can detect the presence of a train in a specific section, or “block,” of track.

• Design: An IRJ is designed to completely isolate the rail ends from each other and from the fishplates. This is achieved through a kit of several non-conductive components:

• Insulated Fishplates: The steel fishplates are either coated in a tough, abrasion-resistant insulating material or are manufactured entirely from a high-strength composite material.
• End Post: A hard, insulating plate, typically made of high-density polymer or a fiberglass composite, is placed in the gap between the two rail ends to ensure electrical separation.
• Bushings and Washers: Insulating sleeves (“bushings”) are placed in the bolt holes of the rail web, and insulating washers are used under the steel washers to prevent the bolts from making electrical contact with the rail.

4. Glued Insulated Rail Joints

The glued insulated rail joint is a high-performance evolution of the standard IRJ. It is designed to overcome the mechanical weakness of traditional bolted joints and is the standard for modern high-speed and heavy-haul lines where track integrity is paramount.

• Design: In a glued IRJ, the entire joint assembly—including the fishplates, insulators, and rail ends—is bonded together with a high-strength, gap-filling epoxy adhesive. The joint is typically pre-assembled in a controlled factory environment on a short section of rail. This finished “plug” is then transported to the field and thermite welded into the track.
• Performance: The glue fills all voids, turning the joint into a single, solid block. This dramatically increases the joint’s stiffness and strength, making it behave more like the parent rail. It virtually eliminates the impact forces, noise, and maintenance issues associated with conventional bolted joints while providing reliable electrical isolation.

The proper selection and installation of these different railway track joints are essential for maintaining the safety and operational efficiency of the entire railway system. While CWR is the modern ideal, the careful engineering behind these mechanical connections ensures that the track remains a reliable and robust system at every necessary break and transition point.
