The unique 1,520 mm track width of the Russian railroad gauge system presents distinct engineering challenges, demanding highly specific components to ensure safety, durability, and efficiency. The performance of this vast network, one of the most heavily used in the world, relies on the precise specifications of its rails and the corresponding fastening systems. The wider gauge, combined with harsh climate conditions and heavy axle loads, necessitates rails with robust profiles and advanced metallurgical properties. Consequently, the rail clips used must provide exceptional, consistent clamping force to maintain track integrity. This analysis provides a deep dive into the technical standards and specifications for the rails and clips integral to the Russian railroad gauge infrastructure.

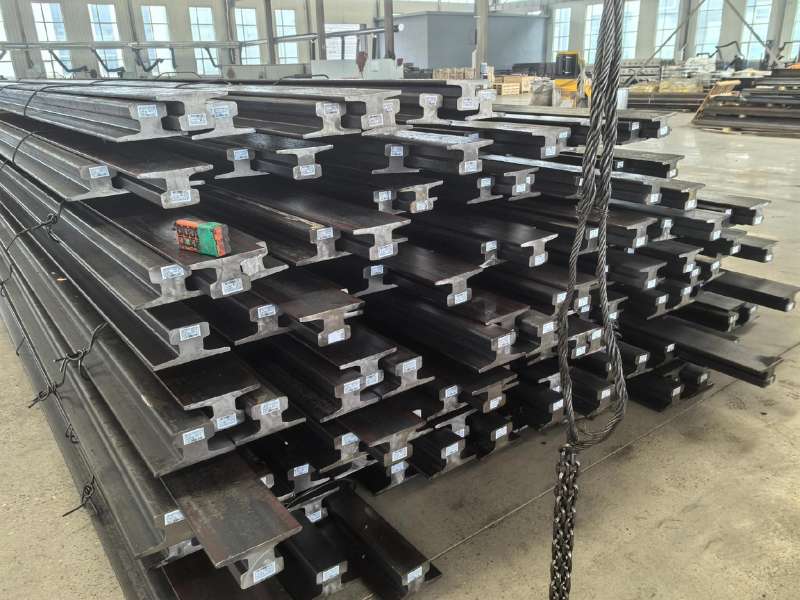

Rail Profile Standards for the Russian Railroad Gauge
In Russia and the Commonwealth of Independent States (CIS), rail standards are governed by GOST (Gosudarstvennyy Standart) specifications. These standards dictate the exact dimensions, weight, chemical composition, and mechanical properties of the rails used. For the Russian railroad gauge, heavier rail profiles are preferred for mainline tracks to support immense traffic volumes, which include both high-speed passenger trains and heavy-haul freight.
The selection of a rail profile, such as the common R65 or the heavier R75, is a critical decision. A heavier rail provides greater vertical and lateral stiffness, distributes load over a wider area of the sleeper, and offers a larger wear allowance on the rail head. The design of these profiles is optimized to manage contact stresses and resist the fatigue and fracture that can result from millions of loading cycles. The wider stance of the Russian railroad gauge allows for the use of these massive rail profiles, enhancing overall track stability and performance.
Key GOST Rail Profiles
The Russian railroad gauge network primarily employs a few key rail profiles designed for specific operational demands. The most common is the R65, with the R75 being used for the most demanding routes.
R65 Rail Profile (GOST R 51685-2000)
The R65 rail is the workhorse of the Russian and CIS railway systems. Its name derives from its approximate weight of 65 kg per meter. It is designed for main lines with mixed traffic, providing a durable and reliable solution for the diverse conditions encountered on the Russian railroad gauge.
Table 1: R65 Rail Specifications
|
Property |
Value |
Unit |
|
Nominal Weight |
64.72 |
kg/m |
|
Head Width |
75.0 |
mm |
|
Rail Height |
180.0 |
mm |
|
Foot Width |
150.0 |
mm |
|
Web Thickness |
18.0 |
mm |
|
Cross-Sectional Area |
82.65 |
cm² |
|
Moment of Inertia (Horizontal) |
3539.6 |
cm⁴ |
|
Moment of Inertia (Vertical) |
623.5 |
cm⁴ |
|
Section Modulus (Head) |
374.5 |
cm³ |
|
Section Modulus (Foot) |
419.1 |
cm³ |
R75 Rail Profile
For lines with extremely high traffic density, heavy axle loads, or high-speed operations, the R75 rail is often specified. This even heavier profile provides superior strength and wear resistance, prolonging the maintenance cycle and enhancing safety on the most critical corridors of the Russian railroad gauge.
Table 2: R75 Rail Specifications
|
Property |
Value |
Unit |
|
Nominal Weight |
74.41 |
kg/m |
|
Head Width |
75.0 |
mm |
|
Rail Height |
192.0 |
mm |
|
Foot Width |
150.0 |
mm |
|
Web Thickness |
20.0 |
mm |
|
Cross-Sectional Area |
94.77 |
cm² |
|
Moment of Inertia (Horizontal) |
4467 |
cm⁴ |
|
Moment of Inertia (Vertical) |
694 |
cm⁴ |
|
Section Modulus (Head) |
439 |
cm³ |
|
Section Modulus (Foot) |
490 |
cm³ |
Rail Metallurgy and Mechanical Properties
The steel used for rails on the Russian railroad gauge is produced according to stringent GOST standards to ensure performance in extreme temperatures, ranging from deep Siberian frosts to summer heat. The chemical composition is precisely controlled to produce steel that is both hard and tough.
Rails are often produced in different quality categories, including standard (non-heat-treated) and various grades of heat-treated steel (thermo-strengthened). Heat-treated rails offer significantly higher hardness and wear resistance and are used in curves, on steep grades, and on high-tonnage lines.
Table 3: Typical Chemical Composition for GOST Rails
|
Element |
Percentage (%) (Example for DT350 Grade) |
|
Carbon (C) |
0.71 – 0.82 |
|
Manganese (Mn) |
0.75 – 1.15 |
|
Silicon (Si) |
0.25 – 0.60 |
|
Vanadium (V) |
0.03 – 0.15 |
|
Phosphorus (P) |
≤ 0.025 |
|
Sulfur (S) |
≤ 0.025 |
The resulting mechanical properties are essential for the longevity and safety of the track.
Table 4: Key Mechanical Properties for GOST R65 Rails
|
Property |
Typical Value (Heat-Treated) |
|
Tensile Strength |
≥ 1180 MPa |
|
Yield Strength |
≥ 850 MPa |
|
Elongation at Fracture |
≥ 6% |
|
Hardness (Running Surface) |
341 – 388 HBW |
This powerful combination of strength and hardness ensures the rails can endure the punishing environment of the Russian railroad gauge, resisting plastic deformation, wear, and the formation of internal defects over a long service life.
Rail Clips and Fastening Systems for the Russian Railroad Gauge
Rail fastening systems are a critical element in maintaining the integrity of the Russian railroad gauge. They secure the rail to the sleeper, provide electrical insulation for signaling, and absorb dynamic loads from passing trains. Given the heavy loads and extreme climate, elastic fastening systems are the standard, as they maintain a continuous clamping force on the rail foot.
Types of Rail Clip Systems
Several types of fastening systems are employed, with the KB and ZHBR systems being among the most common for concrete sleepers, which are prevalent on mainlines.
KB (КБ) Fastening System
The KB fastening system is a bolted design. It uses a rigid terminal (Клемма ПК) and a bolt that secures the rail to an anchor cast into the concrete sleeper. While it has been a long-standing solution, it is gradually being replaced by more modern elastic systems. The system includes a bolt, the terminal (clip), and insulating pads.
Table 5: Specifications for a Typical KB Fastening Clip (Terminal)
|
Property |
Value |
|
Material |
Steel (e.g., St4, St5) |
|
System Type |
Bolted, semi-rigid |
|
Nominal Clamping Force |
~18-20 kN per terminal (when tightened) |
|
Application |
Used with T-head bolt anchored in concrete sleeper |
|
Key Feature |
High clamping force but requires periodic re-tightening |
The clamping force in the KB system is generated by the torque applied to the bolt. This makes it susceptible to loosening under vibration, requiring a rigorous maintenance schedule.
ZHBR (ЖБР) Fastening System
The ZHBR is a more modern, non-bolted elastic fastening system. It represents a significant technological advancement for the Russian railroad gauge. The system typically uses a spring clip (similar in principle to a Pandrol-style clip) that is inserted into a cast-in shoulder in the concrete sleeper. This provides a constant, maintenance-free clamping force.
Table 6: Specifications for a Typical ZHBR-65 Spring Clip
|
Property |
Value |
|
Material |
High-Grade Spring Steel (e.g., 60S2A) |
|
System Type |
Elastic, non-bolted |
|
Nominal Clamping Force |
≥ 12 kN per clip |
|
Toe Load |
≥ 25 kN total clamping force per rail seat |
|
Fatigue Life |
≥ 5 million cycles |
|
Hardness |
44 – 49 HRC |
|
Application |
Inserted into a polymer-lined anchor cast in the sleeper |
The ZHBR system offers superior performance in terms of maintaining track geometry and absorbing vibrations. Its “fit and forget” nature significantly reduces maintenance costs and improves track availability, making it the preferred choice for new construction and major renewals on the Russian railroad gauge.
APC (АРС) Fastening System
The APC (Ankernoye Relsovoye Skrepleniye) is another advanced, non-bolted elastic fastening system. It also uses an anchored design where a cast-in anchor in the concrete sleeper holds the spring terminal. The design focuses on providing very high and reliable clamping force and excellent electrical insulation.
Table 7: Specifications for a Typical APC Clip
|
Property |
Value |
|
Material |
High-Strength Spring Steel |
|
System Type |
Elastic, anchored, non-bolted |
|
Nominal Clamping Force |
~12.5 kN per clip |
|
Spring Deflection |
Provides elasticity under dynamic load |
|
Fatigue Life |
≥ 3 million cycles |
|
Key Feature |
High resistance to longitudinal rail creep |
|
Application |
High-speed and heavy-haul lines |
The APC system is considered a premium solution, offering exceptional stability and longevity for the most demanding sections of the Russian railroad gauge.
Manufacturing and Quality Control
The manufacturing of rail clips for the Russian railroad gauge is subject to strict GOST standards. The process involves:
- Material Selection: Using certified high-grade spring steel.
- Forging: Heating the steel rods and forming them into the precise clip shape.
- Heat Treatment: A critical quenching and tempering process to achieve the required balance of spring-like elasticity and high strength.
- Finishing: Applying anti-corrosion coatings suitable for harsh environments.
Rigorous quality control testing is performed on each batch, including dimensional checks, hardness tests, load-deflection tests to confirm clamping force, and fatigue tests to ensure the clips will not fail under the millions of load cycles they will experience in track. This comprehensive approach to engineering and quality assurance is what enables the Russian railroad gauge to operate reliably under一些 of the world’s most challenging conditions.
