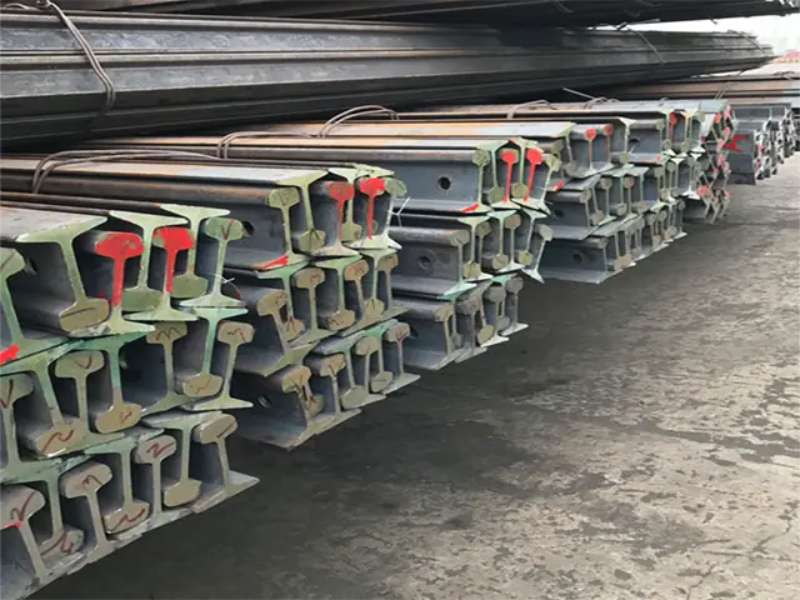

South African Rail Standard: Rails And Clips

A deep understanding of the South African rail standard is essential for any work involving the nation’s extensive railway infrastructure. These standards, historically influenced by British specifications and later developed locally by entities like ISCOR (Iron and Steel Corporation of South Africa), dictate the precise manufacturing and material requirements for all rail track components. This guide focuses specifically on the technical specifications of two core elements: the rail profiles used across the network and the rail clips that fasten them. We will examine the dimensional, chemical, and mechanical properties that ensure these components can withstand the demands of both heavy-haul freight and passenger services.

South African Rail Profiles

The South African rail standard designates rail profiles by their mass in kilograms per meter (kg/m). This system provides a straightforward way to classify rails based on their strength and intended application. The primary profiles used in South Africa include 15, 22, 30, 40, and 48 kg/m rails. The country’s network predominantly uses a Cape gauge of 1,067 mm, and these rail profiles are designed to function effectively within that specific track geometry. Heavier profiles are reserved for mainlines with high traffic density and heavy axle loads, while lighter profiles are suitable for secondary lines, yards, and industrial applications.

Detailed Specifications of Key South African Rails

The engineering precision of the South African rail standard is evident in the detailed specifications for each profile. These dimensions are critical for ensuring compatibility with other track components like fishplates, fastening systems, and turnouts. The tables below provide a comprehensive overview of the key dimensional and mechanical properties for the most common rail profiles.

Table 1: Dimensional Specifications for South African Standard Rails

Material Composition and Mechanical Strength

The durability and performance of rails manufactured under the South African rail standard are directly linked to their metallurgical properties. These rails are produced from high-carbon steel, often with specific alloys added to improve hardness, tensile strength, and wear resistance. The chemical composition is tightly controlled to prevent brittleness and ensure consistent quality. Heat treatment processes, such as head hardening, may be applied to heavier rail profiles (like the 48 kg/m) to enhance their service life on routes with high abrasive wear, particularly on curves.

Table 2: Example Chemical Composition for Standard Carbon Rails

The mechanical properties define the rail’s ability to resist deformation and fracture under the immense forces exerted by trains. Tensile strength measures the rail’s resistance to being pulled apart, while hardness indicates its ability to resist surface indentation and wear.

Table 3: Typical Mechanical Properties for South African Standard Rails

The selection of a specific grade, such as 700 or 900A, depends on the operational requirements of the track. Mainlines handling heavy ore trains, like those on the Sishen-Saldanha line, demand high-strength, wear-resistant rails, whereas lower-density branch lines can be constructed using standard-grade steel.

Rail Clips and Fastening Systems

Rail clips are a vital component of the track structure, responsible for securely fastening the rail to the sleeper. An effective fastening system must prevent vertical, lateral, and longitudinal movement of the rail while also providing a degree of elasticity to absorb vibrations. This maintains the correct track gauge, ensures stability, and contributes to a longer lifespan for all track components. South Africa primarily uses concrete sleepers, and the fastening systems are designed for this application.

Common Rail Clip Types in South Africa

The national network predominantly utilizes elastic fastening systems. The most common clip type found in South Africa is the Pandrol-style clip, particularly the “e-Clip” and the “Fist” clip.

1. Pandrol e-Clip: This is a threadless, resilient fastening that is driven into a cast-in shoulder within the concrete sleeper. Its “e” shape is engineered to provide a specific, consistent clamping force on the rail foot. Different series of the e-Clip (e.g., e1800, e2000) offer varying levels of clamping force to suit different applications. They are known for their reliability and ease of installation and maintenance.
2. Fist Clip: The Fist fastening system, developed in South Africa, is another prominent clip used on the network. It consists of a spring steel element that is held in tension by a bolt and anchored into the concrete sleeper. This system is known for its high clamping force and excellent resistance to rail creep, making it suitable for tracks with steep gradients or high levels of acceleration and braking.

Technical Specifications for Rail Clips

The performance of a rail clip is measured by its clamping force, material properties, and fatigue life. These specifications ensure the clip can perform its function reliably over millions of load cycles.

• Clamping Force: This is the vertical force exerted by the clip onto the rail flange, holding it firmly against the sleeper. A typical clamping force for heavy-haul applications in South Africa is around 10 kN per clip.
• Material: Clips are manufactured from high-grade spring steel (such as 60Si2MnA) that undergoes a precise heat treatment process to achieve the required elasticity and strength to withstand dynamic loads without permanent deformation.
• Fatigue Life: Rail clips must endure the stress of every passing axle. They are designed and tested to have a fatigue life of several million cycles, ensuring long-term performance without failure.

Table 4: General Specifications for Elastic Rail Clips Used in South Africa

Insulators and Pads: Supporting Components

The fastening system is completed by insulators and rail pads, which work in tandem with the clips.

• Rail Pads: Made from durable materials like rubber-cork composite or EVA, these pads are placed between the rail and the concrete sleeper. Their primary function is to distribute the load evenly, absorb shock and vibration, reduce noise, and protect the sleeper from abrasive wear.
• Insulators: These plastic components are fitted around the clip to electrically isolate the rail from the sleeper. This is crucial for the correct operation of track signaling systems, which rely on electrical circuits running through the rails to detect the location of trains.

The successful implementation of the South African rail standard depends on the correct selection and combination of these components. The rail profile, clip type, pad, and insulator must all be compatible and suited to the specific demands of the railway line, whether it’s carrying passengers through urban centers or transporting minerals from mines to ports.

Recommended Products for South African Rail Standards

Securing your railway infrastructure in South Africa requires strict adherence to local rail profile dimensions. Whether you operate on high-density mainlines carrying heavy ore or secondary branch lines, track stability depends entirely on your fastening system.

While the Cape gauge defines the 1,067 mm distance between the rail heads, you must select your rail clips based solely on the physical base width of your rail profile. Your rail clip must sit completely flush against the rail foot to work correctly. This precise fit allows the elastic fastener to apply a heavy downward clamping force, pinning the rail tightly to the concrete sleeper and absorbing the severe dynamic vibrations of heavy-haul freight trains.

To help you maintain seamless operations across your network, we have matched our premium crane rail clips with the prominent rail profiles defined by the South African rail standard. Review the table below to find the correct fastening system for your specific rail dimensions.

Frequently Asked Questions (FAQs)

1. Does the 1,067 mm Cape gauge change which rail clip I need to buy?
   No, the track gauge measurement does not dictate your rail clip selection. You must select your rail fasteners based entirely on the base width of your specific rail profile. For example, a 48 kg/m rail features a 127.00 mm base width. You must pair it with a clip engineered to grip that exact 127.00 mm footprint, regardless of the track gauge.
2. Are 32 Series Bolted Clips suitable for the 48 kg/m rail profiles used in South Africa?
   Yes. Track engineers frequently use the 48 kg/m rail for high-traffic mainlines. This rail has a base width of 127.00 mm. The 32 Series Bolted Clips fit this dimension perfectly. They deliver heavy downward pressure to lock the track firmly in place, while allowing maintenance teams to easily adjust the bolts when realigning the track geometry.
3. How do elastic rail clips handle the extreme forces on heavy-haul lines like Sishen-Saldanha?
   Heavy ore trains exert massive lateral and longitudinal forces on the track structure. Our elastic fastening systems counter these stresses by applying a continuous clamping force directly onto the rail flange. This intense friction pins the rail firmly to the concrete sleeper, actively preventing the longitudinal rail creep and lateral shifting caused by heavy braking and acceleration.
4. Do rail clips replace the need for rubber rail pads on South African concrete sleepers?
   No, rail clips and rail pads work together as a complete system. You place the rail pad between the rail base and the concrete sleeper to absorb shock and protect the concrete from abrasive wear. The rail clip then presses down on the rail foot from above, clamping the steel rail tightly against the protective pad to create a secure, vibration-damped track structure.
5. What happens if I install a mismatched rail clip on a 40 kg/m rail track?
   Using a rail clip that fails to match the 114.30 mm base width of a 40 kg/m rail creates an immediate derailment risk. If the clip does not seat flush against the rail foot, it cannot apply the necessary clamping force. Passing trains will quickly shake the unsecured rails loose, causing rapid component wear, track gauge widening, and eventual track failure.
