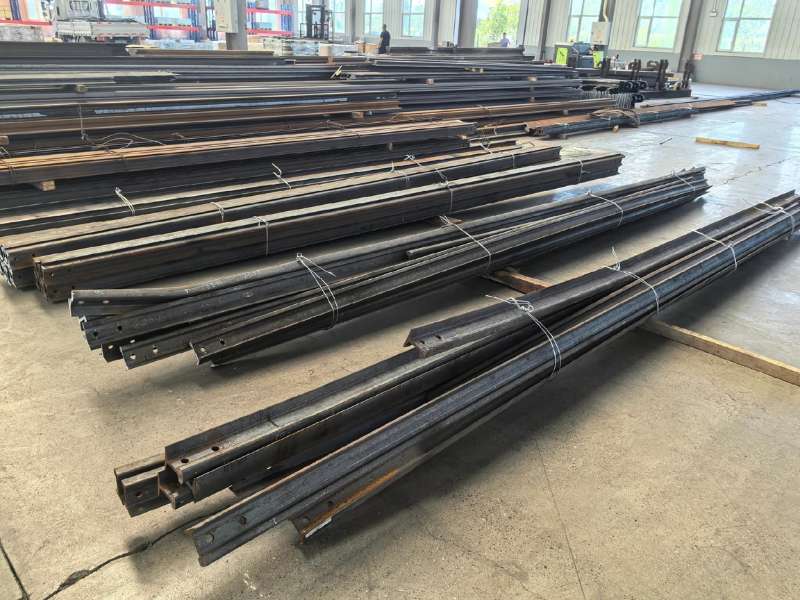

Standard Rail Gauge

The standard rail gauge is the most dominant and widely used track dimension in the world, serving as the foundation for the vast majority of global railway networks. Defined as a spacing of 1,435 mm (4 feet, 8 ½ inches) between the inner faces of the rails, this specific measurement dictates everything from rolling stock design to the interoperability of international rail traffic. This technical guide explores the specifications, engineering advantages, and performance characteristics of the standard rail gauge and its compatibility with various rail profiles and fastening systems.

Specifications of the Standard Rail Gauge

The specification for standard rail gauge is precise. The dimension of 1,435 mm is not measured from the center of the rails but from the inside faces of the rail heads, at a point approximately 14 mm to 16 mm (about 5/8 inch) below the top running surface. This specific location corresponds to the point where the flanges of a train’s wheels make contact with the rail to guide the vehicle, making it the most critical dimension for safe and stable operation.

While 1,435 mm is the nominal dimension, track maintenance standards allow for a small tolerance to account for wear and minor installation variances. However, these tolerances are very tight, often just a few millimeters, to ensure the wheelsets remain properly guided at all times. Exceeding these tolerances can lead to excessive oscillation (hunting) or, in a worst-case scenario, derailment.

Engineering Advantages of the Standard Rail Gauge

The global prevalence of the standard rail gauge is not an accident; it is the result of its well-balanced engineering trade-offs that provide an optimal blend of stability, capacity, and construction economy. Approximately 55% of the world’s railway lines use this gauge, making it the benchmark for modern systems.

1. Optimal Balance of Stability and Speed

The 1,435 mm gauge provides an excellent platform for both high-speed passenger trains and heavy-haul freight operations.

• Stability: It is wide enough to provide a stable base for rolling stock, allowing for high centers of gravity without compromising safety. This enables the design of double-stack container cars and bilevel passenger coaches.
• Speed: The gauge offers superb lateral stability, which is a prerequisite for high-speed travel. The world’s fastest trains, operating at speeds well over 300 km/h (186 mph), run on standard gauge track. The gauge is wide enough to resist the intense lateral forces generated at these speeds, ensuring a smooth and safe ride.

2. Construction and Economic Efficiency

Compared to broader gauges, the standard rail gauge offers significant economic advantages during construction.

• Reduced Footprint: It requires a narrower track bed (formation), less ballast, and shorter sleepers (ties). This reduces the volume of earthworks (cuttings and embankments) and the overall material cost.
• Tighter Curve Radii: Standard gauge track can accommodate tighter curves than broad gauge systems. This is a major advantage in challenging or mountainous terrain, as it reduces the need for expensive tunnels and long bridges, making route alignment more flexible and less costly.

3. Global Interoperability

The most significant modern advantage of the standard rail gauge is interoperability. The widespread adoption of this dimension allows for seamless cross-border rail traffic throughout North America, most of Europe, and across vast networks in China and the Middle East. This facilitates international trade and passenger travel without the need to change trains or bogies at the border, which is a time-consuming and costly process known as a “break of gauge.”

Compatibility with Rail Profiles and Fastening Systems

The standard rail gauge of 1,435 mm is a constant, but the track structure that maintains it can vary significantly based on the rail profile and fastening system used. These components are selected based on the specific demands of the railway line, such as traffic density and axle loads.

Rail Profile Selection

The rail profile defines the cross-sectional shape and weight of the rail. Heavier and taller rail profiles are used on tracks with higher speeds and tonnages to provide greater strength, stiffness, and wear life. The standard gauge can be implemented with any of these profiles.

• AREMA 136RE: A very common heavy-haul rail profile in North America, weighing 136 pounds per yard. Its dimensions, particularly its height (7.31 inches) and head width (3.00 inches), are designed to withstand the stress of 30+ ton axle loads.
• UIC 60E1: The standard profile for high-speed and heavy-traffic mainlines in Europe and much of the world. Weighing 60 kg/m, its tall, robust profile is optimized for stability and ride quality at very high speeds.
• AREMA 115RE: A lighter profile (115 lb/yd) often used for moderate-traffic mainlines, industrial tracks, and transit systems. It provides sufficient strength for these applications while being more economical than heavier sections.

Even though these rails have vastly different dimensions and weights, they are all installed to the same 1,435 mm standard rail gauge.

The Role of Rail Clips and Fastening Systems

The fastening system is what ultimately holds the rails in place and maintains the precise standard rail gauge. Modern elastic fastening systems, which use rail clips to apply a constant clamping force (toe load), are essential.

• Gauge Retention: The system works by securing the rail against a fixed shoulder. This shoulder is either part of a steel tie plate (on wooden sleepers) or cast directly into a concrete sleeper. This rigid shoulder defines the exact position of the rail. The rail clip then locks the rail foot against this shoulder, preventing any lateral movement that would alter the gauge.
• System Compatibility: The components of the fastening system—the clips, pads, and shoulders—are engineered to match the specific rail profile being used. A clip designed for a 115RE rail has a different geometry than one for a 136RE rail because of the differences in the rail foot’s dimensions and thickness. Using mismatched components can lead to insufficient clamping force and a loss of gauge control.
• Resisting Thermal and Dynamic Forces: On track with long welded rail, the fastening system must also provide immense longitudinal resistance to contain the thermal expansion and contraction forces. Furthermore, it must absorb dynamic loads from passing trains. The combination of a robust sleeper and a high-performance fastening system ensures the standard rail gauge is maintained under all static and dynamic conditions.

Recommended Products for Standard Rail Gauge Applications

Maintaining the precise 1,435 mm standard rail gauge requires more than just careful installation; it demands a robust and perfectly matched fastening system. The rail clips you choose must lock the rail firmly against the sleeper shoulder, preventing any lateral movement that could widen the gauge and cause a derailment.

Because standard gauge tracks utilize various rail profiles based on traffic density—from heavy-haul 141 RE to industrial 115 RE rails—you must match the specific dimensions of your rail to the correct rail clip. Using a perfectly sized clip guarantees the proper toe load to hold the track securely under immense dynamic forces. To help you secure your standard gauge infrastructure, we have matched our premium crane rail clips to the most common rail profiles used on 1,435 mm tracks globally.

Review the table below to find the ideal fastening solution based on your rail dimensions.

Frequently Asked Questions (FAQs)

1. How do 9 Series Welded Clips help maintain standard rail gauge on heavy-haul lines?
   Heavy-haul lines using 136 RE or 141 RE rails endure extreme lateral forces from heavy freight cars. The 9 Series Welded Clips weld directly to heavy-duty baseplates, creating a permanent structural bond. This unyielding grip prevents the broad 152.4 mm rail base from shifting sideways, effectively locking the track at the precise 1,435 mm standard gauge.
2. Why do you recommend the 32 Series Bolted Clips for 115 RE rails on standard gauge tracks?
   The 115 RE rail is a cost-effective choice for industrial and transit systems, featuring a 139.7 mm base width. The 32 Series Bolted Clips are precisely engineered to fit this footprint. Furthermore, bolted systems offer excellent lateral adjustability. This allows maintenance crews to easily fine-tune the rail alignment to ensure the 1,435 mm gauge stays within safe, tight tolerances.
3. Can these elastic rail clips resist the dynamic forces of high-speed trains on UIC 60 rails?
   Yes. High-speed passenger lines rely heavily on the robust 60E1 (UIC 60) rail profile. High-speed operations generate severe, continuous vibrations that can loosen standard fasteners. The 9 Series Welded Clips feature premium spring steel and elastomeric noses that absorb vertical impacts while remaining rigidly welded in place. This guarantees the lateral stability required for safe high-speed travel.
4. What happens to the track gauge if I use an incompatible rail clip size?
   The system’s geometry dictates everything. If you install a clip designed for a narrower base onto a wider 136 RE rail, the clip will not sit flush against the rail foot. You will lose the vital clamping force (toe load) needed to hold the track. Without that downward pressure, passing trains will push the rails outward, widening the gauge and creating an immediate derailment hazard.
5. How do these fastening systems handle thermal expansion without losing gauge control?
   Continuous welded rail expands and contracts as the weather changes. This puts enormous longitudinal stress on the track. Both the 32 Series and 9 Series clips function as elastic fastening systems. They apply a constant, heavy toe load to the rail flange, which controls longitudinal rail creep perfectly. At the same time, their rigid housings keep the rail pinned laterally, ensuring the standard gauge remains exactly 1,435 mm all year round.
