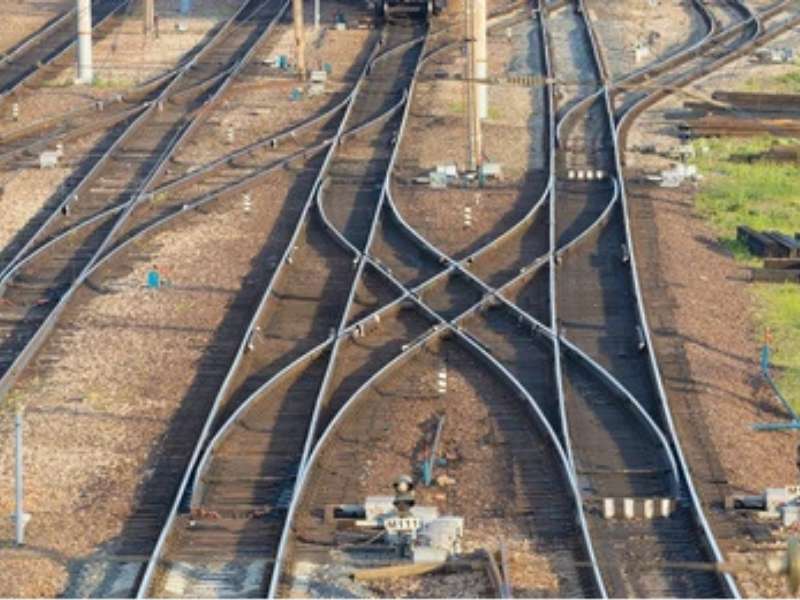

Train Crossover Guide

A train crossover is a critical track arrangement that allows trains to move from one parallel track to another, providing essential operational flexibility for any multi-track railway line. This arrangement is not a single component but rather a precisely engineered system consisting of two railway turnouts and a connecting track section. The proper design and specification of a train crossover are vital for ensuring the safe and efficient movement of rail traffic, especially at high speeds. This technical guide will provide a detailed look at the components, specifications, and performance characteristics of a modern train crossover.

Core Components of a Train Crossover

A train crossover is fundamentally composed of three main parts: two turnouts and the diamond. Each of these contains its own set of complex components that must work in perfect unison.

1. Two Turnouts: A crossover requires two separate turnouts, one on each of the parallel tracks. A turnout is the complete assembly that diverts a train from a straight path onto a diverging one. Each turnout includes:

• Switch Panel: Contains the movable switch point rails that physically direct the train’s wheels.
• Frog Assembly: The component where the rail of the diverging path crosses the rail of the straight path, creating a necessary gap in the running surface.
• Guard Rails: Positioned opposite the frog to ensure the wheelset is guided safely through the flangeway.
• Closure Rails: The curved rails that connect the switch panel to the frog.

1. The Connecting Track (Diamond): This is the section of track that runs diagonally between the two turnouts, connecting the diverging path of the first turnout to the second. The angle of this connecting track is determined by the frog number of the turnouts used.

There are two primary configurations for a train crossover: a facing-point crossover and a trailing-point crossover. From the perspective of a train, a facing-point crossover allows it to choose between staying on its current track or diverging to the adjacent one. A trailing-point crossover allows two paths to merge into one.

Key Specifications for Train Crossover Design

The single most important specification for a train crossover is the frog number (e.g., No. 10, No. 20) of its turnouts. This number dictates the angle of the turnout and, consequently, the geometry and performance of the entire crossover.

• Frog Number: The frog number is the ratio of the frog’s length to its spread. A low frog number (e.g., No. 8, No. 10) results in a sharp, steep angle. This configuration is compact and saves space but restricts speeds significantly. A high frog number (e.g., No. 20, No. 24) results in a shallow, gradual angle. This configuration is much longer but allows trains to pass through the crossover at higher speeds.

The choice of frog number is a critical trade-off between the space available and the required operational speed.

• Low-Speed Crossovers (No. 8 to No. 12): These are typically used in rail yards, industrial areas, and station throats where train speeds are inherently low. Their compact design is ideal for complex track layouts where space is at a premium.
• High-Speed Crossovers (No. 20 and higher): These are essential for mainline operations where maintaining high speeds is crucial for network capacity. A No. 20 crossover, for instance, can allow trains to switch tracks at speeds of up to 80 km/h (50 mph) or more, minimizing delays. High-speed rail lines may use even gentler crossovers, such as No. 32 or higher, equipped with movable-point frogs to allow for speeds exceeding 160 km/h (100 mph).

Advanced Components for High-Performance Crossovers

To facilitate higher speeds and reduce maintenance, modern crossovers incorporate highly advanced frog designs.

Movable-Point Frogs

For high-speed applications, the standard fixed frog with its inherent flangeway gap creates unacceptable impact forces. The solution is a movable-point frog.

• Design: In this design, there is no fixed frog point. Instead, two short, movable point rails are linked to the switch machine. Depending on the route selected (straight or diverging), the points are aligned to create a completely solid, continuous running surface. There is never a gap for the wheel to jump across.
• Performance: By eliminating the impact, movable-point frogs allow for a much smoother and quieter ride. Most importantly, they are the key enabling technology for crossovers that can be traversed at very high speeds, making them a standard component on high-speed rail networks.

Compatibility with Rail Profiles and Fastening Systems

A train crossover must be constructed using rail profiles and components that are compatible with the adjoining track. A crossover is a point of high stress, so the rail sections used within it are often the same as, or even heavier than, the main track.

Rail Profile Integration

The entire crossover, including the switch points, stock rails, closure rails, and frog, must be built from a specific rail profile (e.g., 136RE, 60E1).

• Switch Points: The switch points are machined from a standard rail section, planed down to a taper that allows them to fit snugly against the stock rail. The metallurgy and profile must match the stock rail to ensure a smooth transition and consistent wear.
• Frog Assembly: Frogs are manufactured for specific rail profiles. A frog designed for a 136RE rail will have the correct height and head shape to align perfectly with that rail. Using a mismatched frog would create a dangerous geometric inconsistency. Frogs for heavy-haul crossovers are typically constructed from solid, explosive depth-hardened (EDH) manganese steel to withstand the extreme impact forces.

Fastening Systems and Rail Clips

The fastening system within a crossover has the critical job of maintaining the precise and complex geometry under extreme dynamic loads.

• Rigid Anchorage: The system of rail clips and sleepers must rigidly hold all components in their specified positions. This is especially true for the stock rails and the frog.
• Specialized Components: Crossovers often require specialized fastening components. For instance, the slide chairs that support the switch points must allow for smooth movement while still holding the stock rail firmly in place. Heavy-duty rail clips, often with a higher clamping force (toe load), are specified for the high-stress areas around the frog to resist the lateral forces generated by trains passing through the diverging route.
• Concrete Sleepers (Ties): Modern high-performance crossovers are almost exclusively built on pre-stressed concrete sleepers. These sleepers are often manufactured in unique, application-specific shapes to provide a solid, integrated foundation for the entire turnout and crossover assembly. A single concrete “bearer” can support multiple parts of the turnout, ensuring all components remain in their correct relative positions.

In summary, a train crossover is far more than just a diagonal piece of track. It is a complex, dynamic system where frog numbers dictate speed, advanced components enable performance, and robust rail profiles and fastening systems ensure safety and durability. The proper specification of these elements is what allows a crossover to seamlessly integrate into a modern rail network, providing the operational flexibility that is essential for moving trains efficiently.

Recommended Products for Train Crossover Applications

A train crossover is a highly complex section of track that combines two turnouts and a connecting diamond. Because trains change directions and cross over parallel tracks in these zones, the rails experience intense dynamic forces and lateral thrusts. The fastening system you choose must hold the switch points, closure rails, and frog assemblies rigidly in place.

To maintain this precise geometry, you must pair your rail profile directly to a compatible rail clip. A clip designed for the exact base width and height of your rail delivers the maximum toe load needed to prevent gauge widening. Whether your crossover uses a heavy-haul 141 RE rail or an industrial 115 RE profile, matching the correct fastener ensures safe operations.

Review the table below to find the ideal rail clip solution based on the dimensions of your crossover tracks.

Frequently Asked Questions (FAQs)

1. Why do heavy-haul crossovers using 136 RE rails require 9 Series Welded Clips?
   Freight trains crossing over parallel tracks generate massive lateral forces, particularly at the frog and diamond sections. The 9 Series Welded Clips feature a sturdy lower housing that welds directly to heavy-duty baseplates. This creates a permanent, structural bond that stops the broad 152.4 mm stock rails from shifting out of alignment under extreme axle loads.
2. Are the 32 Series Bolted Clips suitable for 115 RE crossover tracks?
   Yes. Industrial yards and low-speed transit lines frequently build their crossovers with the 115 RE profile. The 32 Series Bolted Clips perfectly match the 139.7 mm base width of these rails. They deliver excellent clamping force while allowing maintenance crews to make slight lateral adjustments to keep the complex crossover geometry aligned.
3. How do elastic rail clips protect the high-impact frog assembly in a crossover?
   The frog is the point where intersecting rails cross, creating high-impact shocks as wheels pass over the gap. Our 9 Series and 32 Series clips use high-grade spring steel and elastomeric noses to absorb these vertical impacts. By dampening the vibrations, the elastic clips prevent the fastening bolts from rattling loose and keep the frog securely anchored to the sleepers.
4. Can the 9 Series Welded Clips handle high-speed crossovers with movable-point frogs?
   Absolutely. High-speed passenger rail networks pair 60E1 rails with movable-point frogs to eliminate track gaps and permit fluid movement. These high speeds generate continuous, severe vibrations. The fully welded base of the 9 Series guarantees that the fasteners will never vibrate loose, providing the rigid lateral stability necessary for safe, high-speed track switching.
5. What happens to the crossover geometry if I install a mismatched rail clip?
   Using a rail clip that does not fit your rail profile destroys your track stability. If you install a clip designed for a narrower track onto a wide 141 RE rail, the clip will not sit flush. You will instantly lose the downward toe load needed to secure the rail. Passing trains will quickly push the rails outward, warping the crossover’s precise geometry and causing a derailment.

Recommended Products Based on the Rail Size Chart

Understanding rail specifications is only the first step in building a safe track. You must also pair your chosen rail profile with a fastening system that matches its exact dimensions. The rail size chart provides the critical measurements—specifically the base width and rail height in millimeters—that dictate which rail clip you need.

Matching the clip perfectly to the rail footprint ensures maximum clamping force, prevents lateral track movement, and keeps the gauge perfectly aligned. Using an improperly sized clip can severely compromise the stability of your railway or crane runway. To help you secure your track infrastructure, we have matched our premium crane rail clips to the most common AREMA, EN, and DIN rail profiles based on their metric sizes.

Review the table below to find the ideal fastening solution for your specific rail dimensions.

Frequently Asked Questions (FAQs)

1. How do I use the rail size chart in mm to select the correct rail clip?
   You should look closely at the base width and height measurements. Rail clips are engineered to fit specific base footprints. The housing of the clip must sit flush against the rail’s flange, and the clip’s elastomeric nose must reach the correct height to apply downward pressure. By matching your rail’s exact millimeter dimensions to the clip’s design tolerances, you guarantee a secure and lasting fit.
2. Why do heavy-duty profiles like the AREMA 136 RE require 9 Series Welded Clips?
   Rails like the AREMA 136 RE carry immense weight and experience extreme dynamic forces from heavy-haul freight trains. The 9 Series Welded Clips match the broad 152.40 mm base of this rail perfectly. Because you weld the base of the clip directly to the steel support structure, it creates an unyielding bond that resists extreme horizontal forces and completely prevents longitudinal creep.
3. Are the 32 Series Bolted Clips compatible with the AREMA 115 RE rail?
   Yes, they pair flawlessly. The AREMA 115 RE has a base width of 139.70 mm, which fits the exact footprint the 32 Series Bolted Clips are designed to hold. These heavy-duty bolted clips provide excellent clamping force while allowing maintenance teams to easily adjust the track laterally if they need to fine-tune the gauge.
4. What makes the 7 Series Welded Clips ideal for DIN A100 crane rails?
   Crane rails look very different from standard railway tracks. If you check the chart, the DIN A100 features a squat profile with a massive 200 mm base width to distribute the concentrated wheel loads of heavy lifting equipment. The 7 Series Welded Clips feature a specialized wide-span design that bridges this broad base, welding securely to the girder to provide the extreme lateral resistance needed for overhead gantry operations.
5. What happens if I install a clip that does not match my rail’s dimensions?
   Using an incompatible clip creates an immediate safety hazard. If a rail clip is designed for a narrower track, it will not seat correctly against a wider rail base. Tightening the fastener will bend or break the clip body. Conversely, if the rail base is too small for the clip, the rubber nose will leave a gap, completely losing its clamping force. Always verify your rail dimensions before ordering fasteners.
